Types Of Products
Battery Brand | VCELL/OEM |
Battery Type | Lithium Ion Battery(NCM) |
Model | VP-NCM18650-48-13.4 |
Nominal Voltage | 48V |
Nominal Capacity | 13.4Ah |
Charge Cut-Off Voltage | 54.6V |
Discharge Cut-Off Voltage | 36.4V |
Max Charge Current | 13A |
Max continuous discharge current | 30A |
Peak discharge current | 40A(<3S ) |
Charge temperature | 0~45℃ |
Discharge temperature | -20~60℃ |
Size | 250*80*69mm Max(With BMS)Or Customized |
Weight | 2.7Kg Approx |
Cycle life | >700 times |
Lifetime | >5 years |
Wire/Connector | TBD |
Battery Brand | VCELL/OEM |
Battery Type | Lithium Ion Battery(NCM) |
Model | 18650-8S1P |
Nominal Voltage | 28.8V |
Nominal Capacity | 2600mAh |
Charge Cut-Off Voltage | 33.6V |
Discharge Cut-Off Voltage | 22V |
Max Charge Current | 2.6A |
Max continuous discharge current | 4A |
Peak discharge current | 7.8A(<3S ) |
Charge temperature | 0~45℃ |
Discharge temperature | -20~60℃ |
Size | 135*39*39mm Max Or Customized |
Weight | 405g Approx |
Cycle life | >700 |
Wire/Connector | TBD |
Battery Brand | VCELL/OEM |
Battery Type | Lithium Iron Phosphate Battery |
Model | VP-LF12-36 |
Nominal Voltage | 12.8V |
Nominal Capacity | 36Ah |
Charge Cut-Off Voltage | 14.6V |
Discharge Cut-Off Voltage | 10.0V |
Max charge current | 36A |
Max continuous discharge current | 36A |
Peak discharge current | 72A(<3S ) |
Charge temperature | 0~45℃ |
Discharge temperature | -20~65℃ |
BMS | Overcharge/discharge, over current, short circuit, temperature protection, cell balance |
Size(L*W*H) | 268*102*80mm Max/Customization |
Weight | 2.1kg Approx |
Cycle life | >2500 |
Wire/Connector | TBD |
Battery Brand | VCELL/OEM |
Battery Type | Lithium Iron Phosphate Battery |
Model | VP-LF12-45 |
Nominal Voltage | 12.8V |
Nominal Capacity | 45Ah |
Charge Cut-Off Voltage | 14.6V |
Discharge Cut-Off Voltage | 10.0V |
Max charge current | 45A |
Max continuous discharge current | 45A |
Peak discharge current | 90A(<3S ) |
Charge temperature | 0~45℃ |
Discharge temperature | -20~65℃ |
BMS | Over charge/discharge, over current, short circuit, temperature protection, cell balance |
Size(L*W*H) | 73*105*305mm Max/Customization |
Weight | 3.8kg Approx |
Cycle life | >2500 |
Wire/Connector | TBD |
Type: | Lithium Iron Phosphate(Lifepo4)Cell |
Model: | LF32 |
Nominal voltage: | 3.2V |
Nominal capacity: | 32Ah |
Charge cut-off voltage: | 3.65V |
Discharge cut-off voltage: | 2.5V |
Standard Charge Current | 16A |
Standard Discharge Current | 16A |
Max continuous discharge current: | 32A |
Peak discharge current: | 64A |
Charge temperature: | 0~55℃ |
Discharge temperature | -20~65℃ |
Internal Resistance | ≤1.5mΩ |
Cycle life: | ≥3500 cycle @1C/1C( at 25℃) |
Weight: | Approx 780g |
Dimension: | 148.3(W)±0.5*26.7±0.5(T)*94.3±0.5(H)mm |
Type: | Lithium Iron Phosphate(Lifepo4)Cell |
Model: | LF50 |
Nominal voltage: | 3.2V |
Nominal capacity: | 50Ah |
Charge cut-off voltage: | 3.65V |
Discharge cut-off voltage: | 2.5V |
Standard Charge Current | 25A |
Max charge current: | 50A |
Max Continuous discharge current: | 50A |
Peak discharge current: | 150A(1-3S) |
Charge temperature: | 0~55℃ |
Discharge temperature | -20~65℃ |
Internal Resistance | ≤2.0mΩ |
Cycle life: | ≥1500 cycles @ 0.5C/0.5C at 25℃ |
Weight: | Approx 1.2Kg |
Dimension(L*W*H): | 148.3±0.5mm*26.7±0.5mm*129.8±0.5mm |
Type: | Lithium Iron Phosphate(Lifepo4)Cell |
Model: | LF50 |
Nominal voltage: | 3.2V |
Nominal capacity: | 50Ah |
Charge cut-off voltage: | 3.65V |
Discharge cut-off voltage: | 2.5V |
Standard Charge Current | 25A |
Max charge current: | 50A |
Max Continuous discharge current: | 50A |
Peak discharge current: | 150A(1-3S) |
Charge temperature: | 0~55℃ |
Discharge temperature | -20~65℃ |
Internal Resistance | ≤0.7mΩ |
Cycle life: | ≥7000 cycles @1C/1C at 25℃ |
Weight: | Approx 1.4Kg |
Dimension(L*W*H): | 135±1mm*29.3±0.7mm*185±1mm |
Battery type | Lithium Iron Phosphate Cell |
Model | LF72 |
Nominal voltage | 3.2V |
Nominal capacity | 72Ah |
Charge cut-off voltage | 3.65V |
Discharge cut-off voltage | 2.5V |
Maximum charging current | 72A |
Maximum Continuous discharging current | 72A |
Maximum Pulse Discharging Current(Long Pulse ) | 144A(<3S) |
Maximum Pulse Discharging Current(Short Pulse) | 216A(When battery temperature is below 50℃,the maximum discharge can last 30s) |
Charge temperature | 0~55℃ |
Discharge temperature | -20~65℃ |
Internal Resistance | ≤0.5mΩ |
Battery Cycle life | ≥3500 cycle @1C/1C(at 25℃) |
Battery Weight | Approx 1.78Kg |
Battery Dimension(L*W*H) | 135.0±1.0*30.0±1.0*220.8±1.0mm |
Type | Lithium Iron Phosphate Cell |
Model | LF80 |
Nominal Voltage | 3.2V |
Nominal Capacity | 80Ah |
Rated Energy | 256Wh |
Charge Cut-off Voltage | 3.65V |
Discharge Cut-off Voltage | 2.5V |
Max Charge Current | 80A |
Max Continuous Discharging current | 80A |
Peak Discharging Current | 160A(1-3S) |
Charge Temperature | 0~55℃ |
Discharge Temperature | -20~65℃ |
Storage Temperature | -20~60℃ |
Internal Resistance | ≤0.5mΩ |
Cycle Life | ≥4000 cycles @0.5C/0.5C |
Weight | Approx 1.68Kg±50g |
Dimension(L*W*H) | 130.3±0.5*36.35±0.5*170.5±0.5mm |
Terminal | M6*10mm |
Type | Lithium Iron Phosphate Cell |
Model | LF90 |
Nominal Voltage | 3.2V |
Nominal Capacity | 90Ah |
Rated Energy | 288Wh |
Charge Cut-off Voltage | 3.65V |
Discharge Cut-off Voltage | 2.5V |
Max Charge Current | 90A |
Max Continuous Discharging current | 90A |
Peak Discharging Current | 180A(1-3S) |
Charge Temperature | 0~55℃ |
Discharge Temperature | -20~65℃ |
Storage Temperature | -20~60℃ |
Internal Resistance | ≤0.5mΩ |
Cycle Life | ≥6000 cycles @1C/1C(at 25℃) |
Weight | Approx 1.994Kg±100g |
Dimension(L*W*H) | 130.3±0.3*36.35±0.5*200.5±0.5mm |
Terminal | M6*10mm |
Battery type: | Lithium Iron Phosphate(Lifepo4)Cell |
Model: | LF102 |
Nominal voltage: | 3.2V |
Nominal capacity: | 100Ah |
Charge cut-off voltage: | 3.65V |
Discharge cut-off voltage: | 2V |
Standard Charge Current | 34A |
Max charge current: | 100A |
Max Continuous discharge current: | 100A |
Peak discharge current: | 300A(30s) |
Charge temperature: | 0~55℃ |
Discharge temperature: | -20~65℃ |
Internal Resistance: | ≤0.5mΩ |
Cycle life: | >4000 cycles @0.5C/0.5C at 25℃ |
Weight: | Approx 2Kg |
Dimension(L*W*H): | 160±0.8mm*50.1±0.5mm*118.5±0.5mm |
Battery type: | Lithium Iron Phosphate(LiFePO4)Cell |
Model: | LF101 |
Nominal voltage: | 3.2V |
Nominal capacity: | 101Ah |
Charge cut-off voltage: | 3.65V |
Discharge cut-off voltage: | 2.5V |
Max charge current: | 101A |
Continuous discharge current: | 101A |
Peak discharge current: | 202A |
Charge temperature: | 0~55℃ |
Discharge temperature | -20~65℃ |
Internal Resistance | ≤0.5mΩ |
Cycle life: | ≥2000 cycles @0.5C/0.5C(at 25℃) |
Weight: | Approx 2.1Kg |
Dimension(L*W*H): | 160.0±0.8*50.1±0.5*118.5±0.5mm |
Battery type: | Lithium Iron Phosphate(LiFePO4)Cell |
Model: | LF105 |
Nominal voltage: | 3.2V |
Nominal capacity: | 105Ah |
Charge cut-off voltage: | 3.65V |
Discharge cut-off voltage: | 2.5V |
Max charge current: | 105A |
Continuous discharge current: | 105A |
Peak discharge current: | 210A |
Charge temperature: | 0~55℃ |
Discharge temperature | -20~65℃ |
Internal Resistance | ≤0.32mΩ |
Cycle life: | ≥4000 cycles @0.5C/0.5C(at 25℃) |
Weight: | Approx 2.0Kg |
Dimension(L*W*H): | 130.3±0.5*36.35±0.5*200.5±0.5mm |
Type | Lithium Iron Phosphate Cell |
Model | LF120 |
Nominal voltage | 3.2V |
Nominal capacity | 120Ah |
Charge cut-off voltage | 3.65V |
Discharge cut-off voltage | 2.5V |
Standard Charge Current | 24A |
Max Charge Current | 120A |
Maximum Continuous discharging current | 120A |
Maximum Peak Discharging Current | 240A |
Charge temperature | 0~55℃ |
Discharge temperature | -20~65℃ |
Storage Temperature | -20~60℃ |
Internal Resistance | ≤0.3mΩ |
Cycle life | ≥6000 cycles @1C/1C(at 25℃) |
Weight | Approx 2.86Kg |
Dimension(L*W*H) | 173.9±0.5*48±0.5*170±0.5mm |
Battery type: | Lithium Iron Phosphate(LiFePO4)Cell |
Model: | LF125 |
Nominal voltage: | 3.22V |
Nominal capacity: | 125Ah |
Charge cut-off voltage: | 3.65V |
Discharge cut-off voltage: | 2.5V |
Standard Charge Current | 62.5A |
Max charge current: | 125A |
Continuous discharge current: | 125A |
Peak discharge current: | 250A |
Charge temperature: | 0~55℃ |
Discharge temperature | -20~65℃ |
Internal Resistance | ≤0.4mΩ |
Cycle life: | ≥4000 cycles @0.5C/0.5C(at 25℃) |
Weight: | Approx 2.4Kg |
Dimension(L*W*H): | 200.7±0.5*33.25±0.5*172.0±0.5mm |

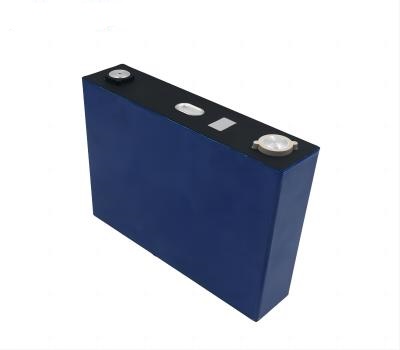

Type | Lithium Iron Phosphate(Lifepo4)Cell |
Model | LF150 |
Nominal voltage | 3.2V |
Nominal capacity | 150Ah |
Charge cut-off voltage | 3.65V |
Discharge cut-off voltage | 2.5V |
Standard Charge Current | 75A |
Max charge current | 150A |
Max Continuous discharge current | 150A |
Peak discharge current | 300A(1-3S) |
Charge temperature | 0~55℃ |
Discharge temperature | -20~65℃ |
Internal Resistance | ≤0.4mΩ |
Cycle life | ≥4000 cycles @0.5C/0.5C at 25℃ |
Battery Weight | Approx 2.9Kg |
Battery Dimension | 200.7±0.5mm*33.25±0.5mm*207±0.5mm |
Terminal | M6*10mm |
Battery type: | Lithium Iron Phosphate(Lifepo4)Cell |
Model: | LF173 |
Nominal voltage: | 3.2V |
Nominal capacity: | 173Ah |
Charge cut-off voltage: | 3.65V |
Discharge cut-off voltage: | 2.5V |
Max charge current: | 173A |
Max Continuous discharge current: | 173A |
Peak discharge current: | 346A(1-3S) |
Charge temperature: | 0~55℃ |
Discharge temperature: | -20~65℃ |
Internal Resistance: | ≤0.25mΩ |
Cycle life: | >4000 cycles @0.5C/0.5C at 25℃ |
Weight: | Approx 3.25Kg |
Dimension(L*W*H): | 173.9±0.5mm*41.06±0.5mm*207.5±0.5mm |
Battery type | Lithium Iron Phosphate Cell |
Model | LF202 |
Nominal voltage | 3.2V |
Nominal capacity | 202Ah |
Charge cut-off voltage | 3.65V |
Discharge cut-off voltage | 2.5V |
Maximum Charge Current | 202A |
Maximum Continuous discharging current | 202A |
Maximum Pulse Discharging Current(Short Pulse) | 606A(<3S) |
Charge temperature | 0~55℃ |
Discharge temperature | -20~65℃ |
Internal Resistance | ≤0.14mΩ |
Cycle life | ≥3500 cycle @1C/1C(at 25℃) |
Weight | Approx 3.84Kg |
Dimension(L*W*H) | 207.3*53.7*173.6mm |
Type | Lithium Iron Phosphate(Lifepo4)Cell |
Model | LF230 |
Nominal voltage | 3.2V |
Nominal capacity | 230Ah |
Charge cut-off voltage | 3.65V |
Discharge cut-off voltage | 2.5V |
Max charge current | 230A |
Max Continuous discharge current | 230A |
Peak discharge current | 460A(1-3S) |
Charge temperature | 0~55℃ |
Discharge temperature | -20~65℃ |
Internal Resistance | ≤0.25mΩ |
Cycle life | ≥4000 cycles @0.5C/0.5C at 25℃ |
Battery Weight | Approx 4.3Kg |
Battery Dimension | 173.9±0.5mm*53.85±0.5mm*207.2±0.5mm |
Terminal | M6*10mm |

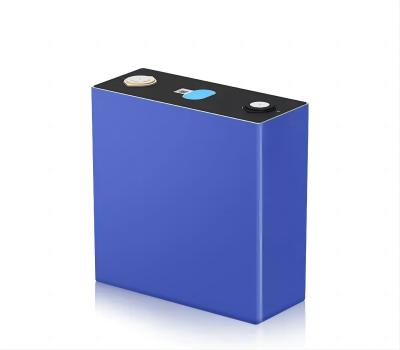

Battery type: | Lithium Iron Phosphate(LiFePO4)Cell |
Model: | LF280 |
Nominal voltage: | 3.2V |
Nominal capacity: | 280Ah |
Charge cut-off voltage: | 3.65V |
Discharge cut-off voltage: | 2.5V |
Standard Charge Current | 140A |
Max charge current: | 280A |
Continuous discharge current: | 280A |
Peak discharge current: | 560A |
Charge temperature: | 0~55℃ |
Discharge temperature | -20~65℃ |
Storage temperature | -20~45℃(within 1 month), 0℃~35℃(within 1 year) |
Internal Resistance | ≤0.25mΩ |
Cycle life: | ≥6000 cycles @0.5C/0.5C(at 25℃) |
Weight: | Approx 5.8Kg |
Dimension(L*W*H): | 173.7±0.5*71.7±0.8*207.2±0.5mm |
Battery type: | Lithium Iron Phosphate(Lifepo4)Cell |
Model: | LF304 |
Nominal voltage: | 3.2V |
Nominal capacity: | 304Ah |
Charge cut-off voltage: | 3.65V |
Discharge cut-off voltage: | 2.5V |
Standard charge current: | 152A |
Standard discharge current: | 152A |
Max continuous discharge current: | 304A |
Peak discharge current: | 608A(1-3S) |
Charge temperature: | 0~55℃ |
Discharge temperature: | -20~65℃ |
Internal Resistance: | ≤0.16mΩ |
Cycle life: | >4000 cycles @0.5C/0.5C at 25℃ |
Weight: | Approx 5.6Kg |
Dimension(L*W*H): | 173.7±0.5mm*71.7±0.8mm*207.2±0.5mm |
Battery type: | Lithium Ion Cell(NMC) |
Model: | NMC30 |
Nominal voltage: | 3.7V |
Nominal capacity: | 30Ah |
Charge cut-off voltage: | 4.2V |
Discharge cut-off voltage: | 2.75V |
Max charge current: | 30A |
Max continuous discharge current: | 90A |
Peak discharge current: | 150A |
Charge temperature: | 0~55℃ |
Discharge temperature: | -20~55℃ |
Storage temperature: | -20~45℃ |
Internal resistance | ≤3.0mΩ |
Cycle life: | >1000 times |
Weight: | Approx 700g |
Dimension: | 21*173*86mm |
Battery type: | Lithium Ion Cell(NCM) |
Model: | NCM37 |
Nominal voltage: | 3.7V |
Nominal capacity: | 37Ah |
Charge cut-off voltage: | 4.2V |
Discharge cut-off voltage: | 2.75V |
Max charge current: | 37A |
Max continuous discharge current: | 111A |
Peak discharge current: | 185A |
Charge temperature: | 0~55℃ |
Discharge temperature: | -20~55℃ |
Internal resistance: | ≤0.8mΩ |
Cycle life: | >2000 times |
Weight: | Approx 0.85±0.05kg |
Dimension(L*W*H): | 148mm*27mm*91mm |
Battery type: | Lithium Ion Cell(NCM) |
Model: | NCM40 |
Nominal voltage: | 3.7V |
Nominal capacity: | 40Ah |
Charge cut-off voltage: | 4.2V |
Discharge cut-off voltage: | 2.75V |
Max charge current: | 40A |
Max continuous discharge current: | 120A |
Peak discharge current: | 200A |
Charge temperature: | 0~55℃ |
Discharge temperature: | -20~55℃ |
Internal resistance: | ≤1.0mΩ |
Cycle life: | >2000 times |
Weight: | Approx 0.85kg |
Dimension(L*W*H): | 148mm*27mm*93mm |
Battery type: | Lithium Ion Cell(NCM) |
Model: | NCM50 |
Nominal voltage: | 3.7V |
Nominal capacity: | 50Ah |
Charge cut-off voltage: | 4.2V |
Discharge cut-off voltage: | 2.75V |
Max charge current: | 50A |
Max continuous discharge current: | 150A |
Peak discharge current: | 250A |
Charge temperature: | 0~55℃ |
Discharge temperature: | -20~55℃ |
Internal resistance: | ≤0.8mΩ |
Cycle life: | >2000 times |
Weight: | Approx 0.95±0.05kg |
Dimension(L*W*H): | 148mm*29mm*103mm |
Battery type: | Lithium Ion Cell(NCM) |
Model: | NCM58 |
Nominal voltage: | 3.7V |
Nominal capacity: | 58Ah |
Energy Density | 244(Wh/kg) |
Charge cut-off voltage: | 4.2V |
Discharge cut-off voltage: | 2.75V |
Standard Charge Current | 29A |
Max charge current: | 58A |
Max Continuous discharge current: | 174A |
Peak discharge current: | 290A(<3S) |
Charge temperature: | -20~55℃ |
Discharge temperature: | -30~55℃ |
Storage temperature | 0~60℃ |
Internal Resistance: | ≤0.6±0.1mΩ |
Cycle life: | >1000 times |
Weight: | Approx 860±15g |
Dimension(L*W*H): | 148.2*26.72±0.2*95.21±0.3mm |
Terminal: | M6*10mm |
Battery type: | Lithium Ion Cell(NCM) |
Model: | NCM60 |
Nominal voltage: | 3.7V |
Nominal capacity: | 60Ah |
Charge cut-off voltage: | 4.2V |
Discharge cut-off voltage: | 2.75V |
Max charge current: | 60A |
Max continuous discharge current: | 180A |
Peak discharge current: | 300A |
Charge temperature: | 0~55℃ |
Discharge temperature: | -20~55℃ |
Internal resistance: | ≤0.75mΩ |
Cycle life: | >2000 times |
Weight: | Approx 0.98±0.05kg |
Dimension(L*W*H): | 148mm*29mm*103mm |
Battery type: | Lithium Ion Cell(NCM) |
Model: | NCM70 |
Nominal voltage: | 3.7V |
Nominal capacity: | 70Ah |
Charge cut-off voltage: | 4.2V |
Discharge cut-off voltage: | 2.75V |
Max charge current: | 70A |
Max continuous discharge current: | 210A |
Peak discharge current: | 350A |
Charge temperature: | 0~55℃ |
Discharge temperature: | -20~55℃ |
Internal resistance: | ≤0.7mΩ |
Cycle life: | >1500 times |
Weight: | Approx 1.25kg |
Dimension(L*W*H): | 148mm*40mm*97mm |
Battery type: | Lithium Ion Cell(NCM) |
Model: | NCM100 |
Nominal voltage: | 3.7V |
Nominal capacity: | 100Ah |
Charge cut-off voltage: | 4.2V |
Discharge cut-off voltage: | 2.75V |
Max charge current: | 50A |
Max continuous discharge current: | 100A |
Peak discharge current: | 300A |
Charge temperature: | 0~55℃ |
Discharge temperature: | -20~55℃ |
Internal resistance: | ≤0.5mΩ |
Cycle life: | >2000 times |
Weight: | Approx 1.45kg |
Dimension(L*W*H): | 172mm*42mm*85mm |
Terminal: | M6*10mm |
Battery type: | Lithium Ion Cell(NCM) |
Model: | NCM114 |
Nominal voltage: | 3.7V |
Nominal capacity: | 114.2Ah |
Energy Density | 242(Wh/kg) |
Charge cut-off voltage: | 4.2V |
Discharge cut-off voltage: | 2.75V |
Standard Charge Current | 57A |
Max charge current: | 114A |
Max Continuous discharge current: | 342A |
Peak discharge current: | 570A(<3S) |
Charge temperature: | 0~45℃ |
Discharge temperature: | -20~60℃ |
Storage temperature | 0~60℃ |
Internal Resistance: | ≤0.57±0.1mΩ |
Cycle life: | >1500 times |
Weight: | Approx 1.8Kg |
Dimension(L*W*H): | 301.8±0.5*26.68±0.2*94.95±0.35mm |
Terminal: | M6*10mm |
Battery type: | Lithium Ion Cell(NCM) |
Model: | NCM116 |
Nominal voltage: | 3.7V |
Nominal capacity: | 116Ah |
Charge cut-off voltage: | 4.2V |
Discharge cut-off voltage: | 2.75V |
Max charge current: | 116A |
Max continuous discharge current: | 348A |
Peak discharge current: | 580A |
Charge temperature: | 0~45℃ |
Discharge temperature: | -20~60℃ |
Internal resistance: | ≤0.8mΩ |
Cycle life: | >1000 cycles |
Weight: | Approx 1.72±0.15kg |
Dimension(L*W*H): | 299.7±1.5mm*26.5mm*91mm |
Battery type: | Lithium Ion Cell(NCM) |
Model: | NCM120 |
Nominal voltage: | 3.7V |
Nominal capacity: | 120Ah |
Charge cut-off voltage: | 4.2V |
Discharge cut-off voltage: | 2.75V |
Max charge current: | 120A |
Max continuous discharge current: | 360A |
Peak discharge current: | 600A |
Charge temperature: | 0~45℃ |
Discharge temperature: | -20~60℃ |
Internal resistance: | ≤0.5mΩ |
Cycle life: | >2000 cycles |
Weight: | Approx 2.14±0.05kg |
Dimension(L*W*H): | 220mm*33mm*102mm |
Terminal: | M6*10mm |

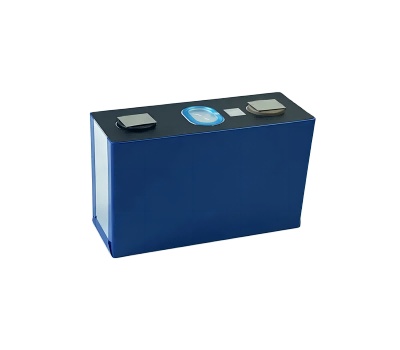

Battery type: | Lithium Ion Cell(NCM) |
Model: | NCM132 |
Nominal voltage: | 3.7V |
Nominal capacity: | 132Ah |
Charge cut-off voltage: | 4.2V |
Discharge cut-off voltage: | 2.75V |
Max charge current: | 132A |
Max continuous discharge current: | 396A |
Peak discharge current: | 660A |
Charge temperature: | 0~45℃ |
Discharge temperature: | -20~60℃ |
Internal resistance: | ≤0.4mΩ |
Cycle life: | >2000 cycles |
Weight: | Approx 1.88±0.15kg |
Dimension(L*W*H): | 146mm*56±1.5mm*103mm |
Battery type: | Lithium Ion Cell(NCM) |
Model: | NCM140 |
Nominal voltage: | 3.7V |
Nominal capacity: | 140Ah |
Charge cut-off voltage: | 4.2V |
Discharge cut-off voltage: | 2.75V |
Max charge current: | 140A |
Max continuous discharge current: | 420A |
Peak discharge current: | 700A |
Charge temperature: | 0~45℃ |
Discharge temperature: | -20~60℃ |
Internal resistance: | ≤0.7mΩ |
Cycle life: | >2000 cycles |
Weight: | Approx 2.14±0.05kg |
Dimension(L*W*H): | 303mm*31mm*100mm |
Battery type: | Lithium Ion Cell(NCM) |
Model: | NCM150 |
Nominal voltage: | 3.7V |
Nominal capacity: | 150Ah |
Charge cut-off voltage: | 4.2V |
Discharge cut-off voltage: | 2.75V |
Max charge current: | 150A |
Max continuous discharge current: | 450A |
Peak discharge current: | 750A |
Charge temperature: | 0~45℃ |
Discharge temperature: | -20~60℃ |
Internal resistance: | ≤0.35mΩ |
Cycle life: | >2000 cycles |
Weight: | Approx 2.5±0.05kg |
Dimension(L*W*H): | 148mm*79mm*97mm |
Battery type: | Lithium Ion Cell(NCM) |
Model: | NCM166 |
Nominal voltage: | 3.7V |
Nominal capacity: | 166Ah |
Energy Density | 251(Wh/kg) |
Charge cut-off voltage: | 4.2V |
Discharge cut-off voltage: | 2.75V |
Standard Charge Current | 83A |
Max charge current: | 166A |
Max Continuous discharge current: | 498A |
Peak discharge current: | 830A(<3S) |
Charge temperature: | -20~55℃ |
Discharge temperature: | -30~55℃ |
Storage temperature | 0~60℃ |
Internal Resistance: | ≤0.3mΩ |
Cycle life: | >1000 times |
Weight: | Approx 2.5Kg |
Dimension(L*W*H): | 112.7±0.4*50.7±0.3*194.2±0.3mm |
Battery type: | Lithium Ion Cell(NCM) |
Model: | NCM180 |
Nominal voltage: | 3.7V |
Nominal capacity: | 180Ah |
Charge cut-off voltage: | 4.2V |
Discharge cut-off voltage: | 2.75V |
Max charge current: | 180A |
Max continuous discharge current: | 540A |
Peak discharge current: | 900A |
Charge temperature: | 0~45℃ |
Discharge temperature: | -20~60℃ |
Internal resistance: | ≤0.6mΩ |
Cycle life: | >2000 cycles |
Weight: | Approx 2.7±0.05kg |
Dimension(L*W*H): | 148mm*80mm*105mm |
Battery type: | Lithium Ion Cell(NCM) |
Model: | NCM199 |
Nominal voltage: | 3.7V |
Nominal capacity: | 199Ah |
Charge cut-off voltage: | 4.2V |
Discharge cut-off voltage: | 2.75V |
Max charge current: | 199A |
Max continuous discharge current: | 597A |
Peak discharge current: | 995A |
Charge temperature: | 0~45℃ |
Discharge temperature: | -20~60℃ |
Internal resistance: | ≤0.25mΩ |
Cycle life: | >2000 cycles |
Weight: | Approx 2.7±0.06kg |
Dimension(L*W*H): | 148mm*79mm*106mm |
Battery type: | Lithium Ion Cell(NCM) |
Model: | NCM215 |
Nominal voltage: | 3.7V |
Nominal capacity: | 215Ah |
Charge cut-off voltage: | 4.2V |
Discharge cut-off voltage: | 2.75V |
Max charge current: | 215A |
Max continuous discharge current: | 645A |
Peak discharge current: | 1075A |
Charge temperature: | 0~45℃ |
Discharge temperature: | -20~60℃ |
Internal resistance: | ≤0.35mΩ |
Cycle life: | >2000 cycles |
Weight: | Approx 2.92kg |
Dimension(L*W*H): | 201mm*34mm*186mm |
Battery type: | Lithium Ion Cell(NCM) |
Model: | NCM234 |
Nominal voltage: | 3.7V |
Nominal capacity: | 234Ah |
Charge cut-off voltage: | 4.2V |
Discharge cut-off voltage: | 2.75V |
Max charge current: | 234A |
Max continuous discharge current: | 702A |
Peak discharge current: | 1170A |
Charge temperature: | 0~45℃ |
Discharge temperature: | -20~60℃ |
Internal resistance: | ≤0.4mΩ |
Cycle life: | >2000 cycles |
Weight: | Approx 3.45±0.05kg |
Dimension(L*W*H): | 202mm*67mm*103mm |
Battery type: | Lithium Ion Battery Cell(NCM) |
Model: | NCM248 |
Nominal voltage: | 3.7V |
Nominal capacity: | 248Ah |
Charge cut-off voltage: | 4.2V |
Discharge cut-off voltage: | 2.75V |
Standard charging current | 50A |
Maximum charge current: | 248A |
Max continuous discharge current: | 744A |
Peak discharge current | 1240A |
Charge temperature: | 0~55℃ |
Battery Discharge temperature | -20~60℃ |
Internal resistance: | ≤0.3mΩ |
Battery Cycle life: | ≥2000 times at 25℃ |
Battery Weight: | Approx 3.70±0.05kg |
Battery Dimension: | 220*67*115mm |
Battery type: | Lithium Ion Cell(NCM) |
Model: | NCM256 |
Nominal voltage: | 3.7V |
Nominal capacity: | 256Ah |
Charge cut-off voltage: | 4.2V |
Discharge cut-off voltage: | 2.75V |
Max charge current: | 256A |
Max continuous discharge current: | 768A |
Peak discharge current: | 1280A |
Charge temperature: | 0~45℃ |
Discharge temperature: | -20~60℃ |
Internal resistance: | ≤0.4mΩ |
Cycle life: | >2000 cycles at 25℃ |
Weight: | Approx 3.45±0.05kg |
Dimension(L*W*H): | 300mm*37mm*127mm |
Battery type: | Lithium Ion Cell(NCM) |
Model: | NCM280 |
Nominal voltage: | 3.7V |
Nominal capacity: | 280Ah |
Charge cut-off voltage: | 4.2V |
Discharge cut-off voltage: | 2.75V |
Max charge current: | 280A |
Max continuous discharge current: | 840A |
Peak discharge current: | 1400A |
Charge temperature: | 0~45℃ |
Discharge temperature: | -20~60℃ |
Internal resistance: | ≤0.3mΩ |
Cycle life: | >2000 cycles at 25℃ |
Weight: | Approx 3.45±0.05kg |
Dimension(L*W*H): | 250mm*68mm*115mm |
Battery Brand | VCELL/OEM |
Battery Type | Li-Ion Battery |
Model | VP52-40 |
Nominal Voltage | 52V |
Nominal Capacity | 40Ah |
Cell Combination | 14S8P |
Charge Cut-Off Voltage | 58.8V |
Discharge Cut-Off Voltage | 39.2V |
Max Charge Current | 5A |
BMS | 40A |
Fit For Motor | 500W/750W/1000W/1500W |
Charge temperature | 0~45℃ |
Discharge temperature | -20~65℃ |
Size | 310*177*75mm/Customized |
Weight | Approx 8.45Kg |
Cycle life | ≥800 cycles @80%DOD |
Battery Brand | VCELL/OEM |
Battery Type | Li-Ion Battery |
Model | VP52-8 |
Nominal Voltage | 52V |
Nominal Capacity | 8Ah |
Cell Combination | 14S2P |
Charge Cut-Off Voltage | 58.8V |
Discharge Cut-Off Voltage | 39.2V |
Charge Current | 2A |
BMS | 30A |
Fit For Motor | 500W/750W/1000W |
Charge temperature | 0~45℃ |
Discharge temperature | -20~65℃ |
Size | 310x55x75mm/Customized |
Weight | Approx 2.1Kg |
Cycle life | ≥800 cycles @80%DOD |
Battery Brand | VCELL/OEM |
Battery Type | Li-Ion Battery |
Model | VP52-25 |
Nominal Voltage | 52V |
Nominal Capacity | 25Ah |
Cell Combination | 14S10P |
Charge Cut-Off Voltage | 58.8V |
Discharge Cut-Off Voltage | 39.2V |
Charge Current | 3A |
BMS | 50A |
Fit For Motor | 500W/750W/1000W/1200W |
Charge temperature | 0~45℃ |
Discharge temperature | -20~65℃ |
Size | 260*190*70mm/Customized |
Weight | Approx 7.1Kg |
Cycle life | ≥800 cycles @80%DOD |
Battery Brand | VCELL/OEM |
Battery Type | Li-Ion Battery |
Model | VP52-15 |
Nominal Voltage | 52V |
Nominal Capacity | 15Ah |
Cell Combination | 14S6P |
Charge Cut-Off Voltage | 58.8V |
Discharge Cut-Off Voltage | 39.2V |
Charge Current | 2A |
Continuous Discharge Current | 30A |
Peak Discharge Current | 90A |
Fit For Motor | 500W/750W/1000W/1200W |
Charge temperature | 0~45℃ |
Discharge temperature | -20~65℃ |
Size | 275*120*70mm/Customized |
Weight | Approx 4.2Kg |
Cycle life | ≥800 cycles @80%DOD |
Battery Brand | VCELL/OEM |
Battery Type | Li-Ion Battery |
Model | VP52-12 |
Nominal Voltage | 52V |
Nominal Capacity | 12Ah |
Cell Combination | 14S4P |
Charge Cut-Off Voltage | 58.8V |
Discharge Cut-Off Voltage | 39.2V |
Charge Current | 2A |
Continuous Discharge Current | 25A |
Peak Discharge Current | 50A |
Fit For Motor | 500W/750W/1000W |
Charge temperature | 0~45℃ |
Discharge temperature | -20~65℃ |
Size | 260*85*68mm/Customized |
Weight | Approx 2.9Kg |
Cycle life | ≥800 cycles @80%DOD |
Battery Brand | VCELL/OEM |
Battery Type | Li-Ion Battery |
Model | VP52-17.5 |
Nominal Voltage | 52V |
Nominal Capacity | 17.5Ah |
Cell Combination | 14S5P |
Charge Cut-Off Voltage | 58.8V |
Discharge Cut-Off Voltage | 39.2V |
Charge Current | 2A |
Continouns Discharge Current | 30A |
Peak Discharge Current | 90A |
Fit For Motor | 500W/750W/1000W |
Charge temperature | 0~45℃ |
Discharge temperature | -20~65℃ |
Size | 235*200*145*70*70*45mm/Customized |
Weight | Approx 3.55Kg |
Cycle life | ≥800 cycles @80%DOD |
Battery Brand | VCELL/OEM |
Battery Type | Li-Ion Battery |
Model | VP52-20 |
Nominal Voltage | 52V |
Nominal Capacity | 20Ah |
Cell Combination | 14S8P |
Charge Cut-Off Voltage | 58.8V |
Discharge Cut-Off Voltage | 39.2V |
Standard Charge Current | 2A |
Max charge current | 3A |
Continouns Discharge Current | 50A |
Fit For Motor | 500W/750W/1000W/1500W |
Charge temperature | 0~45℃ |
Discharge temperature | -20~65℃ |
Size | 280*150*70mm/Customized |
Weight | Approx 5.8Kg |
Cycle life | ≥800 cycles @80%DOD |
Battery Brand | VCELL/OEM |
Battery Type | Li-Ion Battery |
Model | VP52-30 |
Nominal Voltage | 52V |
Nominal Capacity | 30Ah |
Cell Combination | 14S10P |
Charge Cut-Off Voltage | 58.8V |
Discharge Cut-Off Voltage | 39.2V |
Standard Charge Current | 2A |
Max charge current | 5A |
Continouns Discharge Current | 30A |
Peak Discharge Current | 100A |
Fit For Motor | 48V 500W 750W 1000W |
Charge temperature | 0~45℃ |
Discharge temperature | -20~65℃ |
Size | 280*190*70mm/Customized |
Weight | Approx 7Kg |
Cycle life | ≥800 cycles @80%DOD |
Battery Brand | VCELL/OEM |
Battery Type | Li-Ion Battery |
Model | VP36-18 |
Nominal Voltage | 36V |
Nominal Capacity | 18Ah |
Cell Combination | 10S6P |
Charge Cut-Off Voltage | 42V |
Discharge Cut-Off Voltage | 36.4V |
Charge Current | 2A |
BMS | 20A |
Fit For Motor | 36V 250W 350W 500W |
Charge temperature | 0~45℃ |
Discharge temperature | -20~65℃ |
Size | 190*116*70mm/Customized |
Weight | Approx 3.1Kg |
Cycle life | ≥800 cycles @80%DOD |
Battery Brand | VCELL/OEM |
Battery Type | Li-Ion Battery |
Model | VP60-12 |
Nominal Voltage | 60V |
Nominal Capacity | 12Ah |
Cell Combination | 16S6P |
Charge Cut-Off Voltage | 67.2V |
Discharge Cut-Off Voltage | 44V |
Standard Charge Current | 2A |
Max Charge Current | 5A |
Continuous Discharge Current | 30A |
Peak Discharge Current | 60A |
Charge temperature | 0~45℃ |
Discharge temperature | -20~65℃ |
Size | 310*130*70mm/Customized |
Weight | Approx 4.8Kg |
Cycle life | ≥800 cycles @80%DOD |
Battery Brand | VCELL/OEM |
Battery Type | LiFePo4 Battery |
Model | VP-LF60-120 |
Nominal Voltage | 60V |
Nominal Capacity | 120Ah |
Charge Cut-Off Voltage | 79.8V |
Discharge Cut-Off Voltage | 51.3V |
Charge current | 20A |
Max continuous discharge current | 100A |
Peak discharge current | 200A(<3S ) |
Charge temperature | 0~45℃ |
Discharge temperature | -20~65℃ |
BMS | Overcharge/discharge, over current, short circuit, temperature protection, cell balance |
Size(D*H) | 220*500*650mm |
Weight | 80Kg Approx |
Cycle life | >2500 |
Battery Brand | VCELL/OEM |
Battery Type | LiFePO4 Battery |
Model | VP-LF72-140 |
Nominal Voltage | 72V |
Nominal Capacity | 140.0Ah |
Charge Cut-Off Voltage | 84V |
Discharge Cut-Off Voltage | 56V |
Standard charge current | 50A |
Continuous discharge current | 140A |
Peak discharge current | 250A(<3S ) |
Charge temperature | 0~45℃ |
Discharge temperature | -20~60℃ |
BMS | Overcharge/discharge, over current, short circuit, temperature protection, cell balance |
Communication Ports | RS485/232, CANBUS |
Size(D*H) | 600*482.6*308mm |
Weight | 96Kg Approx |
Cycle life | >2500 |
Battery Brand | VCELL/OEM |
Battery Type | LiFePo4 Battery |
Model | VP-LF24-100 |
Nominal Voltage | 24V |
Nominal Capacity | 100Ah |
Charge Cut-Off Voltage | 29.2V |
Discharge Cut-Off Voltage | 17.5V |
Charge current | 10A |
Max continuous discharge current | 100A |
Peak discharge current | 200A(<3S ) |
Motor power | 2400W |
Charge temperature | 0~45℃ |
Discharge temperature | -20~65℃ |
BMS | Overcharge/discharge, over current, short circuit, temperature protection, cell balance |
Communication | RS485/232, CANBUS, SMBUS, I2C |
Size(D*H) | 290*200*350mm |
Weight | 23Kg Approx |
Cycle life | >2500 |
Wire/Connector | TBD |
Battery Brand | VCELL/OEM |
Battery Type | Lithium Ion Battery(NCM) |
Model | 18650-7S3P |
Nominal Voltage | 24V |
Nominal Capacity | 7800mAh |
Charge Cut-Off Voltage | 29.4V |
Discharge Cut-Off Voltage | 19.6V |
Charge current | 2A |
Max continuous discharge current | 15A |
Peak discharge current | 25A(<3S ) |
Charge temperature | 0~45℃ |
Discharge temperature | -20~60℃ |
BMS | Overcharge/discharge, over current, short circuit, temperature protection, cell balance |
Size | 132*58*68mm Max |
Weight | 1.1Kg Approx |
Cycle life | >700 |
Wire/Connector | TBD |
Battery Brand | VCELL/OEM |
Battery Type | LiFePo4 Battery |
Model | VP-LF48-23 |
Nominal Voltage | 51.2V |
Nominal Capacity | 23.1Ah |
Cell Combination | 16S7P |
Charge Cut-Off Voltage | 58.4V |
Discharge Cut-Off Voltage | 40.0V |
Standard Charge Current | 2A |
Max Charge Current | 5A |
Continuous Discharge Current | 30A |
Peak Discharge Current | 90A |
Matching Power | 250W-1200W |
Charge temperature | 0~45℃ |
Discharge temperature | -20~65℃ |
BMS | Overcharge/discharge, over current, short circuit, temperature protection, cell balance |
Size | 440*205*70mm Or customized |
Weight | Approx 11Kg |
Cycle life | ≥800 cycles @80%DOD |
Battery Brand | VCELL/OEM |
Battery Type | Lithium Ion Battery(NCM) |
Model | 18650-13S2P |
Nominal Voltage | 48V |
Nominal Capacity | 6Ah |
Charge Cut-Off Voltage | 54.6V |
Discharge Cut-Off Voltage | 36.4V |
Charge current | 2A |
Max continuous discharge current | 25A |
Peak discharge current | 45A(<3S ) |
Motor Power | 200W/350W/500W/750W |
Charge temperature | 0~45℃ |
Discharge temperature | -20~60℃ |
BMS | Over charge/discharge, over current, short circuit, temperature protection, cell balance |
Size | 245*40*67mm Max Or Customized |
Weight | 1.35Kg Approx |
Cycle life | >700 |
Wire/Connector | TBD |
Battery Brand | VCELL/OEM |
Battery Type | Li-Ion Battery |
Model | VP48-27 |
Nominal Voltage | 48V |
Nominal Capacity | 27.2Ah |
Cell Combination | 13S8P |
Charge Cut-Off Voltage | 54.6V |
Discharge Cut-Off Voltage | 36.4V |
Standard Charge Current | 2A |
Max Charge Current | 5A |
Continuous Discharge Current | 30A |
Peak Discharge Current | 90A |
Motor Power | 500W-1000W |
Charge temperature | 0~45℃ |
Discharge temperature | -20~65℃ |
BMS | Overcharge/discharge, over current, short circuit, temperature protection, cell balance |
Size | 70*170*250mm/Customized |
Weight | Approx 5.25Kg |
Cycle life | ≥800 cycles @80%DOD |
Battery Brand | VCELL/OEM |
Battery Type | Lithium Ion Battery(NCM) |
Model | 18650-7S2P |
Nominal Voltage | 24V |
Nominal Capacity | 5200mAh |
Charge Cut-Off Voltage | 29.4V |
Discharge Cut-Off Voltage | 19.6V |
Standard charge current | 2A |
Max charge current | 3A |
Standard discharge current | 2A |
Max continuous discharge current | 7.5A |
Peak discharge current | 15A(<3S ) |
Charge temperature | 0~45℃ |
Discharge temperature | -20~60℃ |
BMS | Over charge/discharge, over current, short circuit, temperature protection, cell balance |
Size(D*H) | 132*39*68mm Max Or Customized |
Weight | 705g Approx |
Cycle life | >700 |
Wire/Connector | TBD |
Battery Brand | VCELL/OEM |
Battery Type | Li-Ion Battery |
Model | VP60-18 |
Nominal Voltage | 60V |
Nominal Capacity | 18Ah |
Cell Combination | 16S9P |
Charge Cut-Off Voltage | 67.2V |
Discharge Cut-Off Voltage | 48.0V |
Standard Charge Current | 2A |
Max Charge Current | 5A |
Continuous Discharge Current | 30A |
Peak Discharge Current | 90A |
Charge temperature | 0~45℃ |
Discharge temperature | -20~65℃ |
BMS | Overcharge/discharge, over current, short circuit, temperature protection, cell balance |
Size | 355x310x200x90x55x70mm (+/-5mm)/Customized |
Weight | Approx 7Kg |
Cycle life | ≥800 cycles @80%DOD |
Battery Brand | VCELL/OEM |
Battery Type | Li-Ion Battery |
Model | VP48-34 |
Nominal Voltage | 48V |
Nominal Capacity | 34Ah |
Cell Combination | 13S10P |
Charge Cut-Off Voltage | 54.6V |
Discharge Cut-Off Voltage | 39.0V |
Standard Charge Current | 2A |
Max Charge Current | 5A |
Continuous Discharge Current | 50A |
Peak Discharge Current | 150A |
Matching Power | 750W-2000W |
Charge temperature | 0~45℃ |
Discharge temperature | -20~65℃ |
BMS | Overcharge/discharge, over current, short circuit, temperature protection, cell balance |
Size | 330x310x200x70x45x70mm(+/-5mm) |
Weight | Approx 6.5Kg |
Cycle life | ≥800 cycles @80%DOD |
Battery Brand | VCELL/OEM |
Battery Type | Li-Ion Battery |
Model | VP72-68 |
Nominal Voltage | 72V |
Nominal Capacity | 68Ah |
Charge Cut-Off Voltage | 84V |
Discharge Cut-Off Voltage | 60V |
Standard charge Current | 5A |
Max Charge Current | 10A |
Continuous Discharge Current | 120A |
Peak Discharge Current | 250A(<3S) |
Fit motor power | 1000W-7000W |
Charge temperature | 0~45℃ |
Discharge temperature | -20~65℃ |
Battery Protection function | Overcharge/discharge, over current, short circuit, temperature protection, cell balance |
Communication | RS485/232, CANBUS, SMBUS, I2C |
Size | 400mm*245mm*150mm |
Weight | Approx.23Kg |
Cycle life | ≥800 cycles @80%DOD |
Battery Brand | VCELL/OEM |
Battery Type | Li-Ion Battery |
Model | VP60-48 |
Nominal Voltage | 60V |
Nominal Capacity | 48Ah |
Charge Cut-Off Voltage | 67.2V |
Discharge Cut-Off Voltage | 48.0V |
Standard charge Current | 2A |
Max Charge Current | 5A |
Continuous Discharge Current | 50A |
Peak Discharge Current | 150A(<3S) |
Fit motor power | 500W-2500W(MAX) |
Charge temperature | 0~45℃ |
Discharge temperature | -20~65℃ |
Battery Protection function | Overcharge/discharge, over current, short circuit, temperature protection, cell balance |
Communication | RS485/232, CANBUS, SMBUS, I2C |
Size | 320*200*145mm |
Weight | Approx.14.8Kg |
Cycle life | ≥800 cycles @80%DOD |
Battery Brand | VCELL/OEM |
Battery Type | Li-Ion Battery |
Model | VP60-55 |
Nominal Voltage | 60V |
Nominal Capacity | 54.4Ah |
Charge Cut-Off Voltage | 67.2V |
Discharge Cut-Off Voltage | 48V |
Standard Charge Current | 2A |
Max Charge Current | 5A |
Continuous Discharge Current | 50A |
Peak Discharge Current | 150A |
Matching Power | 2500W |
Charge temperature | 0~45℃ |
Discharge temperature | -20~65℃ |
BMS | Overcharge/discharge, over current, short circuit, temperature protection, cell balance |
Size | 320*200*145mm |
Weight | Approx.15Kg |
Cycle life | ≥800 cycles @80%DOD |
Battery Brand | VCELL/OEM |
Battery Type | Li-Ion Battery |
Model | VP24-13 |
Nominal Voltage | 24V |
Nominal Capacity | 13Ah |
Cell Combination | 7S5P |
Charge Cut-Off Voltage | 29.4V |
Discharge Cut-Off Voltage | 19.25V |
Standard Charge Current | 2A |
Max Charge Current | 5A |
Continuous Discharge Current | 15A |
Peak Discharge Current | 45A |
Matching Power | 250W/350W |
Charge temperature | 0~45℃ |
Discharge temperature | -20~65℃ |
BMS | Overcharge/discharge, over current, short circuit, temperature protection, cell balance |
Size | 145*100*70mm/Customized |
Weight | Approx 1.8Kg |
Cycle life | ≥800 cycles @80%DOD |
Battery Brand | VCELL/OEM |
Battery Type | Li-Ion Battery |
Model | VP72-18 |
Nominal Voltage | 72V |
Nominal Capacity | 18.2Ah |
Cell Combination | 20S7P |
Charge Cut-Off Voltage | 84.0V |
Discharge Cut-Off Voltage | 60.0V |
Standard Charge Current | 2A |
Max Charge Current | 5A |
Continuous Discharge Current | 30A |
Peak Discharge Current | 90A |
Matching Power | 250W-2000W |
Charge temperature | 0~45℃ |
Discharge temperature | -20~65℃ |
BMS | Overcharge/discharge, over current, short circuit, temperature protection, cell balance |
Size | 380*145*70mm/Customized |
Weight | Approx.6Kg |
Cycle life | ≥800 cycles @80%DOD |
Battery Brand | VCELL/OEM |
Battery Type | Lifepo4 Battery |
Model | VP36-24 |
Nominal Voltage | 36V |
Nominal Capacity | 24Ah |
Cell Combination | 12S4P |
Charge Cut-Off Voltage | 43.8V |
Discharge Cut-Off Voltage | 30.0V |
Standard Charge Current | 2A |
Max Charge Current | 5A |
Continuous Discharge Current | 30A |
Peak Discharge Current | 90A |
Matching Power | 250W/350W/500W |
Charge temperature | 0~45℃ |
Discharge temperature | -20~65℃ |
BMS | Overcharge/discharge, over current, short circuit, temperature protection, cell balance |
Size | 400x140x75mm/Customized |
Weight | Approx.3.4Kg |
Cycle life | ≥800 cycles @80%DOD |
Battery Brand | VCELL/OEM |
Battery Type | Li-Ion Battery |
Model | VP48-18 |
Nominal Voltage | 48V |
Nominal Capacity | 18Ah |
Cell Combination | 13S7P |
Charge Cut-Off Voltage | 54.6V |
Discharge Cut-Off Voltage | 36.4V |
Standard Charge Current | 2A |
Max Charge Current | 5A |
Continuous Discharge Current | 30A |
Peak Discharge Current | 90A |
Matching Power | 500W/750W/1000W |
Charge temperature | 0~45℃ |
Discharge temperature | -20~65℃ |
BMS | Overcharge/discharge, over current, short circuit, temperature protection, cell balance |
Size | 255x135x70mm/Customized |
Weight | Approx.4.5Kg |
Cycle life | ≥800 cycles @80%DOD |
Battery Brand | VCELL/OEM |
Battery Type | Lithium Iron Phosphate Battery |
Model | VP-LF48-150 |
Nominal Voltage | 51.2V |
Nominal Capacity | 150Ah |
Charge Cut-Off Voltage | 57.6V |
Discharge Cut-Off Voltage | 44.8V |
Max charge current | 50A |
Max continuous discharge current | 100A |
Peak discharge current | 200A(<3S ) |
Charge temperature | 0~45℃ |
Discharge temperature | -20~65℃ |
BMS | Over charge/discharge, over current, short circuit, temperature protection, cell balance |
Communication | RS485/232, CANBUS, SMBUS, I2C |
Size(D*H) | 600*275*290mm |
Weight | 57Kg Approx |
Cycle life | >2500 |
Wire/Connector | TBD |
Battery Brand | VCELL/OEM |
Battery Type | Li-Ion Battery |
Model | VP36-60 |
Nominal Voltage | 36V |
Nominal Capacity | 60Ah |
Place of Origin: | China |
MOQ | 10PCS |
Delivery Time: | Within 20 days |
Packaging Details: | 1pcs per carton |
Payment Terms: | L/C, T/T, Paypal |
Supply Ability: | 100 pcs per day |
Battery Brand | VCELL/OEM |
Battery Type | Li-Ion Battery |
Model | VP48-45 |
Nominal Voltage | 48V |
Nominal Capacity | 45Ah |
Place of Origin: | China |
MOQ | 10PCS |
Delivery Time: | Within 20 days |
Packaging Details: | 1pcs per carton |
Payment Terms: | L/C, T/T, Paypal |
Supply Ability: | 100 pcs per day |
Battery Brand | VCELL/OEM |
Battery Type | Li-Ion Battery |
Model | VP72-60 |
Nominal Voltage | 72V |
Nominal Capacity | 60Ah |
Place of Origin: | China |
MOQ | 10PCS |
Delivery Time: | Within 20 days |
Packaging Details: | 1pcs per carton |
Payment Terms: | L/C, T/T, Paypal |
Supply Ability: | 100 pcs per day |
Battery Brand | VCELL/OEM |
Battery Type | Lithium Ion Battery |
Model | VP60-70 |
Nominal Voltage | 60V |
Nominal Capacity | 70Ah |
Place of Origin: | China |
MOQ | 10PCS |
Delivery Time: | Within 20 days |
Packaging Details: | 1pcs per carton |
Payment Terms: | L/C, T/T, Paypal |
Supply Ability: | 100 pcs per day |
Battery Brand | VCELL/OEM |
Battery Type | Lithium Ion Battery |
Model | VP72-130 |
Nominal Voltage | 72V |
Nominal Capacity | 130Ah |
Place of Origin: | China |
MOQ | 10PCS |
Delivery Time: | Within 20 days |
Packaging Details: | 1pcs per carton |
Payment Terms: | L/C, T/T, Paypal |
Supply Ability: | 100 pcs per day |
Battery Brand | VCELL/OEM |
Battery Type | Lithium Iron Phosphate Battery |
Model | VP-LF12-10 |
Nominal Voltage | 12.8V |
Nominal Capacity | 10Ah |
Charge Cut-Off Voltage | 14.6V |
Discharge Cut-Off Voltage | 10.0V |
Charge Current | 2A |
Standard Discharge Current | 2A |
Max continuous discharge current | 30A |
Peak Discharge Current | 50A(<3S ) |
Charge Temperature | 0~45℃ |
Discharge Temperature | -20~60℃ |
BMS | Overcharge/discharge, over current, short circuit, temperature protection, cell balance |
Size | 135*35*135mm Max/Custom |
Weight | 1.1Kg Approx |
Cycle life | >2500 |
Wire/Connector | TBD |
Battery type: | Lifepo4 Battery |
Battery model: | VP-LF12-12 |
Nominal voltage: | 12.8V |
Nominal capacity: | 12.0Ah |
Charge cut-off voltage: | 14.6V |
Discharge cut-off voltage: | 10.0V |
Max charge current: | 12.0A |
Max continuous discharge current: | 12.0A |
Peak discharge current: | 30.0A(1-3S) |
Cycle life: | >2500 Times @100% DOD, 1C Charge/Discharge |
Weight: | Approx 1.55Kg |
Dimension: | 151*98*95*101mm |
BMS: | Over voltage, over current, short circuit, temperature protection, cell balance |
Battery Brand | VCELL/OEM |
Battery Type | Lithium Iron Phosphate Battery |
Model | VP-LF12-12 |
Nominal Voltage | 12.8V |
Nominal Capacity | 12Ah |
Charge Cut-Off Voltage | 14.6V |
Discharge Cut-Off Voltage | 8.0V |
Max Charge Current | 12A |
Max Continuous Discharge Current | 36A |
Peak Discharge Current | 60A(<3S ) |
Charge Temperature | 0~45℃ |
Discharge Temperature | -20~65℃ |
Size | 132*78*68mm Max/Custom |
Weight | 1.09Kg Approx |
Cycle life | >2500 times |
Wire/Connector | TBD |
Battery Brand | VCELL/OEM |
Battery Type | Lithium Iron Phosphate Battery |
Model | VP-LF12-12.8 |
Nominal Voltage | 12.8V |
Nominal Capacity | 12.8Ah |
Charge Cut-Off Voltage | 14.6V |
Discharge Cut-Off Voltage | 10.0V |
Charge Current | 2A |
Discharge Current | 5A |
Peak Discharge Current | 10A(<3S ) |
Charge Temperature | 0~45℃ |
Discharge Temperature | -20~60℃ |
BMS | Overcharge/discharge, over current, short circuit, temperature protection, cell balance |
Size | 112*112*70mm Max/Custom |
Weight | 1.4Kg Approx |
Cycle life | >2500 |
Wire/Connector | TBD |
Battery Brand | VCELL/OEM |
Battery Type | Lithium Iron Phosphate Battery |
Model | IFR32800-4S2P |
Nominal Voltage | 12.8V |
Nominal Capacity | 14Ah |
Charge Cut-Off Voltage | 14.6V |
Discharge Cut-Off Voltage | 10.0V |
Max continuous discharge current | 40A |
Peak discharge current | 100A(<3S ) |
Charge temperature | 0~45℃ |
Discharge temperature | -20~65℃ |
BMS | Over charge/discharge, over current, short circuit, temperature protection, cell balance |
Size | 135*70*80mm Max |
Weight | 1.4kg Approx |
Cycle life | >2500 |
Wire/Connector | TBD |
Battery Brand | VCELL/OEM |
Battery Type | Lithium Iron Phosphate Battery |
Model | VP-LF12-15 |
Nominal Voltage | 12.8V |
Nominal Capacity | 15Ah |
Combination | 4S1P |
Charge Cut-Off Voltage | 14.6V |
Discharge Cut-Off Voltage | 10.0V |
Charge Current | 2A |
Max Continuous Discharge Current | 30A |
Peak Discharge Current | 80A(<3S ) |
BMS | 30A |
Charge Temperature | 0~45℃ |
Discharge Temperature | -20~60℃ |
Battery Protection | Overcharge/discharge, over current, short circuit, temperature protection, cell balance |
Size | 140*37*145mm Max/Custom |
Weight | 1.25Kg Approx |
Cycle life | >2500 |
Wire/Connector | TBD |
Battery type: | LiFePo4 Battery |
Battery model: | VP-LF12-18 |
Nominal voltage: | 12.8V |
Nominal capacity: | 18.0Ah |
Charge cut-off voltage: | 14.6V |
Discharge cut-off voltage: | 10.0V |
Max continuous discharge current: | 18.0A |
Cycle life: | >2500 Times @100% DOD, 1C Charge/Discharge |
Weight: | Approx 2.75Kg |
Dimension: | 181*77*168mm |
BMS: | Over voltage, over current, short circuit, temperature protection, cell balance |
Case Material | ABS |
Battery Brand | VCELL/OEM |
Battery Type | Lithium Iron Phosphate Battery |
Model | VP-LF12-18 |
Nominal Voltage | 12.8V |
Nominal Capacity | 18Ah |
Charge Cut-Off Voltage | 14.6V |
Discharge Cut-Off Voltage | 10.0V |
Max charge current | 5A |
Max continuous discharge current | 10A |
Peak discharge current | 20A(<3S ) |
Charge temperature | 0~45℃ |
Discharge temperature | -20~65℃ |
BMS | Over charge/discharge, over current, short circuit, temperature protection, cell balance |
Size(D*H) | 165*120*70mm Max |
Weight | 2.1kg Approx |
Cycle life | >2500 |
Wire/Connector | TBD |
Battery Brand | VCELL/OEM |
Battery Type | Lithium Iron Phosphate Battery |
Model | VP-LF12-20 |
Nominal Voltage | 12.8V |
Nominal Capacity | 20.0Ah |
Total Energy | 240Wh |
Charge Cut-Off Voltage | 14.6V |
Discharge Cut-Off Voltage | 10.0V |
Charge Current | 5A |
Standard Discharge Current | 5A |
Max Continuous Discharge Current | 20A |
Peak Discharge Current | 50A(<3S ) |
Charge Temperature | 0~45℃ |
Discharge Temperature | -20~60℃ |
BMS | Overcharge/discharge, over current, short circuit, temperature protection, cell balance |
Size | 35*138*265mm Max/Custom |
Weight | 3Kg Approx |
Cycle life | >2500 |
Wire/Connector | TBD |
Battery type: | Lifepo4 Battery |
Battery model: | VP-LF12-20 |
Nominal voltage: | 12.8V |
Nominal capacity: | 20.0Ah |
Charge cut-off voltage: | 14.6V |
Discharge cut-off voltage: | 10.0V |
Max charge current: | 20.0A |
Max continuous discharge current: | 20.0A |
Peak discharge current: | 40.0A |
Cycle life: | >2500 @100% DOD, |
Weight: | Approx 2.9Kg |
Dimension: | 181*77*167mm |
BMS: | Over voltage, over current, short circuit, temperature protection, cell balance |
Battery Brand | VCELL/OEM |
Battery Type | Lithium Iron Phosphate Battery |
Model | IFR32800-4S3P |
Nominal Voltage | 12.8V |
Nominal Capacity | 21Ah |
Charge Cut-Off Voltage | 14.6V |
Discharge Cut-Off Voltage | 10.0V |
Max continuous discharge current | 40A |
Peak discharge current | 100A(<3S ) |
Charge temperature | 0~45℃ |
Discharge temperature | -20~65℃ |
BMS | Over charge/discharge, over current, short circuit, temperature protection, cell balance |
Size | 140*110*72mm Max/Custom |
Weight | 1.9kg Approx |
Cycle life | >2500 |
Wire/Connector | TBD |
Battery Brand | VCELL/OEM |
Battery Type | Lithium Iron Phosphate Battery |
Model | VP-LF12-24 |
Nominal Voltage | 12.8V |
Nominal Capacity | 24Ah |
Charge Cut-Off Voltage | 14.6V |
Discharge Cut-Off Voltage | 10.0V |
Compitable Rated Motor Power | ≤250W |
BMS | 20A |
Max continuous discharge current | 20A |
Peak discharge current | 45A(<3S ) |
Max.continuous output power | 256W |
Max.charging current | 5A |
Charge temperature | 0~45℃ |
Discharge temperature | -20~65℃ |
Size(D*H) | 145*140*72mm Max |
Weight | 2.7Kg Approx |
Cycle life | >2500 |
Wire/Connector | TBD |
Battery type: | Lifepo4 Battery |
Battery model: | VP-LF12-24 |
Nominal voltage: | 12.8V |
Nominal capacity: | 24.0Ah |
Charge cut-off voltage: | 14.6V |
Discharge cut-off voltage: | 10.0V |
Max charge current: | 24.0A |
Max continuous discharge current: | 24.0A |
Peak discharge current: | 50.0A(1-3S) |
Cycle life: | >2500 Times @100% DOD, 1C Charge/Discharge |
Weight: | Approx 2.9Kg |
Dimension: | 181*77*167mm |
BMS: | Over voltage, over current, short circuit, temperature protection, cell balance |
Battery Brand | VCELL/OEM |
Battery Type | Lithium Iron Phosphate Battery |
Model | VP-LF12-28 |
Nominal Voltage | 12.8V |
Nominal Capacity | 28.0Ah |
Charge Cut-Off Voltage | 14.6V |
Discharge Cut-Off Voltage | 10.0V |
Charge Current | 4A |
Max Continuous Discharge Current | 40A |
Peak Discharge Current | 100A(<3S ) |
Charge Temperature | 0~45℃ |
Discharge Temperature | -20~60℃ |
BMS | Overcharge/discharge, over current, short circuit, temperature protection, cell balance |
Size | 140*140*80mm Max/Custom |
Weight | 2.7Kg Approx |
Cycle life | >2500 |
Wire/Connector | TBD |
Battery Brand | VCELL/OEM |
Battery Type | Lithium Iron Phosphate Battery |
Model | VP-LF12-30 |
Nominal Voltage | 12.8V |
Nominal Capacity | 30.0Ah |
Charge Cut-Off Voltage | 14.6V |
Discharge Cut-Off Voltage | 10.0V |
Max Continuous Discharge Current | 30A |
Peak Discharge Current | 80A(<3S ) |
Charge Temperature | 0~45℃ |
Discharge Temperature | -20~60℃ |
BMS | Overcharge/discharge, over current, short circuit, temperature protection, cell balance |
Size | 135*165*74mm Max/Custom |
Weight | 2.7Kg Approx |
Cycle life | >2500 |
Wire/Connector | TBD |
Battery type: | Lifepo4 Battery |
Battery model: | VP-LF12-30 |
Nominal voltage: | 12.8V |
Nominal capacity: | 30.0Ah |
Charge cut-off voltage: | 14.6V |
Discharge cut-off voltage: | 10.0V |
Max charge current: | 30.0A |
Max continuous discharge current: | 30.0A |
Peak discharge current: | 60.0A(1-3S) |
Cycle life: | >2500 Times @100% DOD, 1C Charge/Discharge |
Weight: | Approx 3.9Kg |
Dimension: | 165*175*125mm |
BMS: | Over voltage, over current, short circuit, temperature protection, cell balance |
Battery Brand | VCELL/OEM |
Battery Type | Lithium Iron Phosphate Battery |
Model | VP-LF12-34 |
Nominal Voltage | 12.8V |
Nominal Capacity | 34Ah |
Charge Cut-Off Voltage | 14.6V |
Discharge Cut-Off Voltage | 10.0V |
Charging Current | 6.8A |
Discharging Current | 10A |
Peak Discharge Current | 25A(<3S ) |
Charge Temperature | 0~45℃ |
Discharge Temperature | -20~65℃ |
BMS | Overcharge/discharge, over current, short circuit, temperature protection, cell balance |
Size | 273*279*30mm Max/Customized |
Weight | 3.6Kg Approx |
Cycle life | >2500 |
Wire/Connector | TBD |
Battery type: | LiFePo4 Battery |
Battery model: | VP-LF12-35 |
Nominal voltage: | 12.8V |
Nominal capacity: | 35.0Ah |
Charge cut-off voltage: | 14.6V |
Discharge cut-off voltage: | 10.0V |
Max charge current: | 30.0A |
Max continuous discharge current: | 35.0A |
Peak discharge current: | 70.0A(1-3S) |
Cycle life: | >2500 Times @100% DOD, 1C Charge/Discharge |
Weight: | Approx 10.0Kg |
BMS: | Over voltage, over current, short circuit, temperature protection, cell balance |
Battery type: | Lifepo4 Battery |
Battery model: | VP-LF12-40 |
Nominal voltage: | 12.8V |
Nominal capacity: | 40.0Ah |
Charge cut-off voltage: | 14.6V |
Discharge cut-off voltage: | 10.0V |
Max charge current: | 40.0A |
Max continuous discharge current: | 40.0A |
Peak discharge current: | 80.0A |
Charge temperature: | 0~45℃ |
Discharge temperature | -20~60℃ |
Cycle life: | >2500 @100% DOD,1C charge/discharge |
Weight: | Approx 5.2Kg |
Dimension: | 197*165*170mm |
BMS: | Over voltage, over current, short circuit, temperature protection, cell balance |
Terminal | M5 |
Battery Brand | VCELL/OEM |
Battery Type | Lithium Iron Phosphate Battery |
Model | VP-LF12-42 |
Nominal Voltage | 12.8V |
Nominal Capacity | 42.0Ah |
Charge Cut-Off Voltage | 14.6V |
Discharge Cut-Off Voltage | 10.0V |
Max charge current | 1C |
Max continuous discharge current | 3C |
Peak discharge current | 5C(<3S ) |
Charge temperature | 0~45℃ |
Discharge temperature | -20~60℃ |
BMS | Overcharge/discharge, over current, short circuit, temperature protection, cell balance |
Size | 240*75*145mm Max/Custom |
Weight | 4.5Kg Approx |
Cycle life | >2500 |
Wire/Connector | TBD |
Battery Type | Lithium Iron Phosphate Battery |
Battery Brand | VCELL/OEM |
Model | VP-LF12-50 |
Nominal Voltage | 12.8V |
Nominal Capacity | 50.0Ah |
Charge Cut-Off Voltage | 14.6±0.2V |
Discharge Cut-Off Voltage | 10.0±0.2V |
Max charge current | 50.0A |
Max continuous discharge current | 50.0A |
Peak discharge current | 100.0A(1-3S) |
Charge temperature | 0~45℃ |
Discharge temperature | -20~65℃ |
Storage Temperature | -20~50℃ |
Design Life | ≥10 Years |
Size(L*W*H) | 229*138*212*217mm |
Weight | 5.7KgApprox |
Cycle life | ≥4000 @100% DOD 1C Charge/Discharge |
Terminal | M6 |
IP Level | IP55 |
Battery Brand | VCELL/OEM |
Battery Type | Lithium Iron Phosphate Battery |
Model | IFR32650-4S9P |
Nominal Voltage | 12.8V |
Nominal Capacity | 54Ah |
Charge Cut-Off Voltage | 14.6V |
Discharge Cut-Off Voltage | 10.0V |
Standard charge current | 9A |
Standard discharge current | 9A |
Max discharge current | 45A |
Peak discharge current | 65A(<3S ) |
Charge temperature | 0~45℃ |
Discharge temperature | -20~65℃ |
Size(D*H) | Customized |
Weight | 4.9Kg Approx |
Cycle life | >2500 |
Wire/Connector | TBD |
Battery type: | Lifepo4 Battery |
Battery model: | VP-LF12-54 |
Nominal voltage: | 12.8V |
Nominal capacity: | 54.0Ah |
Charge cut-off voltage: | 14.6V |
Discharge cut-off voltage: | 10.0V |
Max charge current: | 50.0A |
Max continuous discharge current: | 50.0A |
Peak discharge current: | 100.0A |
Cycle life: | >2500 @100% DOD, |
Weight: | Approx 6.7Kg |
Dimension: | 229*138*217mm |
BMS: | Over voltage, over current, short circuit, temperature protection, cell balance |
Battery type: | LiFePo4 Battery |
Battery model: | VP-LF12-70 |
Nominal voltage: | 12.8V |
Nominal capacity: | 70.0Ah |
Charge cut-off voltage: | 14.6V |
Discharge cut-off voltage: | 10.0V |
Max charge current: | 70.0A |
Max continuous discharge current: | 70.0A |
Peak discharge current: | 140.0A(1-3S) |
Cycle life: | >2500 Times @100% DOD, 1C Charge/Discharge |
Weight: | Approx 8.5Kg |
Dimension: | 260*168*211mm |
BMS: | Over voltage, over current, short circuit, temperature protection, cell balance |
Water Dust Resistance: | IP54 |
Case Material | ABS |
Battery type: | Lifepo4 Battery |
Battery model: | VP-LF12-84 |
Nominal voltage: | 12.8V |
Nominal capacity: | 84.0Ah |
Charge cut-off voltage: | 14.6V |
Discharge cut-off voltage: | 10.0V |
Max charge current: | 84.0A |
Max continuous discharge current: | 84.0A |
Peak discharge current: | 200.0A(1-3S) |
Cycle life: | >2500 Times @100% DOD, 1C Charge/Discharge |
Weight: | Approx 10.2Kg |
Dimension: | 260*169*213*218mm |
BMS: | Over voltage, over current, short circuit, temperature protection, cell balance |
Battery type: | Lifepo4 Battery |
Battery model: | VP-LF12-100 |
Nominal voltage: | 12.8V |
Nominal capacity: | 100.0Ah |
Charge cut-off voltage: | 14.6V |
Discharge cut-off voltage: | 10.0V |
Max charge current: | 100.0A |
Max continuous discharge current: | 100.0A |
Peak discharge current: | 200.0A |
Cycle life: | >2500 @100% DOD, 1C charge/discharge |
Weight: | Approx 11.0Kg |
Dimension: | 328*220*172mm |
BMS: | Over voltage, over current, short circuit, temperature protection, cell balance |
Battery type: | LiFePo4 Battery |
Battery model: | VP-LF12-115 |
Nominal voltage: | 12.8V |
Nominal capacity: | 115.0Ah |
Charge cut-off voltage: | 14.6V |
Discharge cut-off voltage: | 10.0V |
Standard charge current: | 20.0A |
Max continuous discharge current: | 100.0A |
Peak discharge current: | 300.0A(1-3S) |
Cycle life: | >2500 Times @100% DOD, 1C Charge/Discharge |
Weight: | Approx 15Kg |
BMS: | Over voltage, over current, short circuit, temperature protection, cell balance |
Battery type: | Lifepo4 Battery |
Battery model: | VP-LF12-150 |
Nominal voltage: | 12.8V |
Nominal capacity: | 150.0Ah |
Charge cut-off voltage: | 14.6V |
Discharge cut-off voltage: | 10.0V |
Max charge current: | 150.0A |
Max continuous discharge current: | 150.0A |
Peak discharge current: | 300.0A |
Charge temperature: | 0~45℃ |
Discharge temperature | -20~60℃ |
Cycle life: | >2500 @100% DOD,1C charge/discharge |
Weight: | Approx 19.2Kg |
Dimension: | 328*172*220mm |
BMS: | Over voltage, over current, short circuit, temperature protection, cell balance. Bluetooth&LCD(Option) |
Terminal | M8 |
Battery type: | Lifepo4 Battery |
Battery model: | VP-LF12-200 |
Nominal voltage: | 12.8V |
Nominal capacity: | 200.0Ah |
Charge cut-off voltage: | 14.6V |
Discharge cut-off voltage: | 10.0V |
Max charge current: | 200.0A |
Max continuous discharge current: | 200.0A |
Peak discharge current: | 400.0A(1-3S) |
Charge temperature: | 0~45℃ |
Discharge temperature: | -20~65℃ |
Storage Temperature | -20℃~50℃ |
Cycle life: | >2500 Times @100% DOD, 1C Charge/Discharge |
Weight: | Approx 27.5Kg |
Dimension: | 522*238*218*220mm |
BMS: | Over voltage, over current, short circuit, temperature protection, cell balance |
Terminal: | M8 |
IP Level | IP55 |
Battery type: | LiFePo4 Battery |
Battery model: | VP-LF12-230 |
Nominal voltage: | 12.8V |
Nominal capacity: | 230.0Ah |
Charge cut-off voltage: | 14.6V |
Discharge cut-off voltage: | 10.0V |
Max charge current: | 100.0A |
Max continuous discharge current: | 100.0A |
Peak discharge current: | 200.0A(1-3S) |
Cycle life: | >2500 Times @100% DOD, 1C Charge/Discharge |
Weight: | Approx 28.0Kg |
Charge Temperature | 0~45℃ |
Discharge Temperature | -20~+60℃ |
BMS: | Over voltage, over current, short circuit, temperature protection, cell balance |
Battery type: | Lifepo4 Battery |
Battery model: | VP-LF12-300 |
Nominal voltage: | 12.8V |
Nominal capacity: | 300Ah |
Charge cut-off voltage: | 14.6V |
Discharge cut-off voltage: | 10.0V |
Standard charge current: | 60.0A |
Max charge current: | 300.0A |
Standard discharge current: | 60.0A |
Max continuous discharge current: | 300.0A |
Peak discharge current: | 600.0A(1-3S) |
Charge temperature: | 0~45℃ |
Discharge temperature: | -20~65℃ |
Cycle life: | >2500 Times @100% DOD, 1C Charge/Discharge |
Weight: | Approx 45.5Kg |
Dimension: | 520*270*220mm (L*W*H) |
BMS: | Over voltage, over current, short circuit, temperature protection, cell balance |
Terminal: | M8 |
IP Level | IP55 |
Battery type: | Li Ion Battery |
Battery model: | VP-NCM18650-5S1P |
Nominal voltage: | 18.0V |
Nominal capacity: | 3000mAh |
Charge cut-off voltage: | 21.0V |
Discharge cut-off voltage: | 15.0V |
Max charge current: | 3.0A |
Max continuous discharge current: | 15.0A |
Peak discharge current: | 30.0A |
Charge temperature: | 0~45℃ |
Discharge temperature | -20~60℃ |
Cycle life: | >700 cycles @100% DOD,1C charge/discharge |
Weight: | Approx 0.28Kg |
Dimension: | 75*55*40mm |
BMS: | Over voltage, over current, short circuit, temperature protection, cell balance |
Terminal | XT60 |
Battery Type | Lithium Iron Phosphate Battery |
Battery Brand | VCELL/OEM |
Model | VP-LF24-6 |
Nominal Voltage | 25.6V |
Nominal Capacity | 6.0Ah |
Charge Cut-Off Voltage | 29.2±0.2V |
Discharge Cut-Off Voltage | 20.0±0.2V |
Max charge current | 6.0A |
Max continuous discharge current | 10.0A |
Peak discharge current | 20.0A(<3S ) |
Charge temperature | 0~45℃ |
Discharge temperature | -20~65℃ |
Storage Temperature | -20~50℃ |
Design Life | ≥10 Years |
Size(L*W*H) | 151*98*95*101mm |
Weight | 1.55KgApprox |
Cycle life | >2500 @100% DOD 1C Charge/Discharge |
Terminal | F2 |
IP Level | IP55 |
Battery Brand | VCELL/OEM |
Battery Type | Lithium Ion Battery(NCM) |
Model | 18650-7S4P-25 |
Nominal Voltage | 24V |
Nominal Capacity | 8Ah |
Charge Cut-Off Voltage | 29.4V |
Discharge Cut-Off Voltage | 19.6V |
Standard Charge Current | 2A |
BMS | 15A |
The Maximum Peak Current | 30A |
Matching Motor Power | 250W-500W |
Charge temperature | 0~45℃ |
Discharge temperature | -20~60℃ |
Size(L*W*H) | 133*79*67mm Max or Custom |
Weight | 1.45Kg Approx |
Cycle life | >700 |
Wire/Connector | TBD |
Battery type: | Li-Ion Battery |
Battery model: | VP-NCM18650-7S4P |
Nominal voltage: | 24V |
Nominal capacity: | 10Ah |
Charge cut-off voltage: | 29.4V |
Discharge cut-off voltage: | 19.25V |
Max charge current: | 10A |
Max continuous discharge current: | 15A |
Peak discharge current: | 30A |
Charge temperature: | 0~45℃ |
Discharge temperature | -20~60℃ |
Cycle life: | >700 cycles @100% DOD,1C charge/discharge |
Weight: | Approx 1.4Kg |
Dimension: | 145*86*75mm/customization |
BMS: | Over voltage, over current, short circuit, temperature protection, cell balance |
Terminal | Option |
Battery type: | LiFePo4 Battery |
Battery model: | VP-LF24-12 |
Nominal voltage: | 25.6V |
Nominal capacity: | 12Ah |
Charge cut-off voltage: | 29.2V |
Discharge cut-off voltage: | 16.0V |
Continuous discharge current: | 36.0A |
Maximum discharge current: | 60.0A(<3S) |
Charge temperature: | 0~45℃ |
Discharge temperature | -20~60℃ |
Cycle life: | >2000 cycles @100% DOD,1C charge/discharge |
Weight: | Approx 2.2Kg |
Dimension: | 260*66*71mm(can customized) |
BMS: | Over voltage, over current, short circuit, temperature protection, cell balance |
Battery type: | Li-Ion Battery |
Battery model: | VP-NCM18650-7S6P |
Nominal voltage: | 24V |
Nominal capacity: | 15Ah |
Charge cut-off voltage: | 29.4V |
Discharge cut-off voltage: | 19.25V |
Max charge current: | 15.0A |
Max continuous discharge current: | 20.0A |
Peak discharge current: | 30.0A |
Charge temperature: | 0~45℃ |
Discharge temperature | -20~60℃ |
Cycle life: | >700 cycles@100% DOD,1C charge/discharge |
Weight: | Approx 2.2Kg |
Dimension: | 150*125*75mm/customization |
BMS: | Over voltage, over current, short circuit, temperature protection, cell balance |
Terminal | Option |
Battery Brand | VCELL/OEM |
Battery Type | Lithium Ion Battery(NCM) |
Model | INR18650-7S5P |
Nominal Voltage | 24V |
Nominal Capacity | 16Ah |
Charge Cut-Off Voltage | 29.4V |
Discharge Cut-Off Voltage | 19.25V |
Standard charge current | 2A |
BMS | 30A |
Max continuous discharge current | 30A |
Matching motor power | 250W-500W |
Charge temperature | 0~45℃ |
Discharge temperature | -20~60℃ |
Size(L*W*H) | 135*100*69mm Max |
Weight | 1.8Kg Approx |
Cycle life | >700 |
Wire/Connector | TBD |
Battery Brand | VCELL/OEM |
Battery Type | Li-Ion Battery(NCM) |
Model | 18650-7S7P |
Nominal Voltage | 24V |
Nominal Capacity | 18.2Ah |
Charge Cut-Off Voltage | 29.4V |
Discharge Cut-Off Voltage | 19.25V |
Standard charge current | 2A |
Max charge current | 5A |
Max continuous discharge current | 20A |
Charge temperature | 0~45℃ |
Discharge temperature | -20~60℃ |
BMS | Over charge/discharge, over current, short circuit, temperature protection, cell balance |
Size(D*H) | 140*140*70mm Max |
Weight | 2.5Kg Approx |
Cycle life | >700 |
Wire/Connector | TBD |
Battery type: | Li Ion Battery |
Battery model: | VP-NCM18650-7S8P |
Nominal voltage: | 24V |
Nominal capacity: | 20Ah |
Charge cut-off voltage: | 29.4V |
Discharge cut-off voltage: | 19.25V |
Max charge current: | 20A |
Max continuous discharge current: | 30.0A |
Peak discharge current: | 40.0A |
Charge temperature: | 0~45℃ |
Discharge temperature | -20~60℃ |
Cycle life: | >700 cycles @100% DOD,1C charge/discharge |
Weight: | Approx 2.8Kg |
Dimension: | 130*160*70mm/customizable |
BMS: | Over voltage, over current, short circuit, temperature protection, cell balance |
Terminal | Option |
Battery type: | Lifepo4 Battery |
Battery model: | VP-LF24-24 |
Nominal voltage: | 25.6V |
Nominal capacity: | 24Ah |
Charge cut-off voltage: | 29.2V |
Discharge cut-off voltage: | 16.0V |
Maximum charge current: | 5.0A |
Continuous discharge current: | 24.0A |
Maximum discharge current: | 48.0A(<3S) |
Charge temperature: | 0~45℃ |
Discharge temperature | -20~60℃ |
Cycle life: | >2000 cycles @100% DOD,1C charge/discharge |
Weight: | Approx 6.8Kg |
Dimension: | 320mmx72mmx158mm/custom |
BMS: | Over voltage, over current, short circuit, temperature protection, cell balance |
Battery type: | Li-Ion Battery |
Battery model: | VP-NCM18650-7S10P |
Nominal voltage: | 24V |
Nominal capacity: | 25Ah |
Charge cut-off voltage: | 29.4V |
Discharge cut-off voltage: | 19.25V |
Max charge current: | 25A |
Max continuous discharge current: | 35.0A |
Peak discharge current: | 50.0A |
Charge temperature: | 0~45℃ |
Discharge temperature | -20~60℃ |
Cycle life: | >700 cycles @100% DOD,1C charge/discharge |
Weight: | Approx 3.7Kg |
Dimension: | 145*200*70mm/custom |
BMS: | Over voltage, over current, short circuit, temperature protection, cell balance |
Terminal | Option |
Battery Brand | VCELL/OEM |
Battery Type | Li-Ion Battery(NCM) |
Model | 18650-7S8P |
Nominal Voltage | 24V |
Nominal Capacity | 28Ah |
Charge Cut-Off Voltage | 29.4V |
Discharge Cut-Off Voltage | 19.25V |
Standard Charging Current | 2A |
Max charge current | 5A |
BMS | 20A |
Max continuous discharge current | 20A |
Match Motor Power | 250W-350W |
Charge temperature | 0~45℃ |
Discharge temperature | -20~60℃ |
Size(L*W*H) | 160x135x70mm Max |
Weight | 2.85Kg Approx |
Cycle life | >700 |
Wire/Connector | TBD |
Battery type: | Li Ion Battery |
Battery model: | VP-NCM18650-7S12P |
Nominal voltage: | 24V |
Nominal capacity: | 30Ah |
Charge cut-off voltage: | 29.4V |
Discharge cut-off voltage: | 19.25V |
Max charge current: | 30A |
Max continuous discharge current: | 40.0A |
Peak discharge current: | 60.0A |
Charge temperature: | 0~45℃ |
Discharge temperature | -20~60℃ |
Cycle life: | >700 cycles @100% DOD,1C charge/discharge |
Weight: | Approx 4.3Kg |
Dimension: | 145*240* 70mm/customizable |
BMS: | Over voltage, over current, short circuit, temperature protection, cell balance |
Terminal | Option |
Battery Brand | VCELL/OEM |
Battery Type | Lithium Ion Battery(NCM) |
Model | INR18650-7S10P |
Nominal Voltage | 24V |
Nominal Capacity | 32.0Ah |
Motor Power | 250W-500W |
Charge Cut-Off Voltage | 29.4V |
Discharge Cut-Off Voltage | 19.6V |
Standard charge current | 2A |
Max charge current | 5A |
Max continuous discharge current | 20A |
Peak discharge current | 30A(<3S ) |
Charge temperature | 0~45℃ |
Discharge temperature | -20~60℃ |
BMS | Overcharge/discharge, over current, short circuit, temperature protection, cell balance |
Size(D*H) | 150*210*70mm Max |
Weight | 3.5Kg Approx |
Cycle life | >700 |
Wire/Connector | TBD |
Battery Brand | VCELL/OEM |
Battery Type | Li-Ion Battery(NCM) |
Model | 18650-7S14P |
Nominal Voltage | 24V |
Nominal Capacity | 35Ah |
Charge Cut-Off Voltage | 29.4V |
Discharge Cut-Off Voltage | 19.25V |
Standard charge current | 2A |
Max charge current | 5A |
Max continuous discharge current | 50A |
Charge temperature | 0~45℃ |
Discharge temperature | -20~60℃ |
BMS | Overcharge/discharge, over current, short circuit, temperature protection, cell balance |
Size | 270*145*70mm Max |
Weight | 5Kg Approx |
Cycle life | >700 |
Wire/Connector | TBD |
Battery type: | Lifepo4 Battery |
Battery model: | VP-LF24-40 |
Nominal voltage: | 25.6V |
Nominal capacity: | 40Ah |
Charge cut-off voltage: | 29.2V |
Discharge cut-off voltage: | 16.0V |
Max charge current: | 40.0A |
Max continuous discharge current: | 40.0A |
Peak discharge current: | 80.0A |
Charge temperature: | 0~45℃ |
Discharge temperature | -20~60℃ |
Cycle life: | >2000 cycles @100% DOD,1C charge/discharge |
Weight: | Approx 15Kg |
Dimension: | 400*295*114mm |
BMS: | Over voltage, over current, short circuit, temperature protection, cell balance |
Battery Brand | VCELL/OEM |
Battery Type | Lithium Iron Phosphate Battery |
Model | VP-LF24-40 |
Nominal Voltage | 25.6V |
Nominal Capacity | 40Ah |
Charge Cut-Off Voltage | 29.2V |
Discharge Cut-Off Voltage | 20.0V |
Standard charge current | 8A |
Max charge current | 40A |
Standard discharge current | 8A |
Max continuous discharge current | 120A |
Peak discharge current | 200A(<3S ) |
Charge temperature | 0~45℃ |
Discharge temperature | -20~65℃ |
BMS | Over charge/discharge, over current, short circuit, temperature protection, cell balance |
Size(L*W*H) | 270*70*270mm Max or custom |
Weight | 8.7Kg Approx |
Cycle life | >2500 |
Wire/Connector | TBD |
Battery type: | LiFePo4 Battery |
Battery model: | VP-LF24-50U |
Nominal voltage: | 25.6V |
Nominal capacity: | 50.0Ah |
Cell type | 26650 3.2V 3300mAh 8S15P |
Charge cut-off voltage: | 28.8V |
Discharge cut-off voltage: | 20.0V |
Max charge current: | 30.0A |
Max continuous discharge current: | 30.0A |
Peak discharge current: | 90.0A |
Cycle life: | >2000 cycles @100% DOD,1C Charge/Discharge |
Weight: | Approx 19Kg |
Dimension: | 330*310*120mm L*W*H |
BMS: | Over voltage, over current, short circuit, temperature protection, cell balance |
Battery type: | Lifepo4 Battery |
Battery model: | VP-LF24-54 |
Nominal voltage: | 25.6V |
Nominal capacity: | 54Ah |
Charge cut-off voltage: | 29.2V |
Discharge cut-off voltage: | 16.0V |
Standard charge current: | 10.8A |
Max charge current: | 30.0A |
Max continuous discharge current: | 10.8A |
Peak discharge current: | 120.0A(<1S) |
Charge temperature: | 0~45℃ |
Discharge temperature | -20~60℃ |
Cycle life: | >2000 cycles @100% DOD,1C charge/discharge |
Weight: | Approx 11.28Kg |
Dimension: | 340x140x185mm/customization |
BMS: | Over voltage, over current, short circuit, temperature protection, cell balance |
Battery type: | Lifepo4 Battery |
Battery model: | VP-LF24-60 |
Nominal voltage: | 25.6V |
Nominal capacity: | 60Ah |
Charge cut-off voltage: | 29.2V |
Discharge cut-off voltage: | 16.0V |
Max charge current: | 60.0A |
Max continuous discharge current: | 60.0A |
Peak discharge current: | 120.0A |
Charge temperature: | 0~45℃ |
Discharge temperature | -20~60℃ |
Cycle life: | >2000 cycles @100% DOD,1C charge/discharge |
Weight: | Approx 21Kg |
Dimension: | 170*235*305mm/customized |
BMS: | Over voltage, over current, short circuit, temperature protection, cell balance |
Battery type: | Lithium Ion Battery |
Battery model: | VP24-70 |
Nominal voltage: | 24V |
Nominal capacity: | 70.0Ah |
Charge cut-off voltage: | 29.4V |
Discharge cut-off voltage: | 21.0V |
Max charge current: | 50.0A |
Max continuous discharge current: | 50.0A |
Peak discharge current: | 150.0A |
Cycle life: | >700 cycles |
Weight: | Approx 14Kg |
Dimension: | 320*240*120mm L*W*H |
Charging temperature: | 0℃~45℃ |
Discharge temperature: | -20℃~60℃ |
Storage temperature: | -20℃~45℃ |
BMS: | Over voltage, over current, short circuit, temperature protection, cell balance |
Battery type: | LiFePo4 Battery |
Battery model: | VP-LF24-80U |
Nominal voltage: | 25.6V |
Nominal capacity: | 80.0Ah |
Charge cut-off voltage: | 28.8V |
Discharge cut-off voltage: | 18.4V |
Max charge current: | 50.0A |
Max continuous discharge current: | 50.0A |
Peak discharge current: | 160.0A |
Cycle life: | >2000 cycles @100% DOD,1C Charge/Discharge |
Weight: | Approx 24Kg |
Dimension: | 170*260*350mm L*W*H |
BMS: | Over voltage, over current, short circuit, temperature protection, cell balance |
Battery Brand | VCELL/OEM |
Battery Type | Lithium Iron Phosphate Battery |
Model | VP-LF24-100 |
Nominal Voltage | 25.6V |
Nominal Capacity | 100Ah |
Total Energy | 2.56KWh |
Charge Cut-Off Voltage | 29.6V |
Discharge Cut-Off Voltage | 20V |
Standard charge current | 20A |
Max charge current | 50A |
Standard discharge current | 20A |
Max continuous discharge current | 50A |
Peak discharge current | 100A(<3S ) |
Charge temperature | 0~45℃ |
Discharge temperature | -20~60℃ |
BMS | Over charge/discharge, over current, short circuit, temperature protection, cell balance |
Size | 400*296*150mm Max |
Weight | 30Kg Approx |
Cycle life | >2000 |
Communication | RS485,RS232 |
Battery type: | Lithium Ion Battery |
Battery model: | NCM18650-48-150 |
Nominal voltage: | 25.2V |
Nominal capacity: | 150.0Ah |
Total Energy | 3780Wh |
Cell Model | 18650-7S60P |
Charge cut-off voltage: | 29.4V |
Discharge cut-off voltage: | 19.6V |
Max charge current: | 75.0A |
Max continuous discharge current: | 75.0A |
Peak discharge current: | 150.0A |
Cycle life: | >800 cycles |
Weight: | Approx 28Kg |
Dimension: | 650*230*170mm(LxWxH) |
Charging temperature: | 0℃~45℃ |
Discharge temperature: | -20℃~60℃ |
Storage temperature: | -20℃~45℃ |
BMS: | Over voltage, over current, short circuit, temperature protection, cell balance |
Battery Brand | VCELL/OEM |
Battery Type | Lithium Iron Phosphate Battery |
Model | LFP-8S2P |
Nominal Voltage | 25.6V |
Nominal Capacity | 200Ah |
Charge Cut-Off Voltage | 29.2V |
Discharge Cut-Off Voltage | 21.6V |
Standard charge current | 40A |
Max charge current | 100A |
Standard discharge current | 100A |
Peak discharge current | 250A(<3S ) |
Charge temperature | 0~45℃ |
Discharge temperature | -20~65℃ |
BMS | Over charge/discharge, over current, short circuit, temperature protection, cell balance |
Size | 620*440*215mm |
Weight | 88KG Approx |
Cycle life | ≥2000cycles @80%DOD |
Case Material | Metal |
Enclosure Protection | IP65 |
Battery Brand | VCELL/OEM |
Battery Type | Lithium Iron Phosphate Battery |
Model | VP-LF24-300 |
Nominal Voltage | 25.6V |
Nominal Capacity | 300Ah |
Total Energy | 7680Wh |
Series and Parallel Connection | 8S12P Prismatic Cell |
Charge Cut-Off Voltage | 29.6V |
Discharge Cut-Off Voltage | 20V |
Standard charge current | 60A |
Max charge current | 150A |
Standard discharge current | 60A |
Max continuous discharge current | 150A |
Peak discharge current | 300A(<3S ) |
Charge temperature | 0~45℃ |
Discharge temperature | -20~60℃ |
BMS | Over charge/discharge, over current, short circuit, temperature protection, cell balance |
Size | 815*215*520mm Max |
Weight | 86Kg Approx |
Cycle life | >2000 |
IP Level | IP65 |
Battery Brand | VCELL/OEM |
Battery Type | Li-Ion Battery |
Model | VP36-4400 |
Nominal Voltage | 36V |
Nominal Capacity | 4.4Ah |
Cell Combination | 10S2P |
Charge Cut-Off Voltage | 42V |
Discharge Cut-Off Voltage | 27.5V |
Charge Current | 2A |
Continuous Discharge Current | 20A |
Peak Discharge Current | 30A |
Charge temperature | 0~45℃ |
Discharge temperature | -20~65℃ |
Size | 135*75*60mm |
Weight | Approx 970g |
Cycle life | ≥800 cycles @80%DOD |
Battery type: | Li-Ion Battery |
Battery model: | VP-NCM18650-10S3P |
Nominal voltage: | 36V |
Nominal capacity: | 7.8Ah |
Charge cut-off voltage: | 42V |
Discharge cut-off voltage: | 27.5V |
Max charge current: | 1C |
Max continuous discharge current: | 3C |
Peak discharge current: | 5C |
Charge temperature: | 0~45℃ |
Discharge temperature | -20~60℃ |
Cycle life: | >700 cycles @100% DOD,1C charge/discharge |
Weight: | Approx 1.6Kg |
Dimension: | 190*70*59mm/customization |
BMS: | Over voltage, over current, short circuit, temperature protection, cell balance |
Terminal | Option |
Battery type: | Li Ion Battery |
Battery model: | VP-NCM18650-10S4P |
Nominal voltage: | 36V |
Nominal capacity: | 10Ah |
Charge cut-off voltage: | 42V |
Discharge cut-off voltage: | 27.5V |
Max charge current: | 10A |
Max continuous discharge current: | 15A |
Peak discharge current: | 20A |
Charge temperature: | 0~45℃ |
Discharge temperature | -20~60℃ |
Cycle life: | >700 cycles @100% DOD,1C charge/discharge |
Weight: | Approx 2.1Kg |
Dimension: | 190*85*75mm/customizable |
BMS: | Over voltage, over current, short circuit, temperature protection, cell balance |
Terminal | Option |
Battery Brand | VCELL/OEM |
Battery Type | Lithium Ion Battery(NCM) |
Model | 18650-10S4P |
Nominal Voltage | 36V |
Nominal Capacity | 10.4Ah |
Charge Cut-Off Voltage | 42V |
Discharge Cut-Off Voltage | 30V |
Max charge current | 2A |
BMS | 20A |
Fit Motor | 250W-500W |
Charge temperature | 0~45℃ |
Discharge temperature | -20~60℃ |
Battery protection | Over charge/discharge, over current, short circuit, temperature protection, cell balance |
Size(L*W*H) | 187*75*20mm Max/custom |
Weight | 2.05Kg Approx |
Cycle life | >700 |
Wire/Connector | TBD |
Battery Brand | VCELL/OEM |
Battery Type | Lithium-ion Battery(NCM) |
Model | 18650-10S4P |
Nominal Voltage | 36V |
Nominal Capacity | 11.6Ah |
Charge Cut-Off Voltage | 42V |
Discharge Cut-Off Voltage | 30V |
Max charge current | 2A |
BMS | 20A |
Fit Motor | 250W-500W |
Charge temperature | 0~45℃ |
Discharge temperature | -20~60℃ |
Battery protection | Over charge/discharge, over current, short circuit, temperature protection, cell balance |
Size(L*W*H) | 187*75*68mm Max/custom |
Weight | 2.1Kg Approx |
Cycle life | >700 |
Wire/Connector | TBD |
Battery Brand | VCELL/OEM |
Battery Type | Lithium Ion Battery(NCM) |
Model | 18650-10S5P |
Nominal Voltage | 36V |
Nominal Capacity | 13Ah |
Charge Cut-Off Voltage | 42V |
Discharge Cut-Off Voltage | 30V |
Max charge current | 2A |
BMS | 20A |
Fit Motor | 250W-500W |
Charge temperature | 0~45℃ |
Discharge temperature | -20~60℃ |
Battery protection | Over charge/discharge, over current, short circuit, temperature protection, cell balance |
Size(L*W*H) | 187*95*20mm Max/custom |
Weight | 2.55Kg Approx |
Cycle life | >700 |
Wire/Connector | TBD |
Battery Brand | VCELL/OEM |
Battery Type | Lithium Ion Battery(NCM) |
Model | 18650-10S4P |
Nominal Voltage | 36V |
Nominal Capacity | 14Ah |
Charge Cut-Off Voltage | 42V |
Discharge Cut-Off Voltage | 27.5V |
Charge current | 2A |
Max continuous discharge current | 20A |
BMS | 20A |
Matching Motor Power | 250W-500W |
Charge temperature | 0~45℃ |
Discharge temperature | -20~60℃ |
Size(L*W*H) | 190*80*70mm Max or Custom |
Weight | 2.05Kg Approx |
Cycle life | >700 |
Wire/Connector | TBD |
Battery type: | Li Ion Battery |
Battery model: | VP-NCM18650-10S6P |
Nominal voltage: | 36V |
Nominal capacity: | 15Ah |
Charge cut-off voltage: | 42V |
Discharge cut-off voltage: | 27.5V |
Max charge current: | 15A |
Max continuous discharge current: | 20A |
Peak discharge current: | 30A |
Charge temperature: | 0~45℃ |
Discharge temperature | -20~60℃ |
Cycle life: | >700 cycles @100% DOD,1C charge/discharge |
Weight: | Approx 3Kg |
Dimension: | 190*125*70mm/custom |
BMS: | Over voltage, over current, short circuit, temperature protection, cell balance |
Terminal | Option |
Battery Brand | VCELL/OEM |
Battery Type | Li-Ion Battery(NCM) |
Model | 18650-10S5P |
Nominal Voltage | 36V |
Nominal Capacity | 16Ah |
Charge Cut-Off Voltage | 42V |
Discharge Cut-Off Voltage | 27.5V |
Standard charge current | 2A |
BMS | 20A |
Max continuous discharge current | 20A |
Matching motor power | 250W-500W |
Charge temperature | 0~45℃ |
Discharge temperature | -20~60℃ |
Size(L*W*H) | 190*100*70mm Max |
Weight | 2.55Kg Approx |
Cycle life | >700 |
Wire/Connector | TBD |
Battery type: | Li-Ion Battery |
Battery model: | VP-NCM18650-10S5P |
Nominal voltage: | 36V |
Nominal capacity: | 17.5Ah |
Charge cut-off voltage: | 42V |
Discharge cut-off voltage: | 27.5V |
Max charge current: | 5A |
Max discharge current: | 50A |
Charge temperature: | 0~45℃ |
Discharge temperature | -20~60℃ |
Cycle life: | >700 cycles @100% DOD,1C charge/discharge |
Weight: | Approx 2.8Kg |
Dimension: | 200*95*70mm/custom |
BMS: | Over voltage, over current, short circuit, temperature protection, cell balance |
Terminal | Option |
Battery type: | Li-Ion Battery |
Battery model: | VP-NCM18650-10S8P |
Nominal voltage: | 36V |
Nominal capacity: | 20Ah |
Charge cut-off voltage: | 42V |
Discharge cut-off voltage: | 27.5V |
Max charge current: | 20.0A |
Max continuous discharge current: | 30.0A |
Peak discharge current: | 40.0A |
Charge temperature: | 0~45℃ |
Discharge temperature | -20~60℃ |
Cycle life: | >700 cycles@100% DOD,1C charge/discharge |
Weight: | Approx 4.1Kg |
Dimension: | 200*165*75mm/customization |
BMS: | Over voltage, over current, short circuit, temperature protection, cell balance |
Terminal | Option |
Battery type: | Li-Ion Battery |
Battery model: | VP-NCM18650-10S10P |
Nominal voltage: | 36V |
Nominal capacity: | 25Ah |
Charge cut-off voltage: | 42V |
Discharge cut-off voltage: | 27.5V |
Max charge current: | 25.0A |
Max continuous discharge current: | 40.0A |
Peak discharge current: | 50.0A |
Charge temperature: | 0~45℃ |
Discharge temperature | -20~60℃ |
Cycle life: | >700 cycles@100% DOD,1C charge/discharge |
Weight: | Approx 5.1Kg |
Dimension: | 210*210*75mm/customization |
BMS: | Over voltage, over current, short circuit, temperature protection, cell balance |
Terminal | Option |
Battery Brand | VCELL/OEM |
Battery Type | Lithium-ion Battery(NCM) |
Model | 18650-10S8P |
Nominal Voltage | 36V |
Nominal Capacity | 28Ah |
Charge Cut-Off Voltage | 42V |
Discharge Cut-Off Voltage | 27.5V |
Standard charge current | 2A |
Max charge current | 5A |
Max continuous discharge current | 50A |
Peak discharge current | 150A(<3S ) |
Fit Motor | 250W-1200W |
Charge temperature | 0~45℃ |
Discharge temperature | -20~60℃ |
BMS | Overcharge/discharge, over current, short circuit, temperature protection, cell balance |
Size | 200*160*70mm Max (can be customized) |
Weight | 4.1Kg Approx |
Cycle life | >700 |
Wire/Connector | TBD |
Battery type: | Li-Ion Battery |
Battery model: | VP-NCM18650-10S12P |
Nominal voltage: | 36V |
Nominal capacity: | 30Ah |
Charge cut-off voltage: | 42V |
Discharge cut-off voltage: | 27.5V |
Max charge current: | 30.0A |
Max continuous discharge current: | 45.0A |
Peak discharge current: | 60.0A |
Charge temperature: | 0~45℃ |
Discharge temperature | -20~60℃ |
Cycle life: | >700 cycles@100% DOD,1C charge/discharge |
Weight: | Approx 6.1Kg |
Dimension: | 210*240*75mm/customization |
BMS: | Over voltage, over current, short circuit, temperature protection, cell balance |
Terminal | Option |
Battery Brand | VCELL/OEM |
Battery Type | Lithium Ion Battery(NCM) |
Model | INR18650-10S10P |
Nominal Voltage | 36V |
Nominal Capacity | 32Ah |
Charge Cut-Off Voltage | 42V |
Discharge Cut-Off Voltage | 30V |
Standard charge current | 2A |
Max charge current | 5A |
Standard discharge current | 10A |
Max continuous discharge current | 20A |
Peak discharge current | 50A(<3S ) |
Charge temperature | 0~45℃ |
Discharge temperature | -20~60℃ |
BMS | Overcharge/discharge, over current, short circuit, temperature protection, cell balance |
Size(D*H) | 220*220*70mm Max/Custom |
Weight | 5Kg Approx |
Cycle life | >700 |
Wire/Connector | TBD |
Battery Brand | VCELL/OEM |
Battery Type | Lithium-Ion Battery(NCM) |
Model | 21700-10S7P |
Nominal Voltage | 36V |
Nominal Capacity | 35Ah |
Charge Cut-Off Voltage | 42V |
Discharge Cut-Off Voltage | 30V |
Max Charge Current | 5A |
Standard Discharging Current | 7A |
Max Continuous Discharging Current | 52.5A |
Max Discharging Current | 105A |
Charge Temperature | 0~45℃ |
Discharge Temperature | -20~60℃ |
BMS | Over charge/discharge, over current, short circuit, temperature protection, cell balance |
Size | 217*154*74mm Max/custom |
Weight | 5.3Kg Approx |
Cycle life | >700 |
Wire/Connector | TBD |
Battery type: | Lithium Ion Battery |
Battery model: | VP36-40 |
Nominal voltage: | 36V |
Nominal capacity: | 40.0Ah |
Cell Model | 18650-10S20P |
Charge cut-off voltage: | 42.0V |
Discharge cut-off voltage: | 30.0V |
Max charge current: | 20.0A |
Max continuous discharge current: | 30.0A |
Peak discharge current: | 85.0A |
Cycle life: | >700 cycles |
Weight: | Approx 9.7Kg |
Dimension: | 80x275x340mm |
Charging temperature: | 0℃~45℃ |
Discharge temperature: | -20℃~60℃ |
Storage temperature: | -20℃~45℃ |
BMS: | Over voltage, over current, short circuit, temperature protection, cell balance |
Battery Brand | VCELL/OEM |
Battery Type | Lithium Ion Battery(NCM) |
Model | 21700-10S9P |
Nominal Voltage | 36V |
Nominal Capacity | 45Ah |
Charge Cut-Off Voltage | 42V |
Discharge Cut-Off Voltage | 30V |
Max Charge Current | 5A |
Standard Discharging Current | 30A |
Max Continuous Discharging Current | 30A |
Max Discharging Current | 60A |
Fit Motor | 300W-1000W |
Charge Temperature | 0~45℃ |
Discharge Temperature | -20~60℃ |
BMS | Over charge/discharge, over current, short circuit, temperature protection, cell balance |
Size | 230*200*75mm Max/custom |
Weight | 6.8Kg Approx |
Cycle life | >700 |
Wire/Connector | TBD |
Battery type: | Lithium Ion Battery |
Battery model: | VP36-50 |
Nominal voltage: | 36V |
Nominal capacity: | 50.0Ah |
Cell Model | 18650-10S25P |
Charge cut-off voltage: | 42.0V |
Discharge cut-off voltage: | 30.0V |
Max charge current: | 20.0A |
Max continuous discharge current: | 40.0A |
Peak discharge current: | 120.0A |
Cycle life: | >700 cycles |
Weight: | Approx 13.5Kg |
Dimension: | 80x255x465mm |
Charging temperature: | 0℃~45℃ |
Discharge temperature: | -20℃~60℃ |
Storage temperature: | -20℃~45℃ |
BMS: | Over voltage, over current, short circuit, temperature protection, cell balance |
Battery Brand | VCELL/OEM |
Battery Type | Lithium Ion Battery(NCM) |
Model | 21700-10S15P |
Nominal Voltage | 36V |
Nominal Capacity | 75Ah |
Charge Cut-Off Voltage | 42V |
Discharge Cut-Off Voltage | 30V |
Max Charge Current | 5A |
Standard Discharging Current | 30A |
Max Continuous Discharging Current | 30A |
Max Discharging Current | 60A |
Fit Motor | 300W-1000W |
Charge Temperature | 0~45℃ |
Discharge Temperature | -20~60℃ |
BMS | Over charge/discharge, over current, short circuit, temperature protection, cell balance |
Size | 330*215*75mm Max/custom |
Weight | 10.5Kg Approx |
Cycle life | >700 |
Wire/Connector | TBD |
Battery Brand | VCELL/OEM |
Battery Type | Lifepo4 Battery |
Model | VP-36-80 |
Nominal Voltage | 36V |
Nominal Capacity | 80Ah |
Place of Origin: | China |
MOQ | 10PCS |
Delivery Time: | Within 20 days |
Packaging Details: | 1pcs per carton |
Payment Terms: | L/C, T/T, Paypal |
Supply Ability: | 100 pcs per day |
Battery Brand | VCELL/OEM |
Battery Type | LiFePo4 Battery |
Model | VP-LF36-150 |
Nominal Voltage | 36V |
Nominal Capacity | 150Ah |
Charge Cut-Off Voltage | 43.8V |
Discharge Cut-Off Voltage | 24.0V |
Standard Charge Current | 10A |
Max Charge Current | 30A |
Max continuous discharge current | 80A |
Peak discharge current | 100A(<3S ) |
Charge temperature | 0~45℃ |
Discharge temperature | -20~65℃ |
BMS | Overcharge/discharge, over current, short circuit, temperature protection, cell balance |
Size(D*H) | 270*300*520mm |
Weight | 34-36Kg Approx |
Cycle life | >2500 |
Battery Type | Lithium Iron Phosphate Battery |
Battery Brand | VCELL/OEM |
Model | VP-LF24-15 |
Nominal Voltage | 25.6V |
Nominal Capacity | 15Ah |
Charge Cut-Off Voltage | 29.2±0.2V |
Discharge Cut-Off Voltage | 20.0±0.2V |
Max charge current | 15.0A |
Max continuous discharge current | 15.0A |
Peak discharge current | 40.0A(1-3S) |
Charge temperature | 0~45℃ |
Discharge temperature | -20~50℃ |
Storage Temperature | -20~65℃ |
Design Life | ≥10 Years |
Size(L*W*H) | 181*77*167mm |
Weight | 2.8Kg Approx |
Cycle life | ≥2500 @100% DOD, 1C Charge/Discharge, >80%SOH |
Terminal | M6 |
IP Level | IP55 |
Battery type: | Lifepo4 Battery |
Battery model: | VP-LF24-50 |
Nominal voltage: | 25.6V |
Nominal capacity: | 50.0Ah |
Charge cut-off voltage: | 29.2V |
Discharge cut-off voltage: | 16.0V |
Max charge current: | 50.0A |
Max continuous discharge current: | 50.0A |
Peak discharge current: | 100.0A(1-3S) |
Charge temperature: | 0~45℃ |
Discharge temperature | -20~60℃ |
Cycle life: | >2500 cycles @100% DOD,1C charge/discharge |
Weight: | Approx 10Kg |
Dimension: | 260mmx168mmx212mm |
BMS: | Over voltage, over current, short circuit, temperature protection, cell balance |
IP Level | IP55 |
Battery Type | Lithium Iron Phosphate Battery |
Battery Brand | VCELL/OEM |
Model | VP-LF24-75 |
Nominal Voltage | 25.6V |
Nominal Capacity | 75.0Ah |
Charge Cut-Off Voltage | 29.2±0.2V |
Discharge Cut-Off Voltage | 20.0±0.2V |
Max charge current | 75.0A |
Max continuous discharge current | 75.0A |
Peak discharge current | 150.0A(1-3S) |
Charge temperature | 0~45℃ |
Discharge temperature | -20~65℃ |
Storage Temperature | -20~50℃ |
Design Life | ≥10 Years |
Size(L*W*H) | 522*238*218*220mm |
Weight | 15.5Kg Approx |
Cycle life | ≥4000 @100% DOD 1C Charge/Discharge |
Terminal | M8 |
IP Level | IP55 |
Battery Type | Lithium Iron Phosphate Battery |
Battery Brand | VCELL/OEM |
Model | VP-LF24-100 |
Nominal Voltage | 25.6V |
Nominal Capacity | 100.0Ah |
Charge Cut-Off Voltage | 29.2±0.2V |
Discharge Cut-Off Voltage | 20.0±0.2V |
Max charge current | 100.0A |
Max continuous discharge current | 100.0A |
Peak discharge current | 200.0A(1-3S) |
Charge temperature | 0~45℃ |
Discharge temperature | -20~65℃ |
Storage Temperature | -20~50℃ |
Design Life | ≥10 Years |
Size(L*W*H) | 522*238*218*220mm |
Weight | 21.0Kg Approx |
Cycle life | ≥4000 @100% DOD 0.5C Charge/Discharge |
Terminal | M8 |
IP Level | IP55 |
Battery type: | Lifepo4 Battery |
Battery model: | VP-LF24-120 |
Nominal voltage: | 25.6V |
Nominal capacity: | 120.0Ah |
Charge cut-off voltage: | 29.2V |
Discharge cut-off voltage: | 16.0V |
Max charge current: | 50.0A(0.5C) |
Max discharge current: | 100.0A |
Cycle life: | >2500 Times @100% DOD, 1C Charge/Discharge |
Weight: | Approx 30.0Kg |
Dimension: | 425mm*305mm*232mm |
BMS: | Over voltage, over current, short circuit, temperature protection, cell balance |
Battery type: | LiFePo4 Battery |
Battery model: | VP-LF24-200 |
Nominal voltage: | 25.6V |
Nominal capacity: | 200.0Ah |
Charge cut-off voltage: | 29.2V |
Discharge cut-off voltage: | 16.0V |
Max charge current: | 200.0A |
Max discharge current: | 200.0A |
Cycle life: | >2500 Times @100% DOD,1C Charge/Discharge |
Weight: | Approx 88.0Kg |
Dimension: | 620*440*215mm |
BMS: | Over voltage, over current, short circuit, temperature protection, cell balance |
Battery type: | Lifepo4 Battery |
Battery model: | VP-LF24-200 |
Nominal voltage: | 25.6V |
Nominal capacity: | 200.0Ah |
Charge cut-off voltage: | 29.2V |
Discharge cut-off voltage: | 20.0V |
Max charge current: | 100.0A |
Max continuous discharge current: | 150.0A |
Peak discharge current: | 300.0A(1-3S) |
Charge temperature: | 0~45℃ |
Discharge temperature | -20~65℃ |
Storage Temperature | -20~50℃ |
Cycle life: | >2500 cycles @100% DOD,1C charge/discharge |
Weight: | Approx 59.5Kg |
Dimension: | 380mmx530mmx225mm |
BMS: | Over voltage, over current, short circuit, temperature protection, cell balance |
Battery Type | Lithium Iron Phosphate Battery |
Battery Brand | VCELL/OEM |
Model | VP-LF24-200U |
Nominal Voltage | 25.6V |
Nominal Capacity | 200.0Ah |
Charge Cut-Off Voltage | 29.2±0.2V |
Discharge Cut-Off Voltage | 20.0±0.2V |
Max charge current | 100.0A |
Max continuous discharge current | 100.0A |
Peak discharge current | 200.0A(1-3S) |
Charge temperature | 0~45℃ |
Discharge temperature | -20~65℃ |
Storage Temperature | -20~50℃ |
Design Life | ≥10 Years |
Size(L*W*H) | 483*485*155mm |
Weight | 45.5Kg Approx |
Cycle life | ≥6000@80%D0D 0.5C Charge/Discharge |
Communication | RS485/RS232/Canbus |
IP Level | IP30 |
Battery type: | Li-Ion Battery |
Battery model: | VP-NCM18650-13S4P |
Nominal voltage: | 48V |
Nominal capacity: | 10Ah |
Charge cut-off voltage: | 54.6V |
Discharge cut-off voltage: | 35.75V |
Max charge current: | 10.0A |
Max continuous discharge current: | 15.0A |
Peak discharge current: | 30.0A |
Charge temperature: | 0~45℃ |
Discharge temperature | -20~60℃ |
Cycle life: | >700 cycles@100% DOD,1C charge/discharge |
Weight: | Approx 2.65Kg |
Dimension: | 260*86*75mm/customization |
BMS: | Over voltage, over current, short circuit, temperature protection, cell balance |
Terminal | Option |
Battery Brand | VCELL/OEM |
Battery Type | Lithium Ion Battery(NCM) |
Model | 18650-13S4P |
Nominal Voltage | 48V |
Nominal Capacity | 11.6Ah |
Charge Cut-Off Voltage | 54.6V |
Discharge Cut-Off Voltage | 36.4V |
Charge current | 2A |
Max continuous discharge current | 30A |
Rated power | 500W-1000W |
BMS | 30A |
Charge temperature | 0~45℃ |
Discharge temperature | -20~60℃ |
BMS | Overcharge/discharge, over current, short circuit, temperature protection, cell balance |
Size(L*W*H) | 250*80*70mm Max or Custom |
Weight | 2.65Kg Approx |
Cycle life | >700 |
Wire/Connector | TBD |
Battery type: | Li-Ion Battery |
Battery model: | VP-NCM18650-13S5P |
Nominal voltage: | 48V |
Nominal capacity: | 12.5Ah |
Charge cut-off voltage: | 58.8V |
Discharge cut-off voltage: | 42.0V |
Max charge current: | 12.5A |
Max continuous discharge current: | 20.0A |
Peak discharge current: | 40.0A |
Charge temperature: | 0~45℃ |
Discharge temperature | -20~60℃ |
Cycle life: | >700 cycles@100% DOD,1C charge/discharge |
Weight: | Approx 3.5Kg |
Dimension: | 290*110*75mm/customization |
BMS: | Over voltage, over current, short circuit, temperature protection, cell balance |
Terminal | Option |
Battery Brand | VCELL/OEM |
Battery Type | Lithium Ion Battery(NCM) |
Model | 18650-13S4P |
Nominal Voltage | 48V |
Nominal Capacity | 14Ah |
Charge Cut-Off Voltage | 54.6V |
Discharge Cut-Off Voltage | 36.4V |
Charge current | 2A |
Max continuous discharge current | 30A |
Matching motor power | 500W/750W/1000W |
Charge temperature | 0~45℃ |
Discharge temperature | -20~60℃ |
BMS | 30A |
Size(D*H) | 255*90*70mm Max or Custom |
Weight | 2.65Kg Approx |
Cycle life | >700 |
Wire/Connector | TBD |
Battery type: | Li-Ion Battery |
Battery model: | VP-NCM18650-13S6P |
Nominal voltage: | 48V |
Nominal capacity: | 15Ah |
Charge cut-off voltage: | 54.6V |
Discharge cut-off voltage: | 36.4V |
Max charge current: | 2.0A |
Max continuous discharge current: | 30.0A |
Peak discharge current: | 90.0A |
Charge temperature: | 0~45℃ |
Discharge temperature | -20~60℃ |
Cycle life: | >700 cycles@100% DOD,1C charge/discharge |
Weight: | Approx 4.0Kg |
Dimension: | 260*125*75mm/Customization |
BMS: | Over voltage, over current, short circuit, temperature protection, cell balance |
Terminal | Option |
Battery Brand | VCELL/OEM |
Battery Type | Lithium Ion Battery(NCM) |
Model | INR18650-13S5P |
Nominal Voltage | 48V |
Nominal Capacity | 16Ah |
Charge Cut-Off Voltage | 54.6V |
Discharge Cut-Off Voltage | 36.4V |
Standard charge current | 3.2A |
Max charge current | 16A |
Standard discharge current | 3.2A |
Max continuous discharge current | 24A |
Peak discharge current | 48A(<3S ) |
Charge temperature | 0~45℃ |
Discharge temperature | -20~60℃ |
BMS | Over charge/discharge, over current, short circuit, temperature protection, cell balance |
Size | 247*95*70mm Max or customized |
Weight | 3.3Kg Approx |
Cycle life | >700 time |
Wire/Connector | TBD |
Battery type: | Li-Ion Battery |
Battery model: | VP-NCM18650-13S5P |
Nominal voltage: | 48V |
Nominal capacity: | 17.5Ah |
Charge cut-off voltage: | 54.6V |
Discharge cut-off voltage: | 36.4V |
Max charge current: | 5A |
Max discharge current: | 20A |
Peak Current | 50A |
Charge temperature: | 0~45℃ |
Discharge temperature | -20~60℃ |
Cycle life: | >700 cycles @100% DOD,1C charge/discharge |
Weight: | Approx 3.7Kg |
Dimension: | 290*95*70mm/custom |
BMS: | Over voltage, over current, short circuit, temperature protection, cell balance |
Terminal | Option |
Battery type: | Li Ion Battery |
Battery model: | VP-NCM18650-13S8P |
Nominal voltage: | 48V |
Nominal capacity: | 20Ah |
Charge cut-off voltage: | 54.6V |
Discharge cut-off voltage: | 35.75V |
Max charge current: | 20A |
Max continuous discharge current: | 20.0A |
Peak discharge current: | 60.0A |
Charge temperature: | 0~45℃ |
Discharge temperature | -20~60℃ |
Cycle life: | >700 cycles@100% DOD,1C charge/discharge |
Weight: | Approx 5.3Kg |
Dimension: | 260*150*70mm/customization |
BMS: | Over voltage, over current, short circuit, temperature protection, cell balance |
Terminal | Option |
Battery type: | Li-Ion Battery |
Battery model: | VP-NCM18650-13S10P |
Nominal voltage: | 48V |
Nominal capacity: | 25Ah |
Charge cut-off voltage: | 54.6V |
Discharge cut-off voltage: | 35.75V |
Max charge current: | 25.0A |
Max continuous discharge current: | 40.0A |
Peak discharge current: | 50.0A |
Charge temperature: | 0~45℃ |
Discharge temperature | -20~60℃ |
Cycle life: | >700 cycles@100% DOD,1C charge/discharge |
Weight: | Approx 6.6Kg |
Dimension: | 260*200*75mm/customization |
BMS: | Over voltage, over current, short circuit, temperature protection, cell balance |
Terminal | Option |
Battery type: | Li-Ion Battery |
Battery model: | VP-NCM18650-13S10P |
Nominal voltage: | 48V |
Nominal capacity: | 26Ah |
Charge cut-off voltage: | 54.6V |
Discharge cut-off voltage: | 39.0V |
Standard charge current: | 2.0A |
Max Fast Charge Current: | 5.0A |
Rated Discharge Current: | 50A |
Maximum Continuous Discharge Current: | 50A |
Maximum peak discharge current: | 150A |
Charge temperature: | 0~45℃ |
Discharge temperature | -20~60℃ |
Cycle life: | >700 cycles @100% DOD,1C charge/discharge |
Weight: | Approx 6.6Kg |
Dimension: | 260*190*70mm |
BMS: | Over voltage, over current, short circuit, temperature protection, cell balance |
Terminal | Option |
Battery type: | Li-Ion Battery |
Battery model: | VP-NCM18650-13S8P |
Nominal voltage: | 48V |
Nominal capacity: | 28Ah |
Charge cut-off voltage: | 54.6V |
Discharge cut-off voltage: | 35.75V |
Max charge current: | 20.0A |
Max discharge current: | 50.0A |
Charge temperature: | 0~45℃ |
Discharge temperature | -20~60℃ |
Cycle life: | >700 cycles @100% DOD,1C charge/discharge |
Weight: | Approx 12Kg |
Dimension: | 285*180*100mm |
BMS: | Over voltage, over current, short circuit, temperature protection, cell balance |
Terminal | Option |
Battery Brand | VCELL/OEM |
Battery Type | Lithium Ion Battery(NCM) |
Model | INR18650-13S8P |
Nominal Voltage | 48V |
Nominal Capacity | 28Ah |
Charge Cut-Off Voltage | 54.6V |
Discharge Cut-Off Voltage | 36.4V |
Max charge current | 5A |
BMS | 30A |
Charge temperature | 0~45℃ |
Discharge temperature | -20~60℃ |
Battery protection | Over charge/discharge, over current, short circuit, temperature protection, cell balance |
Size(L*W*H) | 250*150*70mm Max |
Weight | 5.2Kg Approx |
Cycle life | >700 |
Wire/Connector | TBD |
Battery type: | Li Ion Battery |
Battery model: | VP-NCM18650-13S12P |
Nominal voltage: | 48V |
Nominal capacity: | 30Ah |
Charge cut-off voltage: | 54.6V |
Discharge cut-off voltage: | 42.0V |
Max charge current: | 30A |
Max continuous discharge current: | 40.0A |
Peak discharge current: | 60.0A |
Charge temperature: | 0~45℃ |
Discharge temperature | -20~60℃ |
Cycle life: | >700 cycles @100% DOD,1C charge/discharge |
Weight: | Approx 7.9Kg |
Dimension: | 260*240*70mm/customizable |
BMS: | Over voltage, over current, short circuit, temperature protection, cell balance |
Terminal | Option |
Battery Brand | VCELL/OEM |
Battery Type | Lithium-ion Battery(NCM) |
Model | 18650-13S10P |
Nominal Voltage | 48V |
Nominal Capacity | 32Ah |
Charge Cut-Off Voltage | 54.6V |
Discharge Cut-Off Voltage | 39V |
Standard charge current | 2A |
Max charge current | 5A |
Max continuous discharge current | 40A |
Peak discharge current | 80A(<3S ) |
Fit Motor | 1000W,1200W,1500W |
Charge temperature | 0~45℃ |
Discharge temperature | -20~60℃ |
BMS | Overcharge/discharge, over current, short circuit, temperature protection, cell balance |
Size | 276*220*70mm Max (can be customized) |
Weight | 6.5Kg Approx |
Cycle life | >700 |
Wire/Connector | TBD |
Battery Brand | VCELL/OEM |
Battery Type | Lithium Ion Battery |
Model | 18650-13S7P |
Nominal Voltage | 48V |
Nominal Capacity | 35Ah |
Charge Cut-Off Voltage | 54.6V |
Discharge Cut-Off Voltage | 36.4V |
Standard charge current | 2A |
Max charge current | 5A |
Standard discharge current | 7A |
Max continuous discharge current | 20A |
Peak discharge current | 60A(<3S ) |
Motor Power | 300W-2000W |
Charge temperature | 0~45℃ |
Discharge temperature | -20~60℃ |
BMS | Over charge/discharge, over current, short circuit, temperature protection, cell balance |
Size(L*W*H) | 295*150*75mm Max |
Weight | 6.5Kg Approx |
Cycle life | >700 |
Wire/Connector | TBD |
Battery type: | Lithium Iron Phosphate Battery |
Battery model: | VP-LF48-40U |
Nominal voltage: | 48V |
Nominal capacity: | 40.0Ah |
Charge cut-off voltage: | 54V |
Discharge cut-off voltage: | 37.5V |
Standard charge current: | 8A |
Max charge current: | 40A |
Standard discharge current: | 8A |
Max continuous discharge current: | 120A |
Peak discharge current: | 200A(<3S) |
Cycle life: | >2000 cycles @100% DOD,1C Charge/Discharge |
Weight: | Approx 33Kg |
Dimension: | 200*240*460mm |
BMS: | Over voltage, over current, short circuit, temperature protection, cell balance |
Battery type: | Lifepo4 Battery |
Battery model: | VP-LF4850G |
Nominal voltage: | 48V |
Nominal capacity: | 50.0Ah |
Charge cut-off voltage: | 54.75V |
Discharge cut-off voltage: | 37.5V |
Max charge current: | 50.0A |
Max continuous discharge current: | 50.0A |
Peak discharge current: | 100.0A |
Cycle life: | >2500 cycles@100% DOD, |
Weight: | Approx 28Kg |
Dimension: | Customized |
BMS: | Over voltage, over current, short circuit, temperature protection, cell balance |
Battery type: | Lithium Ion Battery |
Battery model: | 18650-14S24P |
Nominal voltage: | 48V |
Nominal capacity: | 60.0Ah |
Charge cut-off voltage: | 58.8V |
Discharge cut-off voltage: | 38.5V |
Max charge current: | 60.0A |
Peak discharge current: | 120.0A |
Cycle life: | >3000 cycles @100% DOD,1C Charge/Discharge |
Weight: | Approx 19.5Kg |
Dimension: | 230*215*260mm |
Charge temperature | 0~45℃ |
Discharge temperature | -10~55℃ |
BMS: | Over voltage, over current, short circuit, temperature protection, cell balance |
Battery Brand | VCELL/OEM |
Battery Type | Lifepo4 Battery |
Model | VP-48-70 |
Nominal Voltage | 48V |
Nominal Capacity | 70Ah |
Place of Origin: | China |
MOQ | 10PCS |
Delivery Time: | Within 20 days |
Packaging Details: | 1pcs per carton |
Payment Terms: | L/C, T/T, Paypal |
Supply Ability: | 100 pcs per day |
Battery type: | Lifepo4 Battery |
Battery model: | VP-LF48-80U |
Nominal voltage: | 48V |
Nominal capacity: | 80.0Ah |
Charge cut-off voltage: | 58.6V |
Discharge cut-off voltage: | 38.4V |
Max charge current: | 80.0A |
Max continuous discharge current: | 100.0A |
Peak discharge current: | 200.0A |
Cycle life: | >2000 cycles @100% DOD,1C Charge/Discharge |
Weight: | Approx 40Kg |
Dimension: | 520*310*170mm L*W*H |
BMS: | Over voltage, over current, short circuit, temperature protection, cell balance |
IP Level | IP56 |
Battery type: | Lithium Iron Phosphate Battery |
Battery model: | VP-LF90G |
Nominal voltage: | 51.2V |
Nominal capacity: | 90.0Ah |
Charge cut-off voltage: | 58.4V |
Discharge cut-off voltage: | 44.8V |
Standard charge current | 18.0A |
Max charge current: | 90.0A |
Standard discharge current | 18A |
Max continuous discharge current: | 135.0A |
Peak discharge current: | 450.0A(<3S) |
Charge temperature: | 0℃~45℃ |
Discharge temperature: | -20℃~60℃ |
Cycle life: | >2500 cycles |
Weight: | Approx 45Kg |
Dimension: | H220mm×W250mm×L520mm |
BMS: | Over voltage, over current, short circuit, temperature protection, cell balance |
IP Level: | IP53 |
Battery Brand | VCELL/OEM |
Battery Type | LiFePO4 battery |
Model | VP-LF48-120 |
Nominal Voltage | 51.2V |
Nominal Capacity | 120.0Ah |
Charge Cut-Off Voltage | 58.4V |
Discharge Cut-Off Voltage | 32.0V |
Standard charge current | 50A |
Max charge current | 120A |
Max discharge current | 120A |
Peak discharge current | 400A(<3S ) |
Charge temperature | 0~45℃ |
Discharge temperature | -20~60℃ |
BMS | Overcharge/discharge, over current, short circuit, temperature protection, cell balance |
Communication Ports | RS485/232, CANBUS |
Size(D*H) | 790*300*260mm |
Weight | 60Kg Approx |
Cycle life | >2500 |
Display | Optional |
Bluetooth | Optional |
Battery type: | LiFePo4 Battery |
Battery model: | VP-LF48-210U |
Nominal voltage: | 51.2V |
Nominal capacity: | 210.0Ah |
Cell type | 16S7P 3.2V 30AH cell |
Charge cut-off voltage: | 58.4V |
Discharge cut-off voltage: | 44.8V |
Max charge current: | 100.0A |
Max continuous discharge current: | 150.0A |
Cycle life: | >2000 cycles @100% DOD,1C Charge/Discharge |
Weight: | Approx 105Kg |
Dimension: | 680*420*180mm L*W*H |
BMS: | Over voltage, over current, short circuit, temperature protection, cell balance |
Charging temperature: | 0℃~45℃ |
Discharge temperature: | -20℃~60℃ |
Storage temperature: | 1 month, -20℃ ~ 45℃
3 months, -20℃ ~ 35℃ 6 months, -20℃ ~ 35℃ |
Battery type: | LiFePo4 Battery |
Battery model: | VP-LF48-250U |
Nominal voltage: | 51.2V |
Nominal capacity: | 250.0Ah |
Cell type | 16S5P 3.2V 50AH cell |
Charge cut-off voltage: | 58.4V |
Discharge cut-off voltage: | 44.8V |
Max charge current: | 100.0A |
Max discharge current: | 100.0A |
Cycle life: | >2000 cycles @100% DOD,1C Charge/Discharge |
Weight: | Approx 115Kg |
Dimension: | 850*500*170mm L*W*H |
BMS: | Over voltage, over current, short circuit, temperature protection, cell balance |
Charging temperature: | 0℃~45℃ |
Discharge temperature: | -20℃~60℃ |
Storage temperature: | 1 month, -20℃~45℃
3 months, -20℃~35℃ 6 months, -20℃~35℃ |
Battery Brand | VCELL/OEM |
Battery Type | Lithium Iron Phosphate Battery |
Model | LF48-300 |
Nominal Voltage | 51.2V |
Nominal Capacity | 300Ah |
Place of Origin: | China |
MOQ | 10PCS |
Delivery Time: | Within 20 days |
Packaging Details: | 1pcs per carton |
Payment Terms: | L/C, T/T, Paypal |
Supply Ability: | 100 pcs per day |
Battery Brand | VCELL/OEM |
Battery Type | Lithium Iron Phosphate Battery |
Model | LFP48-500 |
Nominal Voltage | 51.2V |
Nominal Capacity | 500Ah |
Charge Cut-Off Voltage | 54V |
Discharge Cut-Off Voltage | 42V |
Standard charge current | 100A |
Max charge current | 250A |
Standard discharge current | 250A |
Peak discharge current | 500A(<3S ) |
Charge temperature | 0~45℃ |
Discharge temperature | -20~65℃ |
BMS | Over charge/discharge, over current, short circuit, temperature protection, cell balance |
Communication | RS485,RS232, Can Communication |
Size | Customized |
Weight | Approx.385KG |
Cycle life | ≥2000cycles @80%DOD |
Case Material | Metal |
Enclosure Protection | IP65 |
Battery type: | Li-Ion Battery |
Battery model: | VP-NCM504-25 |
Nominal voltage: | 50.4V |
Nominal capacity: | 25Ah |
Charge cut-off voltage: | 58.8V |
Discharge cut-off voltage: | 38.5V |
Max charge current: | 5A |
Max continuous discharge current: | 40A |
Peak discharge current: | 50A |
Charge temperature: | 0~45℃ |
Discharge temperature | -20~60℃ |
Cycle life: | >700 cycles@100% DOD,1C charge/discharge |
Weight: | Approx 7Kg |
Dimension: | 270*195*75mm/customizable |
BMS: | Over voltage, over current, short circuit, temperature protection, cell balance |
Terminal | Option |
Battery type: | Lifepo4 Battery |
Battery model: | VP-LF48-30U |
Nominal voltage: | 50.4V |
Nominal capacity: | 30.0Ah |
Charge cut-off voltage: | 57.8V |
Discharge cut-off voltage: | 45.0V |
Max charge current: | 30.0A |
Max continuous discharge current: | 30.0A |
Peak discharge current: | 90.0A(1-3S) |
Cycle life: | >2500 cycles @100% DOD,1C Charge/Discharge |
Weight: | Approx 11.5Kg |
BMS: | Over voltage, over current, short circuit, temperature protection, cell balance |
Battery type: | Lifepo4 Battery |
Battery model: | VP-LF48-10U |
Nominal voltage: | 51.2V |
Nominal capacity: | 10.0Ah |
Charge cut-off voltage: | 57.8V |
Discharge cut-off voltage: | 45.0V |
Max charge current: | 5.0A |
Max continuous discharge current: | 10.0A |
Peak discharge current: | 12.0A(1-3S) |
Cycle life: | >2500 cycles @100% DOD,1C Charge/Discharge |
Weight: | Approx 9.5Kg |
Dimension: | 483*373*44mm |
BMS: | Over voltage, over current, short circuit, temperature protection, cell balance |
Communication: | RS485/RS232 |
Battery type: | Lifepo4 Battery |
Battery model: | VP-LF48-30U |
Nominal voltage: | 51.2V |
Nominal capacity: | 30.0Ah |
Charge cut-off voltage: | 57.8V |
Discharge cut-off voltage: | 45.0V |
Max charge current: | 30.0A |
Max continuous discharge current: | 30.0A |
Peak discharge current: | 50.0A(1-3S) |
Cycle life: | >2500 cycles @100% DOD,1C Charge/Discharge |
Weight: | Approx 17.2Kg |
Dimension: | 483*280*88mm |
BMS: | Over voltage, over current, short circuit, temperature protection, cell balance |
Communication: | RS485/RS232 |
Battery type: | Lifepo4 Battery |
Battery model: | VP-LF48-50U |
Nominal voltage: | 51.2V |
Nominal capacity: | 50.0Ah |
Charge cut-off voltage: | 57.8V |
Discharge cut-off voltage: | 45.0V |
Max charge current: | 50.0A |
Max continuous discharge current: | 50.0A |
Peak discharge current: | 55.0A(1-3S) |
Cycle life: | >2500 cycles @100% DOD,1C Charge/Discharge |
Weight: | Approx 31.5Kg |
Dimension: | 483*400*133mm |
BMS: | Over voltage, over current, short circuit, temperature protection, cell balance |
Communication: | RS485/RS232 |
Item | Specification |
Battery type: | Lifepo4 Battery |
Battery model: | VP-LF48-100US |
Nominal Voltage: | 48V |
Rated Capacity (5HR): | 100 Ah |
Charging Limited Voltage: | 54V |
Discharge Ending Voltage: | 40.5V |
Max. Charging Current: | 100A |
Max. Continue Discharging Current: | 100 A |
Weight: | Approx. 42 Kg |
Display: | Without a display screen |
Parallel Connection: | Parallel connection is optional (up to 16P). When paralleling, the max. charging current is 20A |
Dimensions (W *D*H) mm (inches): | 442 (19.40″) * 450 (17.72″) * 132 (5.20″) |
Containing Cell: | 3.2V 50Ah |
Design life: | More than 15 years |
Cycle Life: | More than 3500 cycles at 100% DOD |
IP Class: | IP30 |
Outer Package Material: | Black aluminum and sheet metal case (battery rack or cabinet is optional) |
Operating Temperature: | Charging: 0 to +45C; Discharging: -20 to +60C; Storage: -20 to +60C |
Battery type: | Lifepo4 Battery |
Battery model: | VP-LF48-150U |
Nominal voltage: | 48V |
Nominal capacity: | 150.0Ah |
Charge cut-off voltage: | 54.75V |
Discharge cut-off voltage: | 37.5V |
Charge current: | 75.0A |
Discharge current: | 100.0A |
Cycle life: | >2500 cycles @100% DOD,1C Charge/Discharge |
Weight: | Approx 60.0Kg |
Dimension: | 480*550*177mm |
BMS: | Over voltage, over current, short circuit, temperature protection, cell balance |
Communication: | RS485/RS232 |
Battery type: | Lifepo4 Battery |
Battery model: | VP-LF48-150W |
Nominal voltage: | 48V |
Nominal capacity: | 150.0Ah |
Charge cut-off voltage: | 54.75V |
Discharge cut-off voltage: | 37.5V |
Max charge current: | 100.0A |
Max discharge current: | 100.0A |
Cycle life: | >2500 @100% DOD, |
Weight: | Approx 74Kg |
Dimension: | 450*760*210mm |
BMS: | Over voltage, over current, short circuit, temperature protection, cell balance |
Communication: | CAN/RS485/RS232+LCD |
Battery Brand | VCELL/OEM |
Battery Type | Lithium Iron Phosphate Battery |
Model | VP-LF48-200PW |
Nominal Voltage | 51.2V |
Nominal Capacity | 200.0Ah |
Charge Cut-Off Voltage | 57.6±0.2V |
Discharge Cut-Off Voltage | 44.8±0.2V |
Max Charge Current | 100.0A |
Max Continuous Discharge Current | 100.0A |
Peak Discharge Current | 200.0A(1-3S) |
Charge Temperature Range | 0~45℃ |
Discharge Temperature Range | -20~65℃ |
Storage Temperature Range | -20℃~50℃ |
Design Life | ≥10 Years |
Cycle Life | ≥2500 |
Dimension | 610*520*265mm |
Weight | 90.0Kg |
Communication | RS485/RS232/Canbus |
IP Level | IP30 |
Battery Brand | VCELL/OEM |
Battery Type | Lithium Iron Phosphate Battery |
Model | VP-LF48-280PW |
Nominal Voltage | 48V |
Nominal Capacity | 280.0Ah |
Charge Cut-Off Voltage | 57.6±0.2V |
Discharge Cut-Off Voltage | 44.8±0.2V |
Max Charge Current | 100.0A |
Discharge Current | 100.0A |
Max Continuous Discharge Current | 150.0A(1-3S) |
Charge Temperature Range | 0~45℃ |
Discharge Temperature Range | -20~65℃ |
Storage Temperature Range | -20℃~50℃ |
Design Life | ≥10 Years |
Cycle Life | ≥2500 |
Dimension | 895*565*205mm |
Weight | 115.5 Kg |
Communication | RS485/RS232/Canbus |
IP Level | IP30 |
Battery type: | Lifepo4 Battery |
Battery model: | VP-LF48-200U |
Nominal voltage: | 51.2V |
Nominal capacity: | 200.0Ah |
Energy | 10240Wh |
Charge cut-off voltage: | 58.4V |
Discharge cut-off voltage: | 40.0V |
Max. Charge current: | 100.0A |
Max.Discharge current: | 100.0A |
Cycle life: | >5000 cycles @80% DOD, |
Weight: | Approx 80.0Kg |
Dimension: | 445*430*222mm |
BMS: | Over voltage, over current, short circuit, temperature protection, cell balance |
Communication: | CAN, RS485, RS232 |
Charge Temperature | 0℃~+45℃ |
Discharge Temperature | -10℃~+60℃ |
Battery Type | Lithium Iron Phosphate Battery |
Battery Brand | VCELL/OEM |
Model | VP-LF48-300SK |
Nominal Voltage | 51.26V |
Nominal Capacity | 300.0Ah |
Energy | 15.36Kwh |
Charge Cut-Off Voltage | 57.6±0.2V |
Discharge Cut-Off Voltage | 44.8±0.2V |
Max charge current | 100.0A |
Max continuous discharge current | 300.0A |
Peak discharge current | 600.0A(1-3S) |
Charge temperature | 0~45℃ |
Discharge temperature | -20~60℃ |
Storage Temperature | -20~50℃ |
Design Life | ≥10 Years |
Size(L*W*H) | 650*450*815mm |
Weight | 135Kg Approx |
Cycle life | >6000 0.5C Charge/Disharge,80%DOD |
Communication | RS485/232/Canbus |
Power | 10KW |
DC Input | 48V |
MPPT | 60~180VDC,80A*2 |
AC Input | 220V50HZ |
AC Output | 220V50HZ |
Battery Type | Lithium Iron Phosphate Battery |
Battery Brand | VCELL/OEM |
Model | VP-LF48-400SK |
Nominal Voltage | 51.26V |
Nominal Capacity | 400.0Ah |
Energy | 20.48Kwh |
Charge Cut-Off Voltage | 57.6±0.2V |
Discharge Cut-Off Voltage | 44.8±0.2V |
Max charge current | 100.0A |
Max continuous discharge current | 400.0A |
Peak discharge current | 800.0A(1-3S) |
Charge temperature | 0~45℃ |
Discharge temperature | -20~60℃ |
Storage Temperature | -20~50℃ |
Design Life | ≥10 Years |
Size(L*W*H) | 650*450*1020mm |
Weight | 180Kg Approx |
Cycle life | >6000, 0.5C Charge/Disharge,80%DOD |
Communication | RS485/232/Canbus |
Power | 10KW |
DC Input | 48V |
MPPT | 60~180VDC,80A*2 |
AC Input | 220V50HZ |
AC Output | 220V50HZ |
Battery type: | Li Ion Battery(NCM) |
Battery model: | INR21700-14S7P |
Nominal voltage: | 50.4V |
Nominal capacity: | 35Ah |
Charge cut-off voltage: | 58.8V |
Discharge cut-off voltage: | 42.0V |
Max charge current: | 35.0A |
Max continuous discharge current: | 70.0A |
Peak discharge current: | 200.0A(1~3S) |
Charge temperature: | 0~45℃ |
Discharge temperature | -20~60℃ |
Cycle life: | >700 cycles@100% DOD,1C charge/discharge |
Weight: | Approx 12.5Kg |
Dimension: | 380*100*180mm |
BMS: | Over voltage, over current, short circuit, temperature protection, cell balance |
Terminal | M8 |
Battery type: | Lifepo4 Battery |
Battery model: | VP-LF48-54U |
Nominal voltage: | 51.2V |
Nominal capacity: | 54.0Ah |
Charge cut-off voltage: | 58.4V |
Discharge cut-off voltage: | 32.0V |
Standard Charging Current | 10.8A |
Standard Charging Time | 6~7 hours |
Rapid charge current: | 54.0A |
Rapid charging time | About 3.5 hours |
Standard discharge current: | 10.8A |
Peak discharge current: | 54.0A |
Cycle life: | >2000 cycles @100% DOD,1C Charge/Discharge |
Weight: | Approx 27Kg |
Dimension: | 420*300*170mm |
BMS: | Over voltage, over current, short circuit, temperature protection, cell balance |
Battery type: | Lifepo4 Battery |
Battery model: | VP-LF48-100U |
Nominal voltage: | 51.2V |
Nominal capacity: | 100.0Ah |
Charge cut-off voltage: | 58.4V |
Discharge cut-off voltage: | 40.0V |
Max charge current: | 100.0A |
Max continuous discharge current: | 100.0A |
Peak discharge current: | 200.0A |
Cycle life: | >2500 @100% DOD, |
Weight: | Approx 45Kg |
Dimension: | 483*485*155mm |
BMS: | Over voltage, over current, short circuit, temperature protection, cell balance |
Communication: | RS485/RS232/Canbus |
Battery type: | Lifepo4 Battery |
Battery model: | VP-LF48-100W |
Nominal voltage: | 51.2V |
Nominal capacity: | 100.0Ah |
Charge cut-off voltage: | 58.4V |
Discharge cut-off voltage: | 40.0V |
Max charge current: | 100.0A |
Max continuous discharge current: | 100.0A |
Peak discharge current: | 200.0A |
Cycle life: | >2500 @100% DOD, |
Weight: | Approx 45Kg |
Dimension: | 610*520*165mm |
BMS: | Over voltage, over current, short circuit, temperature protection, cell balance |
Communication: | RS485/RS232/Canbus |
Battery Type | Lithium Iron Phosphate Battery |
Battery Brand | VCELL/OEM |
Model | VP-LF48-100 |
Nominal Voltage | 51.2V |
Nominal Capacity | 100.0Ah |
Charge Cut-Off Voltage | 57.6±0.2V |
Discharge Cut-Off Voltage | 44.8±0.2V |
Max charge current | 100.0A |
Max continuous discharge current | 100.0A |
Peak discharge current | 200.0A(1-3S) |
Charge temperature | 0~45℃ |
Discharge temperature | -20~65℃ |
Storage Temperature | -20~50℃ |
Design Life | ≥10 Years |
Size(L*W*H) | 600*400*195mm |
Weight | 46.5Kg Approx |
Cycle life | ≥6000 @80% DOD
0.5C Charge/Discharge |
Communication | RS485/RS232/Canbus |
IP Level | IP65 |
Battery type: | LIFEPO4 Battery |
Battery model: | VP-LF48-100U |
Nominal voltage: | 48V |
Nominal capacity: | 100.0Ah |
Charge cut-off voltage: | 54.75V |
Discharge cut-off voltage: | 30V |
Standard Charge Current | 20.0A |
Maximum charge current: | 100.0A |
Max continuous discharge current: | 100.0A |
Maximum pack discharge current: | 200.0A |
Cycle life: | >2000 Cycles @100% DOD,1C Charge/Discharge |
Weight: | Approx 70Kg |
Dimension: | 200mm*365mm*540mm |
BMS: | Over voltage, over current, short circuit, temperature protection, cell balance |
Battery type: | Lithium Iron Phosphate Battery |
Battery model: | IFR54173200-16S1P |
Nominal voltage: | 51.2V |
Nominal capacity: | 200.0Ah |
Charge cut-off voltage: | 57.6V |
Discharge cut-off voltage: | 40.0V |
Standard charge current: | 40.0V |
Max charge current: | 200.0A |
Standard discharge current: | 40.0V |
Max continuous discharge current: | 200.0A |
Peak discharge current: | 400.0A(1~3S) |
Charge temperature: | 0~45℃ |
Discharge temperature | -20~60℃ |
Cycle life: | >2500 @100% DOD,1C charge/discharge |
Weight: | Approx 75.0Kg |
Dimension: | 360*520*285mm |
BMS: | Over voltage, over current, short circuit, temperature protection, cell balance, With LCD display |
Terminal | M8 |
Battery type: | Lifepo4 Battery |
Battery model: | VP-LF48-300W |
Nominal voltage: | 51.2V |
Nominal capacity: | 300.0Ah |
Charge cut-off voltage: | 58.4V |
Discharge cut-off voltage: | 40.0V |
Max charge current: | 300.0A |
Max continuous discharge current: | 300.0A |
Peak discharge current: | 600.0A |
Cycle life: | >2500 @100% DOD, |
Weight: | Approx 130Kg |
BMS: | Over voltage, over current, short circuit, temperature protection, cell balance |
Battery Type | Lithium Iron Phosphate Battery |
Battery Brand | VCELL/OEM |
Model | VP-LF48-300SY |
Nominal Voltage | 51.2V |
Nominal Capacity | 300.0Ah |
Energy | 15Kwh |
Charge Cut-Off Voltage | 57.6V |
Discharge Cut-Off Voltage | 44.8V |
Max charge current | 100.0A |
Max discharge current | 200.0A |
Charge temperature | 0~55℃ |
Discharge temperature | -20~60℃ |
Storage Temperature | -20~25℃ |
Design Life | ≥10 Years |
Size(L*W*H) | 622*185*760mm |
Weight | 125Kg Approx |
Cycle life | > 7000 times at 80%DOD |
Battery Brand | VCELL/OEM |
Battery Type | Li-Ion Battery |
Model | VP52-10 |
Nominal Voltage | 52V |
Nominal Capacity | 10Ah |
Cell Combination | 14S4P |
Charge Cut-Off Voltage | 58.8V |
Discharge Cut-Off Voltage | 39.2V |
Charge Current | 2A |
Continuous Discharge Current | 30A |
Peak Discharge Current | 90A |
Charge temperature | 0~45℃ |
Discharge temperature | -20~65℃ |
Size | 275*85*70mm/Customized |
Weight | Approx 2.85Kg |
Cycle life | ≥800 cycles @80%DOD |
Battery Brand | VCELL/OEM |
Battery Type | Li-Ion Battery |
Model | VP52-28 |
Nominal Voltage | 52V |
Nominal Capacity | 28Ah |
Cell Combination | 14S8P |
Charge Cut-Off Voltage | 58.8V |
Discharge Cut-Off Voltage | 39.2V |
Charge Current | 2-5A |
Continuous Discharge Current | 30A |
Peak Discharge Current | 90A |
Charge temperature | 0~45℃ |
Discharge temperature | -20~65℃ |
Size | 290x70x95x255x65x200mm/Customized |
Weight | Approx 5.5Kg |
Cycle life | ≥800 cycles @80%DOD |
Battery Brand | VCELL/OEM |
Battery Type | Li-Ion Battery |
Model | VP52-35 |
Nominal Voltage | 52V |
Nominal Capacity | 35Ah |
Cell Combination | 14S7P |
Charge Cut-Off Voltage | 58.8V |
Discharge Cut-Off Voltage | 39.2V |
Max Charge Current | 5A |
BMS | 40A |
Fit For Motor | 500W/750W/1000W/1500W |
Charge temperature | 0~45℃ |
Discharge temperature | -20~65℃ |
Size | 315*165*75mm/Customized |
Weight | Approx 7.4Kg |
Cycle life | ≥800 cycles @80%DOD |
Battery type: | Li Ion Battery |
Battery model: | VP-NCM18650-17S4P |
Nominal voltage: | 60V |
Nominal capacity: | 10Ah |
Charge cut-off voltage: | 71.4V |
Discharge cut-off voltage: | 46.75V |
Max charge current: | 5A |
Max continuous discharge current: | 15A |
Peak discharge current: | 20A |
Charge temperature: | 0~45℃ |
Discharge temperature | -20~60℃ |
Cycle life: | >700 cycles @100% DOD,1C charge/discharge |
Weight: | Approx 3.5Kg |
Dimension: | 335*86*75mm/custom |
BMS: | Over voltage, over current, short circuit, temperature protection, cell balance |
Terminal | Option |
Battery type: | Li Ion Battery |
Battery model: | VP-NCM18650-17S5P |
Nominal voltage: | 60V |
Nominal capacity: | 12.5Ah |
Charge cut-off voltage: | 71.4V |
Discharge cut-off voltage: | 46.75V |
Max charge current: | 5A |
Max continuous discharge current: | 15A |
Peak discharge current: | 25A |
Charge temperature: | 0~45℃ |
Discharge temperature | -20~60℃ |
Cycle life: | >700 cycles @100% DOD,1C charge/discharge |
Weight: | Approx 4.3Kg |
Dimension: | 335*105*75mm/custom |
BMS: | Over voltage, over current, short circuit, temperature protection, cell balance |
Terminal | Option |
Battery Brand | VCELL/OEM |
Battery Type | Lithium Ion Battery(NCM) |
Model | INR18650-16S5P |
Nominal Voltage | 60V |
Nominal Capacity | 15Ah |
Charge Cut-Off Voltage | 67.2V |
Discharge Cut-Off Voltage | 44.8V |
Standard charge current | 3A |
Max charge current | 15A |
Standard discharge current | 3A |
Max continuous discharge current | 22.5A |
Peak discharge current | 45A(<3S ) |
Charge temperature | 0~45℃ |
Discharge temperature | -20~60℃ |
BMS | Over charge/discharge, over current, short circuit, temperature protection, cell balance |
Size(L*W*H) | 300*75*93mm Max |
Weight | 4.1Kg Approx |
Cycle life | >700 |
Wire/Connector | TBD |
Battery Brand | VCELL/OEM |
Battery Type | Lithium Ion Battery(NCM) |
Model | 18650-16S7P |
Nominal Voltage | 60V |
Nominal Capacity | 18.2Ah |
Charge Cut-Off Voltage | 67.2V |
Discharge Cut-Off Voltage | 44V |
Charge current | 2A |
Max continuous discharge current | 30A |
BMS | 30A |
Matching Motor Power | 500W-1000W |
Charge temperature | 0~45℃ |
Discharge temperature | -20~60℃ |
Size(L*W*H) | 205*135*70mm Max or Custom |
Weight | 5.65Kg Approx |
Cycle life | >700 |
Wire/Connector | TBD |
Battery type: | Li Ion Battery |
Battery model: | VP-NCM18650-17S8P |
Nominal voltage: | 60V |
Nominal capacity: | 20Ah |
Charge cut-off voltage: | 71.4V |
Discharge cut-off voltage: | 46.75V |
Max charge current: | 5A |
Max continuous discharge current: | 30A |
Peak discharge current: | 40A |
Charge temperature: | 0~45℃ |
Discharge temperature | -20~60℃ |
Cycle life: | >700 cycles @100% DOD,1C charge/discharge |
Weight: | Approx 7Kg |
Dimension: | 335*165*75mm/custom |
BMS: | Over voltage, over current, short circuit, temperature protection, cell balance |
Terminal | Option |
Battery Brand | VCELL/OEM |
Battery Type | Lithium Ion Battery(NCM) |
Model | 18650-16S7P-32 |
Nominal Voltage | 60V |
Nominal Capacity | 22.4Ah |
Charge Cut-Off Voltage | 67.2V |
Discharge Cut-Off Voltage | 44V |
Standard Charge Current | 2A |
Max Charge Current | 5A |
Max continuous discharge current | 30A |
BMS | 30A |
Matching Motor Power | 500W-1000W |
Charge temperature | 0~45℃ |
Discharge temperature | -20~60℃ |
Size(L*W*H) | 205*135*70mm Max or Custom |
Weight | 5.65Kg Approx |
Cycle life | >700 |
Wire/Connector | TBD |
Battery Brand | VCELL/OEM |
Battery Type | Lithium Ion Battery |
Model | VP-NMC60-24 |
Nominal Voltage | 60V |
Nominal Capacity | 24Ah |
Cell Combination | 16S8P |
Charge Cut-Off Voltage | 67.2V |
Discharge Cut-Off Voltage | 44.8V |
Standard Charge Current | 5A |
Max Charge Current | 8A |
Continuous Discharge Current | 60A |
Peak Discharge Current | 120A |
Matching Power | 3000W |
Charge temperature | 0~45℃ |
Discharge temperature | -20~65℃ |
Size | 320x165x70mm Or customized |
Weight | Approx 6.45Kg |
Cycle life | ≥800 cycles @80%DOD |
Battery Brand | VCELL/OEM |
Battery Type | Lithium Ion Battery(NCM) |
Model | 18650-16S7P-35 |
Nominal Voltage | 60V |
Nominal Capacity | 24.5Ah |
Charge Cut-Off Voltage | 67.2V |
Discharge Cut-Off Voltage | 44V |
Standard Charge Current | 2A |
Max Charge Current | 5A |
Max continuous discharge current | 30A |
BMS | 30A |
Matching Motor Power | 500W-1000W |
Battery Protection | Built-in BMS, with prevent overcharge/discharge, over current, and short circuit functions |
Charge temperature | 0~45℃ |
Discharge temperature | -20~60℃ |
Size(L*W*H) | 205*135*70mm Max or Custom |
Weight | 5.65Kg Approx |
Cycle life | >700 |
Wire/Connector | TBD |
Battery type: | Li Ion Battery |
Battery model: | VP-NCM18650-17S10P |
Nominal voltage: | 60V |
Nominal capacity: | 25Ah |
Charge cut-off voltage: | 71.4V |
Discharge cut-off voltage: | 46.75V |
Max charge current: | 5A |
Max continuous discharge current: | 30A |
Peak discharge current: | 50A |
Charge temperature: | 0~45℃ |
Discharge temperature | -20~60℃ |
Cycle life: | >700 cycles @100% DOD,1C charge/discharge |
Weight: | Approx 8.6Kg |
Dimension: | 335*200*75mm/custom |
BMS: | Over voltage, over current, short circuit, temperature protection, cell balance |
Terminal | Option |
Battery Brand | VCELL/OEM |
Battery Type | Li-Ion Battery(NCM) |
Model | 18650-16S8P |
Nominal Voltage | 60V |
Nominal Capacity | 28Ah |
Charge Cut-Off Voltage | 67.2V |
Discharge Cut-Off Voltage | 44.8V |
Standard Charging Current | 2A |
Max charge current | 5A |
BMS | 35A |
Max continuous discharge current | 35A |
Peak discharge current | 65A |
Match Motor Power | 250W-1000W |
Charge temperature | 0~45℃ |
Discharge temperature | -20~60℃ |
Size(L*W*H) | 310*165*70mm Max |
Weight | 5.4Kg Approx |
Cycle life | >700 |
Wire/Connector | TBD |
Battery type: | Li-Ion Battery |
Battery model: | VP-NCM18650-17S12P |
Nominal voltage: | 60.0V |
Nominal capacity: | 30.0Ah |
Charge cut-off voltage: | 71.4V |
Discharge cut-off voltage: | 46.75V |
Max charge current: | 5A |
Max continuous discharge current: | 30A |
Peak discharge current: | 90.0A |
Charge temperature: | 0~45℃ |
Discharge temperature | -20~60℃ |
Cycle life: | >700 cycles @100% DOD,1C charge/discharge |
Weight: | Approx 10.5Kg |
Dimension: | 335*240*75mm (Can be customized ) |
BMS: | Over voltage, over current, short circuit, temperature protection, cell balance |
Terminal | Option |
Battery type: | Li Ion Battery(NCM) |
Battery model: | INR18650-17S14P |
Nominal voltage: | 61.2V |
Nominal capacity: | 35.0Ah |
Charge cut-off voltage: | 71.4V |
Discharge cut-off voltage: | 51.0V |
Max charge current: | 35.0A |
Max continuous discharge current: | 70.0A |
Peak discharge current: | 200.0A(1~3S) |
Charge temperature: | 0~45℃ |
Discharge temperature | -20~60℃ |
Cycle life: | >700 @100% DOD,1C charge/discharge |
Weight: | Approx 13.5Kg |
Dimension: | Customized |
BMS: | Over voltage, over current, short circuit, temperature protection, cell balance |
Terminal | M8 |
Battery Brand | VCELL/OEM |
Battery Type | Lithium Ion Battery(NCM) |
Model | 18650-16S14P |
Nominal Voltage | 60V |
Nominal Capacity | 40.0Ah |
Charge Cut-Off Voltage | 67.2V |
Discharge Cut-Off Voltage | 48.0V |
Standard charge current | 2A |
Max charge current | 5A |
Standard discharge current | 50A |
Max continuous discharge current | 50A |
Peak discharge current | 150A(<3S ) |
Charge temperature | 0~45℃ |
Discharge temperature | -20~60℃ |
BMS | Over charge/discharge, over current, short circuit, temperature protection, cell balance |
Size(L*W*H) | 310*265*70mm Max |
Weight | 11Kg Approx |
Cycle life | >700 |
Wire/Connector | TBD |
Battery type: | Li-Ion Battery |
Battery model: | VP-NCM18650-16S15P |
Nominal voltage: | 60.0V |
Nominal capacity: | 45.0Ah |
Charge cut-off voltage: | 67.2V |
Discharge cut-off voltage: | 44.0V |
Max charge current: | 5A |
Max continuous discharge current: | 50A |
Charge temperature: | 0~45℃ |
Discharge temperature | -20~60℃ |
Cycle life: | >700 cycles @100% DOD,1C charge/discharge |
Weight: | Approx 12kg |
Dimension: | 320*170*140mm (Can be customized ) |
BMS: | Over voltage, over current, short circuit, temperature protection, cell balance |
Terminal | Option |
Battery Brand | VCELL/OEM |
Battery Type | Lithium Ion Battery |
Model | 21700-16S10P |
Nominal Voltage | 60V |
Nominal Capacity | 50Ah |
Charge Cut-Off Voltage | 67.2V |
Discharge Cut-Off Voltage | 48V |
Standard Charge Current | 2A |
Max charge current | 5A |
Maximum Continuous Discharge Current | 50A |
Peak Discharge Current | 90A |
Charge temperature | 0~45℃ |
Discharge temperature | -20~60℃ |
BMS | Over charge/discharge, over current, short circuit, temperature protection, cell balance |
Size(L*W*H) | 360*220*75mm Max |
Weight | 12.2Kg Approx |
Cycle life | >700 |
Wire/Connector | TBD |
Battery Brand | VCELL/OEM |
Battery Type | Lifepo4 Battery |
Model | VP-60-60 |
Nominal Voltage | 60V |
Nominal Capacity | 60Ah |
Place of Origin: | China |
MOQ | 10PCS |
Delivery Time: | Within 20 days |
Packaging Details: | 1pcs per carton |
Payment Terms: | L/C, T/T, Paypal |
Supply Ability: | 100 pcs per day |
Battery Brand | VCELL/OEM |
Battery Type | Lithium Iron Phosphate Battery |
Model | LF60-80 |
Nominal Voltage | 60V |
Nominal Capacity | 80Ah |
Place of Origin: | China |
MOQ | 10PCS |
Delivery Time: | Within 20 days |
Packaging Details: | 1pcs per carton |
Payment Terms: | L/C, T/T, Paypal |
Supply Ability: | 100 pcs per day |
Battery Brand | VCELL/OEM |
Battery Type | Lithium Iron Phosphate Battery |
Model | LF60-100 |
Nominal Voltage | 60V |
Nominal Capacity | 100Ah |
Place of Origin: | China |
MOQ | 10PCS |
Delivery Time: | Within 20 days |
Packaging Details: | 1pcs per carton |
Payment Terms: | L/C, T/T, Paypal |
Supply Ability: | 100 pcs per day |
Battery Brand | VCELL/OEM |
Battery Type | Lithium Ion Battery(NCM) |
Model | 18650-20S4P |
Nominal Voltage | 72V |
Nominal Capacity | 8.8Ah |
Charge Cut-Off Voltage | 84V |
Discharge Cut-Off Voltage | 60V |
Max Charge Current | 2A |
Max Continuous Discharging Current | 20A |
Max Discharging Current | 50A |
Charge Temperature | 0~45℃ |
Discharge Temperature | -20~60℃ |
BMS | Over charge/discharge, over current, short circuit, temperature protection, cell balance |
Size | 372*76*68mm Max/custom |
Weight | 4.05Kg Approx |
Cycle life | >700 |
Wire/Connector | TBD |
Battery Brand | VCELL/OEM |
Battery Type | Lithium-ion Battery(NCM) |
Model | INR18650-20S4P |
Nominal Voltage | 72V |
Nominal Capacity | 10.0Ah |
Charge Cut-Off Voltage | 84V |
Discharge Cut-Off Voltage | 60.0V |
Standard charge current | 2A |
Max charge current | 5A |
Standard discharge current | 30A |
Max continuous discharge current | 30A |
Peak discharge current | 100A(<3S ) |
Charge temperature | 0~45℃ |
Discharge temperature | -20~60℃ |
BMS | Overcharge/discharge, over current, short circuit, temperature protection, cell balance |
Size | 400*100*70 mm Max (can be customized) |
Weight | 4.1Kg Approx |
Cycle life | >700 |
Wire/Connector | TBD |
Battery Brand | VCELL/OEM |
Battery Type | Lithium-ion Battery(NCM) |
Model | INR18650-20S6P |
Nominal Voltage | 72V |
Nominal Capacity | 12Ah |
Charge Cut-Off Voltage | 84V |
Discharge Cut-Off Voltage | 60V |
Standard charge current | 2A |
Max charge current | 5A |
Standard discharge current | 60A |
Max continuous discharge current | 60A |
Peak discharge current | 180A(<3S ) |
Charge temperature | 0~45℃ |
Discharge temperature | -20~60℃ |
BMS | Overcharge/discharge, over current, short circuit, temperature protection, cell balance |
Size | 400*140*70 mm Max (can be customized) |
Weight | 6Kg Approx |
Cycle life | >700 |
Wire/Connector | TBD |
Battery type: | Li Ion Battery |
Battery model: | VP-NCM18650-20S6P |
Nominal voltage: | 72V |
Nominal capacity: | 15Ah |
Charge cut-off voltage: | 84.0V |
Discharge cut-off voltage: | 55.0V |
Max charge current: | 5A |
Max continuous discharge current: | 20.0A |
Peak discharge current: | 45.0A |
Charge temperature: | 0~45℃ |
Discharge temperature | -20~60℃ |
Cycle life: | >700 cycles @100% DOD,1C charge/discharge |
Weight: | Approx 6.1Kg |
Dimension: | 400*125*70mm/customization |
BMS: | Over voltage, over current, short circuit, temperature protection, cell balance |
Terminal | Option |
Battery type: | Li-Ion Battery |
Battery model: | VP-NCM18650-20S8P |
Nominal voltage: | 72V |
Nominal capacity: | 20Ah |
Charge cut-off voltage: | 84.0V |
Discharge cut-off voltage: | 55.0V |
Max charge current: | 5A |
Max continuous discharge current: | 30.0A |
Peak discharge current: | 60.0A |
Charge temperature: | 0~45℃ |
Discharge temperature | -20~60℃ |
Cycle life: | >700 cycles @100% DOD,1C charge/discharge |
Weight: | Approx 8.1Kg |
Dimension: | 400*165*70mm/customization |
BMS: | Over voltage, over current, short circuit, temperature protection, cell balance |
Terminal | Option |
Battery type: | Li-Ion Battery |
Battery model: | VP-NCM18650-20S8P |
Nominal voltage: | 72V |
Nominal capacity: | 24Ah |
Charge cut-off voltage: | 84.0V |
Discharge cut-off voltage: | 55.0V |
Max charge current: | 5A |
Max discharge current: | 50.0A |
Charge temperature: | 0~45℃ |
Discharge temperature | -20~60℃ |
Cycle life: | >700 cycles @100% DOD,1C charge/discharge |
Weight: | Approx 8.1Kg |
Dimension: | 555*465*290*76mm/customization |
BMS: | Over voltage, over current, short circuit, temperature protection, cell balance |
Terminal | Option |
Battery Brand | VCELL/OEM |
Battery Type | Lithium Ion Battery(NCM) |
Model | INR18650-20S10P |
Nominal Voltage | 72V |
Nominal Capacity | 25Ah |
Charge Cut-Off Voltage | 84V |
Discharge Cut-Off Voltage | 55V |
Standard charge current | 2A |
Max charge current | 5A |
BMS | 60A |
Max continuous discharge current | 60A |
Peak discharge current | 180A(<3S ) |
Charge temperature | 0~45℃ |
Discharge temperature | -20~60℃ |
BMS | Over charge/discharge, over current, short circuit, temperature protection, cell balance |
Size(D*H) | 374*189*70mm Max/Custom |
Weight | 10.5Kg Approx |
Cycle life | >700 |
Wire/Connector | TBD |
Battery Brand | VCELL/OEM |
Battery Type | Li-Ion Battery(NCM) |
Model | 21700-20S7P |
Nominal Voltage | 72V |
Nominal Capacity | 28Ah |
Charge Cut-Off Voltage | 84V |
Discharge Cut-Off Voltage | 55V |
Max charge current | 15A |
BMS | 100A |
Max continuous discharge current | 100A |
Peak discharge current | 200A |
Charge temperature | 0~45℃ |
Discharge temperature | -20~60℃ |
Size(L*W*H) | 450*165*76mm Max |
Weight | 10.55Kg Approx |
Cycle life | >700 |
Wire/Connector | TBD |
Battery type: | Li Ion Battery |
Battery model: | VP-NCM18650-20S12P |
Nominal voltage: | 72V |
Nominal capacity: | 30Ah |
Charge cut-off voltage: | 84.0V |
Discharge cut-off voltage: | 55.0V |
Max charge current: | 5A |
Max continuous discharge current: | 40.0A |
Peak discharge current: | 60.0A |
Charge temperature: | 0~45℃ |
Discharge temperature | -20~60℃ |
Cycle life: | >700 cycles @100% DOD,1C charge/discharge |
Weight: | Approx 12Kg |
Dimension: | 400*240*70mm/customization |
BMS: | Over voltage, over current, short circuit, temperature protection, cell balance |
Terminal | Option |
Battery Brand | VCELL/OEM |
Battery Type | Lithium Ion Battery(NCM) |
Model | INR21700-20S7P |
Nominal Voltage | 72V |
Nominal Capacity | 35.0Ah |
Charge Cut-Off Voltage | 84.0V |
Discharge Cut-Off Voltage | 55.0V |
Standard charge current | 2A |
Max charge current | 5A |
Standard discharge current | 50A |
Max continuous discharge current | 50A |
Peak discharge current | 100A(<3S ) |
Motor Power | 300W-2000W |
Charge temperature | 0~45℃ |
Discharge temperature | -20~60℃ |
BMS | Over charge/discharge, over current, short circuit, temperature protection, cell balance |
Size(L*W*H) | 435*130*75mm Max |
Weight | 10Kg Approx |
Cycle life | >700 |
Wire/Connector | TBD |
Battery type: | Li Ion Battery |
Battery model: | VP-NCM18650-20S16P |
Nominal voltage: | 72V |
Nominal capacity: | 40Ah |
Charge cut-off voltage: | 84.0V |
Discharge cut-off voltage: | 55.0V |
Max charge current: | 5A |
Max continuous discharge current: | 60.0A |
Peak discharge current: | 80.0A |
Charge temperature: | 0~45℃ |
Discharge temperature | -20~60℃ |
Cycle life: | >700 cycles @100% DOD,1C charge/discharge |
Weight: | Approx 16Kg |
Dimension: | 400*315*70mm/customization |
BMS: | Over voltage, over current, short circuit, temperature protection, cell balance |
Terminal | Option |
Battery type: | Lifepo4 Battery |
Battery model: | IFR26650-23S12P |
Nominal voltage: | 73.6V |
Nominal capacity: | 42.0Ah |
Charge cut-off voltage: | 82.8V |
Discharge cut-off voltage: | 57.5V |
Max charge current: | 42.0A |
Max continuous discharge current: | 80.0A |
Peak discharge current: | 200.0A(1~3S) |
Charge temperature: | 0~45℃ |
Discharge temperature | -20~60℃ |
Cycle life: | >2500 @100% DOD,1C charge/discharge |
Weight: | Approx 29.5Kg |
Dimension: | Customized |
BMS: | Over voltage, over current, short circuit, temperature protection, cell balance |
Terminal | Anderson |
Battery Brand | VCELL/OEM |
Battery Type | Lithium Ion Battery(NCM) |
Model | INR21700-20S9P |
Nominal Voltage | 72V |
Nominal Capacity | 45.0Ah |
Charge Cut-Off Voltage | 84.0V |
Discharge Cut-Off Voltage | 55.0V |
Standard charge current | 2A |
Max charge current | 5A |
Standard discharge current | 50A |
Max continuous discharge current | 50A |
Peak discharge current | 100A(<3S ) |
Charge temperature | 0~45℃ |
Discharge temperature | -20~60℃ |
BMS | Over charge/discharge, over current, short circuit, temperature protection, cell balance |
Size(L*W*H) | 435*198*75mm Max |
Weight | 13.6Kg Approx |
Cycle life | >700 |
Wire/Connector | TBD |
Battery Brand | VCELL/OEM |
Battery Type | Lithium Ion Battery(NCM) |
Model | INR21700-20S10P |
Nominal Voltage | 72V |
Nominal Capacity | 50.0Ah |
Charge Cut-Off Voltage | 84.0V |
Discharge Cut-Off Voltage | 55.0V |
Standard charge current | 2A |
Max charge current | 5A |
Standard discharge current | 50A |
Max continuous discharge current | 50A |
Peak discharge current | 100A(<3S ) |
Charge temperature | 0~45℃ |
Discharge temperature | -20~60℃ |
BMS | Over charge/discharge, over current, short circuit, temperature protection, cell balance |
Size(L*W*H) | 470*250*75mm Max |
Weight | 15.5Kg Approx |
Cycle life | >700 |
Wire/Connector | TBD |
Battery type: | Li Ion Battery(NCM) |
Battery model: | INR21700-20S16P |
Nominal voltage: | 72.0V |
Nominal capacity: | 72.0Ah |
Charge cut-off voltage: | 84.0V |
Discharge cut-off voltage: | 60.0V |
Max charge current: | 72.0A |
Max continuous discharge current: | 72.0A |
Peak discharge current: | 150.0A(1~3S) |
Charge temperature: | 0~45℃ |
Discharge temperature | -20~60℃ |
Cycle life: | >700 @100% DOD,1C charge/discharge |
Weight: | Approx 28.0Kg |
Dimension: | 520*215*165mm |
BMS: | Over voltage, over current, short circuit, temperature protection, cell balance |
Terminal | Anderson |
Battery Brand | VCELL/OEM |
Battery Type | Lithium Ion Battery |
Model | NCM72-80 |
Nominal Voltage | 72V |
Nominal Capacity | 80Ah |
Place of Origin: | China |
MOQ | 10PCS |
Delivery Time: | Within 20 days |
Packaging Details: | 1pcs per carton |
Payment Terms: | L/C, T/T, Paypal |
Supply Ability: | 100 pcs per day |
Battery Brand | VCELL/OEM |
Battery Type | Lithium Iron Phosphate Battery |
Model | LF72-100 |
Nominal Voltage | 72V |
Nominal Capacity | 100Ah |
Place of Origin: | China |
MOQ | 10PCS |
Delivery Time: | Within 20 days |
Packaging Details: | 1pcs per carton |
Payment Terms: | L/C, T/T, Paypal |
Supply Ability: | 100 pcs per day |
Battery Brand | VCELL/OEM |
Battery Type | Lithium Iron Phosphate Battery |
Model | LF72-120 |
Nominal Voltage | 73.6V |
Nominal Capacity | 120Ah |
Place of Origin: | China |
MOQ | 10PCS |
Delivery Time: | Within 20 days |
Packaging Details: | 1pcs per carton |
Payment Terms: | L/C, T/T, Paypal |
Supply Ability: | 100 pcs per day |
Battery Brand | VCELL/OEM |
Battery Type | Lithium Ion Battery |
Model | VP-72-150 |
Nominal Voltage | 72V |
Nominal Capacity | 150Ah |
Place of Origin: | China |
MOQ | 10PCS |
Delivery Time: | Within 20 days |
Packaging Details: | 1pcs per carton |
Payment Terms: | L/C, T/T, Paypal |
Supply Ability: | 100 pcs per day |
Battery Brand | VCELL/OEM |
Battery Type | Lithium Ion Battery |
Model | NCM72-180 |
Nominal Voltage | 72V |
Nominal Capacity | 180Ah |
Place of Origin: | China |
MOQ | 10PCS |
Delivery Time: | Within 20 days |
Packaging Details: | 1pcs per carton |
Payment Terms: | L/C, T/T, Paypal |
Supply Ability: | 100 pcs per day |
Battery Brand | VCELL/OEM |
Battery Type | Lithium Iron Phosphate Battery |
Model | LF72-200 |
Nominal Voltage | 76.8V |
Nominal Capacity | 200Ah |
Place of Origin: | China |
MOQ | 10PCS |
Delivery Time: | Within 20 days |
Packaging Details: | 1pcs per carton |
Payment Terms: | L/C, T/T, Paypal |
Supply Ability: | 100 pcs per day |
Battery Brand | VCELL/OEM |
Battery Type | Lithium Iron Phosphate Battery |
Model | LF72-300 |
Nominal Voltage | 72V |
Nominal Capacity | 300Ah |
Place of Origin: | China |
MOQ | 10PCS |
Delivery Time: | Within 20 days |
Packaging Details: | 1pcs per carton |
Payment Terms: | L/C, T/T, Paypal |
Supply Ability: | 100 pcs per day |
Battery type: | Lithium ion battery(NCM) |
Total energy: | 507.0Wh |
DC plug: | DC5.5*2.1 12-24V/5A |
USB: | 2*USB-A;QC3.0 Max 12V/1.5A |
12V/10A | |
AC output: | 110V/220V 50Hz, 500W |
LCD screen | Yes |
Led light | Yes |
Wireless charging: | Yes |
PV charge: | Yes |
Charge temperature: | 0~45℃ |
Discharge temperature | -10~40℃ |
Cycle life: | >1000 |
Weight: | Approx 5.5Kg |
Dimension: | 248*178*161mm |
Protection: | Over voltage, over current, short circuit, over temperature protection |
Name | Portable Power Station/Backup Power Supply |
Model | VP1500 |
Total energy: | 1500Wh |
Battery type: | Lifepo4 Battery |
AC OUTPUT | 110V/220V 1500W |
USB: | 3*18W |
Cigarette lighter | 12V/10A |
DC OUTPUT | 2*12V/3A |
Type C | 3*100W |
Connector | XT60:12V/10A |
Charging Output: | 12V/10A |
Size: | 368*200*200mm |
Weight | 13.5Kg |
INPUT/Charging: | Support AC charging; Support MPPT Charging |
