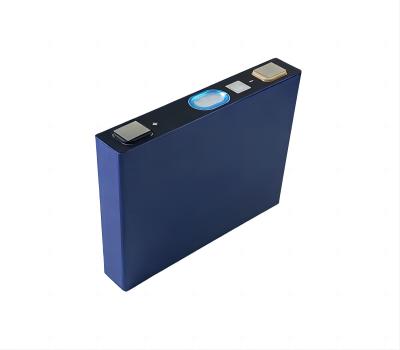

Battery type: | Lithium Ion Cell(NCM) |
Model: | NCM215 |
Nominal voltage: | 3.7V |
Nominal capacity: | 215Ah |
Charge cut-off voltage: | 4.2V |
Discharge cut-off voltage: | 2.75V |
Max charge current: | 215A |
Max continuous discharge current: | 645A |
Peak discharge current: | 1075A |
Charge temperature: | 0~45℃ |
Discharge temperature: | -20~60℃ |
Internal resistance: | ≤0.35mΩ |
Cycle life: | >2000 cycles |
Weight: | Approx 2.92kg |
Dimension(L*W*H): | 201mm*34mm*186mm |
Feature:
1.High energy density, lower self discharge
2. Outstanding cycle life with maximum reliability
3. Possible to form modules that are suitable for various pack structures
4. Wide application: EV,RV,Electric fork lift,back-up power ,solar storage etc.
5. Easily to assemble battery pack,we provide cells connectors and technical support ,or we can customize battery pack according to your requirements.
