Battery type: | Li Ion Battery |
Battery model: | VP-NCM18650-7S8P |
Nominal voltage: | 24V |
Nominal capacity: | 20Ah |
Charge cut-off voltage: | 29.4V |
Discharge cut-off voltage: | 19.25V |
Max charge current: | 20A |
Max continuous discharge current: | 30.0A |
Peak discharge current: | 40.0A |
Charge temperature: | 0~45℃ |
Discharge temperature | -20~60℃ |
Cycle life: | >700 cycles @100% DOD,1C charge/discharge |
Weight: | Approx 2.8Kg |
Dimension: | 130*160*70mm/customizable |
BMS: | Over voltage, over current, short circuit, temperature protection, cell balance |
Terminal | Option |

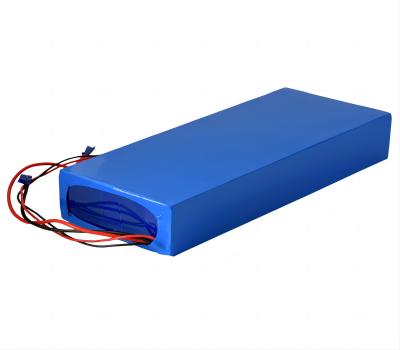

The Vcell Battery 24V 20Ah Li-Ion Battery is a state-of-the-art rechargeable battery pack made with Li-Ion cylindrical cells packed with PVC shrink wrap. It is perfect for Ebike, electric tricycles, electric scooters, electric vehicles, model aircraft, electric tools, golf carts, sightseeing coaches, electric motorcycles, power wheelchairs,
The Vcell battery has a built-in battery management system (BMS) that keeps the battery running at peak performance and protects the cells from over-charge, over-discharge, over-current, and short-circuit.
Feature:
1. Life expectancy is two times that of lead-acid batteries. The weight is lighter
2.No memory effect and rechargeable. the battery life is longer
3. Battery voltage, capacity, and size support customization!
4. The outer layer of the battery pack is made of waterproof PVC material, insulation, anti-corrosion and wear resistance.
5. Safer and more environmentally friendly, with No heavy metals and hazardous substances.
