Battery type: | Lithium Ion Battery |
Battery model: | 18650-14S24P |
Nominal voltage: | 48V |
Nominal capacity: | 60.0Ah |
Charge cut-off voltage: | 58.8V |
Discharge cut-off voltage: | 38.5V |
Max charge current: | 60.0A |
Peak discharge current: | 120.0A |
Cycle life: | >3000 cycles @100% DOD,1C Charge/Discharge |
Weight: | Approx 19.5Kg |
Dimension: | 230*215*260mm |
Charge temperature | 0~45℃ |
Discharge temperature | -10~55℃ |
BMS: | Over voltage, over current, short circuit, temperature protection, cell balance |
Advantages

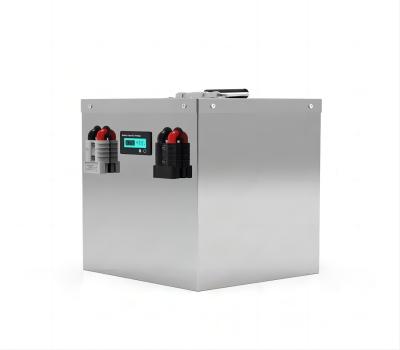

This 48V 60Ah Lithium Ion battery system has built-in BMS and stainless steel box painted in black or white.
1. Long cycle life (more than 3000 cycles at 100% DOD) .
2. Bulit-in smart BMS with multiple protection and communication functions.
3. Wide working temperature range and high reliability.
4. Multiple battery units can be connected in parallel, suitable for high-energy storage applications.
5. E-car, E-bus, Golf trolley/ car, E-bike, Scooter, RV, AGV, Marine, Tourist car, Caravan, Solar-Wind Power System, City Grid (On/Off) Back-up solar System and UPS, Telcom Base, CATV system, Computer Server Center, Medical Instrument, Military Equipment Other Applications, etc.
