Battery type: | Lifepo4 Battery |
Battery model: | VP-LF24-60 |
Nominal voltage: | 25.6V |
Nominal capacity: | 60Ah |
Charge cut-off voltage: | 29.2V |
Discharge cut-off voltage: | 16.0V |
Max charge current: | 60.0A |
Max continuous discharge current: | 60.0A |
Peak discharge current: | 120.0A |
Charge temperature: | 0~45℃ |
Discharge temperature | -20~60℃ |
Cycle life: | >2000 cycles @100% DOD,1C charge/discharge |
Weight: | Approx 21Kg |
Dimension: | 170*235*305mm/customized |
BMS: | Over voltage, over current, short circuit, temperature protection, cell balance |

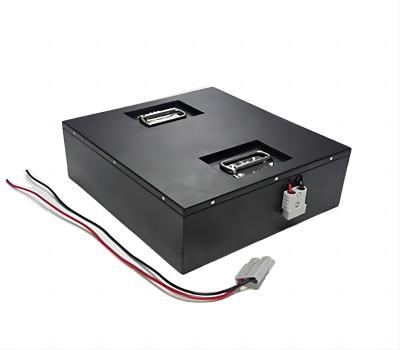

This 24V 60Ah LFP battery system has built-in BMS and stainless steel box painted in black
1. Long cycle life (more than 2500 cycles at 100% DOD) .
2. Built-in smart BMS with multiple protection and communication functions.
3. Wide working temperature range and high reliability.
4. Multiple battery units can be connected in parallel, suitable for high-energy storage applications.
5. Compatible with various charge controllers and inverters.
6. Application: RV, AGV, Marine, Autonomous Mobile Robots, Forklift, Solar-Wind Power System, City Grid (On/Off) Back-up solar System and UPS, Telcom Base, CATV system, Computer Server Center, Medical Instruments, Military Equipment Other Applications, etc.
