3.2V 32Ah Prismatic LiFePO4 Battery Cell
| Type: | Lithium Iron Phosphate(Lifepo4)Cell |
| Model: | LF32 |
| Nominal voltage: | 3.2V |
| Nominal capacity: | 32Ah |
| Charge cut-off voltage: | 3.65V |
| Discharge cut-off voltage: | 2.5V |
| Standard Charge Current | 16A |
| Standard Discharge Current | 16A |
| Max continuous discharge current: | 32A |
| Peak discharge current: | 64A |
| Charge temperature: | 0~55℃ |
| Discharge temperature | -20~65℃ |
| Internal Resistance | ≤1.5mΩ |
| Cycle life: | ≥3500 cycle @1C/1C( at 25℃) |
| Weight: | Approx 780g |
| Dimension: | 148.3(W)±0.5*26.7±0.5(T)*94.3±0.5(H)mm |

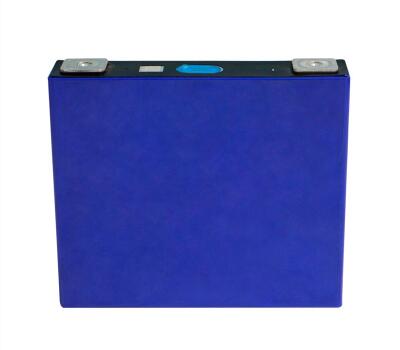

3.2V 50Ah Deep Cycle Prismatic Lifepo4 Cell
| Type: | Lithium Iron Phosphate(Lifepo4)Cell |
| Model: | LF50 |
| Nominal voltage: | 3.2V |
| Nominal capacity: | 50Ah |
| Charge cut-off voltage: | 3.65V |
| Discharge cut-off voltage: | 2.5V |
| Standard Charge Current | 25A |
| Max charge current: | 50A |
| Max Continuous discharge current: | 50A |
| Peak discharge current: | 150A(1-3S) |
| Charge temperature: | 0~55℃ |
| Discharge temperature | -20~65℃ |
| Internal Resistance | ≤2.0mΩ |
| Cycle life: | ≥1500 cycles @ 0.5C/0.5C at 25℃ |
| Weight: | Approx 1.2Kg |
| Dimension(L*W*H): | 148.3±0.5mm*26.7±0.5mm*129.8±0.5mm |
Long Life 3.2V 50Ah Prismatic LiFePO4 Battery Cell
| Type: | Lithium Iron Phosphate(Lifepo4)Cell |
| Model: | LF50 |
| Nominal voltage: | 3.2V |
| Nominal capacity: | 50Ah |
| Charge cut-off voltage: | 3.65V |
| Discharge cut-off voltage: | 2.5V |
| Standard Charge Current | 25A |
| Max charge current: | 50A |
| Max Continuous discharge current: | 50A |
| Peak discharge current: | 150A(1-3S) |
| Charge temperature: | 0~55℃ |
| Discharge temperature | -20~65℃ |
| Internal Resistance | ≤0.7mΩ |
| Cycle life: | ≥7000 cycles @1C/1C at 25℃ |
| Weight: | Approx 1.4Kg |
| Dimension(L*W*H): | 135±1mm*29.3±0.7mm*185±1mm |

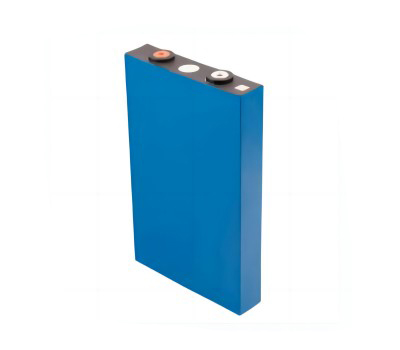

3.2V 72Ah Prismatic LiFePo4 Cell
| Battery type | Lithium Iron Phosphate Cell |
| Model | LF72 |
| Nominal voltage | 3.2V |
| Nominal capacity | 72Ah |
| Charge cut-off voltage | 3.65V |
| Discharge cut-off voltage | 2.5V |
| Maximum charging current | 72A |
| Maximum Continuous discharging current | 72A |
| Maximum Pulse Discharging Current(Long Pulse ) | 144A(<3S) |
| Maximum Pulse Discharging Current(Short Pulse) | 216A(When battery temperature is below 50℃,the maximum discharge can last 30s) |
| Charge temperature | 0~55℃ |
| Discharge temperature | -20~65℃ |
| Internal Resistance | ≤0.5mΩ |
| Battery Cycle life | ≥3500 cycle @1C/1C(at 25℃) |
| Battery Weight | Approx 1.78Kg |
| Battery Dimension(L*W*H) | 135.0±1.0*30.0±1.0*220.8±1.0mm |

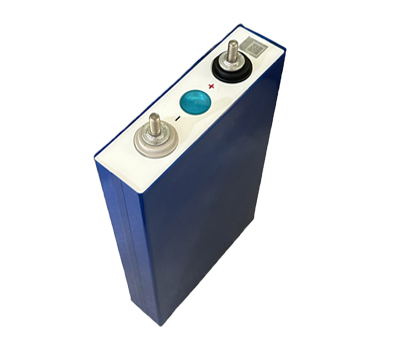

3.2V 80Ah Prismatic LiFePO4 Battery Cell
| Type | Lithium Iron Phosphate Cell |
| Model | LF80 |
| Nominal Voltage | 3.2V |
| Nominal Capacity | 80Ah |
| Rated Energy | 256Wh |
| Charge Cut-off Voltage | 3.65V |
| Discharge Cut-off Voltage | 2.5V |
| Max Charge Current | 80A |
| Max Continuous Discharging current | 80A |
| Peak Discharging Current | 160A(1-3S) |
| Charge Temperature | 0~55℃ |
| Discharge Temperature | -20~65℃ |
| Storage Temperature | -20~60℃ |
| Internal Resistance | ≤0.5mΩ |
| Cycle Life | ≥4000 cycles @0.5C/0.5C |
| Weight | Approx 1.68Kg±50g |
| Dimension(L*W*H) | 130.3±0.5*36.35±0.5*170.5±0.5mm |
| Terminal | M6*10mm |
3.2V 90Ah Prismatic LiFePO4 Battery Cell
| Type | Lithium Iron Phosphate Cell |
| Model | LF90 |
| Nominal Voltage | 3.2V |
| Nominal Capacity | 90Ah |
| Rated Energy | 288Wh |
| Charge Cut-off Voltage | 3.65V |
| Discharge Cut-off Voltage | 2.5V |
| Max Charge Current | 90A |
| Max Continuous Discharging current | 90A |
| Peak Discharging Current | 180A(1-3S) |
| Charge Temperature | 0~55℃ |
| Discharge Temperature | -20~65℃ |
| Storage Temperature | -20~60℃ |
| Internal Resistance | ≤0.5mΩ |
| Cycle Life | ≥6000 cycles @1C/1C(at 25℃) |
| Weight | Approx 1.994Kg±100g |
| Dimension(L*W*H) | 130.3±0.3*36.35±0.5*200.5±0.5mm |
| Terminal | M6*10mm |
Long Life LFP 3.2V 100AH Lifepo4 Battery Cell For Marine, Car, UPS, Solar Energy
| Battery type: | Lithium Iron Phosphate(Lifepo4)Cell |
| Model: | LF102 |
| Nominal voltage: | 3.2V |
| Nominal capacity: | 100Ah |
| Charge cut-off voltage: | 3.65V |
| Discharge cut-off voltage: | 2V |
| Standard Charge Current | 34A |
| Max charge current: | 100A |
| Max Continuous discharge current: | 100A |
| Peak discharge current: | 300A(30s) |
| Charge temperature: | 0~55℃ |
| Discharge temperature: | -20~65℃ |
| Internal Resistance: | ≤0.5mΩ |
| Cycle life: | >4000 cycles @0.5C/0.5C at 25℃ |
| Weight: | Approx 2Kg |
| Dimension(L*W*H): | 160±0.8mm*50.1±0.5mm*118.5±0.5mm |

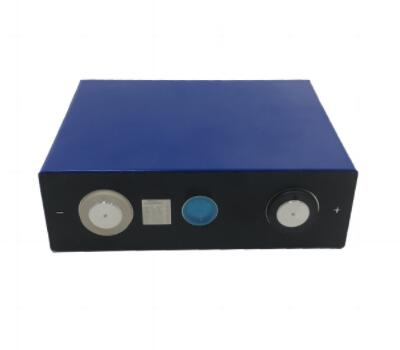

3.2V 100Ah Prismatic Rechargeable Lifepo4 Battery Cell
| Battery type: | Lithium Iron Phosphate(LiFePO4)Cell |
| Model: | LF101 |
| Nominal voltage: | 3.2V |
| Nominal capacity: | 101Ah |
| Charge cut-off voltage: | 3.65V |
| Discharge cut-off voltage: | 2.5V |
| Max charge current: | 101A |
| Continuous discharge current: | 101A |
| Peak discharge current: | 202A |
| Charge temperature: | 0~55℃ |
| Discharge temperature | -20~65℃ |
| Internal Resistance | ≤0.5mΩ |
| Cycle life: | ≥2000 cycles @0.5C/0.5C(at 25℃) |
| Weight: | Approx 2.1Kg |
| Dimension(L*W*H): | 160.0±0.8*50.1±0.5*118.5±0.5mm |

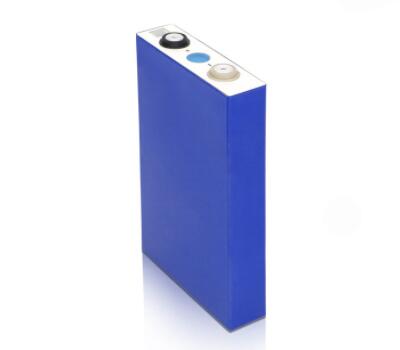

3.2V 105Ah Prismatic Rechargeable Lifepo4 Battery Cell
| Battery type: | Lithium Iron Phosphate(LiFePO4)Cell |
| Model: | LF105 |
| Nominal voltage: | 3.2V |
| Nominal capacity: | 105Ah |
| Charge cut-off voltage: | 3.65V |
| Discharge cut-off voltage: | 2.5V |
| Max charge current: | 105A |
| Continuous discharge current: | 105A |
| Peak discharge current: | 210A |
| Charge temperature: | 0~55℃ |
| Discharge temperature | -20~65℃ |
| Internal Resistance | ≤0.32mΩ |
| Cycle life: | ≥4000 cycles @0.5C/0.5C(at 25℃) |
| Weight: | Approx 2.0Kg |
| Dimension(L*W*H): | 130.3±0.5*36.35±0.5*200.5±0.5mm |

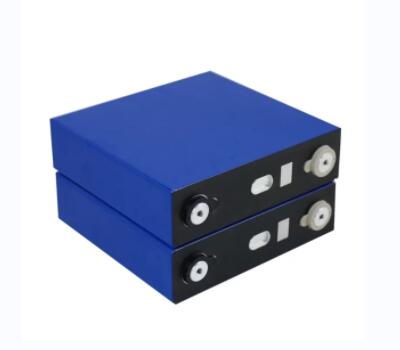

3.2V 120Ah Prismatic LiFePO4 Battery Cell
| Type | Lithium Iron Phosphate Cell |
| Model | LF120 |
| Nominal voltage | 3.2V |
| Nominal capacity | 120Ah |
| Charge cut-off voltage | 3.65V |
| Discharge cut-off voltage | 2.5V |
| Standard Charge Current | 24A |
| Max Charge Current | 120A |
| Maximum Continuous discharging current | 120A |
| Maximum Peak Discharging Current | 240A |
| Charge temperature | 0~55℃ |
| Discharge temperature | -20~65℃ |
| Storage Temperature | -20~60℃ |
| Internal Resistance | ≤0.3mΩ |
| Cycle life | ≥6000 cycles @1C/1C(at 25℃) |
| Weight | Approx 2.86Kg |
| Dimension(L*W*H) | 173.9±0.5*48±0.5*170±0.5mm |

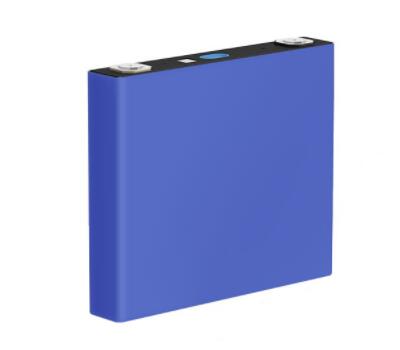

3.2V 125Ah Prismatic LiFePO4 Battery Cell
| Battery type: | Lithium Iron Phosphate(LiFePO4)Cell |
| Model: | LF125 |
| Nominal voltage: | 3.22V |
| Nominal capacity: | 125Ah |
| Charge cut-off voltage: | 3.65V |
| Discharge cut-off voltage: | 2.5V |
| Standard Charge Current | 62.5A |
| Max charge current: | 125A |
| Continuous discharge current: | 125A |
| Peak discharge current: | 250A |
| Charge temperature: | 0~55℃ |
| Discharge temperature | -20~65℃ |
| Internal Resistance | ≤0.4mΩ |
| Cycle life: | ≥4000 cycles @0.5C/0.5C(at 25℃) |
| Weight: | Approx 2.4Kg |
| Dimension(L*W*H): | 200.7±0.5*33.25±0.5*172.0±0.5mm |
3.2V 150Ah Prismatic LiFePO4 Battery Cell
| Type | Lithium Iron Phosphate(Lifepo4)Cell |
| Model | LF150 |
| Nominal voltage | 3.2V |
| Nominal capacity | 150Ah |
| Charge cut-off voltage | 3.65V |
| Discharge cut-off voltage | 2.5V |
| Standard Charge Current | 75A |
| Max charge current | 150A |
| Max Continuous discharge current | 150A |
| Peak discharge current | 300A(1-3S) |
| Charge temperature | 0~55℃ |
| Discharge temperature | -20~65℃ |
| Internal Resistance | ≤0.4mΩ |
| Cycle life | ≥4000 cycles @0.5C/0.5C at 25℃ |
| Battery Weight | Approx 2.9Kg |
| Battery Dimension | 200.7±0.5mm*33.25±0.5mm*207±0.5mm |
| Terminal | M6*10mm |

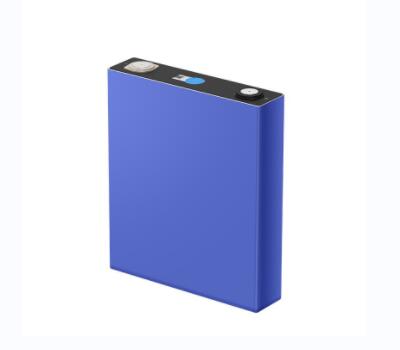

LiFePo4 3.2V 173Ah Prismatic Lithium Battery Cell
| Battery type: | Lithium Iron Phosphate(Lifepo4)Cell |
| Model: | LF173 |
| Nominal voltage: | 3.2V |
| Nominal capacity: | 173Ah |
| Charge cut-off voltage: | 3.65V |
| Discharge cut-off voltage: | 2.5V |
| Max charge current: | 173A |
| Max Continuous discharge current: | 173A |
| Peak discharge current: | 346A(1-3S) |
| Charge temperature: | 0~55℃ |
| Discharge temperature: | -20~65℃ |
| Internal Resistance: | ≤0.25mΩ |
| Cycle life: | >4000 cycles @0.5C/0.5C at 25℃ |
| Weight: | Approx 3.25Kg |
| Dimension(L*W*H): | 173.9±0.5mm*41.06±0.5mm*207.5±0.5mm |
3.2V 202Ah Rechargeable Prismatic LiFePO4 Battery Cell
| Battery type | Lithium Iron Phosphate Cell |
| Model | LF202 |
| Nominal voltage | 3.2V |
| Nominal capacity | 202Ah |
| Charge cut-off voltage | 3.65V |
| Discharge cut-off voltage | 2.5V |
| Maximum Charge Current | 202A |
| Maximum Continuous discharging current | 202A |
| Maximum Pulse Discharging Current(Short Pulse) | 606A(<3S) |
| Charge temperature | 0~55℃ |
| Discharge temperature | -20~65℃ |
| Internal Resistance | ≤0.14mΩ |
| Cycle life | ≥3500 cycle @1C/1C(at 25℃) |
| Weight | Approx 3.84Kg |
| Dimension(L*W*H) | 207.3*53.7*173.6mm |

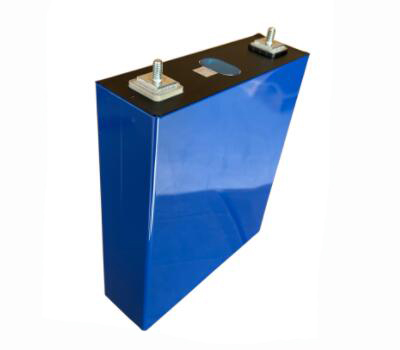

3.2V 230Ah Deep Cycle Prismatic LiFePO4 Battery Cell
| Type | Lithium Iron Phosphate(Lifepo4)Cell |
| Model | LF230 |
| Nominal voltage | 3.2V |
| Nominal capacity | 230Ah |
| Charge cut-off voltage | 3.65V |
| Discharge cut-off voltage | 2.5V |
| Max charge current | 230A |
| Max Continuous discharge current | 230A |
| Peak discharge current | 460A(1-3S) |
| Charge temperature | 0~55℃ |
| Discharge temperature | -20~65℃ |
| Internal Resistance | ≤0.25mΩ |
| Cycle life | ≥4000 cycles @0.5C/0.5C at 25℃ |
| Battery Weight | Approx 4.3Kg |
| Battery Dimension | 173.9±0.5mm*53.85±0.5mm*207.2±0.5mm |
| Terminal | M6*10mm |
3.2V 280Ah Lifepo4 Battery Cell For Energy Storage Electric Vehicle, 6000 Cycles
| Battery type: | Lithium Iron Phosphate(LiFePO4)Cell |
| Model: | LF280 |
| Nominal voltage: | 3.2V |
| Nominal capacity: | 280Ah |
| Charge cut-off voltage: | 3.65V |
| Discharge cut-off voltage: | 2.5V |
| Standard Charge Current | 140A |
| Max charge current: | 280A |
| Continuous discharge current: | 280A |
| Peak discharge current: | 560A |
| Charge temperature: | 0~55℃ |
| Discharge temperature | -20~65℃ |
| Storage temperature | -20~45℃(within 1 month), 0℃～35℃(within 1 year) |
| Internal Resistance | ≤0.25mΩ |
| Cycle life: | ≥6000 cycles @0.5C/0.5C(at 25℃) |
| Weight: | Approx 5.8Kg |
| Dimension(L*W*H): | 173.7±0.5*71.7±0.8*207.2±0.5mm |

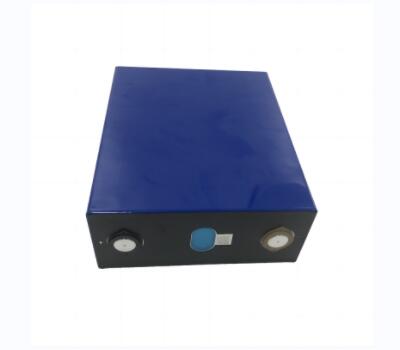

3.2V 304Ah Prismatic LiFePO4 Battery Cell
| Battery type: | Lithium Iron Phosphate(Lifepo4)Cell |
| Model: | LF304 |
| Nominal voltage: | 3.2V |
| Nominal capacity: | 304Ah |
| Charge cut-off voltage: | 3.65V |
| Discharge cut-off voltage: | 2.5V |
| Standard charge current: | 152A |
| Standard discharge current: | 152A |
| Max continuous discharge current: | 304A |
| Peak discharge current: | 608A(1-3S) |
| Charge temperature: | 0~55℃ |
| Discharge temperature: | -20~65℃ |
| Internal Resistance: | ≤0.16mΩ |
| Cycle life: | >4000 cycles @0.5C/0.5C at 25℃ |
| Weight: | Approx 5.6Kg |
| Dimension(L*W*H): | 173.7±0.5mm*71.7±0.8mm*207.2±0.5mm |
3.7V 30AH Lithium Ion Battery Cell
| Battery type: | Lithium Ion Cell(NMC) |
| Model: | NMC30 |
| Nominal voltage: | 3.7V |
| Nominal capacity: | 30Ah |
| Charge cut-off voltage: | 4.2V |
| Discharge cut-off voltage: | 2.75V |
| Max charge current: | 30A |
| Max continuous discharge current: | 90A |
| Peak discharge current: | 150A |
| Charge temperature: | 0~55℃ |
| Discharge temperature: | -20~55℃ |
| Storage temperature: | -20~45℃ |
| Internal resistance | ≤3.0mΩ |
| Cycle life: | >1000 times |
| Weight: | Approx 700g |
| Dimension: | 21*173*86mm |
3.7V 37AH Rechargeable Lithium Ion Battery Cell
| Battery type: | Lithium Ion Cell(NCM) |
| Model: | NCM37 |
| Nominal voltage: | 3.7V |
| Nominal capacity: | 37Ah |
| Charge cut-off voltage: | 4.2V |
| Discharge cut-off voltage: | 2.75V |
| Max charge current: | 37A |
| Max continuous discharge current: | 111A |
| Peak discharge current: | 185A |
| Charge temperature: | 0~55℃ |
| Discharge temperature: | -20~55℃ |
| Internal resistance: | ≤0.8mΩ |
| Cycle life: | >2000 times |
| Weight: | Approx 0.85±0.05kg |
| Dimension(L*W*H): | 148mm*27mm*91mm |
3.7V 40AH NCM Rechargeable Lithium Ion Cell
| Battery type: | Lithium Ion Cell(NCM) |
| Model: | NCM40 |
| Nominal voltage: | 3.7V |
| Nominal capacity: | 40Ah |
| Charge cut-off voltage: | 4.2V |
| Discharge cut-off voltage: | 2.75V |
| Max charge current: | 40A |
| Max continuous discharge current: | 120A |
| Peak discharge current: | 200A |
| Charge temperature: | 0~55℃ |
| Discharge temperature: | -20~55℃ |
| Internal resistance: | ≤1.0mΩ |
| Cycle life: | >2000 times |
| Weight: | Approx 0.85kg |
| Dimension(L*W*H): | 148mm*27mm*93mm |

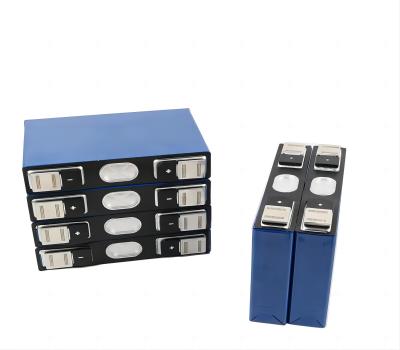

3.7V 50Ah Prismatic NCM Lithium Ion Battery Cell
| Battery type: | Lithium Ion Cell(NCM) |
| Model: | NCM50 |
| Nominal voltage: | 3.7V |
| Nominal capacity: | 50Ah |
| Charge cut-off voltage: | 4.2V |
| Discharge cut-off voltage: | 2.75V |
| Max charge current: | 50A |
| Max continuous discharge current: | 150A |
| Peak discharge current: | 250A |
| Charge temperature: | 0~55℃ |
| Discharge temperature: | -20~55℃ |
| Internal resistance: | ≤0.8mΩ |
| Cycle life: | >2000 times |
| Weight: | Approx 0.95±0.05kg |
| Dimension(L*W*H): | 148mm*29mm*103mm |

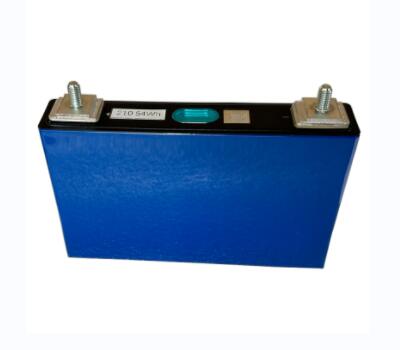

3.7V 58Ah Prismatic NCM Lithium Ion Battery Cell
| Battery type: | Lithium Ion Cell(NCM) |
| Model: | NCM58 |
| Nominal voltage: | 3.7V |
| Nominal capacity: | 58Ah |
| Energy Density | 244(Wh/kg) |
| Charge cut-off voltage: | 4.2V |
| Discharge cut-off voltage: | 2.75V |
| Standard Charge Current | 29A |
| Max charge current: | 58A |
| Max Continuous discharge current: | 174A |
| Peak discharge current: | 290A(<3S) |
| Charge temperature: | -20~55℃ |
| Discharge temperature: | -30~55℃ |
| Storage temperature | 0~60℃ |
| Internal Resistance: | ≤0.6±0.1mΩ |
| Cycle life: | >1000 times |
| Weight: | Approx 860±15g |
| Dimension(L*W*H): | 148.2*26.72±0.2*95.21±0.3mm |
| Terminal： | M6*10mm |

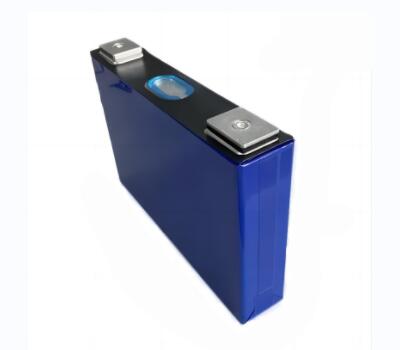

3.7V 60AH Rechargeable Lithium Ion Battery Cell
| Battery type: | Lithium Ion Cell(NCM) |
| Model: | NCM60 |
| Nominal voltage: | 3.7V |
| Nominal capacity: | 60Ah |
| Charge cut-off voltage: | 4.2V |
| Discharge cut-off voltage: | 2.75V |
| Max charge current: | 60A |
| Max continuous discharge current: | 180A |
| Peak discharge current: | 300A |
| Charge temperature: | 0~55℃ |
| Discharge temperature: | -20~55℃ |
| Internal resistance: | ≤0.75mΩ |
| Cycle life: | >2000 times |
| Weight: | Approx 0.98±0.05kg |
| Dimension(L*W*H): | 148mm*29mm*103mm |

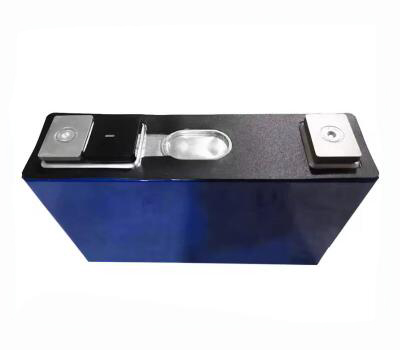

3.7V 70AH Rechargeable Lithium Ion Battery Cell
| Battery type: | Lithium Ion Cell(NCM) |
| Model: | NCM70 |
| Nominal voltage: | 3.7V |
| Nominal capacity: | 70Ah |
| Charge cut-off voltage: | 4.2V |
| Discharge cut-off voltage: | 2.75V |
| Max charge current: | 70A |
| Max continuous discharge current: | 210A |
| Peak discharge current: | 350A |
| Charge temperature: | 0~55℃ |
| Discharge temperature: | -20~55℃ |
| Internal resistance: | ≤0.7mΩ |
| Cycle life: | >1500 times |
| Weight: | Approx 1.25kg |
| Dimension(L*W*H): | 148mm*40mm*97mm |

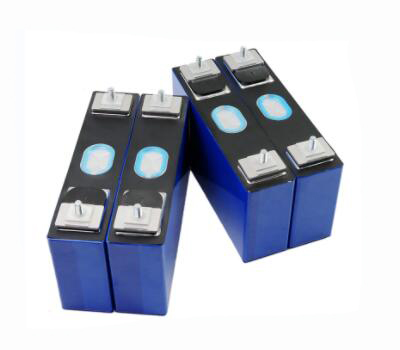

NCM Prismatic 3.7V 100Ah Lithium Ion Battery Cell For Electric Golf Cart
| Battery type: | Lithium Ion Cell(NCM) |
| Model: | NCM100 |
| Nominal voltage: | 3.7V |
| Nominal capacity: | 100Ah |
| Charge cut-off voltage: | 4.2V |
| Discharge cut-off voltage: | 2.75V |
| Max charge current: | 50A |
| Max continuous discharge current: | 100A |
| Peak discharge current: | 300A |
| Charge temperature: | 0~55℃ |
| Discharge temperature: | -20~55℃ |
| Internal resistance: | ≤0.5mΩ |
| Cycle life: | >2000 times |
| Weight: | Approx 1.45kg |
| Dimension(L*W*H): | 172mm*42mm*85mm |
| Terminal： | M6*10mm |

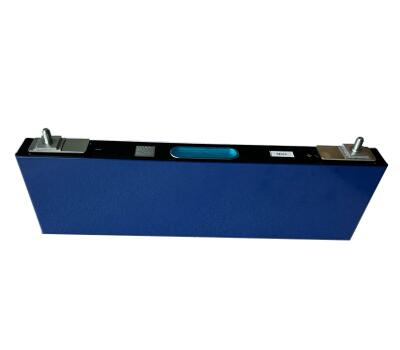

NCM 3.7V 114Ah Prismatic Lithium Ion Energy Storage Battery
| Battery type: | Lithium Ion Cell(NCM) |
| Model: | NCM114 |
| Nominal voltage: | 3.7V |
| Nominal capacity: | 114.2Ah |
| Energy Density | 242(Wh/kg) |
| Charge cut-off voltage: | 4.2V |
| Discharge cut-off voltage: | 2.75V |
| Standard Charge Current | 57A |
| Max charge current: | 114A |
| Max Continuous discharge current: | 342A |
| Peak discharge current: | 570A(<3S) |
| Charge temperature: | 0~45℃ |
| Discharge temperature: | -20~60℃ |
| Storage temperature | 0~60℃ |
| Internal Resistance: | ≤0.57±0.1mΩ |
| Cycle life: | >1500 times |
| Weight: | Approx 1.8Kg |
| Dimension(L*W*H): | 301.8±0.5*26.68±0.2*94.95±0.35mm |
| Terminal： | M6*10mm |

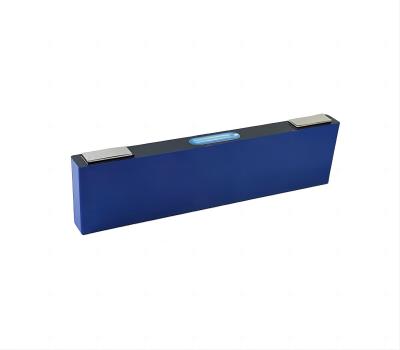

3.7V 116AH NCM Rechargeable Lithium Ion Battery Cell
| Battery type: | Lithium Ion Cell(NCM) |
| Model: | NCM116 |
| Nominal voltage: | 3.7V |
| Nominal capacity: | 116Ah |
| Charge cut-off voltage: | 4.2V |
| Discharge cut-off voltage: | 2.75V |
| Max charge current: | 116A |
| Max continuous discharge current: | 348A |
| Peak discharge current: | 580A |
| Charge temperature: | 0~45℃ |
| Discharge temperature: | -20~60℃ |
| Internal resistance: | ≤0.8mΩ |
| Cycle life: | >1000 cycles |
| Weight: | Approx 1.72±0.15kg |
| Dimension(L*W*H): | 299.7±1.5mm*26.5mm*91mm |

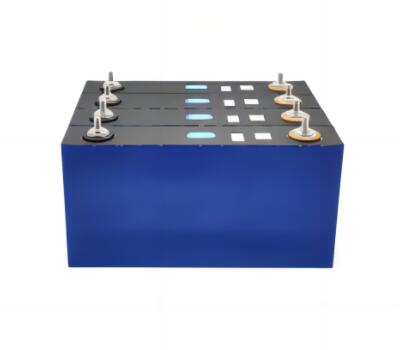

Prismatic 3.7V 120AH NCM Lithium Ion Battery Cell
| Battery type: | Lithium Ion Cell(NCM) |
| Model: | NCM120 |
| Nominal voltage: | 3.7V |
| Nominal capacity: | 120Ah |
| Charge cut-off voltage: | 4.2V |
| Discharge cut-off voltage: | 2.75V |
| Max charge current: | 120A |
| Max continuous discharge current: | 360A |
| Peak discharge current: | 600A |
| Charge temperature: | 0~45℃ |
| Discharge temperature: | -20~60℃ |
| Internal resistance: | ≤0.5mΩ |
| Cycle life: | >2000 cycles |
| Weight: | Approx 2.14±0.05kg |
| Dimension(L*W*H): | 220mm*33mm*102mm |
| Terminal： | M6*10mm |

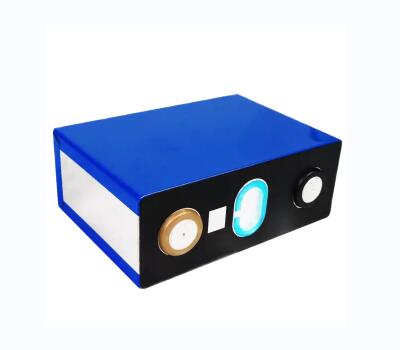

Prismatic 3.7V 132AH NCM Lithium Ion Battery Cell
| Battery type: | Lithium Ion Cell(NCM) |
| Model: | NCM132 |
| Nominal voltage: | 3.7V |
| Nominal capacity: | 132Ah |
| Charge cut-off voltage: | 4.2V |
| Discharge cut-off voltage: | 2.75V |
| Max charge current: | 132A |
| Max continuous discharge current: | 396A |
| Peak discharge current: | 660A |
| Charge temperature: | 0~45℃ |
| Discharge temperature: | -20~60℃ |
| Internal resistance: | ≤0.4mΩ |
| Cycle life: | >2000 cycles |
| Weight: | Approx 1.88±0.15kg |
| Dimension(L*W*H): | 146mm*56±1.5mm*103mm |

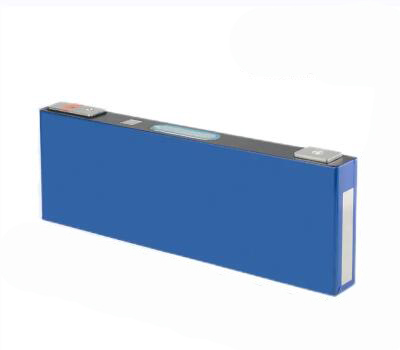

Prismatic NCM 3.7V 140AH Lithium Ion Battery Cell
| Battery type: | Lithium Ion Cell(NCM) |
| Model: | NCM140 |
| Nominal voltage: | 3.7V |
| Nominal capacity: | 140Ah |
| Charge cut-off voltage: | 4.2V |
| Discharge cut-off voltage: | 2.75V |
| Max charge current: | 140A |
| Max continuous discharge current: | 420A |
| Peak discharge current: | 700A |
| Charge temperature: | 0~45℃ |
| Discharge temperature: | -20~60℃ |
| Internal resistance: | ≤0.7mΩ |
| Cycle life: | >2000 cycles |
| Weight: | Approx 2.14±0.05kg |
| Dimension(L*W*H): | 303mm*31mm*100mm |

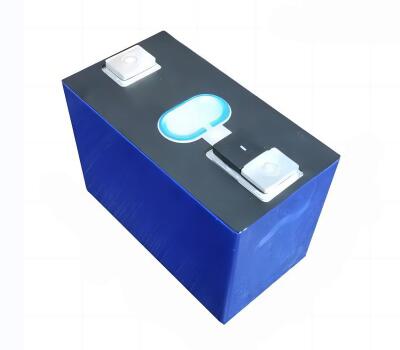

3.7V 150AH NCM Lithium Ion Battery Cell
| Battery type: | Lithium Ion Cell(NCM) |
| Model: | NCM150 |
| Nominal voltage: | 3.7V |
| Nominal capacity: | 150Ah |
| Charge cut-off voltage: | 4.2V |
| Discharge cut-off voltage: | 2.75V |
| Max charge current: | 150A |
| Max continuous discharge current: | 450A |
| Peak discharge current: | 750A |
| Charge temperature: | 0~45℃ |
| Discharge temperature: | -20~60℃ |
| Internal resistance: | ≤0.35mΩ |
| Cycle life: | >2000 cycles |
| Weight: | Approx 2.5±0.05kg |
| Dimension(L*W*H): | 148mm*79mm*97mm |
3.7V 166Ah Prismatic NCM Lithium Ion Battery Cell
| Battery type: | Lithium Ion Cell(NCM) |
| Model: | NCM166 |
| Nominal voltage: | 3.7V |
| Nominal capacity: | 166Ah |
| Energy Density | 251(Wh/kg) |
| Charge cut-off voltage: | 4.2V |
| Discharge cut-off voltage: | 2.75V |
| Standard Charge Current | 83A |
| Max charge current: | 166A |
| Max Continuous discharge current: | 498A |
| Peak discharge current: | 830A(<3S) |
| Charge temperature: | -20~55℃ |
| Discharge temperature: | -30~55℃ |
| Storage temperature | 0~60℃ |
| Internal Resistance: | ≤0.3mΩ |
| Cycle life: | >1000 times |
| Weight: | Approx 2.5Kg |
| Dimension(L*W*H): | 112.7±0.4*50.7±0.3*194.2±0.3mm |

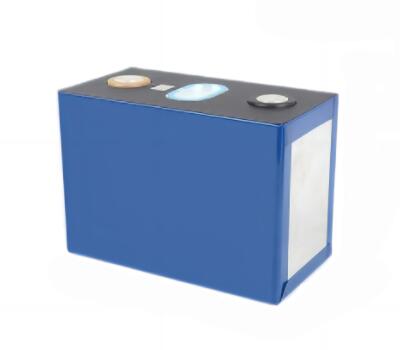

3.7V 180AH NCM Lithium Ion Battery Cell
| Battery type: | Lithium Ion Cell(NCM) |
| Model: | NCM180 |
| Nominal voltage: | 3.7V |
| Nominal capacity: | 180Ah |
| Charge cut-off voltage: | 4.2V |
| Discharge cut-off voltage: | 2.75V |
| Max charge current: | 180A |
| Max continuous discharge current: | 540A |
| Peak discharge current: | 900A |
| Charge temperature: | 0~45℃ |
| Discharge temperature: | -20~60℃ |
| Internal resistance: | ≤0.6mΩ |
| Cycle life: | >2000 cycles |
| Weight: | Approx 2.7±0.05kg |
| Dimension(L*W*H): | 148mm*80mm*105mm |

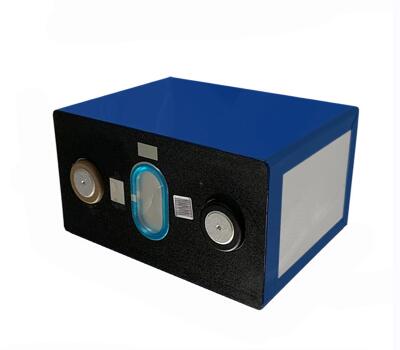

3.7V 199AH Deep Cycle Lithium Ion Battery Cell
| Battery type: | Lithium Ion Cell(NCM) |
| Model: | NCM199 |
| Nominal voltage: | 3.7V |
| Nominal capacity: | 199Ah |
| Charge cut-off voltage: | 4.2V |
| Discharge cut-off voltage: | 2.75V |
| Max charge current: | 199A |
| Max continuous discharge current: | 597A |
| Peak discharge current: | 995A |
| Charge temperature: | 0~45℃ |
| Discharge temperature: | -20~60℃ |
| Internal resistance: | ≤0.25mΩ |
| Cycle life: | >2000 cycles |
| Weight: | Approx 2.7±0.06kg |
| Dimension(L*W*H): | 148mm*79mm*106mm |

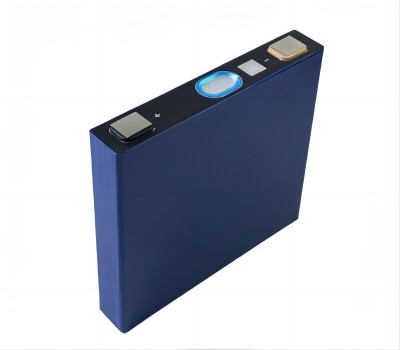

3.7V 215AH Rechargeable Lithium Ion Cell
| Battery type: | Lithium Ion Cell(NCM) |
| Model: | NCM215 |
| Nominal voltage: | 3.7V |
| Nominal capacity: | 215Ah |
| Charge cut-off voltage: | 4.2V |
| Discharge cut-off voltage: | 2.75V |
| Max charge current: | 215A |
| Max continuous discharge current: | 645A |
| Peak discharge current: | 1075A |
| Charge temperature: | 0~45℃ |
| Discharge temperature: | -20~60℃ |
| Internal resistance: | ≤0.35mΩ |
| Cycle life: | >2000 cycles |
| Weight: | Approx 2.92kg |
| Dimension(L*W*H): | 201mm*34mm*186mm |

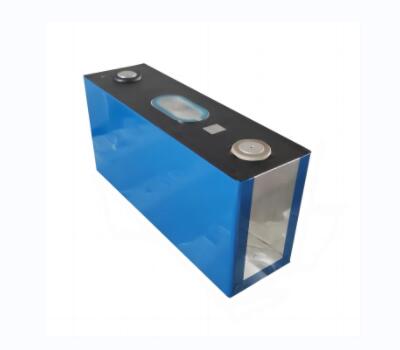

NCM 3.7V 234AH Rechargeable Lithium Ion Battery Cell
| Battery type: | Lithium Ion Cell(NCM) |
| Model: | NCM234 |
| Nominal voltage: | 3.7V |
| Nominal capacity: | 234Ah |
| Charge cut-off voltage: | 4.2V |
| Discharge cut-off voltage: | 2.75V |
| Max charge current: | 234A |
| Max continuous discharge current: | 702A |
| Peak discharge current: | 1170A |
| Charge temperature: | 0~45℃ |
| Discharge temperature: | -20~60℃ |
| Internal resistance: | ≤0.4mΩ |
| Cycle life: | >2000 cycles |
| Weight: | Approx 3.45±0.05kg |
| Dimension(L*W*H): | 202mm*67mm*103mm |
Prismatic 3.7V 248AH Rechargeable Lithium Ion Battery Cell
| Battery type: | Lithium Ion Battery Cell(NCM) |
| Model: | NCM248 |
| Nominal voltage: | 3.7V |
| Nominal capacity: | 248Ah |
| Charge cut-off voltage: | 4.2V |
| Discharge cut-off voltage: | 2.75V |
| Standard charging current | 50A |
| Maximum charge current: | 248A |
| Max continuous discharge current: | 744A |
| Peak discharge current | 1240A |
| Charge temperature: | 0~55℃ |
| Battery Discharge temperature | -20~60℃ |
| Internal resistance: | ≤0.3mΩ |
| Battery Cycle life: | ≥2000 times at 25℃ |
| Battery Weight: | Approx 3.70±0.05kg |
| Battery Dimension: | 220*67*115mm |
3.7V 256AH Prismatic Lithium Ion Battery Cell
| Battery type: | Lithium Ion Cell(NCM) |
| Model: | NCM256 |
| Nominal voltage: | 3.7V |
| Nominal capacity: | 256Ah |
| Charge cut-off voltage: | 4.2V |
| Discharge cut-off voltage: | 2.75V |
| Max charge current: | 256A |
| Max continuous discharge current: | 768A |
| Peak discharge current: | 1280A |
| Charge temperature: | 0~45℃ |
| Discharge temperature: | -20~60℃ |
| Internal resistance: | ≤0.4mΩ |
| Cycle life: | >2000 cycles at 25℃ |
| Weight: | Approx 3.45±0.05kg |
| Dimension(L*W*H): | 300mm*37mm*127mm |
3.7V 280AH NCM Rechargeable Lithium Cell
| Battery type: | Lithium Ion Cell(NCM) |
| Model: | NCM280 |
| Nominal voltage: | 3.7V |
| Nominal capacity: | 280Ah |
| Charge cut-off voltage: | 4.2V |
| Discharge cut-off voltage: | 2.75V |
| Max charge current: | 280A |
| Max continuous discharge current: | 840A |
| Peak discharge current: | 1400A |
| Charge temperature: | 0~45℃ |
| Discharge temperature: | -20~60℃ |
| Internal resistance: | ≤0.3mΩ |
| Cycle life: | >2000 cycles at 25℃ |
| Weight: | Approx 3.45±0.05kg |
| Dimension(L*W*H): | 250mm*68mm*115mm |
