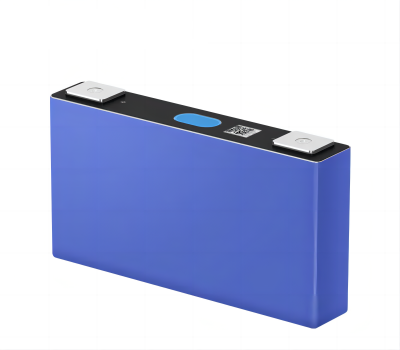

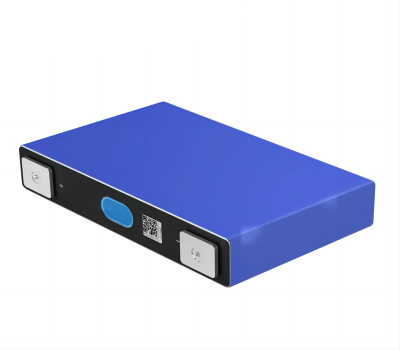

3.2V 32Ah Prismatic LiFePO4 Battery Cell
| Type: | Lithium Iron Phosphate(Lifepo4)Cell |
| Model: | LF32 |
| Nominal voltage: | 3.2V |
| Nominal capacity: | 32Ah |
| Charge cut-off voltage: | 3.65V |
| Discharge cut-off voltage: | 2.5V |
| Standard Charge Current | 16A |
| Standard Discharge Current | 16A |
| Max continuous discharge current: | 32A |
| Peak discharge current: | 64A |
| Charge temperature: | 0~55℃ |
| Discharge temperature | -20~65℃ |
| Internal Resistance | ≤1.5mΩ |
| Cycle life: | ≥3500 cycle @1C/1C( at 25℃) |
| Weight: | Approx 780g |
| Dimension: | 148.3(W)±0.5*26.7±0.5(T)*94.3±0.5(H)mm |
3.2V 32Ah Prismatic LiFePO4 Battery Cell For Energy Storage System, EV, DIY LiFePO4 Battery Pack
Feature
- Square aluminum shell structure, high safety performance.
- Long cycle life, capacity retention rate over 80% after ≥3500 cycles at 1C/1C
- Low internal resistance, high discharge rate
- Green environmental protection
