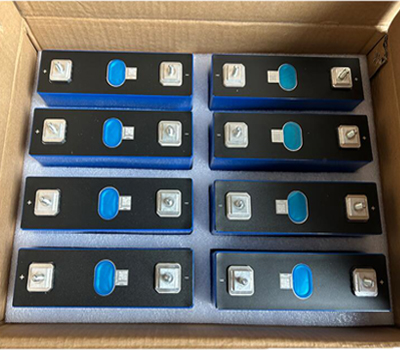

3.2V 230Ah Deep Cycle Prismatic LiFePO4 Battery Cell
| Type | Lithium Iron Phosphate(Lifepo4)Cell |
| Model | LF230 |
| Nominal voltage | 3.2V |
| Nominal capacity | 230Ah |
| Charge cut-off voltage | 3.65V |
| Discharge cut-off voltage | 2.5V |
| Max charge current | 230A |
| Max Continuous discharge current | 230A |
| Peak discharge current | 460A(1-3S) |
| Charge temperature | 0~55℃ |
| Discharge temperature | -20~65℃ |
| Internal Resistance | ≤0.25mΩ |
| Cycle life | ≥4000 cycles @0.5C/0.5C at 25℃ |
| Battery Weight | Approx 4.3Kg |
| Battery Dimension | 173.9±0.5mm*53.85±0.5mm*207.2±0.5mm |
| Terminal | M6*10mm |
3.2V 230Ah Prismatic LiFePO4 cells, more than 4000 times cycle life, excellent consistency, low self-discharge, environmentally friendly, safe and economical, no memory effects. Usually used for Solar Energy Storage Solar power system UPS, Engine starting battery, electric bicycle/motorcycle/scooter, golf trolley/carts, power tools…Solar and wind power system, RV, caravan…
