Battery type: | Li Ion Battery(NCM) |
Battery model: | INR18650-17S14P |
Nominal voltage: | 61.2V |
Nominal capacity: | 35.0Ah |
Charge cut-off voltage: | 71.4V |
Discharge cut-off voltage: | 51.0V |
Max charge current: | 35.0A |
Max continuous discharge current: | 70.0A |
Peak discharge current: | 200.0A(1~3S) |
Charge temperature: | 0~45℃ |
Discharge temperature | -20~60℃ |
Cycle life: | >700 @100% DOD,1C charge/discharge |
Weight: | Approx 13.5Kg |

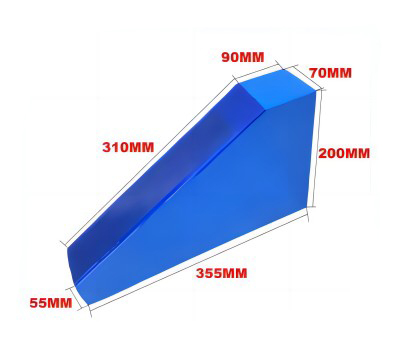

Dimension: | Customized |
BMS: | Over voltage, over current, short circuit, temperature protection, cell balance |
Terminal | M8 |
