Battery Brand | VCELL/OEM |
Battery Type | Lithium Ion Battery(NCM) |
Model | 18650-13S4P |
Nominal Voltage | 48V |
Nominal Capacity | 11.6Ah |
Charge Cut-Off Voltage | 54.6V |
Discharge Cut-Off Voltage | 36.4V |
Charge current | 2A |
Max continuous discharge current | 30A |
Rated power | 500W-1000W |
BMS | 30A |
Charge temperature | 0~45℃ |
Discharge temperature | -20~60℃ |
BMS | Overcharge/discharge, over current, short circuit, temperature protection, cell balance |
Size(L*W*H) | 250*80*70mm Max or Custom |
Weight | 2.65Kg Approx |
Cycle life | >700 |
Wire/Connector | TBD |

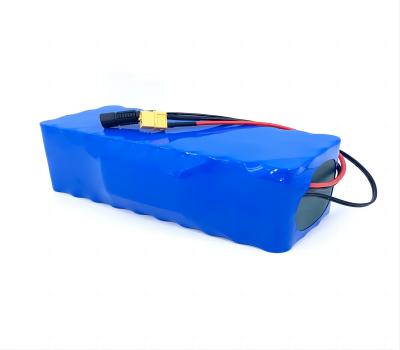

This battery is suitable for 500w/750w/1000w e-bikes, scooters, electric tricycles, etc.
