| Battery type: |
Lithium Iron Phosphate Battery |
| Battery model: |
IFR54173200-16S1P |
| Nominal voltage: |
51.2V |
| Nominal capacity: |
200.0Ah |
| Charge cut-off voltage: |
57.6V |
| Discharge cut-off voltage: |
40.0V |
| Standard charge current: |
40.0V |
| Max charge current: |
200.0A |
| Standard discharge current: |
40.0V |
| Max continuous discharge current: |
200.0A |
| Peak discharge current: |
400.0A(1~3S) |
| Charge temperature: |
0~45℃ |
| Discharge temperature |
-20~60℃ |
| Cycle life: |
>2500 @100% DOD,1C charge/discharge |
| Weight: |
Approx 75.0Kg |

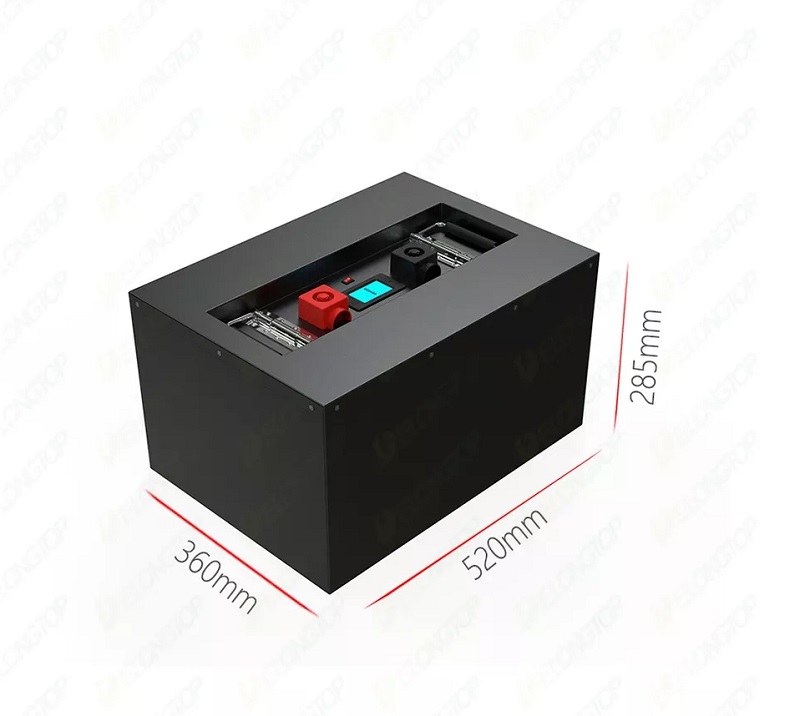

| Dimension: |
360*520*285mm |
| BMS: |
Over voltage, over current, short circuit, temperature protection, cell balance, With LCD display |
| Terminal |
M8 |
