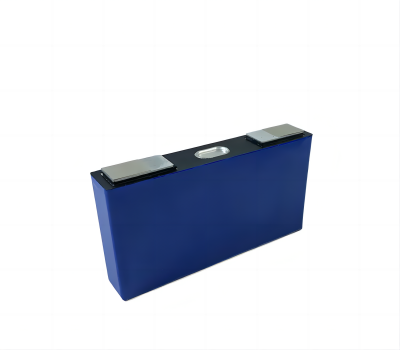

3.7V 37AH Rechargeable Lithium Ion Battery Cell

Battery type: Lithium Ion Cell(NCM)
Model: NCM37
Nominal voltage: 3.7V
Nominal capacity: 37Ah
Charge cut-off voltage: 4.2V
Discharge cut-off voltage: 2.75V
Max charge current: 37A
Max continuous discharge current: 111A
Peak discharge current: 185A
Charge temperature: 0~55℃
Discharge temperature: -20~55℃
Internal resistance: ≤0.8mΩ
Cycle life: >2000 times
Weight: Approx 0.85±0.05kg
Dimension(L*W*H): 148mm*27mm*91mm

Feature:

1.High energy density, lower self discharge
2. Outstanding cycle life with maximum reliability
3. Possible to form modules that are suitable for various pack structures
4. Wide application: EV, RV, Electric fork lift, back-up power, solar storage, etc.
5. Easily to assemble battery pack, we provide cells connectors and technical support, or we can customize battery pack according to your requirements.
