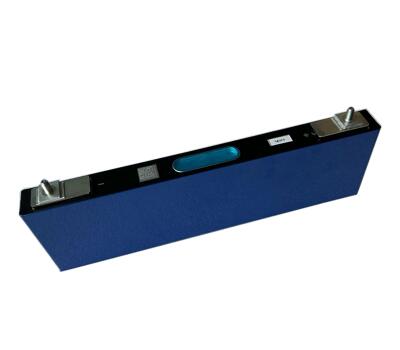

NCM 3.7V 114Ah Prismatic Lithium Ion Energy Storage Battery

Battery type: Lithium Ion Cell(NCM)
Model: NCM114
Nominal voltage: 3.7V
Nominal capacity: 114.2Ah
Energy Density 242(Wh/kg)
Charge cut-off voltage: 4.2V
Discharge cut-off voltage: 2.75V
Standard Charge Current 57A
Max charge current: 114A
Max Continuous discharge current: 342A
Peak discharge current: 570A(<3S)
Charge temperature: 0~45℃
Discharge temperature: -20~60℃
Storage temperature 0~60℃
Internal Resistance: ≤0.57±0.1mΩ
Cycle life: >1500 times
Weight: Approx 1.8Kg
Dimension(L*W*H): 301.8±0.5*26.68±0.2*94.95±0.35mm
Terminal: M6*10mm

The application of li-ion cell:
Toys, Power Tools, Home Appliances, Consumer Electronics, BOATS, Golf Carts, SUBMARINES, Electric Bicycles/Scooters, electric vehicles, Electric Wheelchairs, Electric Power Systems, Solar Energy Storage Systems, Uninterruptible Power Supplies, Electric Forklifts, Electric Forklifts

The feature of li-ion cell
1. Long cycle life
2. Safe, Stability
3. No leakage, explosion-proof, environmentally friendly
