24V 80AH Lithium LiFePo4 Battery For Rail Flat Car

Battery type: LiFePo4 Battery
Battery model: VP-LF24-80U
Nominal voltage: 25.6V
Nominal capacity: 80.0Ah
Charge cut-off voltage: 28.8V
Discharge cut-off voltage: 18.4V
Max charge current: 50.0A
Max continuous discharge current: 50.0A
Peak discharge current: 160.0A
Cycle life: >2000 cycles @100% DOD,1C Charge/Discharge
Weight: Approx 24Kg
Dimension: 170*260*350mm L*W*H
BMS: Over voltage, over current, short circuit, temperature protection, cell balance

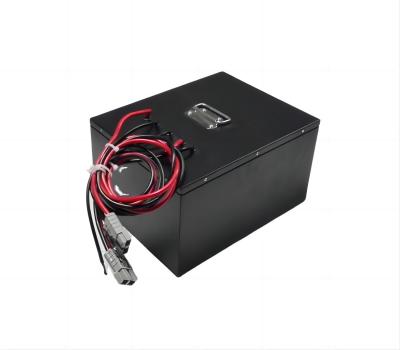

This 24V 80Ah LFP battery system has built-in BMS and stainless steel box painted in black.

1. Long cycle life (more than 2500 cycles at 100% DOD) .

2. Built-in smart BMS with multiple protection and communication functions.

3. Wide working temperature range and high reliability.

4. Multiple battery units can be connected in parallel, suitable for high-energy storage applications.

5. Compatible with various charge controllers and inverters.

6. Application: E-car, E-bus, Golf trolley/ car, E-bike, Scooter, RV, AGV, Marine, Tourist car, Caravan, Solar-Wind Power System, City Grid (On/Off) Back-up solar System and UPS, Telcom Base, CATV system, Computer Server Center, Medical Instrument, Military Equipment Other Applications, etc.
