48V AGV Battery
DOWNLOAD.PDF
DOWNLOAD.WRD
48V 10Ah Lithium Ion Battery Pack For Golf Cart Electric Bike＆Scooter
| Battery type: | Li-Ion Battery |
| Battery model: | VP-NCM18650-13S4P |
| Nominal voltage: | 48V |
| Nominal capacity: | 10Ah |
| Charge cut-off voltage: | 54.6V |
| Discharge cut-off voltage: | 35.75V |
| Max charge current: | 10.0A |
| Max continuous discharge current: | 15.0A |
| Peak discharge current: | 30.0A |
| Charge temperature: | 0~45℃ |
| Discharge temperature | -20~60℃ |
| Cycle life: | >700 cycles@100% DOD,1C charge/discharge |
| Weight: | Approx 2.65Kg |
| Dimension: | 260*86*75mm/customization |
| BMS: | Over voltage, over current, short circuit, temperature protection, cell balance |
| Terminal | Option |
48V 11.6Ah 13S4P 18650 Lithium-Ion Battery Pack, 700+ Cycles
| Battery Brand | VCELL/OEM |
| Battery Type | Lithium Ion Battery(NCM) |
| Model | 18650-13S4P |
| Nominal Voltage | 48V |
| Nominal Capacity | 11.6Ah |
| Charge Cut-Off Voltage | 54.6V |
| Discharge Cut-Off Voltage | 36.4V |
| Charge current | 2A |
| Max continuous discharge current | 30A |
| Rated power | 500W-1000W |
| BMS | 30A |
| Charge temperature | 0~45℃ |
| Discharge temperature | -20~60℃ |
| BMS | Overcharge/discharge, over current, short circuit, temperature protection, cell balance |
| Size(L*W*H) | 250*80*70mm Max or Custom |
| Weight | 2.65Kg Approx |
| Cycle life | >700 |
| Wire/Connector | TBD |
48V 12.5Ah 18650 Lithium Battery Pack For Electric Scooter
| Battery type: | Li-Ion Battery |
| Battery model: | VP-NCM18650-13S5P |
| Nominal voltage: | 48V |
| Nominal capacity: | 12.5Ah |
| Charge cut-off voltage: | 58.8V |
| Discharge cut-off voltage: | 42.0V |
| Max charge current: | 12.5A |
| Max continuous discharge current: | 20.0A |
| Peak discharge current: | 40.0A |
| Charge temperature: | 0~45℃ |
| Discharge temperature | -20~60℃ |
| Cycle life: | >700 cycles@100% DOD,1C charge/discharge |
| Weight: | Approx 3.5Kg |
| Dimension: | 290*110*75mm/customization |
| BMS: | Over voltage, over current, short circuit, temperature protection, cell balance |
| Terminal | Option |

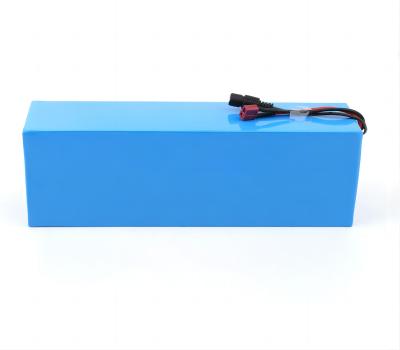

48V 14Ah Lithium Ion Battery Pack For 500W 750W 1000W Ebike
| Battery Brand | VCELL/OEM |
| Battery Type | Lithium Ion Battery(NCM) |
| Model | 18650-13S4P |
| Nominal Voltage | 48V |
| Nominal Capacity | 14Ah |
| Charge Cut-Off Voltage | 54.6V |
| Discharge Cut-Off Voltage | 36.4V |
| Charge current | 2A |
| Max continuous discharge current | 30A |
| Matching motor power | 500W/750W/1000W |
| Charge temperature | 0~45℃ |
| Discharge temperature | -20~60℃ |
| BMS | 30A |
| Size(D*H) | 255*90*70mm Max or Custom |
| Weight | 2.65Kg Approx |
| Cycle life | >700 |
| Wire/Connector | TBD |
48V 15Ah 18650 Li-Ion Battery Pack
| Battery type: | Li-Ion Battery |
| Battery model: | VP-NCM18650-13S6P |
| Nominal voltage: | 48V |
| Nominal capacity: | 15Ah |
| Charge cut-off voltage: | 54.6V |
| Discharge cut-off voltage: | 35.75V |
| Max charge current: | 15.0A |
| Max continuous discharge current: | 25.0A |
| Peak discharge current: | 45.0A |
| Charge temperature: | 0~45℃ |
| Discharge temperature | -20~60℃ |
| Cycle life: | >700 cycles@100% DOD,1C charge/discharge |
| Weight: | Approx 4.0Kg |
| Dimension: | 260*125*75mm/customization |
| BMS: | Over voltage, over current, short circuit, temperature protection, cell balance |
| Terminal | Option |
48V 16Ah 18650 13S5P Rechargeable Lithium Ion Battery
| Battery Brand | VCELL/OEM |
| Battery Type | Lithium Ion Battery(NCM) |
| Model | INR18650-13S5P |
| Nominal Voltage | 48V |
| Nominal Capacity | 16Ah |
| Charge Cut-Off Voltage | 54.6V |
| Discharge Cut-Off Voltage | 36.4V |
| Standard charge current | 3.2A |
| Max charge current | 16A |
| Standard discharge current | 3.2A |
| Max continuous discharge current | 24A |
| Peak discharge current | 48A(<3S ) |
| Charge temperature | 0~45℃ |
| Discharge temperature | -20~60℃ |
| BMS | Over charge/discharge, over current, short circuit, temperature protection, cell balance |
| Size | 247*95*70mm Max or customized |
| Weight | 3.3Kg Approx |
| Cycle life | >700 time |
| Wire/Connector | TBD |
48V 17.5AH Rechargeable Li-Ion Battery Pack
| Battery type: | Li-Ion Battery |
| Battery model: | VP-NCM18650-13S5P |
| Nominal voltage: | 48V |
| Nominal capacity: | 17.5Ah |
| Charge cut-off voltage: | 54.6V |
| Discharge cut-off voltage: | 36.4V |
| Max charge current: | 5A |
| Max discharge current: | 20A |
| Peak Current | 50A |
| Charge temperature: | 0~45℃ |
| Discharge temperature | -20~60℃ |
| Cycle life: | >700 cycles @100% DOD,1C charge/discharge |
| Weight: | Approx 3.7Kg |
| Dimension: | 290*95*70mm/custom |
| BMS: | Over voltage, over current, short circuit, temperature protection, cell balance |
| Terminal | Option |
48V 20AH 18650 Lithium Ion Battery Pack For Ebike Electric Tricycle
| Battery type: | Li Ion Battery |
| Battery model: | VP-NCM18650-13S8P |
| Nominal voltage: | 48V |
| Nominal capacity: | 20Ah |
| Charge cut-off voltage: | 54.6V |
| Discharge cut-off voltage: | 35.75V |
| Max charge current: | 20A |
| Max continuous discharge current: | 20.0A |
| Peak discharge current: | 60.0A |
| Charge temperature: | 0~45℃ |
| Discharge temperature | -20~60℃ |
| Cycle life: | >700 cycles@100% DOD,1C charge/discharge |
| Weight: | Approx 5.3Kg |
| Dimension: | 260*150*70mm/customization |
| BMS: | Over voltage, over current, short circuit, temperature protection, cell balance |
| Terminal | Option |
48V 25Ah 18650 Lithium Ion Battery Pack
| Battery type: | Li-Ion Battery |
| Battery model: | VP-NCM18650-13S10P |
| Nominal voltage: | 48V |
| Nominal capacity: | 25Ah |
| Charge cut-off voltage: | 54.6V |
| Discharge cut-off voltage: | 35.75V |
| Max charge current: | 25.0A |
| Max continuous discharge current: | 40.0A |
| Peak discharge current: | 50.0A |
| Charge temperature: | 0~45℃ |
| Discharge temperature | -20~60℃ |
| Cycle life: | >700 cycles@100% DOD,1C charge/discharge |
| Weight: | Approx 6.6Kg |
| Dimension: | 260*200*75mm/customization |
| BMS: | Over voltage, over current, short circuit, temperature protection, cell balance |
| Terminal | Option |
48V 26Ah Lithium Ion Electric Bikes Battery
| Battery type: | Li-Ion Battery |
| Battery model: | VP-NCM18650-13S10P |
| Nominal voltage: | 48V |
| Nominal capacity: | 26Ah |
| Charge cut-off voltage: | 54.6V |
| Discharge cut-off voltage: | 39.0V |
| Standard charge current: | 2.0A |
| Max Fast Charge Current: | 5.0A |
| Rated Discharge Current: | 50A |
| Maximum Continuous Discharge Current: | 50A |
| Maximum peak discharge current: | 150A |
| Charge temperature: | 0~45℃ |
| Discharge temperature | -20~60℃ |
| Cycle life: | >700 cycles @100% DOD,1C charge/discharge |
| Weight: | Approx 6.6Kg |
| Dimension: | 260*190*70mm |
| BMS: | Over voltage, over current, short circuit, temperature protection, cell balance |
| Terminal | Option |

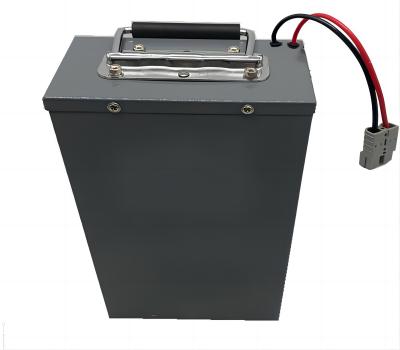

48V 28Ah Lithium Ion Battery Pack For Electric Bike
| Battery type: | Li-Ion Battery |
| Battery model: | VP-NCM18650-13S8P |
| Nominal voltage: | 48V |
| Nominal capacity: | 28Ah |
| Charge cut-off voltage: | 54.6V |
| Discharge cut-off voltage: | 35.75V |
| Max charge current: | 20.0A |
| Max discharge current: | 50.0A |
| Charge temperature: | 0~45℃ |
| Discharge temperature | -20~60℃ |
| Cycle life: | >700 cycles @100% DOD,1C charge/discharge |
| Weight: | Approx 12Kg |
| Dimension: | 285*180*100mm |
| BMS: | Over voltage, over current, short circuit, temperature protection, cell balance |
| Terminal | Option |
48V 28AH 13S8P 18650 Lithium Ion Battery For 1000W Electric Bicycle
| Battery Brand | VCELL/OEM |
| Battery Type | Lithium Ion Battery(NCM) |
| Model | INR18650-13S8P |
| Nominal Voltage | 48V |
| Nominal Capacity | 28Ah |
| Charge Cut-Off Voltage | 54.6V |
| Discharge Cut-Off Voltage | 36.4V |
| Max charge current | 5A |
| BMS | 30A |
| Charge temperature | 0~45℃ |
| Discharge temperature | -20~60℃ |
| Battery protection | Over charge/discharge, over current, short circuit, temperature protection, cell balance |
| Size(L*W*H) | 250*150*70mm Max |
| Weight | 5.2Kg Approx |
| Cycle life | >700 |
| Wire/Connector | TBD |
48V 30Ah Lithium Ion Battery Pack For E-bike Electric Bicycle Scooter
| Battery type: | Li Ion Battery |
| Battery model: | VP-NCM18650-13S12P |
| Nominal voltage: | 48V |
| Nominal capacity: | 30Ah |
| Charge cut-off voltage: | 54.6V |
| Discharge cut-off voltage: | 42.0V |
| Max charge current: | 30A |
| Max continuous discharge current: | 40.0A |
| Peak discharge current: | 60.0A |
| Charge temperature: | 0~45℃ |
| Discharge temperature | -20~60℃ |
| Cycle life: | >700 cycles @100% DOD,1C charge/discharge |
| Weight: | Approx 7.9Kg |
| Dimension: | 260*240*70mm/customizable |
| BMS: | Over voltage, over current, short circuit, temperature protection, cell balance |
| Terminal | Option |
Big Capacity 48V 32AH 18650 Li-Ion Battery Pack For Electric Bike
| Battery Brand | VCELL/OEM |
| Battery Type | Lithium-ion Battery(NCM) |
| Model | 18650-13S10P |
| Nominal Voltage | 48V |
| Nominal Capacity | 32Ah |
| Charge Cut-Off Voltage | 54.6V |
| Discharge Cut-Off Voltage | 39V |
| Standard charge current | 2A |
| Max charge current | 5A |
| Max continuous discharge current | 40A |
| Peak discharge current | 80A(<3S ) |
| Fit Motor | 1000W,1200W,1500W |
| Charge temperature | 0~45℃ |
| Discharge temperature | -20~60℃ |
| BMS | Overcharge/discharge, over current, short circuit, temperature protection, cell balance |
| Size | 276*220*70mm Max (can be customized) |
| Weight | 6.5Kg Approx |
| Cycle life | >700 |
| Wire/Connector | TBD |

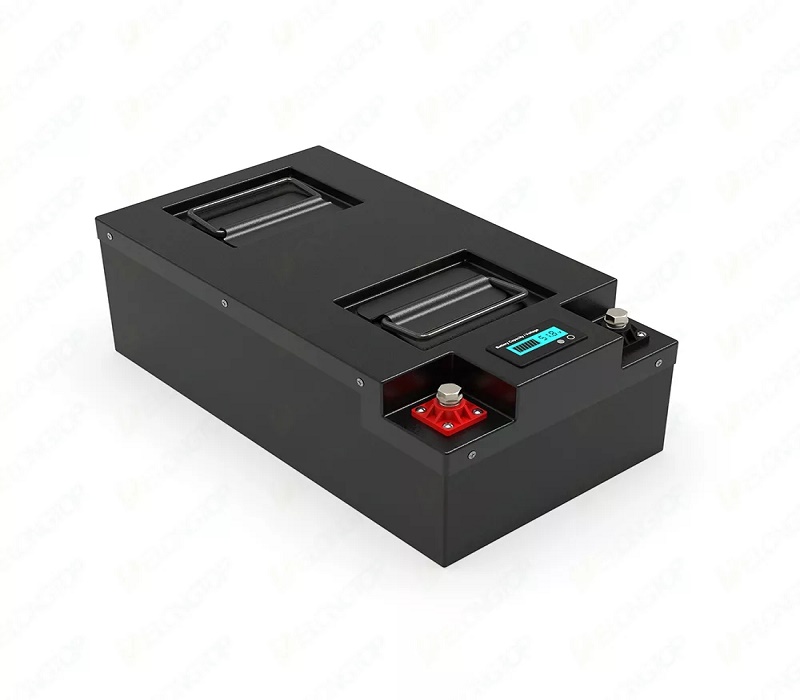

48V 35AH 21700 13S5P Li-Ion Battery For Electric Bike Electric Scooter
| Battery Brand | VCELL/OEM |
| Battery Type | Lithium Ion Battery |
| Model | 18650-13S7P |
| Nominal Voltage | 48V |
| Nominal Capacity | 35Ah |
| Charge Cut-Off Voltage | 54.6V |
| Discharge Cut-Off Voltage | 36.4V |
| Standard charge current | 2A |
| Max charge current | 5A |
| Standard discharge current | 7A |
| Max continuous discharge current | 20A |
| Peak discharge current | 60A(<3S ) |
| Motor Power | 300W-2000W |
| Charge temperature | 0~45℃ |
| Discharge temperature | -20~60℃ |
| BMS | Over charge/discharge, over current, short circuit, temperature protection, cell balance |
| Size(L*W*H) | 295*150*75mm Max |
| Weight | 6.5Kg Approx |
| Cycle life | >700 |
| Wire/Connector | TBD |
48V 40Ah Lithium LiFePo4 Battery Pack
| Battery type: | Lithium Iron Phosphate Battery |
| Battery model: | VP-LF48-40U |
| Nominal voltage: | 48V |
| Nominal capacity: | 40.0Ah |
| Charge cut-off voltage: | 54V |
| Discharge cut-off voltage: | 37.5V |
| Standard charge current: | 8A |
| Max charge current: | 40A |
| Standard discharge current: | 8A |
| Max continuous discharge current: | 120A |
| Peak discharge current: | 200A(<3S) |
| Cycle life: | >2000 cycles @100% DOD,1C Charge/Discharge |
| Weight: | Approx 33Kg |
| Dimension: | 200*240*460mm |
| BMS: | Over voltage, over current, short circuit, temperature protection, cell balance |
48V 50Ah LiFePo4 Battery Pack For Golf Cart
| Battery type: | Lifepo4 Battery |
| Battery model: | VP-LF4850G |
| Nominal voltage: | 48V |
| Nominal capacity: | 50.0Ah |
| Charge cut-off voltage: | 54.75V |
| Discharge cut-off voltage: | 37.5V |
| Max charge current: | 50.0A |
| Max continuous discharge current: | 50.0A |
| Peak discharge current: | 100.0A |
| Cycle life: | >2500 cycles@100% DOD, |
| Weight: | Approx 28Kg |
| Dimension: | Customized |
| BMS: | Over voltage, over current, short circuit, temperature protection, cell balance |

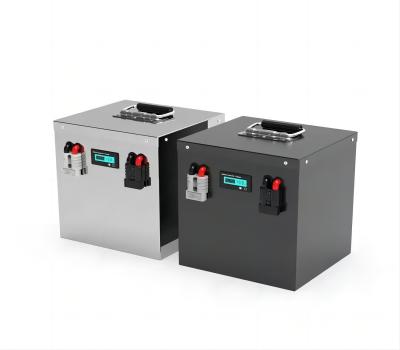

48V 60AH Rechargeable Lithium Ion Battery Pack
| Battery type: | Lithium Ion Battery |
| Battery model: | 18650-14S24P |
| Nominal voltage: | 48V |
| Nominal capacity: | 60.0Ah |
| Charge cut-off voltage: | 58.8V |
| Discharge cut-off voltage: | 38.5V |
| Max charge current: | 60.0A |
| Peak discharge current: | 120.0A |
| Cycle life: | >3000 cycles @100% DOD,1C Charge/Discharge |
| Weight: | Approx 19.5Kg |
| Dimension: | 230*215*260mm |
| Charge temperature | 0~45℃ |
| Discharge temperature | -10~55℃ |
| BMS: | Over voltage, over current, short circuit, temperature protection, cell balance |
Long Cycle Life 48V 70Ah LiFePo4 Battery For Boat/ Golf Cart
| Battery Brand | VCELL/OEM |
| Battery Type | Lifepo4 Battery |
| Model | VP-48-70 |
| Nominal Voltage | 48V |
| Nominal Capacity | 70Ah |
| Place of Origin: | China |
| MOQ | 10PCS |
| Delivery Time: | Within 20 days |
| Packaging Details: | 1pcs per carton |
| Payment Terms: | L/C, T/T, Paypal |
| Supply Ability: | 100 pcs per day |
48V 80AH Lifepo4 Lithium Battery Pack For Golf Cart RV
| Battery type: | Lifepo4 Battery |
| Battery model: | VP-LF48-80U |
| Nominal voltage: | 48V |
| Nominal capacity: | 80.0Ah |
| Charge cut-off voltage: | 58.6V |
| Discharge cut-off voltage: | 38.4V |
| Max charge current: | 80.0A |
| Max continuous discharge current: | 100.0A |
| Peak discharge current: | 200.0A |
| Cycle life: | >2000 cycles @100% DOD,1C Charge/Discharge |
| Weight: | Approx 40Kg |
| Dimension: | 520*310*170mm L*W*H |
| BMS: | Over voltage, over current, short circuit, temperature protection, cell balance |
| IP Level | IP56 |
48V 90Ah 16S3P LiFePo4 Battery Pack For AGV RGV Intelligent Robot
| Battery type: | Lithium Iron Phosphate Battery |
| Battery model: | VP-LF90G |
| Nominal voltage: | 51.2V |
| Nominal capacity: | 90.0Ah |
| Charge cut-off voltage: | 58.4V |
| Discharge cut-off voltage: | 44.8V |
| Standard charge current | 18.0A |
| Max charge current: | 90.0A |
| Standard discharge current | 18A |
| Max continuous discharge current: | 135.0A |
| Peak discharge current: | 450.0A(<3S) |
| Charge temperature: | 0℃～45℃ |
| Discharge temperature: | -20℃～60℃ |
| Cycle life: | >2500 cycles |
| Weight: | Approx 45Kg |
| Dimension: | H220mm×W250mm×L520mm |
| BMS: | Over voltage, over current, short circuit, temperature protection, cell balance |
| IP Level: | IP53 |
48V 120AH Lithium LiFePo4 Battery For EV/RV/AGV
| Battery type: | Lifepo4 Battery |
| Battery model: | VP-LF48-120U |
| Nominal voltage: | 48V |
| Nominal capacity: | 118.8Ah |
| Cell | 16S36P 3.2V 3.3Ah LiFePo4 Cell |
| Charge cut-off voltage: | 58.4V |
| Discharge cut-off voltage: | 32.0V |
| Max charge current: | 40.0A |
| Max continuous discharge current: | 70.0A |
| Cycle life: | >2000 cycles @100% DOD,1C Charge/Discharge |
| Weight: | Approx 56Kg |
| BMS: | Over voltage, over current, short circuit, temperature protection, cell balance |
48V 210AH Lithium LiFePo4 Battery For Golf Cart AGV
| Battery type: | LiFePo4 Battery |
| Battery model: | VP-LF48-210U |
| Nominal voltage: | 51.2V |
| Nominal capacity: | 210.0Ah |
| Cell type | 16S7P 3.2V 30AH cell |
| Charge cut-off voltage: | 58.4V |
| Discharge cut-off voltage: | 44.8V |
| Max charge current: | 100.0A |
| Max continuous discharge current: | 150.0A |
| Cycle life: | >2000 cycles @100% DOD,1C Charge/Discharge |
| Weight: | Approx 105Kg |
| Dimension: | 680*420*180mm L*W*H |
| BMS: | Over voltage, over current, short circuit, temperature protection, cell balance |
| Charging temperature: | 0℃～45℃ |
| Discharge temperature: | -20℃～60℃ |
| Storage temperature: | 1 month, -20℃ ~ 45℃
3 months, -20℃ ~ 35℃ 6 months, -20℃ ~ 35℃ |
48V 250AH Deep Cycle LiFePo4 Battery For AGV
| Battery type: | LiFePo4 Battery |
| Battery model: | VP-LF48-250U |
| Nominal voltage: | 51.2V |
| Nominal capacity: | 250.0Ah |
| Cell type | 16S5P 3.2V 50AH cell |
| Charge cut-off voltage: | 58.4V |
| Discharge cut-off voltage: | 44.8V |
| Max charge current: | 100.0A |
| Max discharge current: | 100.0A |
| Cycle life: | >2000 cycles @100% DOD,1C Charge/Discharge |
| Weight: | Approx 115Kg |
| Dimension: | 850*500*170mm L*W*H |
| BMS: | Over voltage, over current, short circuit, temperature protection, cell balance |
| Charging temperature: | 0℃～45℃ |
| Discharge temperature: | -20℃～60℃ |
| Storage temperature: | 1 month, -20℃~45℃
3 months, -20℃~35℃ 6 months, -20℃~35℃ |
VCELL 48V 300Ah 15KWH LiFePo4 Battery For Golf Cart
| Battery Brand | VCELL/OEM |
| Battery Type | Lithium Iron Phosphate Battery |
| Model | LF48-300 |
| Nominal Voltage | 51.2V |
| Nominal Capacity | 300Ah |
| Place of Origin: | China |
| MOQ | 10PCS |
| Delivery Time: | Within 20 days |
| Packaging Details: | 1pcs per carton |
| Payment Terms: | L/C, T/T, Paypal |
| Supply Ability: | 100 pcs per day |
48V 500Ah 25.6KWh Lithium Battery Pack For Forklift
| Battery Brand | VCELL/OEM |
| Battery Type | Lithium Iron Phosphate Battery |
| Model | LFP48-500 |
| Nominal Voltage | 51.2V |
| Nominal Capacity | 500Ah |
| Charge Cut-Off Voltage | 54V |
| Discharge Cut-Off Voltage | 42V |
| Standard charge current | 100A |
| Max charge current | 250A |
| Standard discharge current | 250A |
| Peak discharge current | 500A(<3S ) |
| Charge temperature | 0~45℃ |
| Discharge temperature | -20~65℃ |
| BMS | Over charge/discharge, over current, short circuit, temperature protection, cell balance |
| Communication | RS485,RS232, Can Communication |
| Size | Customized |
| Weight | Approx.385KG |
| Cycle life | ≥2000cycles @80%DOD |
| Case Material | Metal |
| Enclosure Protection | IP65 |
50.4V 25Ah Lithium Ion Battery Pack For Electric Wheelchair
| Battery type: | Li-Ion Battery |
| Battery model: | VP-NCM504-25 |
| Nominal voltage: | 50.4V |
| Nominal capacity: | 25Ah |
| Charge cut-off voltage: | 58.8V |
| Discharge cut-off voltage: | 38.5V |
| Max charge current: | 5A |
| Max continuous discharge current: | 40A |
| Peak discharge current: | 50A |
| Charge temperature: | 0~45℃ |
| Discharge temperature | -20~60℃ |
| Cycle life: | >700 cycles@100% DOD,1C charge/discharge |
| Weight: | Approx 7Kg |
| Dimension: | 270*195*75mm/customizable |
| BMS: | Over voltage, over current, short circuit, temperature protection, cell balance |
| Terminal | Option |
50.4V 30Ah Lithium Lifepo4 Battery Pack For RV Golf Cart
| Battery type: | Lifepo4 Battery |
| Battery model: | VP-LF48-30U |
| Nominal voltage: | 50.4V |
| Nominal capacity: | 30.0Ah |
| Charge cut-off voltage: | 57.8V |
| Discharge cut-off voltage: | 45.0V |
| Max charge current: | 30.0A |
| Max continuous discharge current: | 30.0A |
| Peak discharge current: | 90.0A(1-3S) |
| Cycle life: | >2500 cycles @100% DOD,1C Charge/Discharge |
| Weight: | Approx 11.5Kg |
| BMS: | Over voltage, over current, short circuit, temperature protection, cell balance |
50.4V 35Ah Lithium Ion Battery Pack, INR21700 14S7P
| Battery type: | Li Ion Battery(NCM) |
| Battery model: | INR21700-14S7P |
| Nominal voltage: | 50.4V |
| Nominal capacity: | 35Ah |
| Charge cut-off voltage: | 58.8V |
| Discharge cut-off voltage: | 42.0V |
| Max charge current: | 35.0A |
| Max continuous discharge current: | 70.0A |
| Peak discharge current: | 200.0A(1~3S) |
| Charge temperature: | 0~45℃ |
| Discharge temperature | -20~60℃ |
| Cycle life: | >700 cycles@100% DOD,1C charge/discharge |
| Weight: | Approx 12.5Kg |
| Dimension: | 380*100*180mm |
| BMS: | Over voltage, over current, short circuit, temperature protection, cell balance |
| Terminal | M8 |
51.2V 54AH Lithium Lifepo4 Battery Pack For AGV RV EV
| Battery type: | Lifepo4 Battery |
| Battery model: | VP-LF48-54U |
| Nominal voltage: | 51.2V |
| Nominal capacity: | 54.0Ah |
| Charge cut-off voltage: | 58.4V |
| Discharge cut-off voltage: | 32.0V |
| Standard Charging Current | 10.8A |
| Standard Charging Time | 6~7 hours |
| Rapid charge current: | 54.0A |
| Rapid charging time | About 3.5 hours |
| Standard discharge current: | 10.8A |
| Peak discharge current: | 54.0A |
| Cycle life: | >2000 cycles @100% DOD,1C Charge/Discharge |
| Weight: | Approx 27Kg |
| Dimension: | 420*300*170mm |
| BMS: | Over voltage, over current, short circuit, temperature protection, cell balance |
48V 100AH Lithium Lifepo4 Battery Pack For AGV Golf Cart
| Battery type: | LIFEPO4 Battery |
| Battery model: | VP-LF48-100U |
| Nominal voltage: | 48V |
| Nominal capacity: | 100.0Ah |
| Charge cut-off voltage: | 54.75V |
| Discharge cut-off voltage: | 30V |
| Standard Charge Current | 20.0A |
| Maximum charge current: | 100.0A |
| Max continuous discharge current: | 100.0A |
| Maximum pack discharge current: | 200.0A |
| Cycle life: | >2000 Cycles @100% DOD,1C Charge/Discharge |
| Weight: | Approx 70Kg |
| Dimension: | 200mm*365mm*540mm |
| BMS: | Over voltage, over current, short circuit, temperature protection, cell balance |
51.2V 200Ah Lifepo4 Battery Pack For Golf Cart, With BMS
| Battery type: | Lithium Iron Phosphate Battery |
| Battery model: | IFR54173200-16S1P |
| Nominal voltage: | 51.2V |
| Nominal capacity: | 200.0Ah |
| Charge cut-off voltage: | 57.6V |
| Discharge cut-off voltage: | 40.0V |
| Standard charge current: | 40.0V |
| Max charge current: | 200.0A |
| Standard discharge current: | 40.0V |
| Max continuous discharge current: | 200.0A |
| Peak discharge current: | 400.0A(1~3S) |
| Charge temperature: | 0~45℃ |
| Discharge temperature | -20~60℃ |
| Cycle life: | >2500 @100% DOD,1C charge/discharge |
| Weight: | Approx 75.0Kg |
| Dimension: | 360*520*285mm |
| BMS: | Over voltage, over current, short circuit, temperature protection, cell balance, With LCD display |
| Terminal | M8 |
