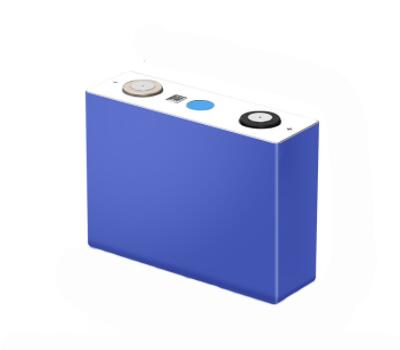

3.2V 100Ah Prismatic Rechargeable Lifepo4 Battery Cell

Battery type: Lithium Iron Phosphate(LiFePO4)Cell
Model: LF101
Nominal voltage: 3.2V
Nominal capacity: 101Ah
Charge cut-off voltage: 3.65V
Discharge cut-off voltage: 2.5V
Max charge current: 101A
Continuous discharge current: 101A
Peak discharge current: 202A
Charge temperature: 0~55℃
Discharge temperature -20~65℃
Internal Resistance ≤0.5mΩ
Cycle life: ≥2000 cycles @0.5C/0.5C(at 25℃)
Weight: Approx 2.1Kg
Dimension(L*W*H): 160.0±0.8*50.1±0.5*118.5±0.5mm

The advantage of lifepo4 cell
1. No memory effect, built to last
2. Good temperature performance
3. Good safety performance
4. Good cycle lifetime
5. Economical and affordable
6. Pollution-free

The application of lifepo4 cell
Widely used in utility and renewable(solar and wind) energy storage, electric and hybrid vehicles(buses, cars, and trucks), uninterruptible power supply (UPS) for data centers, cell tower/communications power, marine vessels, stationary power generators and AGV (Automated Guided Vehicle), RV( Recreational Vehicle), etc.

Related Item

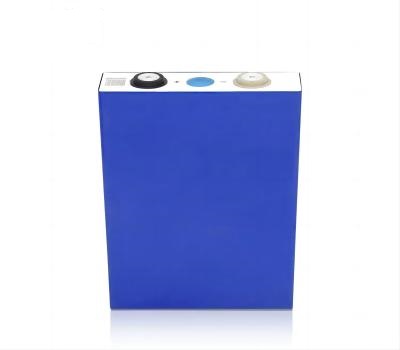

Long Life 3.2V 50Ah Prismatic LiFePO4 Battery Cell
