60V AGV Battery
DOWNLOAD.PDF
DOWNLOAD.WRD
VCELL 60V 12Ah 18650 Li-Ion Battery Pack, Built In BMS
| Battery Brand | VCELL/OEM |
| Battery Type | Li-Ion Battery |
| Model | VP60-12 |
| Nominal Voltage | 60V |
| Nominal Capacity | 12Ah |
| Cell Combination | 16S6P |
| Charge Cut-Off Voltage | 67.2V |
| Discharge Cut-Off Voltage | 44V |
| Standard Charge Current | 2A |
| Max Charge Current | 5A |
| Continuous Discharge Current | 30A |
| Peak Discharge Current | 60A |
| Charge temperature | 0~45℃ |
| Discharge temperature | -20~65℃ |
| Size | 310*130*70mm/Customized |
| Weight | Approx 4.8Kg |
| Cycle life | ≥800 cycles @80%DOD |
VCELL 60V 24Ah Lithium Ion Battery Pack For Electric Scooter
| Battery Brand | VCELL/OEM |
| Battery Type | Lithium Ion Battery |
| Model | VP-NMC60-24 |
| Nominal Voltage | 60V |
| Nominal Capacity | 24Ah |
| Cell Combination | 16S8P |
| Charge Cut-Off Voltage | 67.2V |
| Discharge Cut-Off Voltage | 44.8V |
| Standard Charge Current | 5A |
| Max Charge Current | 8A |
| Continuous Discharge Current | 60A |
| Peak Discharge Current | 120A |
| Matching Power | 3000W |
| Charge temperature | 0~45℃ |
| Discharge temperature | -20~65℃ |
| Size | 320x165x70mm Or customized |
| Weight | Approx 6.45Kg |
| Cycle life | ≥800 cycles @80%DOD |
VCELL 60V 120Ah Lithium Battery For Sightseeing Buses
| Battery Brand | VCELL/OEM |
| Battery Type | LiFePo4 Battery |
| Model | VP-LF60-120 |
| Nominal Voltage | 60V |
| Nominal Capacity | 120Ah |
| Charge Cut-Off Voltage | 79.8V |
| Discharge Cut-Off Voltage | 51.3V |
| Charge current | 20A |
| Max continuous discharge current | 100A |
| Peak discharge current | 200A(<3S ) |
| Charge temperature | 0~45℃ |
| Discharge temperature | -20~65℃ |
| BMS | Overcharge/discharge, over current, short circuit, temperature protection, cell balance |
| Size(D*H) | 220*500*650mm |
| Weight | 80Kg Approx |
| Cycle life | >2500 |
Customizable 60V 18AH Triangle Lithium Ion Battery For Ebike, Built-In BMS
| Battery Brand | VCELL/OEM |
| Battery Type | Li-Ion Battery |
| Model | VP60-18 |
| Nominal Voltage | 60V |
| Nominal Capacity | 18Ah |
| Cell Combination | 16S9P |
| Charge Cut-Off Voltage | 67.2V |
| Discharge Cut-Off Voltage | 48.0V |
| Standard Charge Current | 2A |
| Max Charge Current | 5A |
| Continuous Discharge Current | 30A |
| Peak Discharge Current | 90A |
| Charge temperature | 0~45℃ |
| Discharge temperature | -20~65℃ |
| BMS | Overcharge/discharge, over current, short circuit, temperature protection, cell balance |
| Size | 355x310x200x90x55x70mm (+/-5mm)/Customized |
| Weight | Approx 7Kg |
| Cycle life | ≥800 cycles @80%DOD |

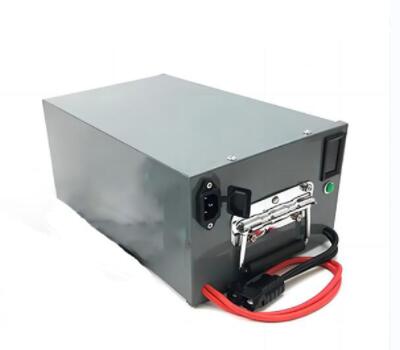

60V 55AH Lithium-Ion Battery With BMS And Metal Box
| Battery Brand | VCELL/OEM |
| Battery Type | Li-Ion Battery |
| Model | VP60-55 |
| Nominal Voltage | 60V |
| Nominal Capacity | 54.4Ah |
| Charge Cut-Off Voltage | 67.2V |
| Discharge Cut-Off Voltage | 48V |
| Standard Charge Current | 2A |
| Max Charge Current | 5A |
| Continuous Discharge Current | 50A |
| Peak Discharge Current | 150A |
| Matching Power | 2500W |
| Charge temperature | 0~45℃ |
| Discharge temperature | -20~65℃ |
| BMS | Overcharge/discharge, over current, short circuit, temperature protection, cell balance |
| Size | 320*200*145mm |
| Weight | Approx.15Kg |
| Cycle life | ≥800 cycles @80%DOD |
60V 48AH Rechargeable Lithium Ion battery For 2500W E-Motorcycle
| Battery Brand | VCELL/OEM |
| Battery Type | Li-Ion Battery |
| Model | VP60-48 |
| Nominal Voltage | 60V |
| Nominal Capacity | 48Ah |
| Charge Cut-Off Voltage | 67.2V |
| Discharge Cut-Off Voltage | 48.0V |
| Standard charge Current | 2A |
| Max Charge Current | 5A |
| Continuous Discharge Current | 50A |
| Peak Discharge Current | 150A(<3S) |
| Fit motor power | 500W-2500W(MAX) |
| Charge temperature | 0~45℃ |
| Discharge temperature | -20~65℃ |
| Battery Protection function | Overcharge/discharge, over current, short circuit, temperature protection, cell balance |
| Communication | RS485/232, CANBUS, SMBUS, I2C |
| Size | 320*200*145mm |
| Weight | Approx.14.8Kg |
| Cycle life | ≥800 cycles @80%DOD |
60V 70AH Rechargeable Li-Ion Battery For Golf Carts/Vehicle Bike/Van
| Battery Brand | VCELL/OEM |
| Battery Type | Lithium Ion Battery |
| Model | VP60-70 |
| Nominal Voltage | 60V |
| Nominal Capacity | 70Ah |
| Place of Origin: | China |
| MOQ | 10PCS |
| Delivery Time: | Within 20 days |
| Packaging Details: | 1pcs per carton |
| Payment Terms: | L/C, T/T, Paypal |
| Supply Ability: | 100 pcs per day |
VCELL/OEM 60V 60Ah lithium LiFepo4 Battery Pack
| Battery Brand | VCELL/OEM |
| Battery Type | Lifepo4 Battery |
| Model | VP-60-60 |
| Nominal Voltage | 60V |
| Nominal Capacity | 60Ah |
| Place of Origin: | China |
| MOQ | 10PCS |
| Delivery Time: | Within 20 days |
| Packaging Details: | 1pcs per carton |
| Payment Terms: | L/C, T/T, Paypal |
| Supply Ability: | 100 pcs per day |
60V 80Ah LiFePo4 Battery With 100A BMS For Tricycle Caravan AGV
| Battery Brand | VCELL/OEM |
| Battery Type | Lithium Iron Phosphate Battery |
| Model | LF60-80 |
| Nominal Voltage | 60V |
| Nominal Capacity | 80Ah |
| Place of Origin: | China |
| MOQ | 10PCS |
| Delivery Time: | Within 20 days |
| Packaging Details: | 1pcs per carton |
| Payment Terms: | L/C, T/T, Paypal |
| Supply Ability: | 100 pcs per day |
VCELL LiFePo4 60V 100Ah Lithium Battery Pack
| Battery Brand | VCELL/OEM |
| Battery Type | Lithium Iron Phosphate Battery |
| Model | LF60-100 |
| Nominal Voltage | 60V |
| Nominal Capacity | 100Ah |
| Place of Origin: | China |
| MOQ | 10PCS |
| Delivery Time: | Within 20 days |
| Packaging Details: | 1pcs per carton |
| Payment Terms: | L/C, T/T, Paypal |
| Supply Ability: | 100 pcs per day |
60V 28Ah Lithium Ion Battery For Mountain E-Bike
| Battery Brand | VCELL/OEM |
| Battery Type | Li-Ion Battery(NCM) |
| Model | 18650-16S8P |
| Nominal Voltage | 60V |
| Nominal Capacity | 28Ah |
| Charge Cut-Off Voltage | 67.2V |
| Discharge Cut-Off Voltage | 44.8V |
| Standard Charging Current | 2A |
| Max charge current | 5A |
| BMS | 35A |
| Max continuous discharge current | 35A |
| Peak discharge current | 65A |
| Match Motor Power | 250W-1000W |
| Charge temperature | 0~45℃ |
| Discharge temperature | -20~60℃ |
| Size(L*W*H) | 310*165*70mm Max |
| Weight | 5.4Kg Approx |
| Cycle life | >700 |
| Wire/Connector | TBD |
60V 24.5Ah 18650 Rechargeable Lithium battery
| Battery Brand | VCELL/OEM |
| Battery Type | Lithium Ion Battery(NCM) |
| Model | 18650-16S7P-35 |
| Nominal Voltage | 60V |
| Nominal Capacity | 24.5Ah |
| Charge Cut-Off Voltage | 67.2V |
| Discharge Cut-Off Voltage | 44V |
| Standard Charge Current | 2A |
| Max Charge Current | 5A |
| Max continuous discharge current | 30A |
| BMS | 30A |
| Matching Motor Power | 500W-1000W |
| Battery Protection | Built-in BMS, with prevent overcharge/discharge, over current, and short circuit functions |
| Charge temperature | 0~45℃ |
| Discharge temperature | -20~60℃ |
| Size(L*W*H) | 205*135*70mm Max or Custom |
| Weight | 5.65Kg Approx |
| Cycle life | >700 |
| Wire/Connector | TBD |
60V 22.4Ah Rechargeable Li-Ion Battery For Electric Scooter
| Battery Brand | VCELL/OEM |
| Battery Type | Lithium Ion Battery(NCM) |
| Model | 18650-16S7P-32 |
| Nominal Voltage | 60V |
| Nominal Capacity | 22.4Ah |
| Charge Cut-Off Voltage | 67.2V |
| Discharge Cut-Off Voltage | 44V |
| Standard Charge Current | 2A |
| Max Charge Current | 5A |
| Max continuous discharge current | 30A |
| BMS | 30A |
| Matching Motor Power | 500W-1000W |
| Charge temperature | 0~45℃ |
| Discharge temperature | -20~60℃ |
| Size(L*W*H) | 205*135*70mm Max or Custom |
| Weight | 5.65Kg Approx |
| Cycle life | >700 |
| Wire/Connector | TBD |
60V 18.2Ah 16S7P 18650 Lithium Ion Battery For Electric Scooter
| Battery Brand | VCELL/OEM |
| Battery Type | Lithium Ion Battery(NCM) |
| Model | 18650-16S7P |
| Nominal Voltage | 60V |
| Nominal Capacity | 18.2Ah |
| Charge Cut-Off Voltage | 67.2V |
| Discharge Cut-Off Voltage | 44V |
| Charge current | 2A |
| Max continuous discharge current | 30A |
| BMS | 30A |
| Matching Motor Power | 500W-1000W |
| Charge temperature | 0~45℃ |
| Discharge temperature | -20~60℃ |
| Size(L*W*H) | 205*135*70mm Max or Custom |
| Weight | 5.65Kg Approx |
| Cycle life | >700 |
| Wire/Connector | TBD |
60V 40AH Lithium Battery Pack For 2500W Electric Scooter, 18650 16S14P
| Battery Brand | VCELL/OEM |
| Battery Type | Lithium Ion Battery(NCM) |
| Model | 18650-16S14P |
| Nominal Voltage | 60V |
| Nominal Capacity | 40.0Ah |
| Charge Cut-Off Voltage | 67.2V |
| Discharge Cut-Off Voltage | 48.0V |
| Standard charge current | 2A |
| Max charge current | 5A |
| Standard discharge current | 50A |
| Max continuous discharge current | 50A |
| Peak discharge current | 150A(<3S ) |
| Charge temperature | 0~45℃ |
| Discharge temperature | -20~60℃ |
| BMS | Over charge/discharge, over current, short circuit, temperature protection, cell balance |
| Size(L*W*H) | 310*265*70mm Max |
| Weight | 11Kg Approx |
| Cycle life | >700 |
| Wire/Connector | TBD |
60V 50Ah 21700 16S10P Lithium Ion Battery With 3000W Electric Bicycle
| Battery Brand | VCELL/OEM |
| Battery Type | Lithium Ion Battery |
| Model | 21700-16S10P |
| Nominal Voltage | 60V |
| Nominal Capacity | 50Ah |
| Charge Cut-Off Voltage | 67.2V |
| Discharge Cut-Off Voltage | 48V |
| Standard Charge Current | 2A |
| Max charge current | 5A |
| Maximum Continuous Discharge Current | 50A |
| Peak Discharge Current | 90A |
| Charge temperature | 0~45℃ |
| Discharge temperature | -20~60℃ |
| BMS | Over charge/discharge, over current, short circuit, temperature protection, cell balance |
| Size(L*W*H) | 360*220*75mm Max |
| Weight | 12.2Kg Approx |
| Cycle life | >700 |
| Wire/Connector | TBD |
60V 15Ah 16S5P 18650 Li-Ion Battery For Electric Bicycle
| Battery Brand | VCELL/OEM |
| Battery Type | Lithium Ion Battery(NCM) |
| Model | INR18650-16S5P |
| Nominal Voltage | 60V |
| Nominal Capacity | 15Ah |
| Charge Cut-Off Voltage | 67.2V |
| Discharge Cut-Off Voltage | 44.8V |
| Standard charge current | 3A |
| Max charge current | 15A |
| Standard discharge current | 3A |
| Max continuous discharge current | 22.5A |
| Peak discharge current | 45A(<3S ) |
| Charge temperature | 0~45℃ |
| Discharge temperature | -20~60℃ |
| BMS | Over charge/discharge, over current, short circuit, temperature protection, cell balance |
| Size(L*W*H) | 300*75*93mm Max |
| Weight | 4.1Kg Approx |
| Cycle life | >700 |
| Wire/Connector | TBD |
60V 45Ah 18650 Li-Ion Battery Pack For Motorcycle Ebike
| Battery type: | Li-Ion Battery |
| Battery model: | VP-NCM18650-16S15P |
| Nominal voltage: | 60.0V |
| Nominal capacity: | 45.0Ah |
| Charge cut-off voltage: | 67.2V |
| Discharge cut-off voltage: | 44.0V |
| Max charge current: | 5A |
| Max continuous discharge current: | 50A |
| Charge temperature: | 0~45℃ |
| Discharge temperature | -20~60℃ |
| Cycle life: | >700 cycles @100% DOD,1C charge/discharge |
| Weight: | Approx 12kg |
| Dimension: | 320*170*140mm (Can be customized ) |
| BMS: | Over voltage, over current, short circuit, temperature protection, cell balance |
| Terminal | Option |
60V 20Ah 18650 Lithium Ion Battery Pack
| Battery type: | Li Ion Battery |
| Battery model: | VP-NCM18650-17S8P |
| Nominal voltage: | 60V |
| Nominal capacity: | 20Ah |
| Charge cut-off voltage: | 71.4V |
| Discharge cut-off voltage: | 46.75V |
| Max charge current: | 5A |
| Max continuous discharge current: | 30A |
| Peak discharge current: | 40A |
| Charge temperature: | 0~45℃ |
| Discharge temperature | -20~60℃ |
| Cycle life: | >700 cycles @100% DOD,1C charge/discharge |
| Weight: | Approx 7Kg |
| Dimension: | 335*165*75mm/custom |
| BMS: | Over voltage, over current, short circuit, temperature protection, cell balance |
| Terminal | Option |
60V 25Ah Rechargeable Lithium Ion Battery Pack
| Battery type: | Li Ion Battery |
| Battery model: | VP-NCM18650-17S10P |
| Nominal voltage: | 60V |
| Nominal capacity: | 25Ah |
| Charge cut-off voltage: | 71.4V |
| Discharge cut-off voltage: | 46.75V |
| Max charge current: | 5A |
| Max continuous discharge current: | 30A |
| Peak discharge current: | 50A |
| Charge temperature: | 0~45℃ |
| Discharge temperature | -20~60℃ |
| Cycle life: | >700 cycles @100% DOD,1C charge/discharge |
| Weight: | Approx 8.6Kg |
| Dimension: | 335*200*75mm/custom |
| BMS: | Over voltage, over current, short circuit, temperature protection, cell balance |
| Terminal | Option |
60V 30Ah Lithium Ion battery Pack For Ebike Electric Scooter
| Battery type: | Li-Ion Battery |
| Battery model: | VP-NCM18650-17S12P |
| Nominal voltage: | 60.0V |
| Nominal capacity: | 30.0Ah |
| Charge cut-off voltage: | 71.4V |
| Discharge cut-off voltage: | 46.75V |
| Max charge current: | 5A |
| Max continuous discharge current: | 30A |
| Peak discharge current: | 90.0A |
| Charge temperature: | 0~45℃ |
| Discharge temperature | -20~60℃ |
| Cycle life: | >700 cycles @100% DOD,1C charge/discharge |
| Weight: | Approx 10.5Kg |
| Dimension: | 335*240*75mm (Can be customized ) |
| BMS: | Over voltage, over current, short circuit, temperature protection, cell balance |
| Terminal | Option |
60V 10Ah 18650 Lithium Ion Battery Pack For Ebike Electric Scooter
| Battery type: | Li Ion Battery |
| Battery model: | VP-NCM18650-17S4P |
| Nominal voltage: | 60V |
| Nominal capacity: | 10Ah |
| Charge cut-off voltage: | 71.4V |
| Discharge cut-off voltage: | 46.75V |
| Max charge current: | 5A |
| Max continuous discharge current: | 15A |
| Peak discharge current: | 20A |
| Charge temperature: | 0~45℃ |
| Discharge temperature | -20~60℃ |
| Cycle life: | >700 cycles @100% DOD,1C charge/discharge |
| Weight: | Approx 3.5Kg |
| Dimension: | 335*86*75mm/custom |
| BMS: | Over voltage, over current, short circuit, temperature protection, cell balance |
| Terminal | Option |
60V 12.5Ah Lithium Ion Battery Pack For Ebike Electric Scooter Wheelchair
| Battery type: | Li Ion Battery |
| Battery model: | VP-NCM18650-17S5P |
| Nominal voltage: | 60V |
| Nominal capacity: | 12.5Ah |
| Charge cut-off voltage: | 71.4V |
| Discharge cut-off voltage: | 46.75V |
| Max charge current: | 5A |
| Max continuous discharge current: | 15A |
| Peak discharge current: | 25A |
| Charge temperature: | 0~45℃ |
| Discharge temperature | -20~60℃ |
| Cycle life: | >700 cycles @100% DOD,1C charge/discharge |
| Weight: | Approx 4.3Kg |
| Dimension: | 335*105*75mm/custom |
| BMS: | Over voltage, over current, short circuit, temperature protection, cell balance |
| Terminal | Option |
60.0V 35Ah Lithium Ion Battery Pack, INR18650 17S14P
| Battery type: | Li Ion Battery(NCM) |
| Battery model: | INR18650-17S14P |
| Nominal voltage: | 61.2V |
| Nominal capacity: | 35.0Ah |
| Charge cut-off voltage: | 71.4V |
| Discharge cut-off voltage: | 51.0V |
| Max charge current: | 35.0A |
| Max continuous discharge current: | 70.0A |
| Peak discharge current: | 200.0A(1~3S) |
| Charge temperature: | 0~45℃ |
| Discharge temperature | -20~60℃ |
| Cycle life: | >700 @100% DOD,1C charge/discharge |
| Weight: | Approx 13.5Kg |
| Dimension: | Customized |
| BMS: | Over voltage, over current, short circuit, temperature protection, cell balance |
| Terminal | M8 |
