Battery type: | Lithium Iron Phosphate Battery |
Battery model: | VP-LF48-40U |
Nominal voltage: | 48V |
Nominal capacity: | 40.0Ah |
Charge cut-off voltage: | 54V |
Discharge cut-off voltage: | 37.5V |
Standard charge current: | 8A |
Max charge current: | 40A |
Standard discharge current: | 8A |
Max continuous discharge current: | 120A |
Peak discharge current: | 200A(<3S) |
Cycle life: | >2000 cycles @100% DOD,1C Charge/Discharge |
Weight: | Approx 33Kg |
Dimension: | 200*240*460mm |
BMS: | Over voltage, over current, short circuit, temperature protection, cell balance |

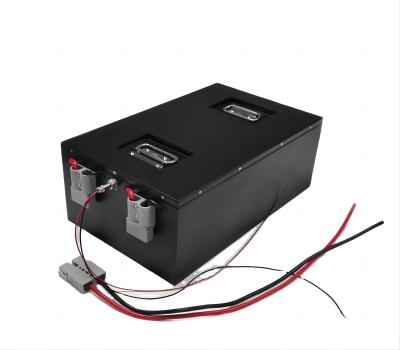

This 48V 40Ah lithium iron phosphate battery system has built-in BMS and stainless steel box painted in black
Feature
1. Long cycle life (more than 2500 cycles at 100% DOD)
2. Built-in smart BMS with multiple protection and communication functions
3. Wide working temperature range and high reliability
4. Clean energy, environment-friendly
Application: Electric boats, electric submarines, underwater robots, AGV/RGV/MGV automatic transfer vehicles, robots, low-speed electric vehicles, elderly scooters, four-wheel electric vehicles, communication equipment, medical equipment, solar energy
