Battery type: | Lifepo4 Battery |
Battery model: | VP-LF48-30U |
Nominal voltage: | 50.4V |
Nominal capacity: | 30.0Ah |
Charge cut-off voltage: | 57.8V |
Discharge cut-off voltage: | 45.0V |
Max charge current: | 30.0A |
Max continuous discharge current: | 30.0A |
Peak discharge current: | 90.0A(1-3S) |
Cycle life: | >2500 cycles @100% DOD,1C Charge/Discharge |
Weight: | Approx 11.5Kg |
BMS: | Over voltage, over current, short circuit, temperature protection, cell balance |
Advantages

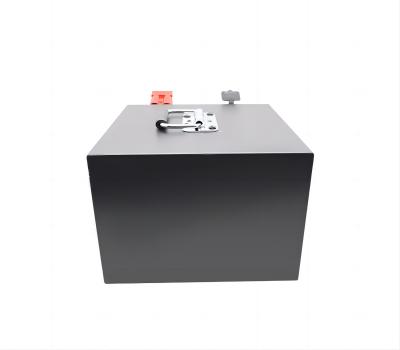

This 50.4V 30Ah LFP battery system has built-in BMS and stainless steel box painted in black or white.
1. Long cycle life (more than 2500 cycles at 100% DOD) .
2. Built-in smart BMS with multiple protection and communication functions.
3. Wide working temperature range and high reliability.
4. Multiple battery units can be connected in parallel, suitable for high-energy storage applications.
5. Compatible with various charge controllers and inverters.
