Battery Brand | VCELL/OEM |
Battery Type | Lithium Ion Battery(NCM) |
Model | 18650-10S4P |
Nominal Voltage | 36V |
Nominal Capacity | 10.4Ah |
Charge Cut-Off Voltage | 42V |
Discharge Cut-Off Voltage | 30V |
Max charge current | 2A |
BMS | 20A |
Fit Motor | 250W-500W |
Charge temperature | 0~45℃ |
Discharge temperature | -20~60℃ |
Battery protection | Over charge/discharge, over current, short circuit, temperature protection, cell balance |
Size(L*W*H) | 187*75*20mm Max/custom |
Weight | 2.05Kg Approx |
Cycle life | >700 |
Wire/Connector | TBD |

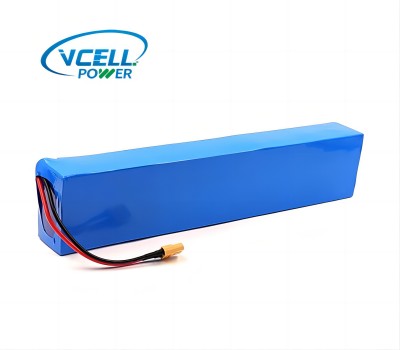

The Vcell 36V 10.4Ah Li-Ion Battery is a state-of-the-art rechargeable battery pack made with 18650 Li-Ion cylindrical cells packed with PVC shrink wrap.
Features
1. Long cycle lifespan
2. Safety, each battery has built BMS protection board from Over-discharge, Over-charge, Short Circuits, etc
3. The cell voltage, capacity, and internal resistance are consistent, and the battery pack is durable
4. No memory effect, recyclable charging, economical
5. Eco-friendly
6. Brand New and high quality
7. Safety, high-temperature PVC wrapper
Application: Electric scooters, electric bicycles, electric wheelchairs, driven balance cars, Trike, Go karts, etc
