24V 100Ah Lifepo4 Lithium Battery For Solar Energy Photovoltaic Storage System
| Battery Brand | VCELL/OEM |
| Battery Type | LiFePo4 Battery |
| Model | VP-LF24-100 |
| Nominal Voltage | 24V |
| Nominal Capacity | 100Ah |
| Charge Cut-Off Voltage | 29.2V |
| Discharge Cut-Off Voltage | 17.5V |
| Charge current | 10A |
| Max continuous discharge current | 100A |
| Peak discharge current | 200A(<3S ) |
| Motor power | 2400W |
| Charge temperature | 0~45℃ |
| Discharge temperature | -20~65℃ |
| BMS | Overcharge/discharge, over current, short circuit, temperature protection, cell balance |
| Communication | RS485/232, CANBUS, SMBUS, I2C |
| Size(D*H) | 290*200*350mm |
| Weight | 23Kg Approx |
| Cycle life | >2500 |
| Wire/Connector | TBD |

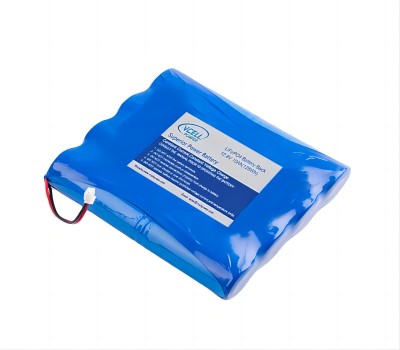

12V 10AH Deep Cycle LiFePO4 Battery Pack, 2500+ Cycles
| Battery Brand | VCELL/OEM |
| Battery Type | Lithium Iron Phosphate Battery |
| Model | VP-LF12-10 |
| Nominal Voltage | 12.8V |
| Nominal Capacity | 10Ah |
| Charge Cut-Off Voltage | 14.6V |
| Discharge Cut-Off Voltage | 10.0V |
| Charge Current | 2A |
| Standard Discharge Current | 2A |
| Max continuous discharge current | 30A |
| Peak Discharge Current | 50A(<3S ) |
| Charge Temperature | 0~45℃ |
| Discharge Temperature | -20~60℃ |
| BMS | Overcharge/discharge, over current, short circuit, temperature protection, cell balance |
| Size | 135*35*135mm Max/Custom |
| Weight | 1.1Kg Approx |
| Cycle life | >2500 |
| Wire/Connector | TBD |
12V 12Ah Deep Cycle Lithium Lifepo4 Battery With BMS
| Battery type: | Lifepo4 Battery |
| Battery model: | VP-LF12-12 |
| Nominal voltage: | 12.8V |
| Nominal capacity: | 12.0Ah |
| Charge cut-off voltage: | 14.6V |
| Discharge cut-off voltage: | 10.0V |
| Max charge current: | 12.0A |
| Max continuous discharge current: | 12.0A |
| Peak discharge current: | 30.0A(1-3S) |
| Cycle life: | >2500 Times @100% DOD, 1C Charge/Discharge |
| Weight: | Approx 1.55Kg |
| Dimension: | 151*98*95*101mm |
| BMS: | Over voltage, over current, short circuit, temperature protection, cell balance |

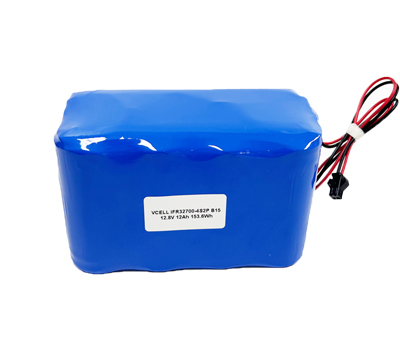

Best 12.8V 12Ah Lithium Iron Phosphate Battery,Built-In BMS
| Battery Brand | VCELL/OEM |
| Battery Type | Lithium Iron Phosphate Battery |
| Model | VP-LF12-12 |
| Nominal Voltage | 12.8V |
| Nominal Capacity | 12Ah |
| Charge Cut-Off Voltage | 14.6V |
| Discharge Cut-Off Voltage | 10.0V |
| Charge current | 5A |
| Max continuous discharge current | 30A |
| Peak discharge current | 40A(<3S ) |
| Charge temperature | 0~45℃ |
| Discharge temperature | -20~65℃ |
| BMS | Overcharge/discharge, over current, short circuit, temperature protection, cell balance |
| Size | 135*70*75mm Max/Custom |
| Weight | 1.1Kg Approx |
| Cycle life | >2500 |
| Wire/Connector | TBD |
IFR26650 12V 12.8Ah LiFePo4 Battery For Solar System
| Battery Brand | VCELL/OEM |
| Battery Type | Lithium Iron Phosphate Battery |
| Model | VP-LF12-12.8 |
| Nominal Voltage | 12.8V |
| Nominal Capacity | 12.8Ah |
| Charge Cut-Off Voltage | 14.6V |
| Discharge Cut-Off Voltage | 10.0V |
| Charge Current | 2A |
| Discharge Current | 5A |
| Peak Discharge Current | 10A(<3S ) |
| Charge Temperature | 0~45℃ |
| Discharge Temperature | -20~60℃ |
| BMS | Overcharge/discharge, over current, short circuit, temperature protection, cell balance |
| Size | 112*112*70mm Max/Custom |
| Weight | 1.4Kg Approx |
| Cycle life | >2500 |
| Wire/Connector | TBD |

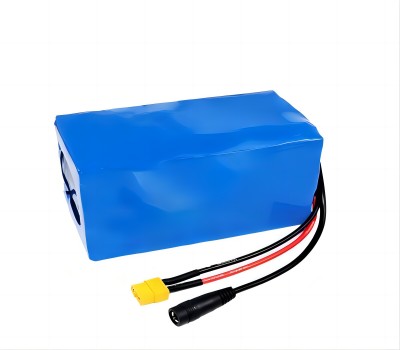

Deep Cycle 12V 14AH IFR32800 4S2P LiFePo4 Battery Pack
| Battery Brand | VCELL/OEM |
| Battery Type | Lithium Iron Phosphate Battery |
| Model | IFR32800-4S2P |
| Nominal Voltage | 12.8V |
| Nominal Capacity | 14Ah |
| Charge Cut-Off Voltage | 14.6V |
| Discharge Cut-Off Voltage | 10.0V |
| Max continuous discharge current | 40A |
| Peak discharge current | 100A(<3S ) |
| Charge temperature | 0~45℃ |
| Discharge temperature | -20~65℃ |
| BMS | Over charge/discharge, over current, short circuit, temperature protection, cell balance |
| Size | 135*70*80mm Max |
| Weight | 1.4kg Approx |
| Cycle life | >2500 |
| Wire/Connector | TBD |

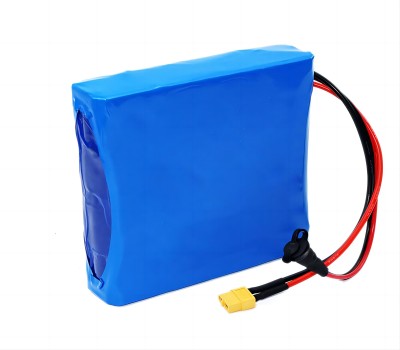

LiFePo4 12.8V 15Ah Battery Pack For Solar LED Street Light
| Battery Brand | VCELL/OEM |
| Battery Type | Lithium Iron Phosphate Battery |
| Model | VP-LF12-15 |
| Nominal Voltage | 12.8V |
| Nominal Capacity | 15Ah |
| Combination | 4S1P |
| Charge Cut-Off Voltage | 14.6V |
| Discharge Cut-Off Voltage | 10.0V |
| Charge Current | 2A |
| Max Continuous Discharge Current | 30A |
| Peak Discharge Current | 80A(<3S ) |
| BMS | 30A |
| Charge Temperature | 0~45℃ |
| Discharge Temperature | -20~60℃ |
| Battery Protection | Overcharge/discharge, over current, short circuit, temperature protection, cell balance |
| Size | 140*37*145mm Max/Custom |
| Weight | 1.25Kg Approx |
| Cycle life | >2500 |
| Wire/Connector | TBD |
12V 18Ah LiFePo4 Battery For Solar Light
| Battery type: | LiFePo4 Battery |
| Battery model: | VP-LF12-18 |
| Nominal voltage: | 12.8V |
| Nominal capacity: | 18.0Ah |
| Charge cut-off voltage: | 14.6V |
| Discharge cut-off voltage: | 10.0V |
| Max continuous discharge current: | 18.0A |
| Cycle life: | >2500 Times @100% DOD, 1C Charge/Discharge |
| Weight: | Approx 2.75Kg |
| Dimension: | 181*77*168mm |
| BMS: | Over voltage, over current, short circuit, temperature protection, cell balance |
| Case Material | ABS |

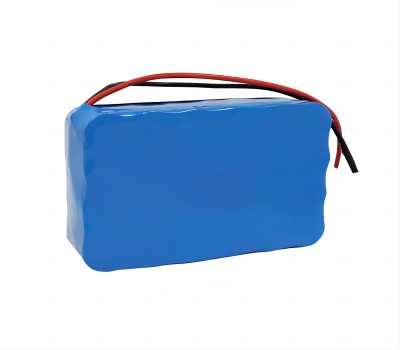

VCELL Customizable LiFePo4 12V 18Ah Deep Cycle Battery
| Battery Brand | VCELL/OEM |
| Battery Type | Lithium Iron Phosphate Battery |
| Model | VP-LF12-18 |
| Nominal Voltage | 12.8V |
| Nominal Capacity | 18Ah |
| Charge Cut-Off Voltage | 14.6V |
| Discharge Cut-Off Voltage | 10.0V |
| Max charge current | 5A |
| Max continuous discharge current | 10A |
| Peak discharge current | 20A(<3S ) |
| Charge temperature | 0~45℃ |
| Discharge temperature | -20~65℃ |
| BMS | Over charge/discharge, over current, short circuit, temperature protection, cell balance |
| Size(D*H) | 165*120*70mm Max |
| Weight | 2.1kg Approx |
| Cycle life | >2500 |
| Wire/Connector | TBD |
LiFePo4 IFR32650 12V 20Ah Battery Pack For Solar LED Street Light
| Battery Brand | VCELL/OEM |
| Battery Type | Lithium Iron Phosphate Battery |
| Model | VP-LF12-20 |
| Nominal Voltage | 12.8V |
| Nominal Capacity | 20.0Ah |
| Total Energy | 240Wh |
| Charge Cut-Off Voltage | 14.6V |
| Discharge Cut-Off Voltage | 10.0V |
| Charge Current | 5A |
| Standard Discharge Current | 5A |
| Max Continuous Discharge Current | 20A |
| Peak Discharge Current | 50A(<3S ) |
| Charge Temperature | 0~45℃ |
| Discharge Temperature | -20~60℃ |
| BMS | Overcharge/discharge, over current, short circuit, temperature protection, cell balance |
| Size | 35*138*265mm Max/Custom |
| Weight | 3Kg Approx |
| Cycle life | >2500 |
| Wire/Connector | TBD |
12.8V 20Ah Lifepo4 Battery Pack For Solar Light
| Battery type: | Lifepo4 Battery |
| Battery model: | VP-LF12-20 |
| Nominal voltage: | 12.8V |
| Nominal capacity: | 20.0Ah |
| Charge cut-off voltage: | 14.6V |
| Discharge cut-off voltage: | 10.0V |
| Max charge current: | 20.0A |
| Max continuous discharge current: | 20.0A |
| Peak discharge current: | 40.0A |
| Cycle life: | >2500 @100% DOD, |
| Weight: | Approx 2.9Kg |
| Dimension: | 181*77*167mm |
| BMS: | Over voltage, over current, short circuit, temperature protection, cell balance |

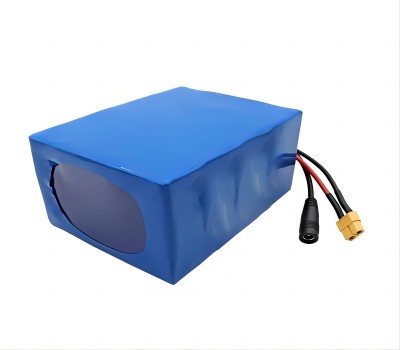

12V 21Ah 4S3P 32800 Rechargeable LiFePo4 Battery Pack
| Battery Brand | VCELL/OEM |
| Battery Type | Lithium Iron Phosphate Battery |
| Model | IFR32800-4S3P |
| Nominal Voltage | 12.8V |
| Nominal Capacity | 21Ah |
| Charge Cut-Off Voltage | 14.6V |
| Discharge Cut-Off Voltage | 10.0V |
| Max continuous discharge current | 40A |
| Peak discharge current | 100A(<3S ) |
| Charge temperature | 0~45℃ |
| Discharge temperature | -20~65℃ |
| BMS | Over charge/discharge, over current, short circuit, temperature protection, cell balance |
| Size | 140*110*72mm Max/Custom |
| Weight | 1.9kg Approx |
| Cycle life | >2500 |
| Wire/Connector | TBD |
12V 24Ah LiFePo4 Battery Pack With 20A BMS For Uninterrupted Power Supply 12V
| Battery Brand | VCELL/OEM |
| Battery Type | Lithium Iron Phosphate Battery |
| Model | VP-LF12-24 |
| Nominal Voltage | 12.8V |
| Nominal Capacity | 24Ah |
| Charge Cut-Off Voltage | 14.6V |
| Discharge Cut-Off Voltage | 10.0V |
| Compitable Rated Motor Power | ≤250W |
| BMS | 20A |
| Max continuous discharge current | 20A |
| Peak discharge current | 45A(<3S ) |
| Max.continuous output power | 256W |
| Max.charging current | 5A |
| Charge temperature | 0~45℃ |
| Discharge temperature | -20~65℃ |
| Size(D*H) | 145*140*72mm Max |
| Weight | 2.7Kg Approx |
| Cycle life | >2500 |
| Wire/Connector | TBD |
12V 24Ah Lifepo4 Battery For RV Boat Solar Home
| Battery type: | Lifepo4 Battery |
| Battery model: | VP-LF12-24 |
| Nominal voltage: | 12.8V |
| Nominal capacity: | 24.0Ah |
| Charge cut-off voltage: | 14.6V |
| Discharge cut-off voltage: | 10.0V |
| Max charge current: | 24.0A |
| Max continuous discharge current: | 24.0A |
| Peak discharge current: | 50.0A(1-3S) |
| Cycle life: | >2500 Times @100% DOD, 1C Charge/Discharge |
| Weight: | Approx 2.9Kg |
| Dimension: | 181*77*167mm |
| BMS: | Over voltage, over current, short circuit, temperature protection, cell balance |
12V 28Ah Rechargeable Lithium Iron Phosphate Battery Pack
| Battery Brand | VCELL/OEM |
| Battery Type | Lithium Iron Phosphate Battery |
| Model | VP-LF12-28 |
| Nominal Voltage | 12.8V |
| Nominal Capacity | 28.0Ah |
| Charge Cut-Off Voltage | 14.6V |
| Discharge Cut-Off Voltage | 10.0V |
| Charge Current | 4A |
| Max Continuous Discharge Current | 40A |
| Peak Discharge Current | 100A(<3S ) |
| Charge Temperature | 0~45℃ |
| Discharge Temperature | -20~60℃ |
| BMS | Overcharge/discharge, over current, short circuit, temperature protection, cell balance |
| Size | 140*140*80mm Max/Custom |
| Weight | 2.7Kg Approx |
| Cycle life | >2500 |
| Wire/Connector | TBD |
12V 30Ah Rechargeable LiFePo4 Battery Pack For Solar Street Light
| Battery Brand | VCELL/OEM |
| Battery Type | Lithium Iron Phosphate Battery |
| Model | VP-LF12-30 |
| Nominal Voltage | 12.8V |
| Nominal Capacity | 30.0Ah |
| Charge Cut-Off Voltage | 14.6V |
| Discharge Cut-Off Voltage | 10.0V |
| Max Continuous Discharge Current | 30A |
| Peak Discharge Current | 80A(<3S ) |
| Charge Temperature | 0~45℃ |
| Discharge Temperature | -20~60℃ |
| BMS | Overcharge/discharge, over current, short circuit, temperature protection, cell balance |
| Size | 135*165*74mm Max/Custom |
| Weight | 2.7Kg Approx |
| Cycle life | >2500 |
| Wire/Connector | TBD |
12V 30Ah Deep Cycle Lifepo4 Battery With BMS
| Battery type: | Lifepo4 Battery |
| Battery model: | VP-LF12-30 |
| Nominal voltage: | 12.8V |
| Nominal capacity: | 30.0Ah |
| Charge cut-off voltage: | 14.6V |
| Discharge cut-off voltage: | 10.0V |
| Max charge current: | 30.0A |
| Max continuous discharge current: | 30.0A |
| Peak discharge current: | 60.0A(1-3S) |
| Cycle life: | >2500 Times @100% DOD, 1C Charge/Discharge |
| Weight: | Approx 3.9Kg |
| Dimension: | 165*175*125mm |
| BMS: | Over voltage, over current, short circuit, temperature protection, cell balance |
12.8V 34Ah 435Wh LiFePO4 Battery For Solar Street Light,2500+ Cycles
| Battery Brand | VCELL/OEM |
| Battery Type | Lithium Iron Phosphate Battery |
| Model | VP-LF12-34 |
| Nominal Voltage | 12.8V |
| Nominal Capacity | 34Ah |
| Charge Cut-Off Voltage | 14.6V |
| Discharge Cut-Off Voltage | 10.0V |
| Charging Current | 6.8A |
| Discharging Current | 10A |
| Peak Discharge Current | 25A(<3S ) |
| Charge Temperature | 0~45℃ |
| Discharge Temperature | -20~65℃ |
| BMS | Overcharge/discharge, over current, short circuit, temperature protection, cell balance |
| Size | 273*279*30mm Max/Customized |
| Weight | 3.6Kg Approx |
| Cycle life | >2500 |
| Wire/Connector | TBD |
12V 35Ah Deep Cycle LiFePo4 Battery For Solar System
| Battery type: | LiFePo4 Battery |
| Battery model: | VP-LF12-35 |
| Nominal voltage: | 12.8V |
| Nominal capacity: | 35.0Ah |
| Charge cut-off voltage: | 14.6V |
| Discharge cut-off voltage: | 10.0V |
| Max charge current: | 30.0A |
| Max continuous discharge current: | 35.0A |
| Peak discharge current: | 70.0A(1-3S) |
| Cycle life: | >2500 Times @100% DOD, 1C Charge/Discharge |
| Weight: | Approx 10.0Kg |
| BMS: | Over voltage, over current, short circuit, temperature protection, cell balance |
12V 40Ah Lifepo4 Battery For Solar CCTV Camera
| Battery type: | Lifepo4 Battery |
| Battery model: | VP-LF12-40 |
| Nominal voltage: | 12.8V |
| Nominal capacity: | 40.0Ah |
| Charge cut-off voltage: | 14.6V |
| Discharge cut-off voltage: | 10.0V |
| Max charge current: | 40.0A |
| Max continuous discharge current: | 40.0A |
| Peak discharge current: | 80.0A |
| Charge temperature: | 0~45℃ |
| Discharge temperature | -20~60℃ |
| Cycle life: | >2500 @100% DOD,1C charge/discharge |
| Weight: | Approx 5.2Kg |
| Dimension: | 197*165*170mm |
| BMS: | Over voltage, over current, short circuit, temperature protection, cell balance |
| Terminal | M5 |
Deep Cycle 12V 42Ah 537Wh Rechargeable LiFePo4 Solar Battery
| Battery Brand | VCELL/OEM |
| Battery Type | Lithium Iron Phosphate Battery |
| Model | VP-LF12-42 |
| Nominal Voltage | 12.8V |
| Nominal Capacity | 42.0Ah |
| Charge Cut-Off Voltage | 14.6V |
| Discharge Cut-Off Voltage | 10.0V |
| Max charge current | 1C |
| Max continuous discharge current | 3C |
| Peak discharge current | 5C(<3S ) |
| Charge temperature | 0~45℃ |
| Discharge temperature | -20~60℃ |
| BMS | Overcharge/discharge, over current, short circuit, temperature protection, cell balance |
| Size | 240*75*145mm Max/Custom |
| Weight | 4.5Kg Approx |
| Cycle life | >2500 |
| Wire/Connector | TBD |
LiFePO4 12V 50Ah Deep Cycle Battery, 4000+ Cycles
| Battery Type | Lithium Iron Phosphate Battery |
| Battery Brand | VCELL/OEM |
| Model | VP-LF12-50 |
| Nominal Voltage | 12.8V |
| Nominal Capacity | 50.0Ah |
| Charge Cut-Off Voltage | 14.6±0.2V |
| Discharge Cut-Off Voltage | 10.0±0.2V |
| Max charge current | 50.0A |
| Max continuous discharge current | 50.0A |
| Peak discharge current | 100.0A(1-3S) |
| Charge temperature | 0~45℃ |
| Discharge temperature | -20~65℃ |
| Storage Temperature | -20~50℃ |
| Design Life | ≥10 Years |
| Size(L*W*H) | 229*138*212*217mm |
| Weight | 5.7KgApprox |
| Cycle life | ≥4000 @100% DOD 1C Charge/Discharge |
| Terminal | M6 |
| IP Level | IP55 |
Solar Street Light LiFePO4 Battery Pack 12.8V 45Ah, 2500+ Cycles
| Battery Brand | VCELL/OEM |
| Battery Type | Lithium Iron Phosphate Battery |
| Model | IFR32650-4S9P |
| Nominal Voltage | 12.8V |
| Nominal Capacity | 54Ah |
| Charge Cut-Off Voltage | 14.6V |
| Discharge Cut-Off Voltage | 10.0V |
| Standard charge current | 9A |
| Standard discharge current | 9A |
| Max discharge current | 45A |
| Peak discharge current | 65A(<3S ) |
| Charge temperature | 0~45℃ |
| Discharge temperature | -20~65℃ |
| Size(D*H) | Customized |
| Weight | 4.9Kg Approx |
| Cycle life | >2500 |
| Wire/Connector | TBD |
12V 54Ah Lifepo4 Battery Pack With BMS
| Battery type: | Lifepo4 Battery |
| Battery model: | VP-LF12-54 |
| Nominal voltage: | 12.8V |
| Nominal capacity: | 54.0Ah |
| Charge cut-off voltage: | 14.6V |
| Discharge cut-off voltage: | 10.0V |
| Max charge current: | 50.0A |
| Max continuous discharge current: | 50.0A |
| Peak discharge current: | 100.0A |
| Cycle life: | >2500 @100% DOD, |
| Weight: | Approx 6.7Kg |
| Dimension: | 229*138*217mm |
| BMS: | Over voltage, over current, short circuit, temperature protection, cell balance |
12V 70Ah LiFePo4 Battery With BMS
| Battery type: | LiFePo4 Battery |
| Battery model: | VP-LF12-70 |
| Nominal voltage: | 12.8V |
| Nominal capacity: | 70.0Ah |
| Charge cut-off voltage: | 14.6V |
| Discharge cut-off voltage: | 10.0V |
| Max charge current: | 70.0A |
| Max continuous discharge current: | 70.0A |
| Peak discharge current: | 140.0A(1-3S) |
| Cycle life: | >2500 Times @100% DOD, 1C Charge/Discharge |
| Weight: | Approx 8.5Kg |
| Dimension: | 260*168*211mm |
| BMS: | Over voltage, over current, short circuit, temperature protection, cell balance |
| Water Dust Resistance: | IP54 |
| Case Material | ABS |
12V 84Ah Lithium Lifepo4 Battery For Solar Golf Cart RV
| Battery type: | Lifepo4 Battery |
| Battery model: | VP-LF12-84 |
| Nominal voltage: | 12.8V |
| Nominal capacity: | 84.0Ah |
| Charge cut-off voltage: | 14.6V |
| Discharge cut-off voltage: | 10.0V |
| Max charge current: | 84.0A |
| Max continuous discharge current: | 84.0A |
| Peak discharge current: | 200.0A(1-3S) |
| Cycle life: | >2500 Times @100% DOD, 1C Charge/Discharge |
| Weight: | Approx 10.2Kg |
| Dimension: | 260*169*213*218mm |
| BMS: | Over voltage, over current, short circuit, temperature protection, cell balance |
12V 100Ah Lifepo4 Battery, Smart BMS With Bluetooth&LCD Display
| Battery type: | Lifepo4 Battery |
| Battery model: | VP-LF12-100 |
| Nominal voltage: | 12.8V |
| Nominal capacity: | 100.0Ah |
| Charge cut-off voltage: | 14.6V |
| Discharge cut-off voltage: | 10.0V |
| Max charge current: | 100.0A |
| Max continuous discharge current: | 100.0A |
| Peak discharge current: | 200.0A |
| Cycle life: | >2500 @100% DOD, 1C charge/discharge |
| Weight: | Approx 11.0Kg |
| Dimension: | 328*220*172mm |
| BMS: | Over voltage, over current, short circuit, temperature protection, cell balance |
12V 115Ah Deep Cycle Lifepo4 Battery For Rv, Solar, Marine
| Battery type: | LiFePo4 Battery |
| Battery model: | VP-LF12-115 |
| Nominal voltage: | 12.8V |
| Nominal capacity: | 115.0Ah |
| Charge cut-off voltage: | 14.6V |
| Discharge cut-off voltage: | 10.0V |
| Standard charge current: | 20.0A |
| Max continuous discharge current: | 100.0A |
| Peak discharge current: | 300.0A(1-3S) |
| Cycle life: | >2500 Times @100% DOD, 1C Charge/Discharge |
| Weight: | Approx 15Kg |
| BMS: | Over voltage, over current, short circuit, temperature protection, cell balance |
12V 150Ah Lifepo4 Battery Pack, ABS Case
| Battery type: | Lifepo4 Battery |
| Battery model: | VP-LF12-150 |
| Nominal voltage: | 12.8V |
| Nominal capacity: | 150.0Ah |
| Charge cut-off voltage: | 14.6V |
| Discharge cut-off voltage: | 10.0V |
| Max charge current: | 150.0A |
| Max continuous discharge current: | 150.0A |
| Peak discharge current: | 300.0A |
| Charge temperature: | 0~45℃ |
| Discharge temperature | -20~60℃ |
| Cycle life: | >2500 @100% DOD,1C charge/discharge |
| Weight: | Approx 19.2Kg |
| Dimension: | 328*172*220mm |
| BMS: | Over voltage, over current, short circuit, temperature protection, cell balance. Bluetooth&LCD(Option) |
| Terminal | M8 |
12V 200Ah 2.56KWh Lithium LiFePo4 Battery For RV, Solar, Marine, Off-Grid System
| Battery type: | Lifepo4 Battery |
| Battery model: | VP-LF12-200 |
| Nominal voltage: | 12.8V |
| Nominal capacity: | 200.0Ah |
| Charge cut-off voltage: | 14.6V |
| Discharge cut-off voltage: | 10.0V |
| Max charge current: | 200.0A |
| Max continuous discharge current: | 200.0A |
| Peak discharge current: | 400.0A(1-3S) |
| Charge temperature: | 0~45℃ |
| Discharge temperature: | -20~65℃ |
| Storage Temperature | -20℃~50℃ |
| Cycle life: | >2500 Times @100% DOD, 1C Charge/Discharge |
| Weight: | Approx 27.5Kg |
| Dimension: | 522*238*218*220mm |
| BMS: | Over voltage, over current, short circuit, temperature protection, cell balance |
| Terminal: | M8 |
| IP Level | IP55 |
12V 230Ah Deep Cycle Lithium LiFePo4 Battery For Rv, Solar, Marine
| Battery type: | LiFePo4 Battery |
| Battery model: | VP-LF12-230 |
| Nominal voltage: | 12.8V |
| Nominal capacity: | 230.0Ah |
| Charge cut-off voltage: | 14.6V |
| Discharge cut-off voltage: | 10.0V |
| Max charge current: | 100.0A |
| Max continuous discharge current: | 100.0A |
| Peak discharge current: | 200.0A(1-3S) |
| Cycle life: | >2500 Times @100% DOD, 1C Charge/Discharge |
| Weight: | Approx 28.0Kg |
| Charge Temperature | 0~45℃ |
| Discharge Temperature | -20~+60℃ |
| BMS: | Over voltage, over current, short circuit, temperature protection, cell balance |
12V 300Ah 3.84KWh Deep Cycle LiFePo4 Battery For RV, Solar, Marine, Off-Grid System
| Battery type: | Lifepo4 Battery |
| Battery model: | VP-LF12-300 |
| Nominal voltage: | 12.8V |
| Nominal capacity: | 300Ah |
| Charge cut-off voltage: | 14.6V |
| Discharge cut-off voltage: | 10.0V |
| Standard charge current: | 60.0A |
| Max charge current: | 300.0A |
| Standard discharge current: | 60.0A |
| Max continuous discharge current: | 300.0A |
| Peak discharge current: | 600.0A(1-3S) |
| Charge temperature: | 0~45℃ |
| Discharge temperature: | -20~65℃ |
| Cycle life: | >2500 Times @100% DOD, 1C Charge/Discharge |
| Weight: | Approx 45.5Kg |
| Dimension: | 520*270*220mm (L*W*H) |
| BMS: | Over voltage, over current, short circuit, temperature protection, cell balance |
| Terminal: | M8 |
| IP Level | IP55 |
24V 6Ah Deep Cycle Rechargeable LiFePO4 Battery
| Battery Type | Lithium Iron Phosphate Battery |
| Battery Brand | VCELL/OEM |
| Model | VP-LF24-6 |
| Nominal Voltage | 25.6V |
| Nominal Capacity | 6.0Ah |
| Charge Cut-Off Voltage | 29.2±0.2V |
| Discharge Cut-Off Voltage | 20.0±0.2V |
| Max charge current | 6.0A |
| Max continuous discharge current | 10.0A |
| Peak discharge current | 20.0A(<3S ) |
| Charge temperature | 0~45℃ |
| Discharge temperature | -20~65℃ |
| Storage Temperature | -20~50℃ |
| Design Life | ≥10 Years |
| Size(L*W*H) | 151*98*95*101mm |
| Weight | 1.55KgApprox |
| Cycle life | >2500 @100% DOD 1C Charge/Discharge |
| Terminal | F2 |
| IP Level | IP55 |
24V 50Ah Lifepo4 Battery For RV, Marine, Golf Carts
| Battery type: | Lifepo4 Battery |
| Battery model: | VP-LF24-50 |
| Nominal voltage: | 25.6V |
| Nominal capacity: | 50.0Ah |
| Charge cut-off voltage: | 29.2V |
| Discharge cut-off voltage: | 16.0V |
| Max charge current: | 50.0A |
| Max continuous discharge current: | 50.0A |
| Peak discharge current: | 100.0A(1-3S) |
| Charge temperature: | 0~45℃ |
| Discharge temperature | -20~60℃ |
| Cycle life: | >2500 cycles @100% DOD,1C charge/discharge |
| Weight: | Approx 10Kg |
| Dimension: | 260mmx168mmx212mm |
| BMS: | Over voltage, over current, short circuit, temperature protection, cell balance |
| IP Level | IP55 |
24V 75Ah Deep Cycle Rechargeable Lifepo4 Battery, 4000+ Cycles
| Battery Type | Lithium Iron Phosphate Battery |
| Battery Brand | VCELL/OEM |
| Model | VP-LF24-75 |
| Nominal Voltage | 25.6V |
| Nominal Capacity | 75.0Ah |
| Charge Cut-Off Voltage | 29.2±0.2V |
| Discharge Cut-Off Voltage | 20.0±0.2V |
| Max charge current | 75.0A |
| Max continuous discharge current | 75.0A |
| Peak discharge current | 150.0A(1-3S) |
| Charge temperature | 0~45℃ |
| Discharge temperature | -20~65℃ |
| Storage Temperature | -20~50℃ |
| Design Life | ≥10 Years |
| Size(L*W*H) | 522*238*218*220mm |
| Weight | 15.5Kg Approx |
| Cycle life | ≥4000 @100% DOD 1C Charge/Discharge |
| Terminal | M8 |
| IP Level | IP55 |
24V 120AH Lifepo4 RV Van Solar Battery
| Battery type: | Lifepo4 Battery |
| Battery model: | VP-LF24-120 |
| Nominal voltage: | 25.6V |
| Nominal capacity: | 120.0Ah |
| Charge cut-off voltage: | 29.2V |
| Discharge cut-off voltage: | 16.0V |
| Max charge current: | 50.0A(0.5C) |
| Max discharge current: | 100.0A |
| Cycle life: | >2500 Times @100% DOD, 1C Charge/Discharge |
| Weight: | Approx 30.0Kg |
| Dimension: | 425mm*305mm*232mm |
| BMS: | Over voltage, over current, short circuit, temperature protection, cell balance |
24V 200AH 5KWH LiFePO4 Battery For RV Van Solar Syetem
| Battery type: | LiFePo4 Battery |
| Battery model: | VP-LF24-200 |
| Nominal voltage: | 25.6V |
| Nominal capacity: | 200.0Ah |
| Charge cut-off voltage: | 29.2V |
| Discharge cut-off voltage: | 16.0V |
| Max charge current: | 200.0A |
| Max discharge current: | 200.0A |
| Cycle life: | >2500 Times @100% DOD,1C Charge/Discharge |
| Weight: | Approx 88.0Kg |
| Dimension: | 620*440*215mm |
| BMS: | Over voltage, over current, short circuit, temperature protection, cell balance |
25.6V 200Ah Lithium Lifepo4 Battery Pack For RV Solar System
| Battery type: | Lifepo4 Battery |
| Battery model: | VP-LF24-200 |
| Nominal voltage: | 25.6V |
| Nominal capacity: | 200.0Ah |
| Charge cut-off voltage: | 29.2V |
| Discharge cut-off voltage: | 20.0V |
| Max charge current: | 100.0A |
| Max continuous discharge current: | 150.0A |
| Peak discharge current: | 300.0A(1-3S) |
| Charge temperature: | 0~45℃ |
| Discharge temperature | -20~65℃ |
| Storage Temperature | -20~50℃ |
| Cycle life: | >2500 cycles @100% DOD,1C charge/discharge |
| Weight: | Approx 59.5Kg |
| Dimension: | 380mmx530mmx225mm |
| BMS: | Over voltage, over current, short circuit, temperature protection, cell balance |
48V 80AH Lifepo4 Lithium Battery Pack For Golf Cart RV
| Battery type: | Lifepo4 Battery |
| Battery model: | VP-LF48-80U |
| Nominal voltage: | 48V |
| Nominal capacity: | 80.0Ah |
| Charge cut-off voltage: | 58.6V |
| Discharge cut-off voltage: | 38.4V |
| Max charge current: | 80.0A |
| Max continuous discharge current: | 100.0A |
| Peak discharge current: | 200.0A |
| Cycle life: | >2000 cycles @100% DOD,1C Charge/Discharge |
| Weight: | Approx 40Kg |
| Dimension: | 520*310*170mm L*W*H |
| BMS: | Over voltage, over current, short circuit, temperature protection, cell balance |
| IP Level | IP56 |
VCELL 48V 300Ah 15KWH LiFePo4 Battery For Golf Cart
| Battery Brand | VCELL/OEM |
| Battery Type | Lithium Iron Phosphate Battery |
| Model | LF48-300 |
| Nominal Voltage | 51.2V |
| Nominal Capacity | 300Ah |
| Place of Origin: | China |
| MOQ | 10PCS |
| Delivery Time: | Within 20 days |
| Packaging Details: | 1pcs per carton |
| Payment Terms: | L/C, T/T, Paypal |
| Supply Ability: | 100 pcs per day |
48V 10AH Lifepo4 Battery Pack For UPS Systems
| Battery type: | Lifepo4 Battery |
| Battery model: | VP-LF48-10U |
| Nominal voltage: | 51.2V |
| Nominal capacity: | 10.0Ah |
| Charge cut-off voltage: | 57.8V |
| Discharge cut-off voltage: | 45.0V |
| Max charge current: | 5.0A |
| Max continuous discharge current: | 10.0A |
| Peak discharge current: | 12.0A(1-3S) |
| Cycle life: | >2500 cycles @100% DOD,1C Charge/Discharge |
| Weight: | Approx 9.5Kg |
| Dimension: | 483*373*44mm |
| BMS: | Over voltage, over current, short circuit, temperature protection, cell balance |
| Communication: | RS485/RS232 |
48V 30Ah Lifepo4 Battery Pack For UPS
| Battery type: | Lifepo4 Battery |
| Battery model: | VP-LF48-30U |
| Nominal voltage: | 51.2V |
| Nominal capacity: | 30.0Ah |
| Charge cut-off voltage: | 57.8V |
| Discharge cut-off voltage: | 45.0V |
| Max charge current: | 30.0A |
| Max continuous discharge current: | 30.0A |
| Peak discharge current: | 50.0A(1-3S) |
| Cycle life: | >2500 cycles @100% DOD,1C Charge/Discharge |
| Weight: | Approx 17.2Kg |
| Dimension: | 483*280*88mm |
| BMS: | Over voltage, over current, short circuit, temperature protection, cell balance |
| Communication: | RS485/RS232 |
48V 50Ah Lifepo4 Battery Pack For Telecom UPS, Energy Storage System
| Battery type: | Lifepo4 Battery |
| Battery model: | VP-LF48-50U |
| Nominal voltage: | 51.2V |
| Nominal capacity: | 50.0Ah |
| Charge cut-off voltage: | 57.8V |
| Discharge cut-off voltage: | 45.0V |
| Max charge current: | 50.0A |
| Max continuous discharge current: | 50.0A |
| Peak discharge current: | 55.0A(1-3S) |
| Cycle life: | >2500 cycles @100% DOD,1C Charge/Discharge |
| Weight: | Approx 31.5Kg |
| Dimension: | 483*400*133mm |
| BMS: | Over voltage, over current, short circuit, temperature protection, cell balance |
| Communication: | RS485/RS232 |
Smart 48V 100Ah LiFePo4 Battery Module, Mixed Use With Acid Battery
| Item | Specification |
| Battery type: | Lifepo4 Battery |
| Battery model: | VP-LF48-100US |
| Nominal Voltage: | 48V |
| Rated Capacity (5HR): | 100 Ah |
| Charging Limited Voltage: | 54V |
| Discharge Ending Voltage: | 40.5V |
| Max. Charging Current: | 100A |
| Max. Continue Discharging Current: | 100 A |
| Weight: | Approx. 42 Kg |
| Display: | Without a display screen |
| Parallel Connection: | Parallel connection is optional (up to 16P). When paralleling, the max. charging current is 20A |
| Dimensions (W *D*H) mm (inches): | 442 (19.40″) * 450 (17.72″) * 132 (5.20″) |
| Containing Cell: | 3.2V 50Ah |
| Design life: | More than 15 years |
| Cycle Life: | More than 3500 cycles at 100% DOD |
| IP Class: | IP30 |
| Outer Package Material: | Black aluminum and sheet metal case (battery rack or cabinet is optional) |
| Operating Temperature: | Charging: 0 to +45C; Discharging: -20 to +60C; Storage: -20 to +60C |
48V 150AH LiFePo4 Battery For UPS
| Battery type: | Lifepo4 Battery |
| Battery model: | VP-LF48-150U |
| Nominal voltage: | 48V |
| Nominal capacity: | 150.0Ah |
| Charge cut-off voltage: | 54.75V |
| Discharge cut-off voltage: | 37.5V |
| Charge current: | 75.0A |
| Discharge current: | 100.0A |
| Cycle life: | >2500 cycles @100% DOD,1C Charge/Discharge |
| Weight: | Approx 60.0Kg |
| Dimension: | 480*550*177mm |
| BMS: | Over voltage, over current, short circuit, temperature protection, cell balance |
| Communication: | RS485/RS232 |
48V 150Ah 7.2Kwh Powerwall Lifepo4 Battery
| Battery type: | Lifepo4 Battery |
| Battery model: | VP-LF48-150W |
| Nominal voltage: | 48V |
| Nominal capacity: | 150.0Ah |
| Charge cut-off voltage: | 54.75V |
| Discharge cut-off voltage: | 37.5V |
| Max charge current: | 100.0A |
| Max discharge current: | 100.0A |
| Cycle life: | >2500 @100% DOD, |
| Weight: | Approx 74Kg |
| Dimension: | 450*760*210mm |
| BMS: | Over voltage, over current, short circuit, temperature protection, cell balance |
| Communication: | CAN/RS485/RS232+LCD |
48V 200Ah 10KWH Power Wall Energy Storage LiFePo4 Battery
| Battery Brand | VCELL/OEM |
| Battery Type | Lithium Iron Phosphate Battery |
| Model | VP-LF48-200PW |
| Nominal Voltage | 51.2V |
| Nominal Capacity | 200.0Ah |
| Charge Cut-Off Voltage | 57.6±0.2V |
| Discharge Cut-Off Voltage | 44.8±0.2V |
| Max Charge Current | 100.0A |
| Max Continuous Discharge Current | 100.0A |
| Peak Discharge Current | 200.0A(1-3S) |
| Charge Temperature Range | 0~45℃ |
| Discharge Temperature Range | -20~65℃ |
| Storage Temperature Range | -20℃~50℃ |
| Design Life | ≥10 Years |
| Cycle Life | ≥2500 |
| Dimension | 610*520*265mm |
| Weight | 90.0Kg |
| Communication | RS485/RS232/Canbus |
| IP Level | IP30 |
48V 280Ah LiFePO4 Battery Solar Energy Storage System
| Battery Brand | VCELL/OEM |
| Battery Type | Lithium Iron Phosphate Battery |
| Model | VP-LF48-280PW |
| Nominal Voltage | 48V |
| Nominal Capacity | 280.0Ah |
| Charge Cut-Off Voltage | 57.6±0.2V |
| Discharge Cut-Off Voltage | 44.8±0.2V |
| Max Charge Current | 100.0A |
| Discharge Current | 100.0A |
| Max Continuous Discharge Current | 150.0A(1-3S) |
| Charge Temperature Range | 0~45℃ |
| Discharge Temperature Range | -20~65℃ |
| Storage Temperature Range | -20℃~50℃ |
| Design Life | ≥10 Years |
| Cycle Life | ≥2500 |
| Dimension | 895*565*205mm |
| Weight | 115.5 Kg |
| Communication | RS485/RS232/Canbus |
| IP Level | IP30 |
48V 200AH 10Kwh LiFePo4 Battery For UPS
| Battery type: | Lifepo4 Battery |
| Battery model: | VP-LF48-200U |
| Nominal voltage: | 51.2V |
| Nominal capacity: | 200.0Ah |
| Energy | 10240Wh |
| Charge cut-off voltage: | 58.4V |
| Discharge cut-off voltage: | 40.0V |
| Max. Charge current: | 100.0A |
| Max.Discharge current: | 100.0A |
| Cycle life: | >5000 cycles @80% DOD, |
| Weight: | Approx 80.0Kg |
| Dimension: | 445*430*222mm |
| BMS: | Over voltage, over current, short circuit, temperature protection, cell balance |
| Communication: | CAN, RS485, RS232 |
| Charge Temperature | 0℃~+45℃ |
| Discharge Temperature | -10℃~+60℃ |
51.2V 54AH Lithium Lifepo4 Battery Pack For AGV RV EV
| Battery type: | Lifepo4 Battery |
| Battery model: | VP-LF48-54U |
| Nominal voltage: | 51.2V |
| Nominal capacity: | 54.0Ah |
| Charge cut-off voltage: | 58.4V |
| Discharge cut-off voltage: | 32.0V |
| Standard Charging Current | 10.8A |
| Standard Charging Time | 6~7 hours |
| Rapid charge current: | 54.0A |
| Rapid charging time | About 3.5 hours |
| Standard discharge current: | 10.8A |
| Peak discharge current: | 54.0A |
| Cycle life: | >2000 cycles @100% DOD,1C Charge/Discharge |
| Weight: | Approx 27Kg |
| Dimension: | 420*300*170mm |
| BMS: | Over voltage, over current, short circuit, temperature protection, cell balance |

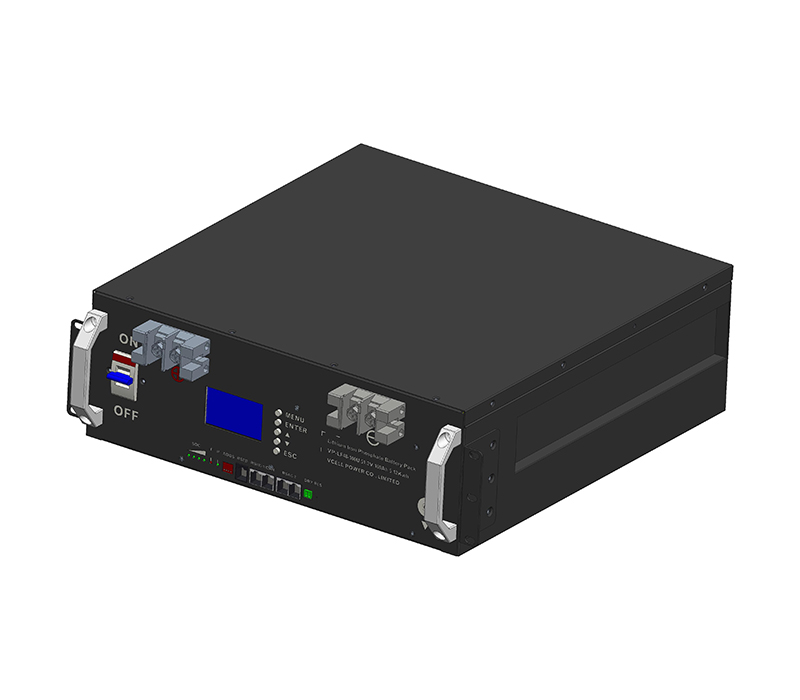

51.2V 100Ah Lifepo4 Battery Module, 19″ 3U Cabinet, For UPS
| Battery type: | Lifepo4 Battery |
| Battery model: | VP-LF48-100U |
| Nominal voltage: | 51.2V |
| Nominal capacity: | 100.0Ah |
| Charge cut-off voltage: | 58.4V |
| Discharge cut-off voltage: | 40.0V |
| Max charge current: | 100.0A |
| Max continuous discharge current: | 100.0A |
| Peak discharge current: | 200.0A |
| Cycle life: | >2500 @100% DOD, |
| Weight: | Approx 45Kg |
| Dimension: | 483*485*155mm |
| BMS: | Over voltage, over current, short circuit, temperature protection, cell balance |
| Communication: | RS485/RS232/Canbus |
51.2V 100Ah 5.12Kwh Powerwall Lifepo4 Battery
| Battery type: | Lifepo4 Battery |
| Battery model: | VP-LF48-100W |
| Nominal voltage: | 51.2V |
| Nominal capacity: | 100.0Ah |
| Charge cut-off voltage: | 58.4V |
| Discharge cut-off voltage: | 40.0V |
| Max charge current: | 100.0A |
| Max continuous discharge current: | 100.0A |
| Peak discharge current: | 200.0A |
| Cycle life: | >2500 @100% DOD, |
| Weight: | Approx 45Kg |
| Dimension: | 610*520*165mm |
| BMS: | Over voltage, over current, short circuit, temperature protection, cell balance |
| Communication: | RS485/RS232/Canbus |
51.2V 100Ah Lifepo4 Battery Module, Box Stack Type
| Battery type: | Lifepo4 Battery |
| Battery model: | VP-LF48-100B |
| Nominal voltage: | 51.2V |
| Nominal capacity: | 100.0Ah |
| Charge cut-off voltage: | 58.4V |
| Discharge cut-off voltage: | 40.0V |
| Max charge current: | 100.0A |
| Max continuous discharge current: | 100.0A |
| Peak discharge current: | 200.0A |
| Cycle life: | >2500 @100% DOD, |
| Weight: | Approx 45Kg |
| Dimension: | 635*400*192mm |
| BMS: | Over voltage, over current, short circuit, temperature protection, cell balance |
| Communication: | RS485/RS232/Canbus |

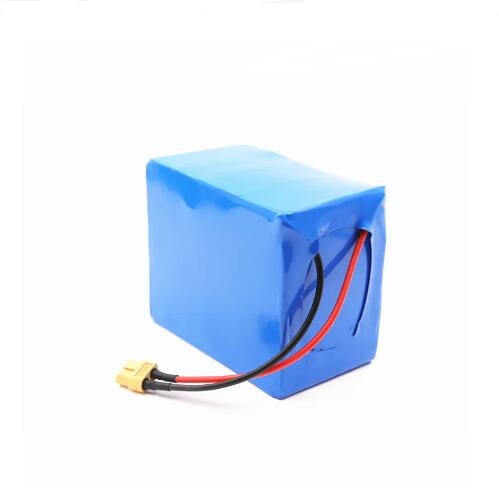

48V 100AH Lithium Lifepo4 Battery Pack For AGV Golf Cart
| Battery type: | LIFEPO4 Battery |
| Battery model: | VP-LF48-100U |
| Nominal voltage: | 48V |
| Nominal capacity: | 100.0Ah |
| Charge cut-off voltage: | 54.75V |
| Discharge cut-off voltage: | 30V |
| Standard Charge Current | 20.0A |
| Maximum charge current: | 100.0A |
| Max continuous discharge current: | 100.0A |
| Maximum pack discharge current: | 200.0A |
| Cycle life: | >2000 Cycles @100% DOD,1C Charge/Discharge |
| Weight: | Approx 70Kg |
| Dimension: | 200mm*365mm*540mm |
| BMS: | Over voltage, over current, short circuit, temperature protection, cell balance |

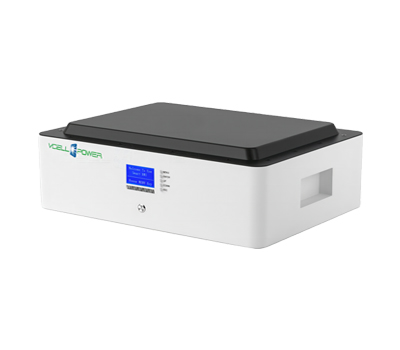

48V 300Ah 15KWh LiFePO4 Battery Pack For Solar System
| Battery type: | Lifepo4 Battery |
| Battery model: | VP-LF48-300W |
| Nominal voltage: | 51.2V |
| Nominal capacity: | 300.0Ah |
| Charge cut-off voltage: | 58.4V |
| Discharge cut-off voltage: | 40.0V |
| Max charge current: | 300.0A |
| Max continuous discharge current: | 300.0A |
| Peak discharge current: | 600.0A |
| Cycle life: | >2500 @100% DOD, |
| Weight: | Approx 130Kg |
| BMS: | Over voltage, over current, short circuit, temperature protection, cell balance |
