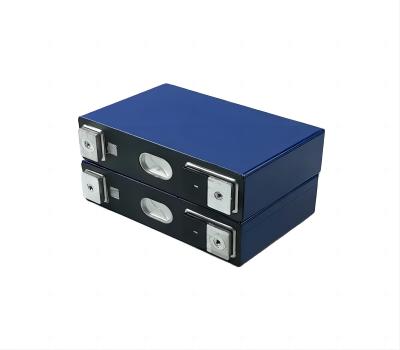

3.7V 50Ah Prismatic NCM Lithium Ion Battery Cell

Battery type: Lithium Ion Cell(NCM)
Model: NCM50
Nominal voltage: 3.7V
Nominal capacity: 50Ah
Charge cut-off voltage: 4.2V
Discharge cut-off voltage: 2.75V
Max charge current: 50A
Max continuous discharge current: 150A
Peak discharge current: 250A
Charge temperature: 0~55℃
Discharge temperature: -20~55℃
Internal resistance: ≤0.8mΩ
Cycle life: >2000 times
Weight: Approx 0.95±0.05kg
Dimension(L*W*H): 148mm*29mm*103mm

Feature:

1.High energy density ,lower self discharge
2. Outstanding cycle life with maximum reliability
3. Possible to form modules that are suitable for various pack structures
4. Wide application :EV,RV,Electric fork lift,back-up power ,solar storage etc.
5. Easily to assemble battery pack,we provide cells connectors and technical support ,or we can customize battery pack according to your requirements.
