Battery Brand | VCELL/OEM |
Battery Type | Lithium Ion Battery(NCM) |
Model | INR18650-16S5P |
Nominal Voltage | 60V |
Nominal Capacity | 15Ah |
Charge Cut-Off Voltage | 67.2V |
Discharge Cut-Off Voltage | 44.8V |
Standard charge current | 3A |
Max charge current | 15A |
Standard discharge current | 3A |
Max continuous discharge current | 22.5A |
Peak discharge current | 45A(<3S ) |
Charge temperature | 0~45℃ |
Discharge temperature | -20~60℃ |
BMS | Over charge/discharge, over current, short circuit, temperature protection, cell balance |
Size(L*W*H) | 300*75*93mm Max |
Weight | 4.1Kg Approx |
Cycle life | >700 |
Wire/Connector | TBD |

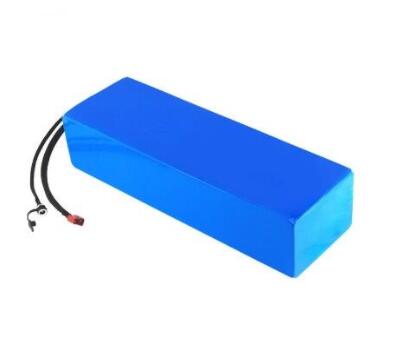

The Vcell 60V 15Ah Li-Ion Battery is a state-of-the-art rechargeable battery pack made with 18650 Li-Ion cylindrical cells packed with PVC shrink wrap. It is perfect for Ebike, electric tricycles, electric scooters, electric vehicles, model aircraft, electric tools, golf carts, sightseeing coaches, electric motorcycles, power wheelchairs, etc
The Vcell battery has a built-in battery management system (BMS) that keeps the battery running at peak performance and protects the cells from over-charge, over-discharge, over-current, and short-circuit
Low self-discharge and long life
Environmentally friendly non-toxic, non-contaminating
