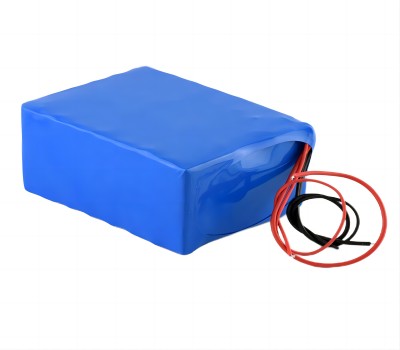

24V 28Ah Electric Bicycle Li-Ion Battery

Battery Brand VCELL/OEM
Battery Type Li-Ion Battery(NCM)
Model 18650-7S8P
Nominal Voltage 24V
Nominal Capacity 28Ah
Charge Cut-Off Voltage 29.4V
Discharge Cut-Off Voltage 19.25V
Standard Charging Current 2A
Max charge current 5A
BMS 20A
Max continuous discharge current 20A
Match Motor Power 250W-350W
Charge temperature 0~45℃
Discharge temperature -20~60℃
Size(L*W*H) 160x135x70mm Max
Weight 2.85Kg Approx
Cycle life >700
Wire/Connector TBD

This battery is made of 7S8P lithium-ion cells, long cycle life, and built-in BMS, which prevents the battery from overcharging, over-discharge, short circuits, and has temperature protection, cell balance functions, safe, stable, and non-polluting. Widely used for e-bikes, electric scooters, airplane models, power tools, golf carts, electric motorcycles, electric wheelchairs, etc.
