Battery Brand | VCELL/OEM |
Battery Type | Lithium-ion Battery(NCM) |
Model | INR18650-20S4P |
Nominal Voltage | 72V |
Nominal Capacity | 10.0Ah |
Charge Cut-Off Voltage | 84V |
Discharge Cut-Off Voltage | 60.0V |
Standard charge current | 2A |
Max charge current | 5A |
Standard discharge current | 30A |
Max continuous discharge current | 30A |
Peak discharge current | 100A(<3S ) |
Charge temperature | 0~45℃ |
Discharge temperature | -20~60℃ |
BMS | Overcharge/discharge, over current, short circuit, temperature protection, cell balance |
Size | 400*100*70 mm Max (can be customized) |
Weight | 4.1Kg Approx |
Cycle life | >700 |
Wire/Connector | TBD |

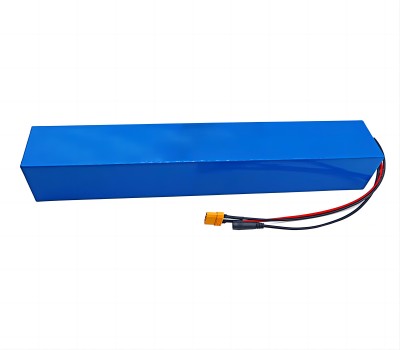

72V 10Ah Li-Ion Battery
Features:
1. High energy density
2. High working voltage for single battery cells
3. Pollution-free, environment friendly
4. Long cycle life, cycle life up to 700 cycles
5. Capacity, resistance, Voltage, and consistency are good
6. Built-in BMS, safe and reliable
7. Factory price & High quality
8. Light weight, small size
Applications: Electric Bike, Golf cart, Electric Scooter, electric skateboard, power wheelchair, etc
