Battery type: | LiFePo4 Battery |
Battery model: | VP-LF24-200 |
Nominal voltage: | 25.6V |
Nominal capacity: | 200.0Ah |
Charge cut-off voltage: | 29.2V |
Discharge cut-off voltage: | 16.0V |
Max charge current: | 200.0A |
Max discharge current: | 200.0A |
Cycle life: | >2500 Times @100% DOD,1C Charge/Discharge |
Weight: | Approx 88.0Kg |
Dimension: | 620*440*215mm |
BMS: | Over voltage, over current, short circuit, temperature protection, cell balance |

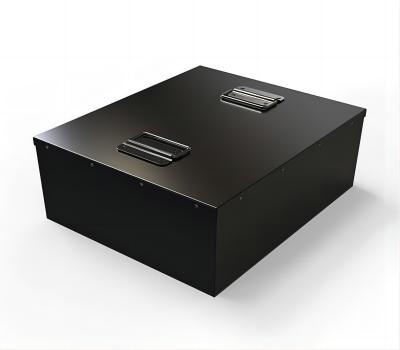

This 24V 200Ah battery is a deep-cycle lithium iron phosphate (LiFePO4) battery. It has twice the power, half the weight, and lasts much longer than its lead-acid counterparts. This powerful lithium battery packs a punch, giving you strong power for your life.
Application: RV, Caravan, Solar, Marine, Home Storage and Off-Grid, etc.
1. Lighter Weight: 50-60% less weight than lead-acid equivalent
2. Longer Life: Vcell Lifepo4 batteries provide longer life than lead-acid batteries, and they still provide 80% of rated capacity after 2500 cycles
3. Charge temperature: 0~45℃; Discharge temperature: -20~65℃; Storage temperature -20°C~50°C.
4. Faster charging and lower self-discharge
5. Built-in Battery Management System (BMS) protects it from overcharge, over-discharge, short circuits, etc.
6. Environment Friendly
