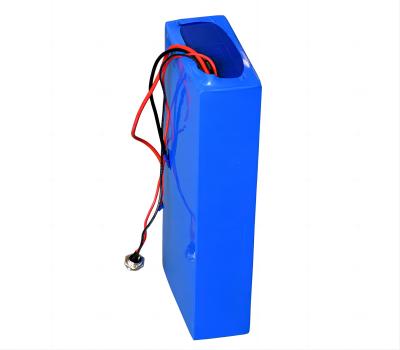

36V 10Ah Lithium Ion Battery Pack For Ebike

Battery type: Li Ion Battery
Battery model: VP-NCM18650-10S4P
Nominal voltage: 36V
Nominal capacity: 10Ah
Charge cut-off voltage: 42V
Discharge cut-off voltage: 27.5V
Max charge current: 10A
Max continuous discharge current: 15A
Peak discharge current: 20A
Charge  temperature: 0~45℃
Discharge temperature -20~60℃
Cycle life: >700 cycles @100% DOD,1C charge/discharge
Weight: Approx 2.1Kg
Dimension: 190*85*75mm/customizable
BMS: Over voltage, over current, short circuit, temperature protection, cell balance
Terminal Option

The Vcell Battery 36V 10Ah Li-Ion Battery is a state-of-the-art rechargeable battery pack made with Li-Ion cylindrical cells packed with black PVC shrink wrap. It is perfect for  Ebike, electric tricycles, electric scooters, electric vehicles, model aircraft, electric tools, golf carts, sightseeing coaches, electric motorcycles, power wheelchairs,

The Vcell battery has a built-in battery management system (BMS) that keeps the battery running at peak performance and protects the cells from over-charge, over-discharge, over-current, and short-circuit.

Feature:

1. Life expectancy is two times that of lead-acid batteries. The weight is lighter

2.No memory effect and rechargeable. the battery life is longer

3.  Battery voltage, capacity, and size support customization!

4. The outer layer of the battery pack is made of waterproof PVC material, insulation, anti-corrosion and wear resistance.

5.  Safer and more environmentally friendly, with No heavy metals and hazardous substances.
