48V 100AH Lithium Lifepo4 Battery Pack For AGV Golf Cart

Battery type: LIFEPO4 Battery
Battery model: VP-LF48-100U
Nominal voltage: 48V
Nominal capacity: 100.0Ah
Charge cut-off voltage: 54.75V
Discharge cut-off voltage: 30V
Standard Charge Current 20.0A
Maximum charge current: 100.0A
Max continuous discharge current: 100.0A
Maximum pack discharge current: 200.0A
Cycle life: >2000 Cycles @100% DOD,1C Charge/Discharge
Weight: Approx 70Kg
Dimension: 200mm*365mm*540mm
BMS: Over voltage, over current, short circuit, temperature protection, cell balance

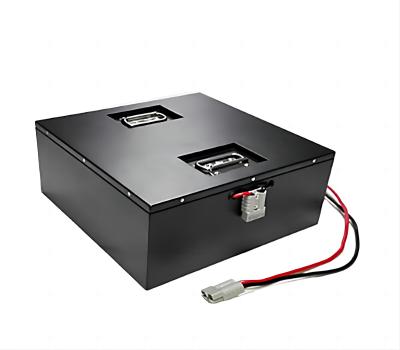

This 48V 100Ah LFP battery system has built-in BMS and stainless steel box painted in black.

1. Long cycle life (more than 2500 cycles at 100% DOD).

2. Built-in smart BMS with multiple protection and communication functions.

3. Wide working temperature range and high reliability.

4. Multiple battery units can be connected in parallel, suitable for high-energy storage applications.

5. Compatible with various charge controllers and inverters.

6. Application: E-car, E-bus, Golf trolley/ car, RV, AGV, Marine, Tourist car, Caravan, Solar-Wind Power System, City Grid (On/Off) Back-up solar System and UPS, Telcom Base, CATV system, Computer Server Center, Medical Instrument, Military Equipment Other Applications, etc.
