24V AGV Battery
DOWNLOAD.PDF
DOWNLOAD.WRD

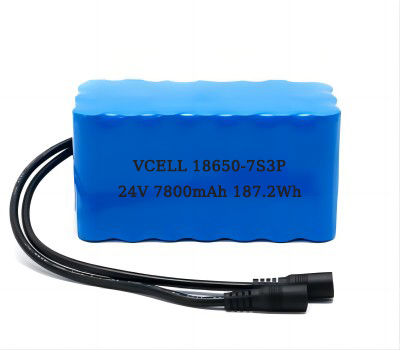

24V 7.8Ah 18650 Li-Ion Battery Pack For Cropper/Sprayer/Electric Scooter
| Battery Brand | VCELL/OEM |
| Battery Type | Lithium Ion Battery(NCM) |
| Model | 18650-7S3P |
| Nominal Voltage | 24V |
| Nominal Capacity | 7800mAh |
| Charge Cut-Off Voltage | 29.4V |
| Discharge Cut-Off Voltage | 19.6V |
| Charge current | 2A |
| Max continuous discharge current | 15A |
| Peak discharge current | 25A(<3S ) |
| Charge temperature | 0~45℃ |
| Discharge temperature | -20~60℃ |
| BMS | Overcharge/discharge, over current, short circuit, temperature protection, cell balance |
| Size | 132*58*68mm Max |
| Weight | 1.1Kg Approx |
| Cycle life | >700 |
| Wire/Connector | TBD |

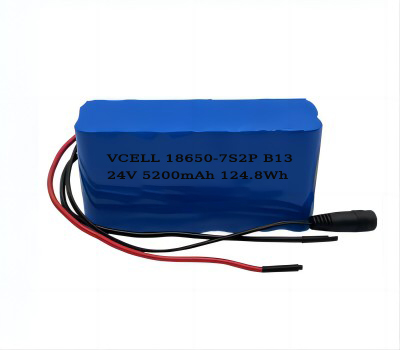

24V 5200mAh Rechargeable Lithium Ion Battery Pack
| Battery Brand | VCELL/OEM |
| Battery Type | Lithium Ion Battery(NCM) |
| Model | 18650-7S2P |
| Nominal Voltage | 24V |
| Nominal Capacity | 5200mAh |
| Charge Cut-Off Voltage | 29.4V |
| Discharge Cut-Off Voltage | 19.6V |
| Standard charge current | 2A |
| Max charge current | 3A |
| Standard discharge current | 2A |
| Max continuous discharge current | 7.5A |
| Peak discharge current | 15A(<3S ) |
| Charge temperature | 0~45℃ |
| Discharge temperature | -20~60℃ |
| BMS | Over charge/discharge, over current, short circuit, temperature protection, cell balance |
| Size(D*H) | 132*39*68mm Max Or Customized |
| Weight | 705g Approx |
| Cycle life | >700 |
| Wire/Connector | TBD |
VCELL 24V 13AH Lithium Battery For Electric Bike, Built-In BMS
| Battery Brand | VCELL/OEM |
| Battery Type | Li-Ion Battery |
| Model | VP24-13 |
| Nominal Voltage | 24V |
| Nominal Capacity | 13Ah |
| Cell Combination | 7S5P |
| Charge Cut-Off Voltage | 29.4V |
| Discharge Cut-Off Voltage | 19.25V |
| Standard Charge Current | 2A |
| Max Charge Current | 5A |
| Continuous Discharge Current | 15A |
| Peak Discharge Current | 45A |
| Matching Power | 250W/350W |
| Charge temperature | 0~45℃ |
| Discharge temperature | -20~65℃ |
| BMS | Overcharge/discharge, over current, short circuit, temperature protection, cell balance |
| Size | 145*100*70mm/Customized |
| Weight | Approx 1.8Kg |
| Cycle life | ≥800 cycles @80%DOD |

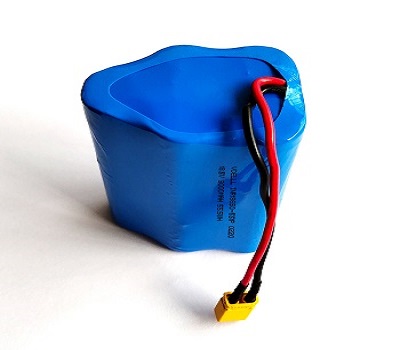

18.0V 3000mAh Lithium Battery Pack For Electric Scooter
| Battery type: | Li Ion Battery |
| Battery model: | VP-NCM18650-5S1P |
| Nominal voltage: | 18.0V |
| Nominal capacity: | 3000mAh |
| Charge cut-off voltage: | 21.0V |
| Discharge cut-off voltage: | 15.0V |
| Max charge current: | 3.0A |
| Max continuous discharge current: | 15.0A |
| Peak discharge current: | 30.0A |
| Charge temperature: | 0~45℃ |
| Discharge temperature | -20~60℃ |
| Cycle life: | >700 cycles @100% DOD,1C charge/discharge |
| Weight: | Approx 0.28Kg |
| Dimension: | 75*55*40mm |
| BMS: | Over voltage, over current, short circuit, temperature protection, cell balance |
| Terminal | XT60 |

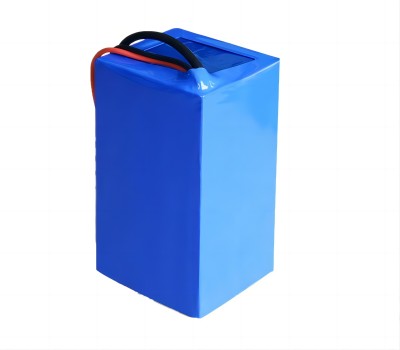

24V 8Ah Li-Ion Battery Pack For Electric Bike Wheelchair
| Battery Brand | VCELL/OEM |
| Battery Type | Lithium Ion Battery(NCM) |
| Model | 18650-7S4P-25 |
| Nominal Voltage | 24V |
| Nominal Capacity | 8Ah |
| Charge Cut-Off Voltage | 29.4V |
| Discharge Cut-Off Voltage | 19.6V |
| Standard Charge Current | 2A |
| BMS | 15A |
| The Maximum Peak Current | 30A |
| Matching Motor Power | 250W-500W |
| Charge temperature | 0~45℃ |
| Discharge temperature | -20~60℃ |
| Size(L*W*H) | 133*79*67mm Max or Custom |
| Weight | 1.45Kg Approx |
| Cycle life | >700 |
| Wire/Connector | TBD |
24V 10Ah Deep Cycle 18650 Li-Ion Battery For Electric Bike＆Scooter
| Battery type: | Li-Ion Battery |
| Battery model: | VP-NCM18650-7S4P |
| Nominal voltage: | 24V |
| Nominal capacity: | 10Ah |
| Charge cut-off voltage: | 29.4V |
| Discharge cut-off voltage: | 19.25V |
| Max charge current: | 10A |
| Max continuous discharge current: | 15A |
| Peak discharge current: | 30A |
| Charge temperature: | 0~45℃ |
| Discharge temperature | -20~60℃ |
| Cycle life: | >700 cycles @100% DOD,1C charge/discharge |
| Weight: | Approx 1.4Kg |
| Dimension: | 145*86*75mm/customization |
| BMS: | Over voltage, over current, short circuit, temperature protection, cell balance |
| Terminal | Option |
24V 12Ah Rechargeable LiFePo4 Battery Pack
| Battery type: | LiFePo4 Battery |
| Battery model: | VP-LF24-12 |
| Nominal voltage: | 25.6V |
| Nominal capacity: | 12Ah |
| Charge cut-off voltage: | 29.2V |
| Discharge cut-off voltage: | 16.0V |
| Continuous discharge current: | 36.0A |
| Maximum discharge current: | 60.0A(<3S) |
| Charge temperature: | 0~45℃ |
| Discharge temperature | -20~60℃ |
| Cycle life: | >2000 cycles @100% DOD,1C charge/discharge |
| Weight: | Approx 2.2Kg |
| Dimension: | 260*66*71mm(can customized) |
| BMS: | Over voltage, over current, short circuit, temperature protection, cell balance |
24V 15Ah Deep Cycle 18650 Lithium Ion Battery Pack
| Battery type: | Li-Ion Battery |
| Battery model: | VP-NCM18650-7S6P |
| Nominal voltage: | 24V |
| Nominal capacity: | 15Ah |
| Charge cut-off voltage: | 29.4V |
| Discharge cut-off voltage: | 19.25V |
| Max charge current: | 15.0A |
| Max continuous discharge current: | 20.0A |
| Peak discharge current: | 30.0A |
| Charge temperature: | 0~45℃ |
| Discharge temperature | -20~60℃ |
| Cycle life: | >700 cycles@100% DOD,1C charge/discharge |
| Weight: | Approx 2.2Kg |
| Dimension: | 150*125*75mm/customization |
| BMS: | Over voltage, over current, short circuit, temperature protection, cell balance |
| Terminal | Option |

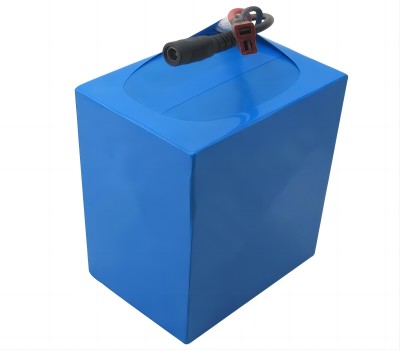

24V 16Ah 18650 Lithium-Ion Battery
| Battery Brand | VCELL/OEM |
| Battery Type | Lithium Ion Battery(NCM) |
| Model | INR18650-7S5P |
| Nominal Voltage | 24V |
| Nominal Capacity | 16Ah |
| Charge Cut-Off Voltage | 29.4V |
| Discharge Cut-Off Voltage | 19.25V |
| Standard charge current | 2A |
| BMS | 30A |
| Max continuous discharge current | 30A |
| Matching motor power | 250W-500W |
| Charge temperature | 0~45℃ |
| Discharge temperature | -20~60℃ |
| Size(L*W*H) | 135*100*69mm Max |
| Weight | 1.8Kg Approx |
| Cycle life | >700 |
| Wire/Connector | TBD |
24V 18.2Ah 18650 Rechargeable Li-Ion Battery
| Battery Brand | VCELL/OEM |
| Battery Type | Li-Ion Battery(NCM) |
| Model | 18650-7S7P |
| Nominal Voltage | 24V |
| Nominal Capacity | 18.2Ah |
| Charge Cut-Off Voltage | 29.4V |
| Discharge Cut-Off Voltage | 19.25V |
| Standard charge current | 2A |
| Max charge current | 5A |
| Max continuous discharge current | 20A |
| Charge temperature | 0~45℃ |
| Discharge temperature | -20~60℃ |
| BMS | Over charge/discharge, over current, short circuit, temperature protection, cell balance |
| Size(D*H) | 140*140*70mm Max |
| Weight | 2.5Kg Approx |
| Cycle life | >700 |
| Wire/Connector | TBD |
24V 20AH Lithium Ion Battery Pack For Golf Carts
| Battery type: | Li Ion Battery |
| Battery model: | VP-NCM18650-7S8P |
| Nominal voltage: | 24V |
| Nominal capacity: | 20Ah |
| Charge cut-off voltage: | 29.4V |
| Discharge cut-off voltage: | 19.25V |
| Max charge current: | 20A |
| Max continuous discharge current: | 30.0A |
| Peak discharge current: | 40.0A |
| Charge temperature: | 0~45℃ |
| Discharge temperature | -20~60℃ |
| Cycle life: | >700 cycles @100% DOD,1C charge/discharge |
| Weight: | Approx 2.8Kg |
| Dimension: | 130*160*70mm/customizable |
| BMS: | Over voltage, over current, short circuit, temperature protection, cell balance |
| Terminal | Option |
24V 24Ah LiFePO4 Battery Pack For Electric Bike
| Battery type: | Lifepo4 Battery |
| Battery model: | VP-LF24-24 |
| Nominal voltage: | 25.6V |
| Nominal capacity: | 24Ah |
| Charge cut-off voltage: | 29.2V |
| Discharge cut-off voltage: | 16.0V |
| Maximum charge current: | 5.0A |
| Continuous discharge current: | 24.0A |
| Maximum discharge current: | 48.0A(<3S) |
| Charge temperature: | 0~45℃ |
| Discharge temperature | -20~60℃ |
| Cycle life: | >2000 cycles @100% DOD,1C charge/discharge |
| Weight: | Approx 6.8Kg |
| Dimension: | 320mmx72mmx158mm/custom |
| BMS: | Over voltage, over current, short circuit, temperature protection, cell balance |
24V 25Ah Deep Cycle Lithium Ion Battery Pack
| Battery type: | Li-Ion Battery |
| Battery model: | VP-NCM18650-7S10P |
| Nominal voltage: | 24V |
| Nominal capacity: | 25Ah |
| Charge cut-off voltage: | 29.4V |
| Discharge cut-off voltage: | 19.25V |
| Max charge current: | 25A |
| Max continuous discharge current: | 35.0A |
| Peak discharge current: | 50.0A |
| Charge temperature: | 0~45℃ |
| Discharge temperature | -20~60℃ |
| Cycle life: | >700 cycles @100% DOD,1C charge/discharge |
| Weight: | Approx 3.7Kg |
| Dimension: | 145*200*70mm/custom |
| BMS: | Over voltage, over current, short circuit, temperature protection, cell balance |
| Terminal | Option |
24V 28Ah Electric Bicycle Li-Ion Battery
| Battery Brand | VCELL/OEM |
| Battery Type | Li-Ion Battery(NCM) |
| Model | 18650-7S8P |
| Nominal Voltage | 24V |
| Nominal Capacity | 28Ah |
| Charge Cut-Off Voltage | 29.4V |
| Discharge Cut-Off Voltage | 19.25V |
| Standard Charging Current | 2A |
| Max charge current | 5A |
| BMS | 20A |
| Max continuous discharge current | 20A |
| Match Motor Power | 250W-350W |
| Charge temperature | 0~45℃ |
| Discharge temperature | -20~60℃ |
| Size(L*W*H) | 160x135x70mm Max |
| Weight | 2.85Kg Approx |
| Cycle life | >700 |
| Wire/Connector | TBD |
24V 30Ah Li Ion Battery For Electric Scooter
| Battery type: | Li Ion Battery |
| Battery model: | VP-NCM18650-7S12P |
| Nominal voltage: | 24V |
| Nominal capacity: | 30Ah |
| Charge cut-off voltage: | 29.4V |
| Discharge cut-off voltage: | 19.25V |
| Max charge current: | 30A |
| Max continuous discharge current: | 40.0A |
| Peak discharge current: | 60.0A |
| Charge temperature: | 0~45℃ |
| Discharge temperature | -20~60℃ |
| Cycle life: | >700 cycles @100% DOD,1C charge/discharge |
| Weight: | Approx 4.3Kg |
| Dimension: | 145*240* 70mm/customizable |
| BMS: | Over voltage, over current, short circuit, temperature protection, cell balance |
| Terminal | Option |
24V 32Ah 18650 7S10P Electric Bicycle Moped Electric Li-Ion Battery Pack
| Battery Brand | VCELL/OEM |
| Battery Type | Lithium Ion Battery(NCM) |
| Model | INR18650-7S10P |
| Nominal Voltage | 24V |
| Nominal Capacity | 32.0Ah |
| Motor Power | 250W-500W |
| Charge Cut-Off Voltage | 29.4V |
| Discharge Cut-Off Voltage | 19.6V |
| Standard charge current | 2A |
| Max charge current | 5A |
| Max continuous discharge current | 20A |
| Peak discharge current | 30A(<3S ) |
| Charge temperature | 0~45℃ |
| Discharge temperature | -20~60℃ |
| BMS | Overcharge/discharge, over current, short circuit, temperature protection, cell balance |
| Size(D*H) | 150*210*70mm Max |
| Weight | 3.5Kg Approx |
| Cycle life | >700 |
| Wire/Connector | TBD |

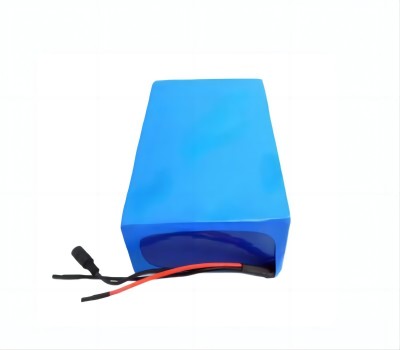

24V 35AH 1000W Electric Bicycle Li-Ion Battery, Built-In 50A BMS
| Battery Brand | VCELL/OEM |
| Battery Type | Li-Ion Battery(NCM) |
| Model | 18650-7S14P |
| Nominal Voltage | 24V |
| Nominal Capacity | 35Ah |
| Charge Cut-Off Voltage | 29.4V |
| Discharge Cut-Off Voltage | 19.25V |
| Standard charge current | 2A |
| Max charge current | 5A |
| Max continuous discharge current | 50A |
| Charge temperature | 0~45℃ |
| Discharge temperature | -20~60℃ |
| BMS | Overcharge/discharge, over current, short circuit, temperature protection, cell balance |
| Size | 270*145*70mm Max |
| Weight | 5Kg Approx |
| Cycle life | >700 |
| Wire/Connector | TBD |
24V 40Ah 1024Wh Lifepo4 Battery Pack For AGV Robot Forklift
| Battery type: | Lifepo4 Battery |
| Battery model: | VP-LF24-40 |
| Nominal voltage: | 25.6V |
| Nominal capacity: | 40Ah |
| Charge cut-off voltage: | 29.2V |
| Discharge cut-off voltage: | 16.0V |
| Max charge current: | 40.0A |
| Max continuous discharge current: | 40.0A |
| Peak discharge current: | 80.0A |
| Charge temperature: | 0~45℃ |
| Discharge temperature | -20~60℃ |
| Cycle life: | >2000 cycles @100% DOD,1C charge/discharge |
| Weight: | Approx 15Kg |
| Dimension: | 400*295*114mm |
| BMS: | Over voltage, over current, short circuit, temperature protection, cell balance |
24V 40AH 960Wh LiFePo4 Battery Pack For Scooter Electric Wheelchair
| Battery Brand | VCELL/OEM |
| Battery Type | Lithium Iron Phosphate Battery |
| Model | VP-LF24-40 |
| Nominal Voltage | 25.6V |
| Nominal Capacity | 40Ah |
| Charge Cut-Off Voltage | 29.2V |
| Discharge Cut-Off Voltage | 20.0V |
| Standard charge current | 8A |
| Max charge current | 40A |
| Standard discharge current | 8A |
| Max continuous discharge current | 120A |
| Peak discharge current | 200A(<3S ) |
| Charge temperature | 0~45℃ |
| Discharge temperature | -20~65℃ |
| BMS | Over charge/discharge, over current, short circuit, temperature protection, cell balance |
| Size(L*W*H) | 270*70*270mm Max or custom |
| Weight | 8.7Kg Approx |
| Cycle life | >2500 |
| Wire/Connector | TBD |
24V 50Ah Deep Cycle LiFePo4 Battery For AGV
| Battery type: | LiFePo4 Battery |
| Battery model: | VP-LF24-50U |
| Nominal voltage: | 25.6V |
| Nominal capacity: | 50.0Ah |
| Cell type | 26650 3.2V 3300mAh 8S15P |
| Charge cut-off voltage: | 28.8V |
| Discharge cut-off voltage: | 20.0V |
| Max charge current: | 30.0A |
| Max continuous discharge current: | 30.0A |
| Peak discharge current: | 90.0A |
| Cycle life: | >2000 cycles @100% DOD,1C Charge/Discharge |
| Weight: | Approx 19Kg |
| Dimension: | 330*310*120mm L*W*H |
| BMS: | Over voltage, over current, short circuit, temperature protection, cell balance |
24V 54Ah Lifepo4 Lithium Battery Pack For AGV Golf Cart
| Battery type: | Lifepo4 Battery |
| Battery model: | VP-LF24-54 |
| Nominal voltage: | 25.6V |
| Nominal capacity: | 54Ah |
| Charge cut-off voltage: | 29.2V |
| Discharge cut-off voltage: | 16.0V |
| Standard charge current: | 10.8A |
| Max charge current: | 30.0A |
| Max continuous discharge current: | 10.8A |
| Peak discharge current: | 120.0A(<1S) |
| Charge temperature: | 0~45℃ |
| Discharge temperature | -20~60℃ |
| Cycle life: | >2000 cycles @100% DOD,1C charge/discharge |
| Weight: | Approx 11.28Kg |
| Dimension: | 340x140x185mm/customization |
| BMS: | Over voltage, over current, short circuit, temperature protection, cell balance |

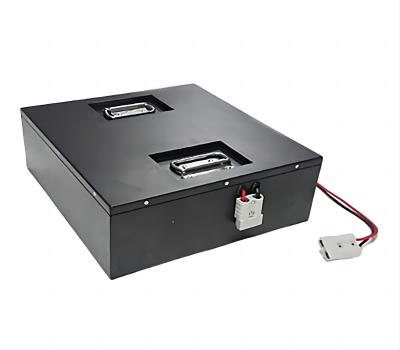

24V 60Ah Lifepo4 Battery Pack For AGV Forklift
| Battery type: | Lifepo4 Battery |
| Battery model: | VP-LF24-60 |
| Nominal voltage: | 25.6V |
| Nominal capacity: | 60Ah |
| Charge cut-off voltage: | 29.2V |
| Discharge cut-off voltage: | 16.0V |
| Max charge current: | 60.0A |
| Max continuous discharge current: | 60.0A |
| Peak discharge current: | 120.0A |
| Charge temperature: | 0~45℃ |
| Discharge temperature | -20~60℃ |
| Cycle life: | >2000 cycles @100% DOD,1C charge/discharge |
| Weight: | Approx 21Kg |
| Dimension: | 170*235*305mm/customized |
| BMS: | Over voltage, over current, short circuit, temperature protection, cell balance |
24V 70Ah Lithium-Ion Battery For AGV/RGV/MGV
| Battery type: | Lithium Ion Battery |
| Battery model: | VP24-70 |
| Nominal voltage: | 24V |
| Nominal capacity: | 70.0Ah |
| Charge cut-off voltage: | 29.4V |
| Discharge cut-off voltage: | 21.0V |
| Max charge current: | 50.0A |
| Max continuous discharge current: | 50.0A |
| Peak discharge current: | 150.0A |
| Cycle life: | >700 cycles |
| Weight: | Approx 14Kg |
| Dimension: | 320*240*120mm L*W*H |
| Charging temperature: | 0℃～45℃ |
| Discharge temperature: | -20℃～60℃ |
| Storage temperature: | -20℃～45℃ |
| BMS: | Over voltage, over current, short circuit, temperature protection, cell balance |
24V 80AH Lithium LiFePo4 Battery For Rail Flat Car
| Battery type: | LiFePo4 Battery |
| Battery model: | VP-LF24-80U |
| Nominal voltage: | 25.6V |
| Nominal capacity: | 80.0Ah |
| Charge cut-off voltage: | 28.8V |
| Discharge cut-off voltage: | 18.4V |
| Max charge current: | 50.0A |
| Max continuous discharge current: | 50.0A |
| Peak discharge current: | 160.0A |
| Cycle life: | >2000 cycles @100% DOD,1C Charge/Discharge |
| Weight: | Approx 24Kg |
| Dimension: | 170*260*350mm L*W*H |
| BMS: | Over voltage, over current, short circuit, temperature protection, cell balance |

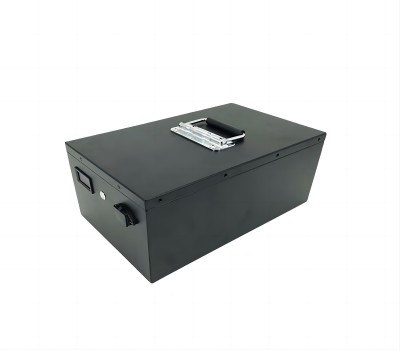

24V 100Ah 8S5P LiFePo4 Battery Pack For AGV/Robot/Forklift
| Battery Brand | VCELL/OEM |
| Battery Type | Lithium Iron Phosphate Battery |
| Model | VP-LF24-100 |
| Nominal Voltage | 25.6V |
| Nominal Capacity | 100Ah |
| Total Energy | 2.56KWh |
| Charge Cut-Off Voltage | 29.6V |
| Discharge Cut-Off Voltage | 20V |
| Standard charge current | 20A |
| Max charge current | 50A |
| Standard discharge current | 20A |
| Max continuous discharge current | 50A |
| Peak discharge current | 100A(<3S ) |
| Charge temperature | 0~45℃ |
| Discharge temperature | -20~60℃ |
| BMS | Over charge/discharge, over current, short circuit, temperature protection, cell balance |
| Size | 400*296*150mm Max |
| Weight | 30Kg Approx |
| Cycle life | >2000 |
| Communication | RS485,RS232 |

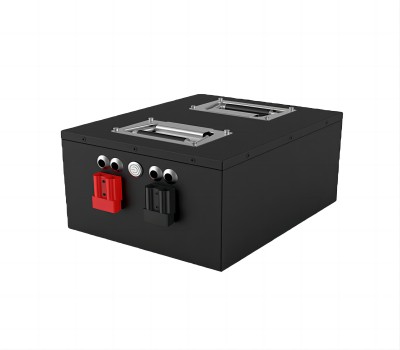

24V 150Ah Lithium Ion AGV Forklift Battery
| Battery type: | Lithium Ion Battery |
| Battery model: | NCM18650-48-150 |
| Nominal voltage: | 25.2V |
| Nominal capacity: | 150.0Ah |
| Total Energy | 3780Wh |
| Cell Model | 18650-7S60P |
| Charge cut-off voltage: | 29.4V |
| Discharge cut-off voltage: | 19.6V |
| Max charge current: | 75.0A |
| Max continuous discharge current: | 75.0A |
| Peak discharge current: | 150.0A |
| Cycle life: | >800 cycles |
| Weight: | Approx 28Kg |
| Dimension: | 650*230*170mm(LxWxH) |
| Charging temperature: | 0℃～45℃ |
| Discharge temperature: | -20℃～60℃ |
| Storage temperature: | -20℃～45℃ |
| BMS: | Over voltage, over current, short circuit, temperature protection, cell balance |
24V 200Ah Lithium 5120Wh Battery Pack For Forklift
| Battery Brand | VCELL/OEM |
| Battery Type | Lithium Iron Phosphate Battery |
| Model | LFP-8S2P |
| Nominal Voltage | 25.6V |
| Nominal Capacity | 200Ah |
| Charge Cut-Off Voltage | 29.2V |
| Discharge Cut-Off Voltage | 21.6V |
| Standard charge current | 40A |
| Max charge current | 100A |
| Standard discharge current | 100A |
| Peak discharge current | 250A(<3S ) |
| Charge temperature | 0~45℃ |
| Discharge temperature | -20~65℃ |
| BMS | Over charge/discharge, over current, short circuit, temperature protection, cell balance |
| Size | 620*440*215mm |
| Weight | 88KG Approx |
| Cycle life | ≥2000cycles @80%DOD |
| Case Material | Metal |
| Enclosure Protection | IP65 |
24V 300Ah AGV Robert LiFePo4 Battery Pack
| Battery Brand | VCELL/OEM |
| Battery Type | Lithium Iron Phosphate Battery |
| Model | VP-LF24-300 |
| Nominal Voltage | 25.6V |
| Nominal Capacity | 300Ah |
| Total Energy | 7680Wh |
| Series and Parallel Connection | 8S12P Prismatic Cell |
| Charge Cut-Off Voltage | 29.6V |
| Discharge Cut-Off Voltage | 20V |
| Standard charge current | 60A |
| Max charge current | 150A |
| Standard discharge current | 60A |
| Max continuous discharge current | 150A |
| Peak discharge current | 300A(<3S ) |
| Charge temperature | 0~45℃ |
| Discharge temperature | -20~60℃ |
| BMS | Over charge/discharge, over current, short circuit, temperature protection, cell balance |
| Size | 815*215*520mm Max |
| Weight | 86Kg Approx |
| Cycle life | >2000 |
| IP Level | IP65 |
