36V AGV Battery
DOWNLOAD.PDF
DOWNLOAD.WRD
28.8V 2600mAh 8S1P 18650 Rechargeable Li-Ion Battery
| Battery Brand | VCELL/OEM |
| Battery Type | Lithium Ion Battery(NCM) |
| Model | 18650-8S1P |
| Nominal Voltage | 28.8V |
| Nominal Capacity | 2600mAh |
| Charge Cut-Off Voltage | 33.6V |
| Discharge Cut-Off Voltage | 22V |
| Max Charge Current | 2.6A |
| Max continuous discharge current | 4A |
| Peak discharge current | 7.8A(<3S ) |
| Charge temperature | 0~45℃ |
| Discharge temperature | -20~60℃ |
| Size | 135*39*39mm Max Or Customized |
| Weight | 405g Approx |
| Cycle life | >700 |
| Wire/Connector | TBD |
VCELL LiFePo4 36V 150Ah Lithium Battery With BMS
| Battery Brand | VCELL/OEM |
| Battery Type | LiFePo4 Battery |
| Model | VP-LF36-150 |
| Nominal Voltage | 36V |
| Nominal Capacity | 150Ah |
| Charge Cut-Off Voltage | 43.8V |
| Discharge Cut-Off Voltage | 24.0V |
| Standard Charge Current | 10A |
| Max Charge Current | 30A |
| Max continuous discharge current | 80A |
| Peak discharge current | 100A(<3S ) |
| Charge temperature | 0~45℃ |
| Discharge temperature | -20~65℃ |
| BMS | Overcharge/discharge, over current, short circuit, temperature protection, cell balance |
| Size(D*H) | 270*300*520mm |
| Weight | 34-36Kg Approx |
| Cycle life | >2500 |
36V 4.4Ah Lithium-Ion Battery Pack For Electric Self-Balancing Scooter Unicycle
| Battery Brand | VCELL/OEM |
| Battery Type | Li-Ion Battery |
| Model | VP36-4400 |
| Nominal Voltage | 36V |
| Nominal Capacity | 4.4Ah |
| Cell Combination | 10S2P |
| Charge Cut-Off Voltage | 42V |
| Discharge Cut-Off Voltage | 27.5V |
| Charge Current | 2A |
| Continuous Discharge Current | 20A |
| Peak Discharge Current | 30A |
| Charge temperature | 0~45℃ |
| Discharge temperature | -20~65℃ |
| Size | 135*75*60mm |
| Weight | Approx 970g |
| Cycle life | ≥800 cycles @80%DOD |
36V 18Ah Lithium Ion Battery Pack For Electric Bike
| Battery Brand | VCELL/OEM |
| Battery Type | Li-Ion Battery |
| Model | VP36-18 |
| Nominal Voltage | 36V |
| Nominal Capacity | 18Ah |
| Cell Combination | 10S6P |
| Charge Cut-Off Voltage | 42V |
| Discharge Cut-Off Voltage | 36.4V |
| Charge Current | 2A |
| BMS | 20A |
| Fit For Motor | 36V 250W 350W 500W |
| Charge temperature | 0~45℃ |
| Discharge temperature | -20~65℃ |
| Size | 190*116*70mm/Customized |
| Weight | Approx 3.1Kg |
| Cycle life | ≥800 cycles @80%DOD |
36V 24Ah Lithium Ion Battery For Ebike Electric Scooter With BMS Protection
| Battery Brand | VCELL/OEM |
| Battery Type | Lifepo4 Battery |
| Model | VP36-24 |
| Nominal Voltage | 36V |
| Nominal Capacity | 24Ah |
| Cell Combination | 12S4P |
| Charge Cut-Off Voltage | 43.8V |
| Discharge Cut-Off Voltage | 30.0V |
| Standard Charge Current | 2A |
| Max Charge Current | 5A |
| Continuous Discharge Current | 30A |
| Peak Discharge Current | 90A |
| Matching Power | 250W/350W/500W |
| Charge temperature | 0~45℃ |
| Discharge temperature | -20~65℃ |
| BMS | Overcharge/discharge, over current, short circuit, temperature protection, cell balance |
| Size | 400x140x75mm/Customized |
| Weight | Approx.3.4Kg |
| Cycle life | ≥800 cycles @80%DOD |
VCELL Powerful 36V 60Ah Lithium ion Battery With BMS
| Battery Brand | VCELL/OEM |
| Battery Type | Li-Ion Battery |
| Model | VP36-60 |
| Nominal Voltage | 36V |
| Nominal Capacity | 60Ah |
| Place of Origin: | China |
| MOQ | 10PCS |
| Delivery Time: | Within 20 days |
| Packaging Details: | 1pcs per carton |
| Payment Terms: | L/C, T/T, Paypal |
| Supply Ability: | 100 pcs per day |

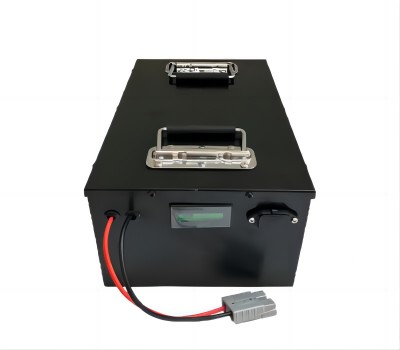

36V 80Ah Lithium Battery With BMS For Yacht RV Marine
| Battery Brand | VCELL/OEM |
| Battery Type | Lifepo4 Battery |
| Model | VP-36-80 |
| Nominal Voltage | 36V |
| Nominal Capacity | 80Ah |
| Place of Origin: | China |
| MOQ | 10PCS |
| Delivery Time: | Within 20 days |
| Packaging Details: | 1pcs per carton |
| Payment Terms: | L/C, T/T, Paypal |
| Supply Ability: | 100 pcs per day |
36V 16Ah Lithium Ion Battery Pack For Electric Bicycle
| Battery Brand | VCELL/OEM |
| Battery Type | Li-Ion Battery(NCM) |
| Model | 18650-10S5P |
| Nominal Voltage | 36V |
| Nominal Capacity | 16Ah |
| Charge Cut-Off Voltage | 42V |
| Discharge Cut-Off Voltage | 27.5V |
| Standard charge current | 2A |
| BMS | 20A |
| Max continuous discharge current | 20A |
| Matching motor power | 250W-500W |
| Charge temperature | 0~45℃ |
| Discharge temperature | -20~60℃ |
| Size(L*W*H) | 190*100*70mm Max |
| Weight | 2.55Kg Approx |
| Cycle life | >700 |
| Wire/Connector | TBD |
36V 14Ah 10S4P 18650 Rechargeable Ebike Battery Pack With 20A BMS
| Battery Brand | VCELL/OEM |
| Battery Type | Lithium Ion Battery(NCM) |
| Model | 18650-10S4P |
| Nominal Voltage | 36V |
| Nominal Capacity | 14Ah |
| Charge Cut-Off Voltage | 42V |
| Discharge Cut-Off Voltage | 27.5V |
| Charge current | 2A |
| Max continuous discharge current | 20A |
| BMS | 20A |
| Matching Motor Power | 250W-500W |
| Charge temperature | 0~45℃ |
| Discharge temperature | -20~60℃ |
| Size(L*W*H) | 190*80*70mm Max or Custom |
| Weight | 2.05Kg Approx |
| Cycle life | >700 |
| Wire/Connector | TBD |
High Capacity 36V 32Ah 10S10P 18650 Li-Ion Battery Pack
| Battery Brand | VCELL/OEM |
| Battery Type | Lithium Ion Battery(NCM) |
| Model | INR18650-10S10P |
| Nominal Voltage | 36V |
| Nominal Capacity | 32Ah |
| Charge Cut-Off Voltage | 42V |
| Discharge Cut-Off Voltage | 30V |
| Standard charge current | 2A |
| Max charge current | 5A |
| Standard discharge current | 10A |
| Max continuous discharge current | 20A |
| Peak discharge current | 50A(<3S ) |
| Charge temperature | 0~45℃ |
| Discharge temperature | -20~60℃ |
| BMS | Overcharge/discharge, over current, short circuit, temperature protection, cell balance |
| Size(D*H) | 220*220*70mm Max/Custom |
| Weight | 5Kg Approx |
| Cycle life | >700 |
| Wire/Connector | TBD |
Customized Li-Ion 36V 28AH 10S8P 18650 Battery Pack WIth PVC Case
| Battery Brand | VCELL/OEM |
| Battery Type | Lithium-ion Battery(NCM) |
| Model | 18650-10S8P |
| Nominal Voltage | 36V |
| Nominal Capacity | 28Ah |
| Charge Cut-Off Voltage | 42V |
| Discharge Cut-Off Voltage | 27.5V |
| Standard charge current | 2A |
| Max charge current | 5A |
| Max continuous discharge current | 50A |
| Peak discharge current | 150A(<3S ) |
| Fit Motor | 250W-1200W |
| Charge temperature | 0~45℃ |
| Discharge temperature | -20~60℃ |
| BMS | Overcharge/discharge, over current, short circuit, temperature protection, cell balance |
| Size | 200*160*70mm Max (can be customized) |
| Weight | 4.1Kg Approx |
| Cycle life | >700 |
| Wire/Connector | TBD |

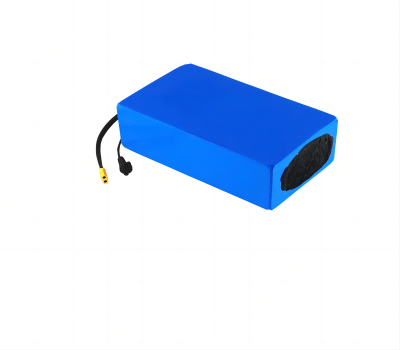

36V 35AH E-Bike Tricycle Li-Ion Battery Pack, INR21700 10S7P
| Battery Brand | VCELL/OEM |
| Battery Type | Lithium-Ion Battery(NCM) |
| Model | 21700-10S7P |
| Nominal Voltage | 36V |
| Nominal Capacity | 35Ah |
| Charge Cut-Off Voltage | 42V |
| Discharge Cut-Off Voltage | 30V |
| Max Charge Current | 5A |
| Standard Discharging Current | 7A |
| Max Continuous Discharging Current | 52.5A |
| Max Discharging Current | 105A |
| Charge Temperature | 0~45℃ |
| Discharge Temperature | -20~60℃ |
| BMS | Over charge/discharge, over current, short circuit, temperature protection, cell balance |
| Size | 217*154*74mm Max/custom |
| Weight | 5.3Kg Approx |
| Cycle life | >700 |
| Wire/Connector | TBD |
36V 45Ah 10S9P 21700 Lithium Ion Battery Pack
| Battery Brand | VCELL/OEM |
| Battery Type | Lithium Ion Battery(NCM) |
| Model | 21700-10S9P |
| Nominal Voltage | 36V |
| Nominal Capacity | 45Ah |
| Charge Cut-Off Voltage | 42V |
| Discharge Cut-Off Voltage | 30V |
| Max Charge Current | 5A |
| Standard Discharging Current | 30A |
| Max Continuous Discharging Current | 30A |
| Max Discharging Current | 60A |
| Fit Motor | 300W-1000W |
| Charge Temperature | 0~45℃ |
| Discharge Temperature | -20~60℃ |
| BMS | Over charge/discharge, over current, short circuit, temperature protection, cell balance |
| Size | 230*200*75mm Max/custom |
| Weight | 6.8Kg Approx |
| Cycle life | >700 |
| Wire/Connector | TBD |
36V 75Ah 10S15P 21700 Lithium Ion Battery, Built-In 30A BMS
| Battery Brand | VCELL/OEM |
| Battery Type | Lithium Ion Battery(NCM) |
| Model | 21700-10S15P |
| Nominal Voltage | 36V |
| Nominal Capacity | 75Ah |
| Charge Cut-Off Voltage | 42V |
| Discharge Cut-Off Voltage | 30V |
| Max Charge Current | 5A |
| Standard Discharging Current | 30A |
| Max Continuous Discharging Current | 30A |
| Max Discharging Current | 60A |
| Fit Motor | 300W-1000W |
| Charge Temperature | 0~45℃ |
| Discharge Temperature | -20~60℃ |
| BMS | Over charge/discharge, over current, short circuit, temperature protection, cell balance |
| Size | 330*215*75mm Max/custom |
| Weight | 10.5Kg Approx |
| Cycle life | >700 |
| Wire/Connector | TBD |
36V 11.6AH 18650 10S4P Li-Ion Battery Pack For Electric Bicycle
| Battery Brand | VCELL/OEM |
| Battery Type | Lithium-ion Battery(NCM) |
| Model | 18650-10S4P |
| Nominal Voltage | 36V |
| Nominal Capacity | 11.6Ah |
| Charge Cut-Off Voltage | 42V |
| Discharge Cut-Off Voltage | 30V |
| Max charge current | 2A |
| BMS | 20A |
| Fit Motor | 250W-500W |
| Charge temperature | 0~45℃ |
| Discharge temperature | -20~60℃ |
| Battery protection | Over charge/discharge, over current, short circuit, temperature protection, cell balance |
| Size(L*W*H) | 187*75*68mm Max/custom |
| Weight | 2.1Kg Approx |
| Cycle life | >700 |
| Wire/Connector | TBD |
36V 10.4Ah 10S4P 18650 Li-Ion Battery For 250W 500W Ebike E-Scooter
| Battery Brand | VCELL/OEM |
| Battery Type | Lithium Ion Battery(NCM) |
| Model | 18650-10S4P |
| Nominal Voltage | 36V |
| Nominal Capacity | 10.4Ah |
| Charge Cut-Off Voltage | 42V |
| Discharge Cut-Off Voltage | 30V |
| Max charge current | 2A |
| BMS | 20A |
| Fit Motor | 250W-500W |
| Charge temperature | 0~45℃ |
| Discharge temperature | -20~60℃ |
| Battery protection | Over charge/discharge, over current, short circuit, temperature protection, cell balance |
| Size(L*W*H) | 187*75*20mm Max/custom |
| Weight | 2.05Kg Approx |
| Cycle life | >700 |
| Wire/Connector | TBD |

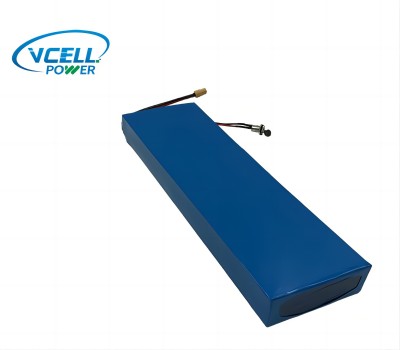

36V 13AH 10S5P Rechargeable Li-Ion Battery For Electric Scooter
| Battery Brand | VCELL/OEM |
| Battery Type | Lithium Ion Battery(NCM) |
| Model | 18650-10S5P |
| Nominal Voltage | 36V |
| Nominal Capacity | 13Ah |
| Charge Cut-Off Voltage | 42V |
| Discharge Cut-Off Voltage | 30V |
| Max charge current | 2A |
| BMS | 20A |
| Fit Motor | 250W-500W |
| Charge temperature | 0~45℃ |
| Discharge temperature | -20~60℃ |
| Battery protection | Over charge/discharge, over current, short circuit, temperature protection, cell balance |
| Size(L*W*H) | 187*95*20mm Max/custom |
| Weight | 2.55Kg Approx |
| Cycle life | >700 |
| Wire/Connector | TBD |
36V 50Ah 18650 Rechargeable Lithium Ion Battery,10S25P
| Battery type: | Lithium Ion Battery |
| Battery model: | VP36-50 |
| Nominal voltage: | 36V |
| Nominal capacity: | 50.0Ah |
| Cell Model | 18650-10S25P |
| Charge cut-off voltage: | 42.0V |
| Discharge cut-off voltage: | 30.0V |
| Max charge current: | 20.0A |
| Max continuous discharge current: | 40.0A |
| Peak discharge current: | 120.0A |
| Cycle life: | >700 cycles |
| Weight: | Approx 13.5Kg |
| Dimension: | 80x255x465mm |
| Charging temperature: | 0℃～45℃ |
| Discharge temperature: | -20℃～60℃ |
| Storage temperature: | -20℃～45℃ |
| BMS: | Over voltage, over current, short circuit, temperature protection, cell balance |
36V 40Ah 10S20P 1860 Li-Ion Battery Pack
| Battery type: | Lithium Ion Battery |
| Battery model: | VP36-40 |
| Nominal voltage: | 36V |
| Nominal capacity: | 40.0Ah |
| Cell Model | 18650-10S20P |
| Charge cut-off voltage: | 42.0V |
| Discharge cut-off voltage: | 30.0V |
| Max charge current: | 20.0A |
| Max continuous discharge current: | 30.0A |
| Peak discharge current: | 85.0A |
| Cycle life: | >700 cycles |
| Weight: | Approx 9.7Kg |
| Dimension: | 80x275x340mm |
| Charging temperature: | 0℃～45℃ |
| Discharge temperature: | -20℃～60℃ |
| Storage temperature: | -20℃～45℃ |
| BMS: | Over voltage, over current, short circuit, temperature protection, cell balance |

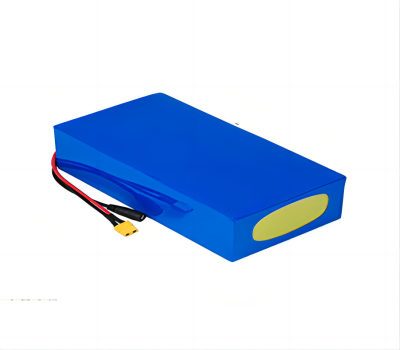

36V 17.5AH 18650 Lithium Ion Battery Pack
| Battery type: | Li-Ion Battery |
| Battery model: | VP-NCM18650-10S5P |
| Nominal voltage: | 36V |
| Nominal capacity: | 17.5Ah |
| Charge cut-off voltage: | 42V |
| Discharge cut-off voltage: | 27.5V |
| Max charge current: | 5A |
| Max discharge current: | 50A |
| Charge temperature: | 0~45℃ |
| Discharge temperature | -20~60℃ |
| Cycle life: | >700 cycles @100% DOD,1C charge/discharge |
| Weight: | Approx 2.8Kg |
| Dimension: | 200*95*70mm/custom |
| BMS: | Over voltage, over current, short circuit, temperature protection, cell balance |
| Terminal | Option |
36V 7.8AH 18650 Li-Ion Battery Pack For Electric Scooter
| Battery type: | Li-Ion Battery |
| Battery model: | VP-NCM18650-10S3P |
| Nominal voltage: | 36V |
| Nominal capacity: | 7.8Ah |
| Charge cut-off voltage: | 42V |
| Discharge cut-off voltage: | 27.5V |
| Max charge current: | 1C |
| Max continuous discharge current: | 3C |
| Peak discharge current: | 5C |
| Charge temperature: | 0~45℃ |
| Discharge temperature | -20~60℃ |
| Cycle life: | >700 cycles @100% DOD,1C charge/discharge |
| Weight: | Approx 1.6Kg |
| Dimension: | 190*70*59mm/customization |
| BMS: | Over voltage, over current, short circuit, temperature protection, cell balance |
| Terminal | Option |
36V 30Ah 18650 Rechargeable Li-Ion Battery Pack For Electric Bicycle
| Battery type: | Li-Ion Battery |
| Battery model: | VP-NCM18650-10S12P |
| Nominal voltage: | 36V |
| Nominal capacity: | 30Ah |
| Charge cut-off voltage: | 42V |
| Discharge cut-off voltage: | 27.5V |
| Max charge current: | 30.0A |
| Max continuous discharge current: | 45.0A |
| Peak discharge current: | 60.0A |
| Charge temperature: | 0~45℃ |
| Discharge temperature | -20~60℃ |
| Cycle life: | >700 cycles@100% DOD,1C charge/discharge |
| Weight: | Approx 6.1Kg |
| Dimension: | 210*240*75mm/customization |
| BMS: | Over voltage, over current, short circuit, temperature protection, cell balance |
| Terminal | Option |
36V 25Ah Li-Ion Battery Pack For E-Bike Electric Scooter
| Battery type: | Li-Ion Battery |
| Battery model: | VP-NCM18650-10S10P |
| Nominal voltage: | 36V |
| Nominal capacity: | 25Ah |
| Charge cut-off voltage: | 42V |
| Discharge cut-off voltage: | 27.5V |
| Max charge current: | 25.0A |
| Max continuous discharge current: | 40.0A |
| Peak discharge current: | 50.0A |
| Charge temperature: | 0~45℃ |
| Discharge temperature | -20~60℃ |
| Cycle life: | >700 cycles@100% DOD,1C charge/discharge |
| Weight: | Approx 5.1Kg |
| Dimension: | 210*210*75mm/customization |
| BMS: | Over voltage, over current, short circuit, temperature protection, cell balance |
| Terminal | Option |
36V 20Ah Lithium Ion Battery Pack For Electric Bike Electric Scooter
| Battery type: | Li-Ion Battery |
| Battery model: | VP-NCM18650-10S8P |
| Nominal voltage: | 36V |
| Nominal capacity: | 20Ah |
| Charge cut-off voltage: | 42V |
| Discharge cut-off voltage: | 27.5V |
| Max charge current: | 20.0A |
| Max continuous discharge current: | 30.0A |
| Peak discharge current: | 40.0A |
| Charge temperature: | 0~45℃ |
| Discharge temperature | -20~60℃ |
| Cycle life: | >700 cycles@100% DOD,1C charge/discharge |
| Weight: | Approx 4.1Kg |
| Dimension: | 200*165*75mm/customization |
| BMS: | Over voltage, over current, short circuit, temperature protection, cell balance |
| Terminal | Option |
36V 15Ah Lithium Ion Battery Pack For Electric Bicycle Scooter
| Battery type: | Li Ion Battery |
| Battery model: | VP-NCM18650-10S6P |
| Nominal voltage: | 36V |
| Nominal capacity: | 15Ah |
| Charge cut-off voltage: | 42V |
| Discharge cut-off voltage: | 27.5V |
| Max charge current: | 15A |
| Max continuous discharge current: | 20A |
| Peak discharge current: | 30A |
| Charge temperature: | 0~45℃ |
| Discharge temperature | -20~60℃ |
| Cycle life: | >700 cycles @100% DOD,1C charge/discharge |
| Weight: | Approx 3Kg |
| Dimension: | 190*125*70mm/custom |
| BMS: | Over voltage, over current, short circuit, temperature protection, cell balance |
| Terminal | Option |
36V 10Ah Lithium Ion Battery Pack For Ebike
| Battery type: | Li Ion Battery |
| Battery model: | VP-NCM18650-10S4P |
| Nominal voltage: | 36V |
| Nominal capacity: | 10Ah |
| Charge cut-off voltage: | 42V |
| Discharge cut-off voltage: | 27.5V |
| Max charge current: | 10A |
| Max continuous discharge current: | 15A |
| Peak discharge current: | 20A |
| Charge temperature: | 0~45℃ |
| Discharge temperature | -20~60℃ |
| Cycle life: | >700 cycles @100% DOD,1C charge/discharge |
| Weight: | Approx 2.1Kg |
| Dimension: | 190*85*75mm/customizable |
| BMS: | Over voltage, over current, short circuit, temperature protection, cell balance |
| Terminal | Option |
