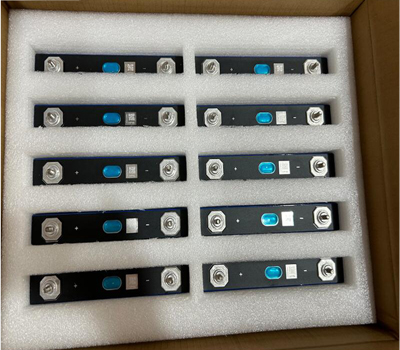

3.2V 150Ah Prismatic LiFePO4 Battery Cell

Type Lithium Iron Phosphate(Lifepo4)Cell
Model LF150
Nominal voltage 3.2V
Nominal capacity 150Ah
Charge cut-off voltage 3.65V
Discharge cut-off voltage 2.5V
Standard Charge Current 75A
Max charge current 150A
Max Continuous discharge current 150A
Peak discharge current 300A(1-3S)
Charge temperature 0~55℃
Discharge temperature -20~65℃
Internal Resistance ≤0.4mΩ
Cycle life ≥4000 cycles @0.5C/0.5C at 25℃
Battery Weight Approx 2.9Kg
Battery Dimension 200.7±0.5mm*33.25±0.5mm*207±0.5mm
Terminal M6*10mm

3.2V 150Ah Prismatic LiFePO4 cells, more than 4000 times cycle life, excellent consistency, low self-discharge, environmentally friendly, safe and economical, no memory effects. Usually used for Solar Energy Storage Solar power system UPS, Engine starting battery, electric bicycle/motorcycle/scooter, golf trolley/carts, power tools…Solar and wind power system, RV, caravan…
