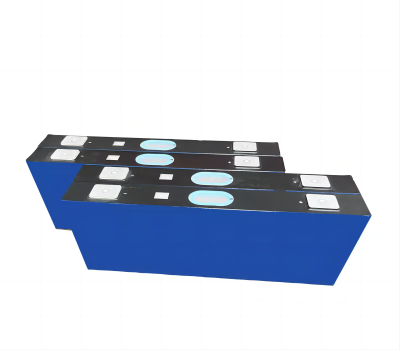

3.7V 256AH Prismatic Lithium Ion Battery Cell
| Battery type: | Lithium Ion Cell(NCM) |
| Model: | NCM256 |
| Nominal voltage: | 3.7V |
| Nominal capacity: | 256Ah |
| Charge cut-off voltage: | 4.2V |
| Discharge cut-off voltage: | 2.75V |
| Max charge current: | 256A |
| Max continuous discharge current: | 768A |
| Peak discharge current: | 1280A |
| Charge temperature: | 0~45℃ |
| Discharge temperature: | -20~60℃ |
| Internal resistance: | ≤0.4mΩ |
| Cycle life: | >2000 cycles at 25℃ |
| Weight: | Approx 3.45±0.05kg |
| Dimension(L*W*H): | 300mm*37mm*127mm |
Feature:
1.High energy density, lower self discharge
2. Outstanding cycle life with maximum reliability
3. Possible to form modules that are suitable for various pack structures
4. Wide application: EV, RV, Electric fork lift, back-up power, solar storage, etc.
5. Easily to assemble battery pack, we provide cells connectors and technical support, or we can customize battery pack according to your requirements.
