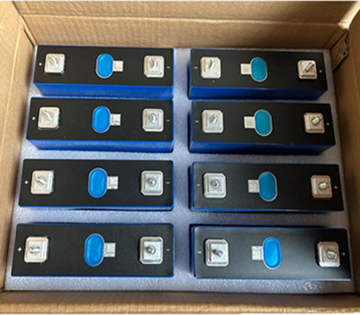

3.2V 230Ah Deep Cycle Prismatic LiFePO4 Battery Cell
3.2V 230Ah Deep Cycle Prismatic LiFePO4 Battery Cell
3.2V 230Ah Deep Cycle Prismatic LiFePO4 Battery Cell
Main Image
3.2V 230Ah Deep Cycle Prismatic LiFePO4 Battery Cell
3.2V 230Ah Deep Cycle Prismatic LiFePO4 Battery Cell

3.2V 230Ah Deep Cycle Prismatic LiFePO4 Battery Cell

TypeLithium Iron Phosphate(Lifepo4)Cell
ModelLF230
Nominal voltage3.2V
Nominal capacity230Ah
Charge cut-off voltage3.65V
Discharge cut-off voltage2.5V
Max charge current230A
Max Continuous discharge current230A
Peak discharge current460A(1-3S)
Charge temperature0~55℃
Discharge temperature-20~65℃
Internal Resistance≤0.25mΩ
Cycle life≥4000 cycles @0.5C/0.5C at 25℃
Battery WeightApprox?4.3Kg
Battery Dimension173.9±0.5mm*53.85±0.5mm*207.2±0.5mm
TerminalM6*10mm

enquiry now

3.2V 230Ah Prismatic LiFePO4 cells, more than 4000 times cycle life, excellent consistency, low self-discharge, environmentally friendly, safe and economical, no memory effects. Usually used for Solar Energy Storage Solar power system UPS, Engine starting battery, electric bicycle/motorcycle/scooter, golf trolley/carts, power tools…Solar and wind power system, RV, caravan…
